Takes the BNC line on a push-jack interface

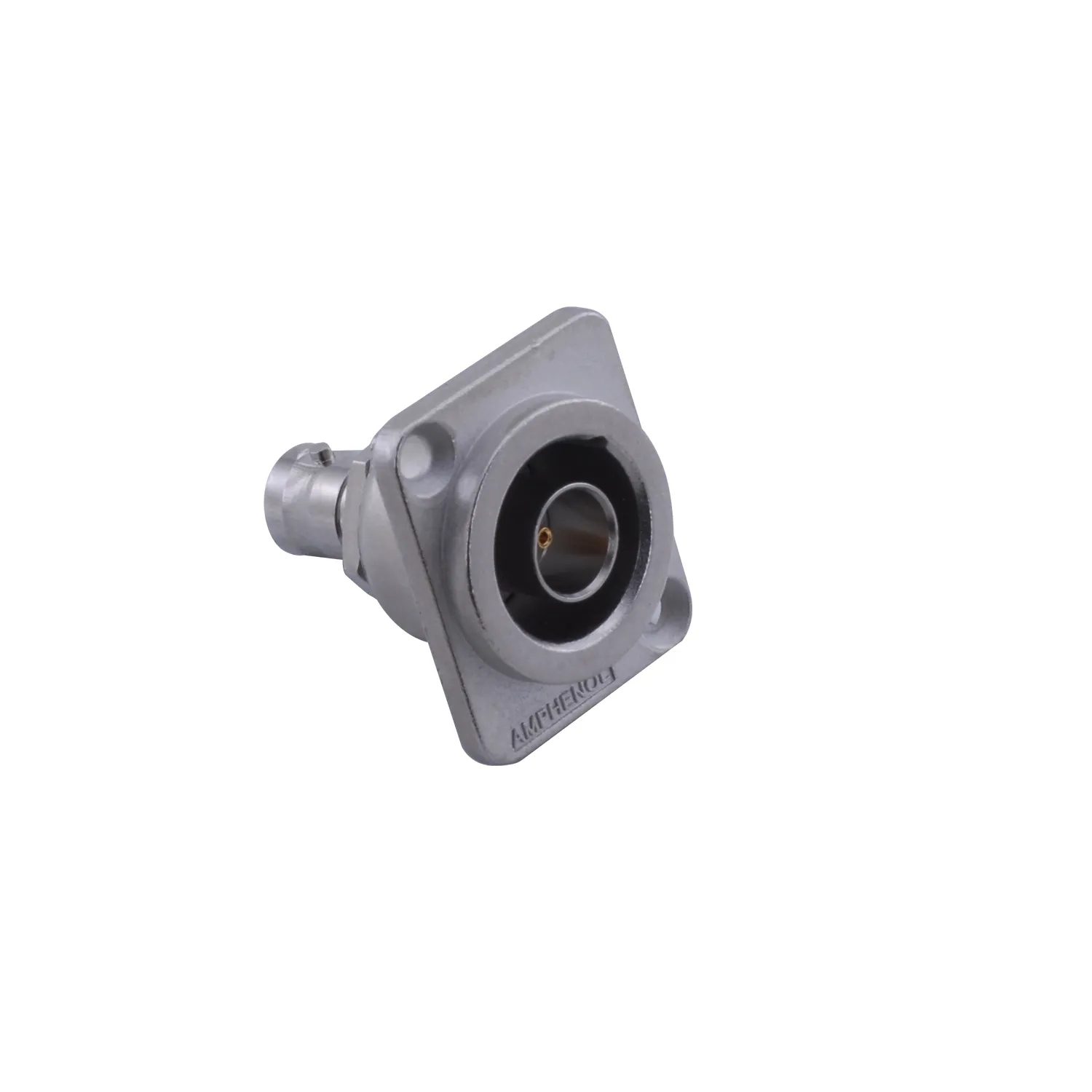

A BNC push-jack female connector prepared for chassis mounting. In broadcast and video setups it forms the BNC inlet on the panel and takes the mating plug directly.
75 Ωimpedance
BNCconnector type
Push-jackfemale interface
Chassismounting form
Key features
Push-jack couplingThe female push-jack interface accepts the mating plug in one motion and terminates the line at the panel.
75 Ω impedanceIts characteristic impedance is 75 Ω and fits the layout of broadcast and video lines.
BNC interfaceIt mates with the BNC interface common to broadcast, studio and video equipment.
Chassis mountingIt seats on the panel surface; the cable stays outside the enclosure and the link stays on the panel.
Usage areasBroadcast·High-bandwidth video equipment·D1/D2 serial digital·Graphics workstations·Telephone and workstations
