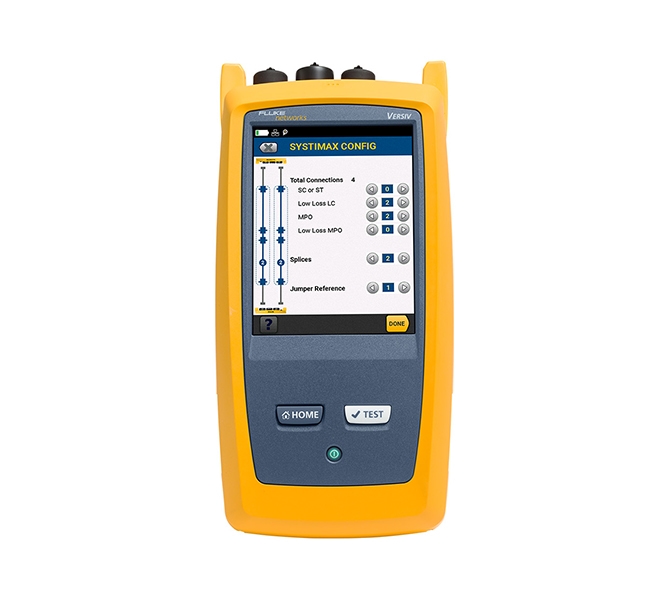

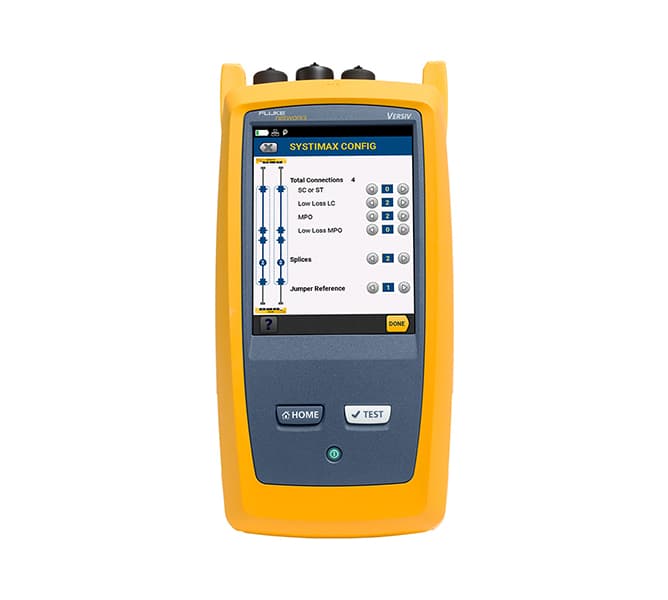

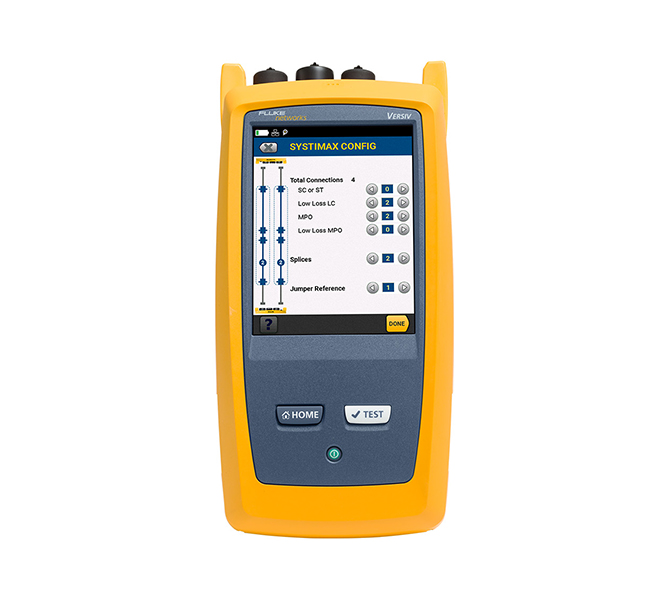

Stock Code: CertiFiber®
| Power Meter Specifications | |
|---|---|
| Input Connector | Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
| Detector Type | InGaAs |
| Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Power Measurement Range | 0 dBm to -65 dBm (850 nm), 0 dBm to -70 dBm (all other wavelengths) |
| Power Measurement Uncertainty | < ± 5% ± 32 pW |
| Measurement Linearity | < ± 0.1 dB |
| Re-calibration Period | 1 year |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Loss/Length Specifications | |
| Specification | CertiFiber Pro Multimode Modules / CertiFiber Pro Singlemode Modules |
| Testing Speeds (excludes referencing times) | Multimode and Singlemode — Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection); Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction, auto wavelength detection); Loopback mode: ≤ 2 seconds (2 wavelengths, one direction, auto wavelength detection) |
| Input/Output Connectors | Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
| Launch Condition | Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 |
| Fiber Types Tested | Multimode: 50/125 µm or 62.5/125 µm — Singlemode: Singlemode |
| Source Type and Wavelengths | Multimode: LED source 850 nm ± 30 nm, 1300 nm ± 20 nm — Singlemode: Fabry-Perot laser diode 1310 nm ± 20 nm, 1550 nm ± 30 nm |
| Maximum Length Measurement | Multimode: 12 km — Singlemode: 130 km |
| Length Measurement Accuracy | ± 1.5 m plus ± 1 % of length |
| Output Power (Nominal) | Multimode: ≥ -24 dBm with EF-TRC — Singlemode: ≥ -4 dBm |
| Output Power Stability | Multimode: ± 0.05 dB over 8 hours, ± 0.03 dB over 15 minutes — Singlemode: ± 0.1 dB over 8 hours, ± 0.08 dB over 15 minutes |
| Loss/Length Specifications (continued) | |
| Source Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Power Measurement Range | 0 dBm to -65 dBm (850 nm), 0 dBm to -70 dBm (all other wavelengths) |
| Power Measurement Uncertainty | < ± 5% ± 32 pW |
| Measurement Linearity | < ± 0.1 dB |
| Re-calibration Period | 1 year |
| Selected Specifications — Visual Fault Locator (VFL) | |
| Output Power | > -5 dBm, < 0 dBm; SMF-28 singlemode fiber; continuous wave (CW); SC/UPC connector |
| Operating Wavelength | 650 nm nominal |
| Output Modes | Continuous wave; Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Connector Adapter | 2.5 mm universal |
| Laser Safety | Class II CDRH; over operating temperature range |
| Environmental Specifications | |
| Operating Temperature | -18°C to 45°C (0°F to 113°F) |
| Storage Temperature | -30°C to +60°C (-22°F to 140°F) |
| Operating Relative Humidity (% RH without condensation) | 0% to 90% (0°C to 35°C); 0% to 70% (35°C to 45°C) |
| Vibration | Random, 2 g, 5 Hz - 500 Hz |
| Shock | 1 m drop test with and without module and adapters |
| Safety | CSA C22.2 No. 1010.1: 1992; EN 61010-1 1st Edition + Amendments 1, 2 |
| Pollution Degree | 2 |
| Altitude | Operating: 4,000 m; storage: 12,000 m |
| EMC | EN 61326-1 |
