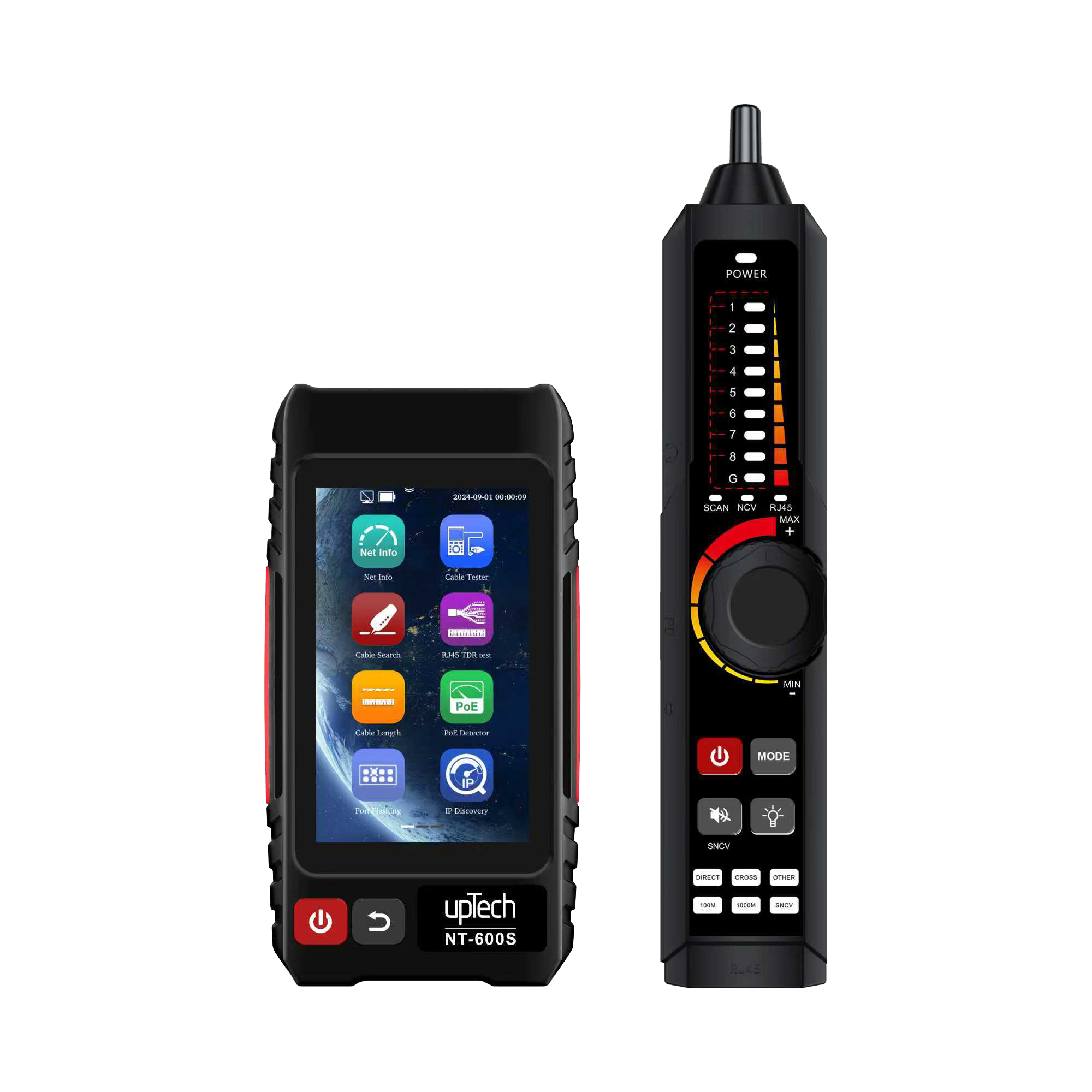

Stock Code: NT-600S
| NT-600S | |
|---|---|
| Display and Image | |
| Screen Specifications | 4-inch IPS touchscreen, 800×480 resolution |
| Cable Testing, Tracking and Mapping | |
| Signal Transmission | Digital signal (stably rejects noise and faulty signals) |
| Supported Cable Types | Supports RJ45 twisted pair, RJ11 telephone cable, BNC video cable and low-voltage metal cables. |
| UTP Cable Test | Tests two or more wires in the network cable. The connection sequence, 1000/100M and cable number are shown on the screen. The receiver unit is identified by indicators. |
| Continuity Test | Transmitter: Minimum detection distance 10 cm Receiver: Minimum detection distance 1 m |
| Short Circuit Detection | Supports short circuit detection in the network cable |
| Length Measurement | Length measurement up to a maximum of 3000 meters on open-circuit network cables. Accuracy: cable length × 3% ± 1 m |
| RJ45 Cable TDR Test | Tests the cable's pair status, length, attenuation, reflection, impedance, delay skew and other parameters. Maximum measurement distance 180 meters |
| Network and Port Tools | |
| Port Flashing | Rapidly identifies ports connected to Ethernet switches and other devices. |
| PoE Detector | Supports IEEE802.3 BT/AT/AF and non-standard protocol detection. Displays power supply voltage, supply pins and pin polarity. |
| Network Tool | Supports functions such as IP discovery, IP address scanning, PING test, LLDP/CDP detection, port flashing, PPPoE connection and FTP server. |
| Fiber Optic Features | |
| Optical Power Meter | Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650 Power range (dBm): -70 to +6 |
| Visual Fault Locator | Emits a visible red laser to detect fiber optic cable breaks, cracks, bends and other faults. |
| Power | |
| Battery Power – Receiver | 3.7 V 4000 mAh lithium-ion rechargeable battery (approx. 6 hours operating time) |
| Battery Power – Transmitter | 3.7 V 2000 mAh lithium-ion rechargeable battery (approx. 12 hours operating time) |
| Operating Environment and Technical Specifications | |
| Operating Temperature | -10°C / +50°C |
| Operating Humidity | 30% – 90% |
| Dimensions – Receiver | 154 mm x 86 mm x 40 mm / 0.3 kg |
| Dimensions – Transmitter | 218 mm x 48 mm x 32 mm / 0.15 kg |
