ORing

Industrial Slim Type Gigabit Ethernet Media Converte

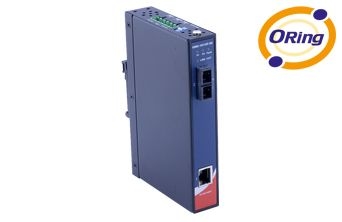

Name: Industrial Slim Type Gigabit Ethernet Media Converte
Brand: ORing
SKU: IGMC-1011GF-MM-SC

Stock Code: IGMC-1011GF-MM-SC

Converts a gigabit copper run to multimode fiber.

This slim industrial media converter moves traffic between a 10/100/1000Base-T(X) copper port and a multimode 1000Base-X fiber port. Store-and-forward transmission, jumbo frame support and a relay output suit industrial network installations.

1 port10/100/1000Base-T(X) copper

1 port1000Base-X multimode

10240 BytesJumbo frame

1 A / 24 VDCRelay output

IP-30Protection Grade

Key features

Gigabit copper portCarries 1 x 10/100/1000Base-T(X) port with auto-negotiation and auto MDI/MDI-X.

Multimode fiber1 x 1000Base-X port terminates the multimode fiber line.

Jumbo frameForwards frames of up to 10240 Bytes without fragmenting them.

Store-and-forwardStore-and-forward transmission keeps corrupted frames off the far side.

Relay outputThe fault contact carries 1 A at 24 VDC and reports a fault to the alarm system.

Rigid bodyThe IP-30 housing supports DIN-Rail and wall mounting.

Features
10/100/1000Base-T(X) Port	1 port supporting auto-negotiation and auto MDI/MDI-X
1000Base-X Port	1 port multi-mode support
Jumbo Frame Support	Supports Jumbo Frame up to 10240 Bytes
Transmission Method	Store-and-forward transmission support
Relay Output	Relay output with 1A capacity at 24 VDC
Enclosure Design	Rugged IP-30 housing design
Mounting Options	DIN-Rail and wall mounting support

Datasheet

IGMC-1011GF-MM-SC

pdf8/29/2025
