It splits an 802.3bt PoE++ line into data and a selectable DC feed

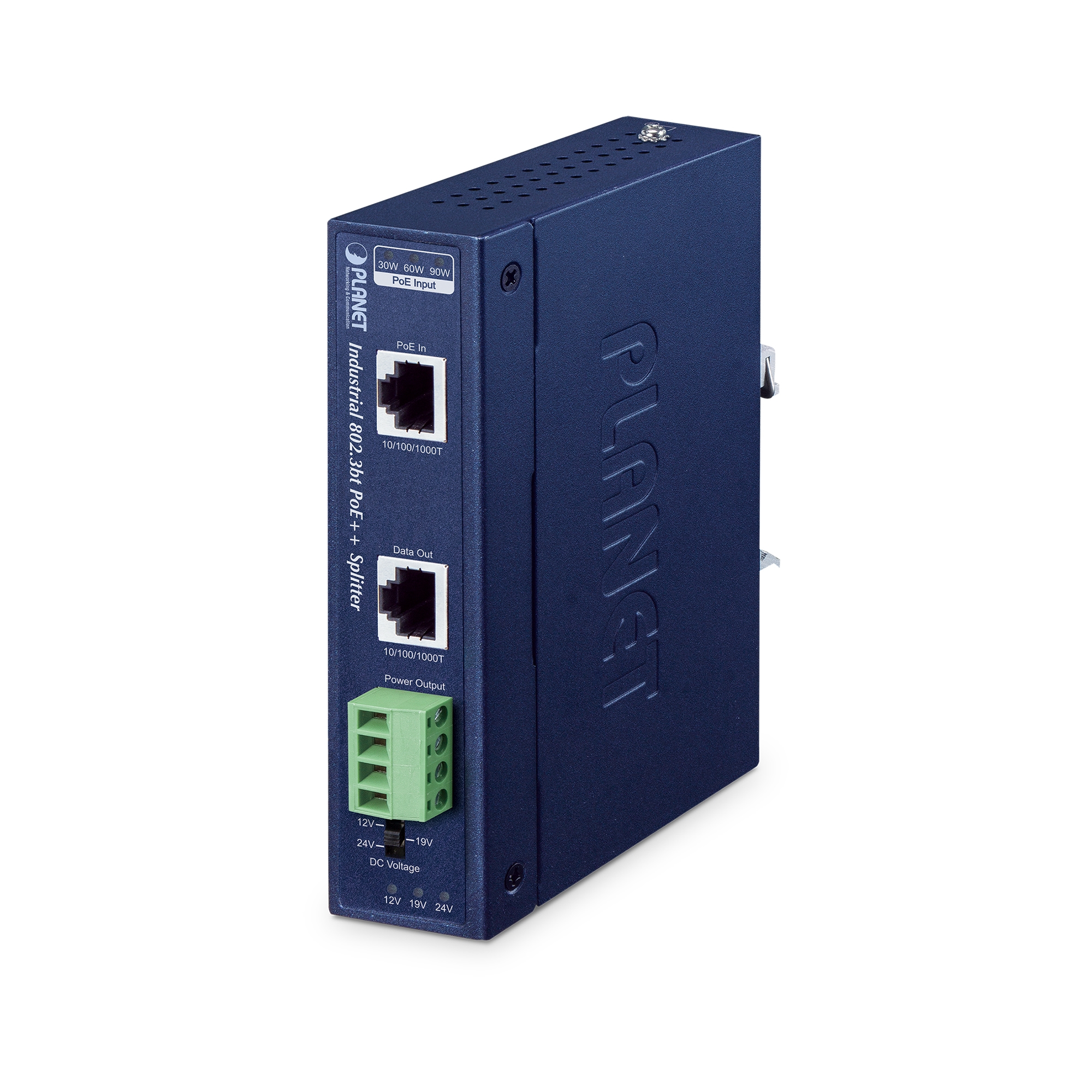

An industrial PoE splitter powered from an 802.3bt PoE++ type 4 source. It splits the power on the Ethernet line into a 12V, 19V or 24V DC output and passes the data on through a second RJ45 port. Its IP30 metal case mounts on a DIN rail or a wall and operates across -40 ~ 75°C.

10/100/1000 MbpsData rate

48 ~ 54V DCPoE power input

12V / 19V / 24V DCSelectable DC output

70 WMax. output power

100 mMax. distance

-40 ~ 75°COperating temperature

Key features

70W

PoE++ output power

It feeds one power-hungry device or splits the load across two devices through the 4-pin terminal block.

12 / 19 / 24V DC

Three output voltages

The DIP switch sets the output to the voltage the attached device expects.

30 / 60 / 90W

LEDs for the power input

Three indicators on the front read out, step by step, how much PoE power arrives from the source.

IP30case

Built for harsh sites

The slim metal case mounts on a DIN rail or a wall and takes little cabinet space.

4KV

ESD and EFT protection

It protects the input stage against electrical surges on the line.

-40 ~ 75°C

Wide temperature range

It keeps running in unheated cabinets and outdoor field enclosures.

IN DAILY USE

It brings a non-PoE device onto the lineA touch PC, a thin client or a remote signage display joins the line with no change on its own side.

Power budget at a glanceThe indicators show the incoming power and the selected output voltage together, so no meter is needed on site.

Easy placement in the cabinetDIN rail or wall mounting places the unit inside a cabinet or on a wall.

ApplicationsPTZ speed dome cameras·Thin clients·All-in-one touch PCs·Remote digital signage displays

Hardware Specifications

Interface

PoE Input Port
  1 x 10/100/1000BASE-T RJ45
Data Output Port
  1 x 10/100/1000BASE-T RJ45
DC Out Plug Connector
  1 x removable 4-pin terminal block
DIP Switch
  12V/19V/24V DC output

LED Indicators

PoE Input:
  30W (Green)
  60W (Green)
  90W (Green)
DC Voltage:
  12V (Green)
  19V (Green)
  24V (Green)

Data Rate

10/100/1000 Mbps

Dimensions (W x D x H)

32 x 87.8 x 135 mm

Weight

440 g

Installation

DIN-rail / wall mountable

ESD Protection

4KV

EFT Protection

4KV

Enclosure

IP30 metal case

Power Requirements

4-pair 802.3at PoE+ and 802.3bt PoE++
PoE DC 48 ~ 54V

Power Consumption

System on with PoE input
5.3 watts
Full loading with maximum 12V DC, 6.8A output
75.83 watts

Power Output

802.3bt type 4 PoE++ input
  12V DC, 6.8A (max.)
  19V DC, 4.3A (max.)
  24V DC, 3.3A (max.)

Network Cable

802.3bt PoE++ input (60W+)
4-pair UTP Cat. 5e, 6, up to 100m (328ft)
802.3at PoE+ input (30W)
2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)

Power over Ethernet

PoE Standard

802.3bt PoE++
4-pair 802.3at PoE+

Power Output

DC 12V/19V/24V by DIP switch control

PoE Power Supply Type

End-span + Mid-span

Power Pin Assignment

1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)

Standards Conformance

Standards Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Type 4

Regulatory Compliance

FCC Part 15 Class A, CE

Environment

Operating Temperature

-40 ~ 75°C

Storage Temperature

-40 ~ 85°C

Humidity

5 ~ 95% (non-condensing)
