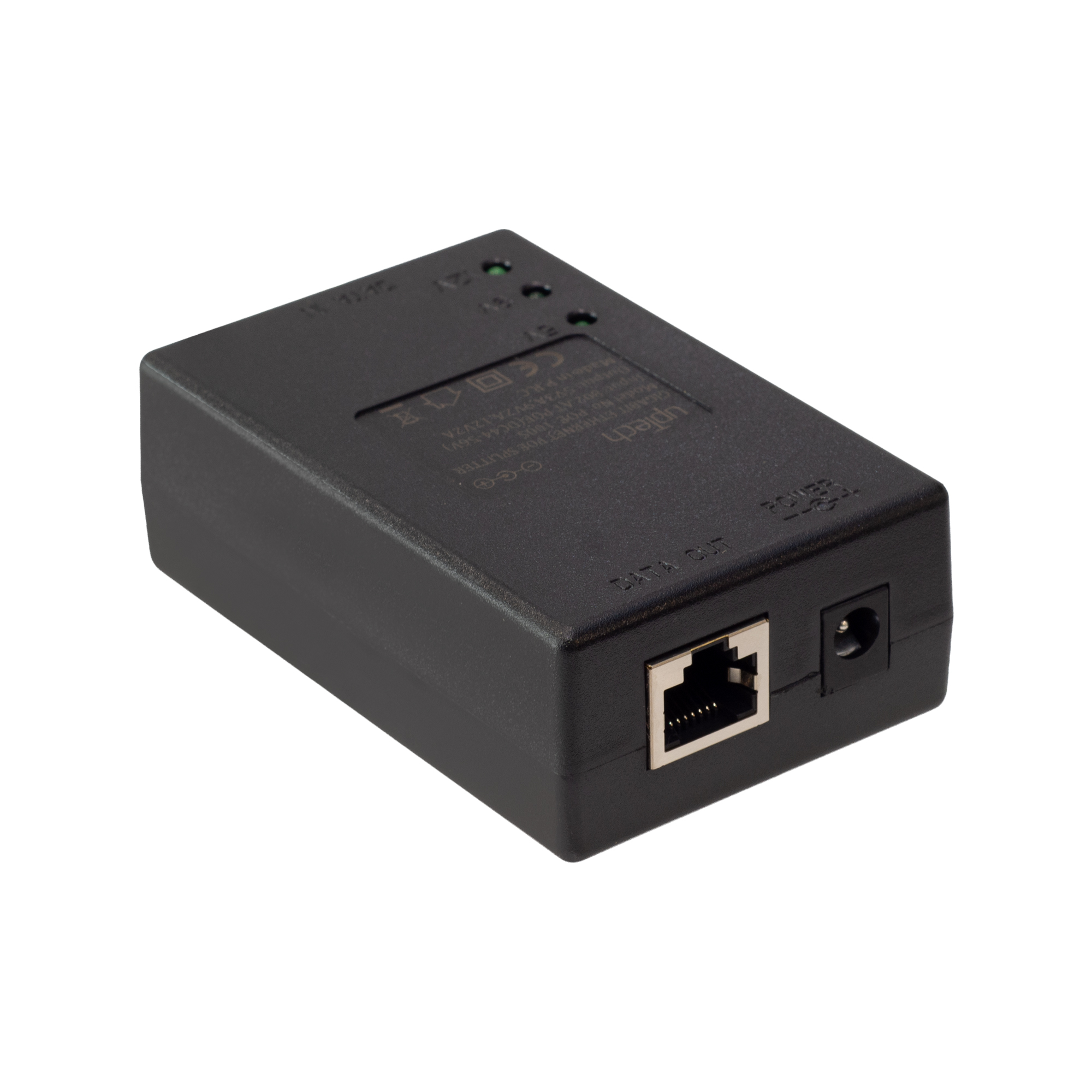

Separates power from data on a PoE line and feeds devices without PoE support.

It takes IEEE 802.3af/at power from the network switch and splits the link into data on the RJ-45 output and power on a separate DC cable. The output steps between 5 V, 9 V and 12 V, so devices without PoE support run at points where no outlet reaches.

5 V / 9 V / 12 VOutput voltage

3 A / 2 A / 2 ANominal output current

10/100/1000 MbpsData rating

IEEE 802.3af/atPoE standard

RJ-45Input connector

0 ~ +45 °COperating Temperature

Key features

5/9/12V DC

Selectable output step

Matches its output to the voltage the connected device needs.

24W

Top power step

Delivers up to 24 W on the 12 V step.

1000Mbps

Gigabit data pass-through

Carries 10/100/1000 Mbps Base-T rates over the same cable.

36-56V DC

PoE input range

Draws power from IEEE 802.3af/at sources and detects PoE equipment automatically.

20cm

DC output cable

The short output lead keeps the connection tidy next to the device.

IN DAILY USE

Power where no outlet reachesCarries supply to any point the network cable reaches and removes the need for a separate power run.

Devices without PoESplits the incoming link from the switch and runs end devices that do not speak PoE.

Desk or wallThe compact body sits on a desk and takes wall mounting just as well.

Usage AreaInstallation points without an outlet·End devices without PoE support·802.3af switch and midspan setups

On over-temperature it shuts the output voltage down; a power cycle brings it back.

Diagnostics

Status Indicators (LEDs)

Power

Power Supply

Power Specifications

Output Voltage | 5VDC | 9VDC | 12VDC

Voltage Tolerance

±5% | ±5% | ±5%

Power Lines Mode A

Pins 1 and 3 | Pins 3 and 6

Power Lines Mode B

Pins 4 and 5 | Power Lines-Mode B

DC Power Cable

Length | 20CM

Environmental Conditions

Over Temperature

Protection type: shut down o/p voltage. Power cycle to recover

Operating Humidity

10~90% relative humidity, non-condensing

Storage Temperature

-20~ +70°C ( -4°F to 136°F )

Storage Humidity

8~90%RH

Certifications

Environmental

Operating Temperature | 0~ +45°C ( 41°F to 113°F )

RoHS Compliant

Yes

Other Specifications

Nominal Output Current

3.0A | 2.0A | 2.0A

Rated Power

15W | 18W | 24W

Input

36-56VDC, IEEE802.3af/at PoE & PoE+

Input Connector

RJ-45 Female

Data Interfaces

Data Rating | 10/100/1000Mbps

Data Lines

Pins 1 and 2; Pins 3 and 6; Pins 4 and 5; Pins 7 and 8

Protection

Short Circuit | Protection type: automatically recovers after fault conditions are removed

Overload

Overload protection @ 145~160% of peak value

DC Plugs

5.5*2.1mm

MTBF

50,000 hours
