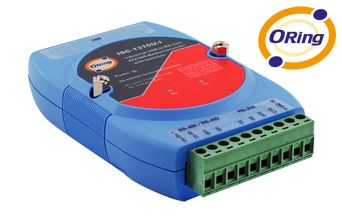

Industrial Type USB - RS232/422/485 Converter

Name: Industrial Type USB - RS232/422/485 Converter
Brand: ORing
SKU: ISC-1310U-I

Stock Code: ISC-1310U-I

Bridges a USB port to RS-232, RS-422 and RS-485 serial lines

An industrial converter that plugs into a PC USB port or a USB hub and offers one serial port. It draws power from the USB bus and needs no external adapter, and it moves between RS-232, RS-422 and RS-485 without jumpers.

300 to 115.2 KbpsBaud rate

3000 VDCSerial isolation

0.65 WattsPower consumption

IP-30Enclosure

-10 °C to 70 °COperating temperature

Key features

USB connectionConnects to the computer over a USB V1.1 port and draws power from the bus.

Serial interfaceA 10-pin terminal block drives TX, RX, RTS, CTS, GND on the RS-232 side and the differential lines on the RS-422/485 side.

Automatic baud switchingAdapts on its own to rates between 300 and 115.2 Kbps.

Optical isolation3000 VDC of isolation and high-speed transient suppressors on the data lines keep the host computer clear of voltage spikes.

Line extensionExtends the RS-422/485 interface up to 1200 m.

Driver supportRuns with Windows 95/98/ME/2000/XP and Linux drivers, and the ABS housing fits DIN-Rail or panel mounting.

Physical Ports
ORing Media Converter Model	ISC-1310U-I
USB V1.1 Port	1
Serial Port	RS-232/422/485
Serial Connector	10-pin terminal block
Baud Rate	300 to 115.2 Kbps
Signals	RS-232: TX, RX, RTS, CTS, GND RS-422: TX+, TX-, RX+, RX- RS-485: Data+, Data-
LED Indicators
Power Indicator	Green: Power LED × 1
TxD Indicator	Green LED × 1
RxD Indicator	Red LED × 1
Power
Input Power	From USB bus power (self power)
Power Consumption (Typ.)	0.65 Watts
Protection
Isolation	3000 VDC
Driver Support
O.S.	Windows 95/98/ME/2000/XP, Linux
Physical Characteristics
Enclosure	IP-30
Dimensions (W × D × H)	71.2 (W) × 25.3 (D) × 100.6 (H) mm (2.8 × 1 × 3.96 inch)
Weight	140 g
Environmental
Storage Temperature	-25 °C to 85 °C (-13 °F to 185 °F)
Operating Temperature	-10 °C to 70 °C (14 °F to 158 °F)
Operating Humidity	5% to 95% non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Warranty	2 years

Datasheet

ISC-1310U-I

1.5pdf6/20/2016

Utility

AP Tool - DS Tool - Open-Vision - USB Tool

1.5rar6/20/2016

Kullanım Kılavuzu

ISC-1310U-I

1.5pdf6/20/2016

Sürücü

ISC-1310U-I

ISC-1X10U_Driverrar6/20/2016
