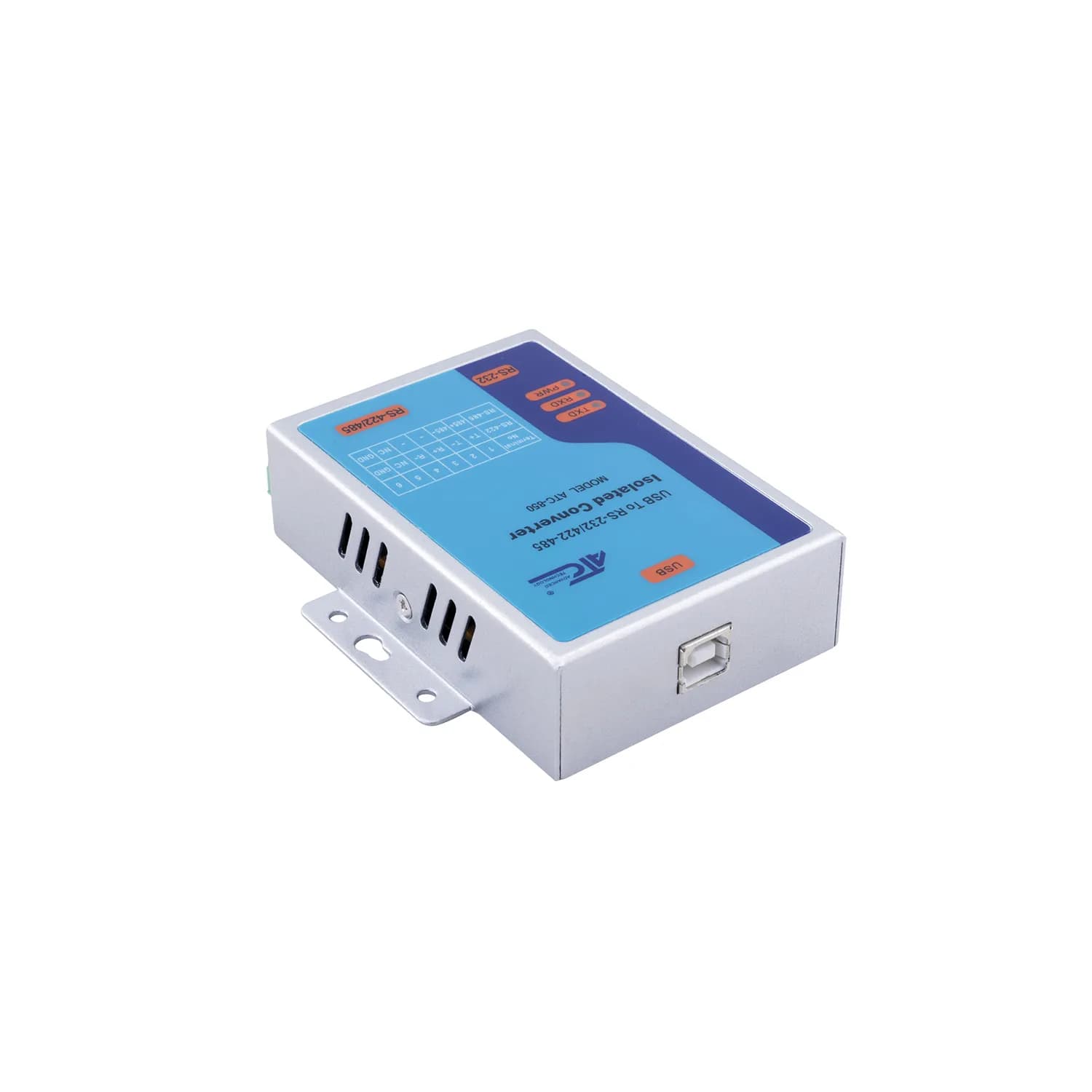

USB to RS232/422/485 Converter

Name: USB to RS232/422/485 Converter
Brand: Atc
SKU: ATC-850

Stock Code: ATC-850

Opens a USB port onto RS-232, RS-422 and RS-485 buses

An industrial serial converter that plugs into the USB port of a computer. The host detects the device automatically and exposes it as a local COM port, so existing serial software needs no change.

USB · RS-232/422/485Interface

921.6 kbpsSpeed

1200 mRange

3500 V RMSIsolation

15 kV ESDProtection

DIN railMounting

Key specifications

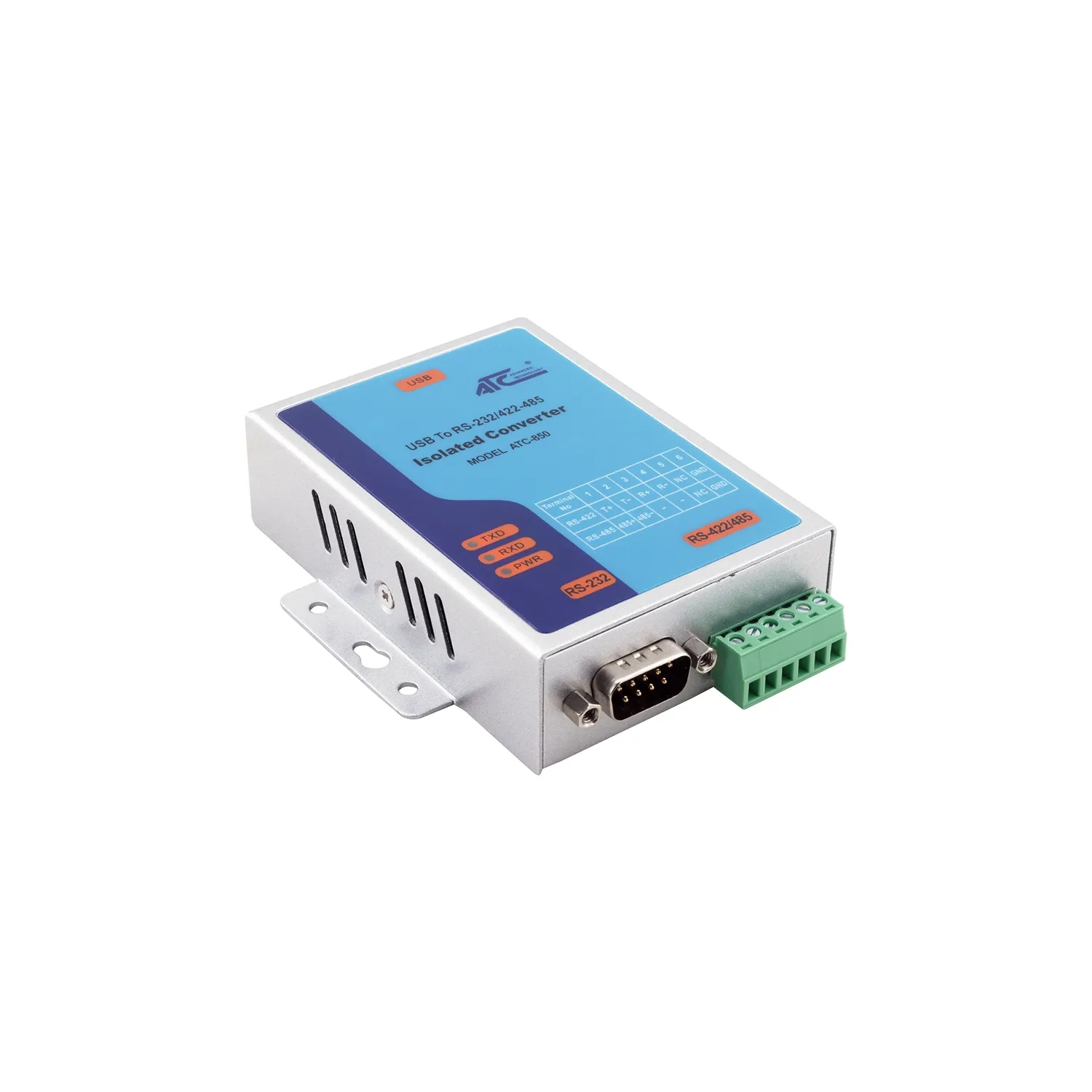

Interface and connectorsComplies with the EIA/TIA RS-232-C and RS-485 standards. A Type-A connector serves the USB side; a DB9 male connector and six terminals serve the serial side.

SpeedCarries full-speed USB at 12 Mbps, and on the serial side up to 460.8 kbps for RS-232 and 921.6 kbps for RS-422/485.

Data formatHandles 5, 6, 7, 8 data bits; 1, 1.5, 2 stop bits; none, even, odd, space and mark parity. Flow control runs over RTS/CTS and XON/XOFF.

RangeAn RS-485 line takes up to 32 nodes and reaches out to 1200 meters.

Isolation and protectionApplies 15 kV ESD protection on every interface and 3500 V RMS, 500 VDC continuous isolation. It guards the RS-232 line with 600 W and the RS-422/485 lines with 1000 W lightning and surge protection per line.

Housing and environmentThe metal shell is anti-static, blocks interference and clips onto a standard DIN rail. It works from -20 °C to 70 °C and across 10% to 90% relative humidity.

USB
Interface Standards	Compatible with EIA/TIA RS-232-C and RS-485 standard
Interface Type	USB Type-A Connector
Speed	Full-speed USB 12 Mbps
Serial Port
Interface Type	DB9 male connector, six terminals (5, 6, 7, 8 used for data bits)
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity Bit	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
I/O Address	Specified by BIOS
IRQ	Specified by BIOS
FIFO	64 bytes
Interface Protection	All interfaces 15 kV ESD protection
Isolation Voltage	3500 VRMS, 500 VDC continuous isolation voltage
Other Parameters
Operating Environment	-20°C to 70°C. Relative humidity 10% to 90%
Product Appearance / Housing	Supports Standard DIN rail and is easily fixed, Metal shell, anti-static, anti-interference. 100mm x 86mm x 26mm
Dimensions	88mm x 33mm x 17mm
RS-232 Signal
Operating Mode	Full duplex
RS-232 Signals	TXD, RXD, RTS, CTS, GND
Communication Rate	RS-232 300-460.8kbps
Protection	RS-232 interface 600 W lightning surge protection
RS-422/485
RS-422/485 Signals	RS-422: T+, T-, R+, R- RS-485: 485+, 485-
Operating Mode	Full-duplex RS-422; half-duplex RS-485 communication with adaptive flow control: supported. RS-485 maximum 32 nodes, maximum communication distance 1200 meters.
Communication Rate	RS-422/485 300-921.6kbps
Protection	RS-422 / RS-485 interface 1000 W lightning surge protection per line
