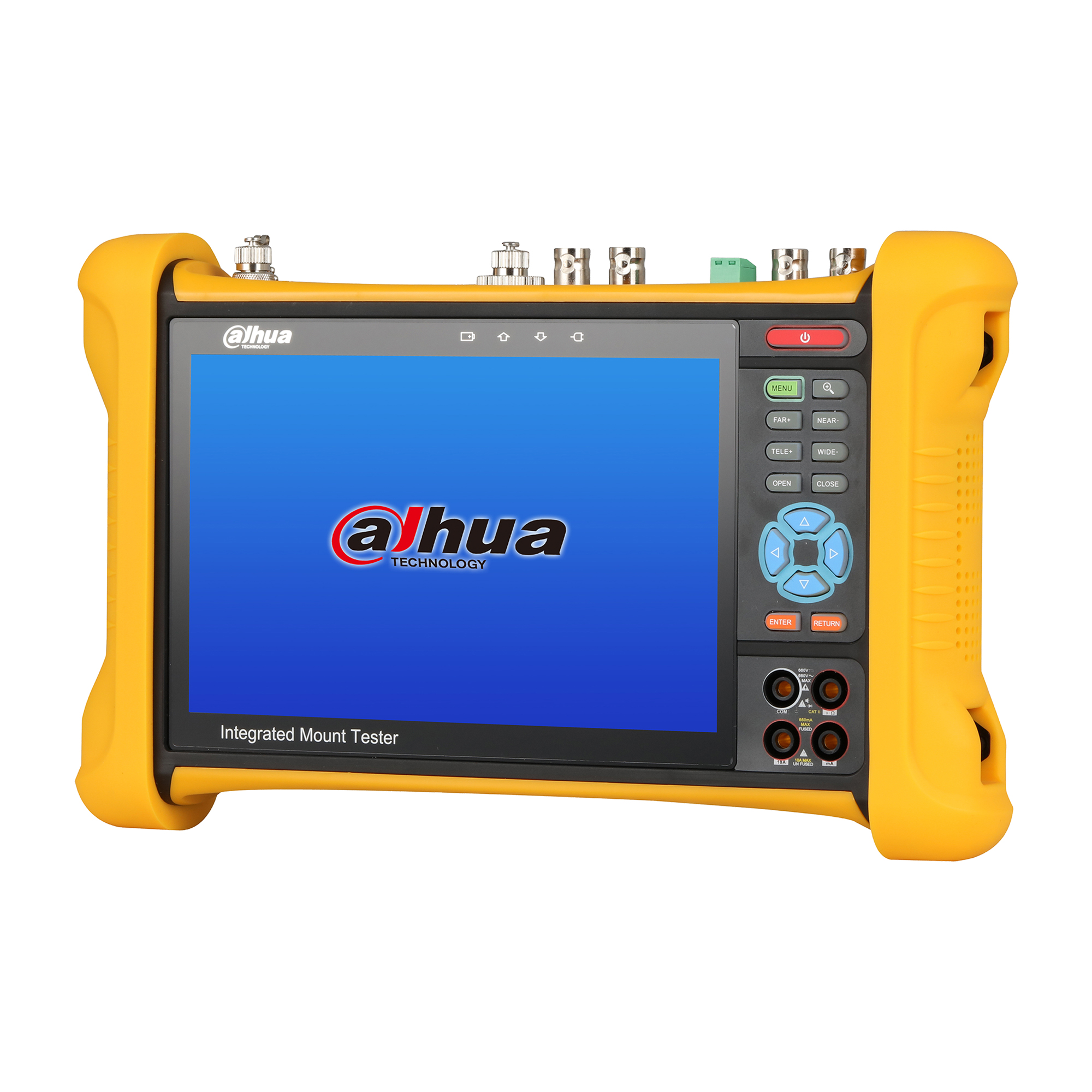

Stock Code: PFM906
| Physical Port | |
|---|---|
| Network Port | 3* 10/100M RJ45 (LAN/PSE, PD, UTP/Scan) |
| BNC Port | 2* video in (SDI, HDCVI/TVI/AHD/CVBS), 1* video out |
| Function Port | 1* TDR, 1* OPM, 1* VLS, 1* RS485, 1* DC12V in (charge), 1* HDMI in, 1* HDMI out, 1* audio in, 1* audio out, 1* Micro SD |
| IPC Test | |
| IP Camera Type | ONVIF (with PTZ control) |
| DAHUA Test Tool | Designed for Dahua camera image test; modify IP, user name and password parameters, etc. |
| IP Camera Test | Supports rapid ONVIF; auto-scans the whole network segment IP, auto logs in to display the camera image, auto-modifies the tester's IP to the same network segment with the scanned camera's IP; displays image from the 4K camera by main stream; full screen preview and 5x digital zoom, snapshot, record video, photo view and video playback |
| Analog Video Test | |
| Format | HDCVI / AHD / TVI / CVBS |
| HDCVI Camera Test | 1-ch BNC in, highest resolution (for 5MP and above resolutions, please use the Auto HD function): supports 2MP@25fps/30fps, 4MP@25fps/30fps, 5MP@20fps, 6MP@20fps, 4K@15fps |
| TVI Camera Test | 1-ch BNC in, highest resolution (for 5MP and above resolutions, please use the Auto HD function): supports 2MP@25fps/30fps, 4MP@25fps/30fps, 5MP@20fps |
| AHD Camera Test | 1-ch BNC in, highest resolution (for 5MP and above resolutions, please use the Auto HD function): supports 2MP@25fps/30fps, 4MP@25fps/30fps, 5MP@20fps |
| CVBS Camera Test | 1-ch BNC in, 1-ch BNC out, supports PAL/NTSC format (auto adapt) |
| Camera Test | Real-time video, coaxial PTZ control, RS485 control, audio test, full screen preview and 5x digital zoom, snapshot, record video, photo view and video playback |
| SDI Test | |
| SDI Video Test | 1-ch BNC in, supported resolutions: 60fps 720p, 60fps 1080p, 60fps 1080i. The IPC tester's HDMI output port can be used as an SDI to HDMI converter, outputting HD SDI image to an HD TV monitor |
| HDMI Display | |
| HDMI In/Out | HDMI in: supports 720x480p, 720x576p, 1280x720p, 1920x1080p, 1024x768p, 1280x1024p, 1280x900p, 1440x900p; HDMI out: supports 1920x1080p |
| PTZ Control | |
| Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc. |
| Baud Rate | 600~115200 bps |
| Cable Tester | |
| Network Cable | TDR, cable search, UTP cable tester |
| Coaxial Cable | TDR, analog video generator |
| Optical Cable | VFL (visual fault locator) |
| Tools | |
| Network Tool | IP address scan, Ping test, bandwidth test, port flashing, DHCP server, etc. |
| DMM (Digital Multimeter) | AC/DC voltage, AC/DC current, resistance, capacitance, data hold, relative measurement, continuity testing. Testing speed: 3 times/second; data range: -6600~+6600 |
| OPM (Optical Power Meter) | Calibrated wavelength (nm): 850/1300/1310/1490/1550/1625 nm; power range (dBm): -70~+10 dBm |
| Data Monitor | Captures and analyzes the command data from the controlling device via RS485; can also send hexadecimal data |
| Flashlight | Press the LED On/Off button to use the LED flashlight |
| PoE & Power Info | Measures PoE switch voltage and displays pin configuration |
| Audio Recorder | Saves audio message and supports review |
| Notepad | Used to record the important testing results |
| Calculator | With calculating function |
| System Information | |
| Screen | 7-inch capacitive touch screen with retina display, 1920x1200 resolution |
| Wi-Fi | Built-in 2.4G Wi-Fi module, max. speed 150 Mbps; allows receiving a wireless network and viewing IP cameras |
| LED Flashlight | 1* 35 lm LED light |
| Storage Capacity | Built-in 8 GB; also supports external max. 32 GB SD card |
| Operation Setup | Supports a variety of languages, such as English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc. |
| Auto Power Off | 1~30 minutes |
| Theme | Self-defined icons, desktop and application interface background; modify interface sliding effect |
| Upgrade | Supports local update via the SD card and online update on the internet |
| Power | |
| Charger | DC 12V 2A |
| Battery | 7.4V lithium polymer battery, 5000mAh, 37Wh |
| Rechargeable | After charging 5~6 hours, normal working time 10 hours |
| PoE Power Out | DC48V PoE+ power out, max. |
| DC12V Power Out | Max. DC12V 2A out |
| USB5V Power Out | Max. DC5V 2A out |
| Other | |
| Working Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Working Humidity | 30%~90% |
| Casing | Plastic |
| Dimensions | 270 mm × 160 mm × 46 mm (10.63” × 6.3” × 1.81”) |
| Net Weight | 0.95 kg (2.09 lb) |
| Packaging Dimensions | 313 mm × 286 mm × 96 mm (12.32” × 11.26” × 3.78”) |
| Gross Weight | 2.1 kg (4.63 lb) |
| Certifications | |
| Certifications | CE/FCC |
