Cuts optical power by 10 dB on angle polished LC links.

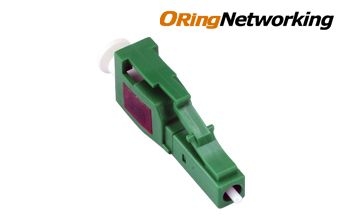

A fixed value optical attenuator that works on single mode fiber links with LC connectors and an 8° angled APC polish. Its male-female plug body with a ceramic ferrule goes in line with the fiber path and reduces the light reaching the receiver by 10 dB.
LCConnector Type
APC 8°Polish Type
Single ModeFiber Type
10 dBAttenuation
Male – FemaleInterface
CeramicFerrule Material
Key features
Fixed attenuationThe 10 dB attenuation value is fixed, needs no adjustment and holds the same level on every link.
Connector and polishThe LC body with 8° APC polish mates directly with angle polished fiber interfaces.
Single Mode linkIt works on single mode fiber and brings the optical power down to the required level.
Inline useIt sits in line with the fiber path and comes out again without disturbing the link.
Receiver protectionIt attenuates the high optical power coming from the transmit port and protects the receiver port.
Ceramic ferruleThe ferrule at the connector tip is ceramic.
ORing Networking fiber products carry a lifetime warranty.
