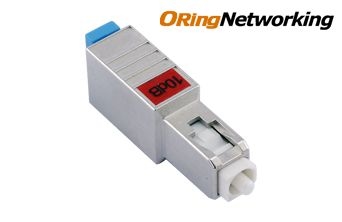

Fiber Optic SC - UPC Attenuator 10dB

Name: Fiber Optic SC - UPC Attenuator 10dB
Brand: Oring Networking
SKU: AT-SCU10

Stock Code: AT-SCU10

Options

2 options

Attenuation10dB2

Currently viewing: AT-SCU10 · 10dB

Cuts excess optical power on the fiber link by 10 dB.

A fixed value optical attenuator that works on single mode fiber links. Its male-female plug body goes in line with the fiber path, reduces the light reaching the receiver by 10 dB and balances uneven signal levels.

SCConnector Type

UPCPolish Type

Single ModeFiber Type

10 dBAttenuation

Male – FemaleInterface

Key features

Fixed attenuationThe 10 dB attenuation value is fixed, needs no adjustment and holds the same level on every link.

Connector and polishThe SC body with UPC polish mates directly with SC/UPC fiber interfaces.

Single Mode linkIt works on single mode fiber and sets the optical light power level according to distance.

Inline useIt sits in line with the fiber path and comes out again without disturbing the link.

Receiver protectionIt attenuates light arriving at excessive power over short links and protects the receiver (Rx) port.

ORing Networking fiber products carry a lifetime warranty.

General Specifications
Product Type	Fixed value fiber optic attenuator
Connector Type	SC/UPC
Attenuation	10 dB
Interface	Male-Female (plug type)
Installation	Easily installed in-line; can be plugged in and removed whenever required
Applications
Signal Balancing	Balancing uneven optical signal levels
Optical Power Adjustment	Adjusting the optical light power level according to distance
Receiver Protection	Reducing the light intensity reaching the receiver (Rx) port when Single Mode SFP modules designed for long distances are used over short distances
Testing and Design	Product design and test work in laboratory environments

Fiber Optic SC - UPC Attenuator 10dB

Stock Code: AT-SCU10

Options

2 options

Attenuation10dB2

Currently viewing: AT-SCU10 · 10dB

Cuts excess optical power on the fiber link by 10 dB.

SCConnector Type

UPCPolish Type

Single ModeFiber Type

10 dBAttenuation

Male – FemaleInterface

Key features

Fixed attenuationThe 10 dB attenuation value is fixed, needs no adjustment and holds the same level on every link.

Connector and polishThe SC body with UPC polish mates directly with SC/UPC fiber interfaces.

Single Mode linkIt works on single mode fiber and sets the optical light power level according to distance.

Inline useIt sits in line with the fiber path and comes out again without disturbing the link.

Receiver protectionIt attenuates light arriving at excessive power over short links and protects the receiver (Rx) port.

ORing Networking fiber products carry a lifetime warranty.

General Specifications
Product Type	Fixed value fiber optic attenuator
Connector Type	SC/UPC
Attenuation	10 dB
Interface	Male-Female (plug type)
Installation	Easily installed in-line; can be plugged in and removed whenever required
Applications
Signal Balancing	Balancing uneven optical signal levels
Optical Power Adjustment	Adjusting the optical light power level according to distance
Receiver Protection	Reducing the light intensity reaching the receiver (Rx) port when Single Mode SFP modules designed for long distances are used over short distances
Testing and Design	Product design and test work in laboratory environments

Fiber Optic SC - UPC Attenuator 10dB

Options

Similar Products

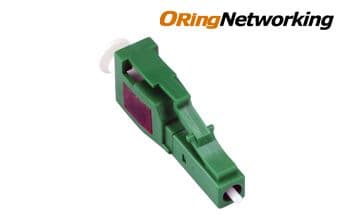

Fiber Optic LC - APC 8° Attenuator 5dB

Fiber Optic LC - APC 8° Attenuator 10dB

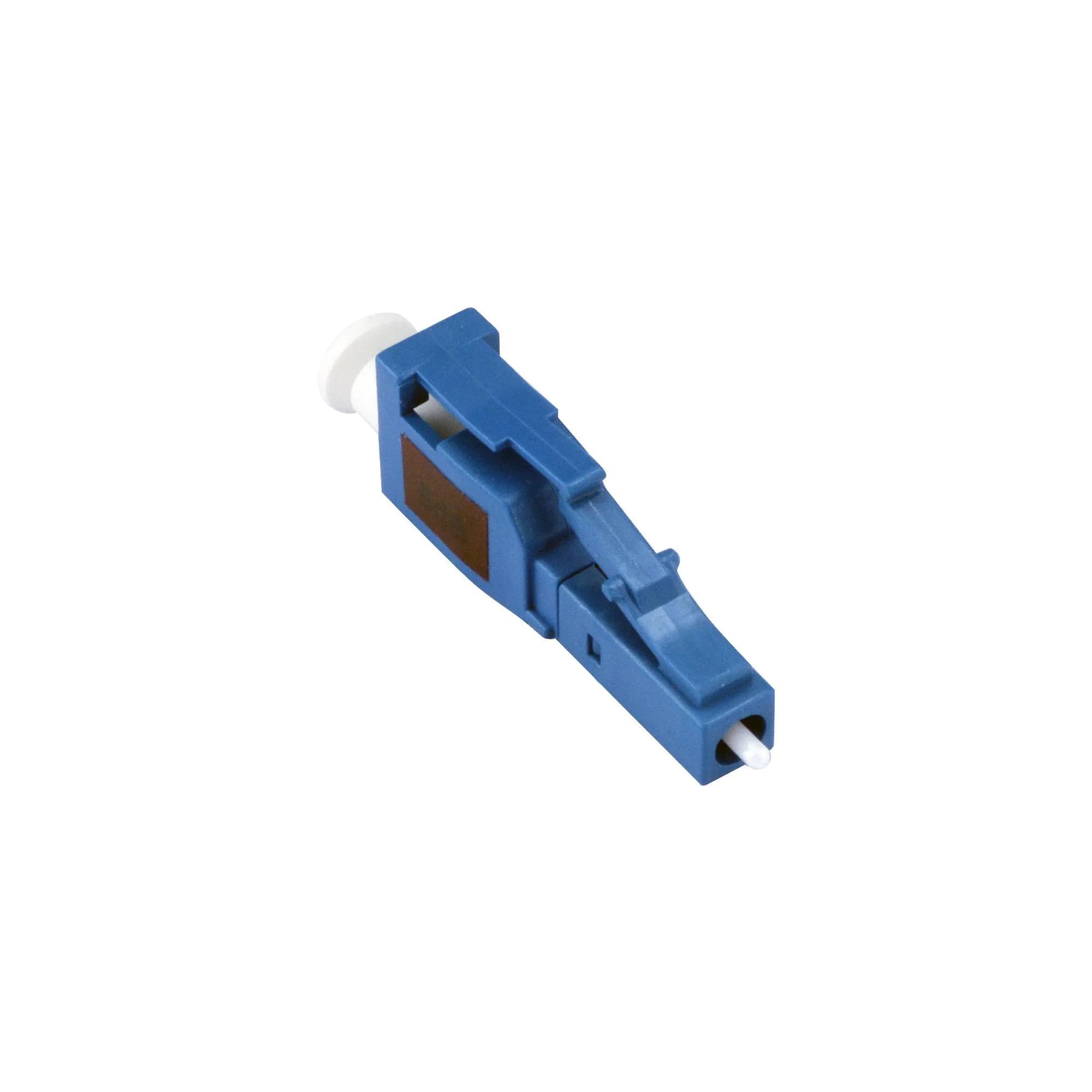

Fiber Optic LC Attenuator with UPC, Attenuation level: 10dB SM
