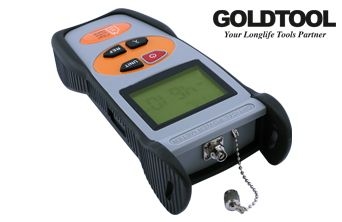

Stock Code: OPM-2000
| Technical Specifications | |
|---|---|
| Central Wavelength | 800 ~ 1700nm |
| Detector Type | InGaAs |
| Measurement Range | -70 ~ +3 / -50 ~ +26 dBm |
| Accuracy / Uncertainty | ±0.15dBm (Linear 0.1% or Logarithmic 0.01dBm) |
| Functional Features | |
| Display Features | LCD screen with optional backlight for low-light environments |
| Measurement Units | dBm, mW (Power) and dB (Loss) |
| Auto Power Off | 10 Minutes (Can be disabled if required) |
| Power and Physical Specifications | |
| Power Supply | 3 x AA 1.5V Alkaline Batteries |
| Operating Time | ≥200 Hours (Over 240 hours performance) |
| Dimensions / Weight | 200x90x50 mm / 285g |
| Operating / Storage Temperature | -10°C ~ +60°C / -25°C ~ +70°C |
