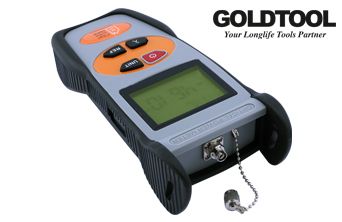

Measures the optical power and loss of a fiber link in the field.

An optical power meter built around an InGaAs detector. It reads link power in dBm and mW and loss in dB, which suits field teams during installation acceptance and fault tracing.

800 ~ 1700 nmCentral wavelength

InGaAsDetector type

±0.15 dBmAccuracy

≥200 hoursOperating time

285 gWeight

Key features

800 ~ 1700nm

Wide wavelength band

The InGaAs detector covers a broad band in one unit.

-70 ~ +3dBm

Measurement range

A second range covers -50 ~ +26 dBm.

±0.15dBm

Measurement accuracy

Results come with linear 0.1% or logarithmic 0.01 dBm resolution.

≥200hours

Long battery life

3 AA 1.5 V alkaline batteries carry long field shifts.

285g

Portable body

At 200x90x50 mm it takes little room in a field bag.

10minutes

Auto power off

The meter shuts down when idle, and this behavior can be disabled.

IN DAILY USE

Readable in the darkThe optional LCD backlight keeps the reading legible during night work.

Power and loss in one meterIt shows power in dBm and mW and loss in dB.

Wide temperature rangeIt operates from -10°C to +60°C, and storage covers -25°C to +70°C.

Technical Specifications

Central Wavelength

800 ~ 1700nm

Detector Type

InGaAs

Measurement Range

-70 ~ +3 / -50 ~ +26 dBm

Accuracy / Uncertainty

±0.15dBm (Linear 0.1% or Logarithmic 0.01dBm)

Functional Features

Display Features

LCD screen with optional backlight for low-light environments

Measurement Units

dBm, mW (Power) and dB (Loss)

Auto Power Off

10 Minutes (Can be disabled if required)

Power and Physical Specifications

Power Supply

3 x AA 1.5V Alkaline Batteries

Operating Time

≥200 Hours (Over 240 hours performance)

Dimensions / Weight

200x90x50 mm / 285g

Operating / Storage Temperature

-10°C ~ +60°C / -25°C ~ +70°C
