Stock Code: KX827W
| General Features | |
|---|---|
| HDCP Support | HDCP 1.3 |
| Wireless Standard | IEEE802.11 a/b/g/n |
| Local Output (Loop-out) | Yes |
| Data Transmission Modes | 1:1 and 1:4 |
| Max. Rate / TMDS Frequency | Up to 1.485 Gbps rate and 148.5 MHz TMDS frequency |
| IR Remote Control | Supported |
| KVM Function | Supported |
| Operating Frequency | 2.4G / 5G (resistant to interference) |
| Coverage Distance | 200 m in open area; approx. 40 m in obstructed areas |
| Technical Specifications | |

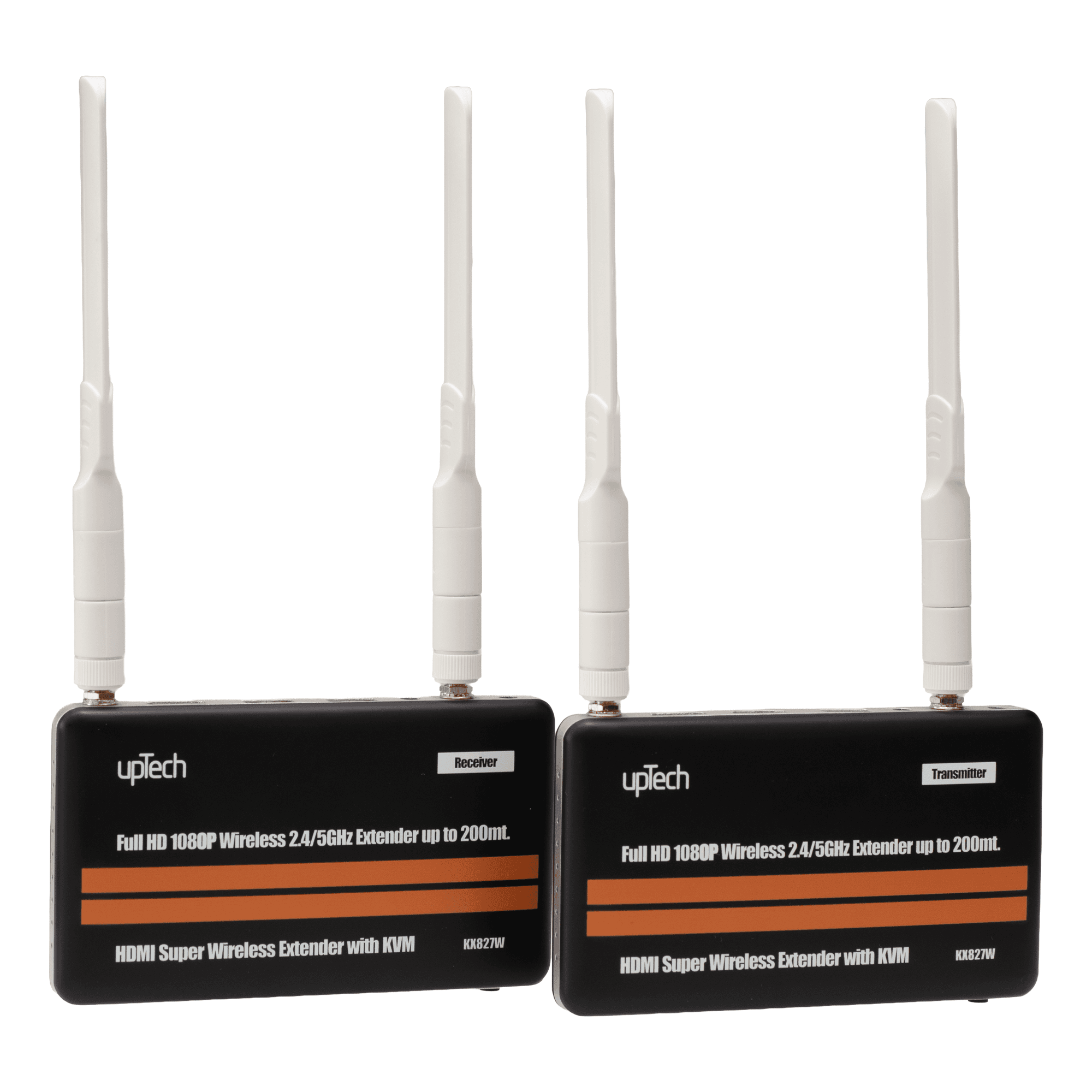

| Model | KX827W |
| HDMI Resolution | 1920x1080p/60Hz |
| Audio Format Support | Stereo audio |
| Max. Bandwidth | 148.5 MHz |
| Max. Baud Rate | 1.485 Gbps |
| Input Cable Distance (1080p) | ≤8 m AWG26 standard HDMI cable |
| Output Cable Distance (1080p) | ≤8 m AWG26 standard HDMI cable |
| Transmitter Max. Operating Current | 1,2 A |
| Receiver Max. Operating Current | 800 mA |
| Power Adapter | Input: AC (50/60Hz) 100V-240V; Output: DC 5V/2A |
| Operating Temperature | -15°C ~ +55°C |
| Dimensions (L x W x H) | 136 x 86 x 23 mm |
| Transmitter (TX) Connections | |
| 5V | Power adapter |
| ANT2 | Antenna |
| IR-TX | IR transmitter |
| USB | USB for computer |
| Input | HDMI input |
| Output | HDMI loop-out |
| ANT1 | Antenna |

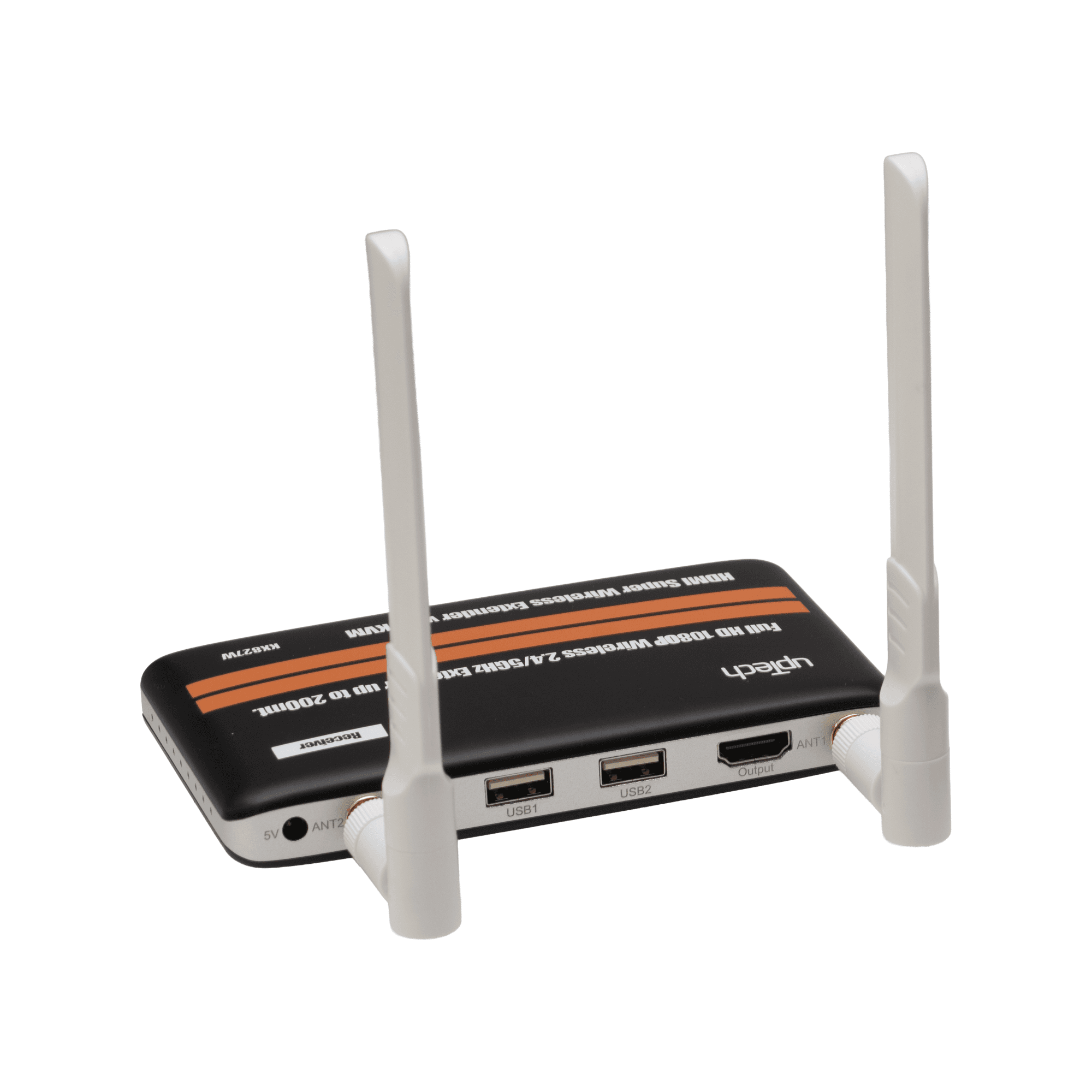

| Receiver (RX) Connections | |
| 5V | Power adapter |
| ANT2 | Antenna |
| IR-RX | IR receiver |
| USB1 | Keyboard/Mouse USB |
| USB2 | Keyboard/Mouse USB |
| Output | HDMI output |
| ANT1 | Antenna |
| Package Contents | |
| HDMI Transmitter & HDMI Receiver | 1 pair |
| IR Transmitter & Receiver Cable | 1 pair |
| Power Adapter | 2 pcs |
| User Manual | 1 pc |
