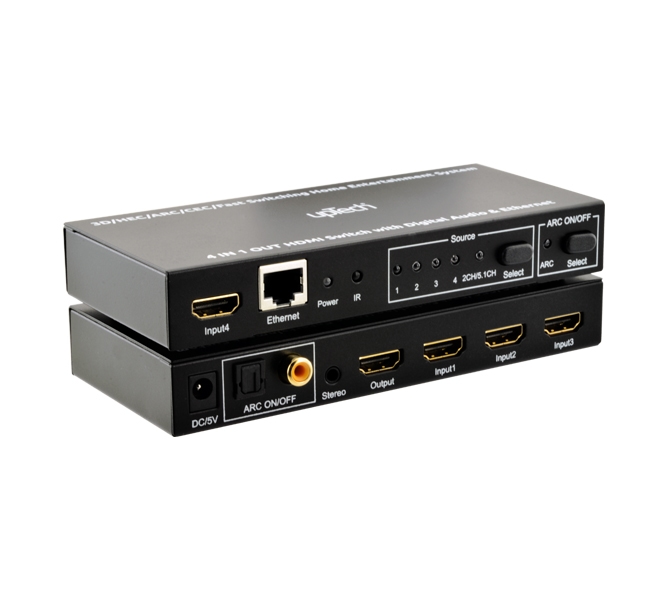

Brings four HDMI sources to one display and sends audio to separate outputs.
A four-input, single-output HDMI switch for home entertainment systems. Built-in HDCP support does not repeat authentication when the port changes, so it moves between sources quickly. It drives Toslink, coaxial and stereo audio outputs at the same time.
4HDMI inputs
1HDMI output
1080pMax. Resolution
HDMI 1.4vVersion
Toslink · Coaxial · StereoAudio outputs
Key features
225MHz
Bandwidth per channel
Carries 225 MHz/2.25 Gbps per channel and 6.75 Gbps across all channels.
12bit
Color depth per channel
Passes 12 bit color depth per channel and 36 bit across all channels.
ARCaudio return channel
Sends TV audio to the amplifier
Converts the ARC signal from the HDTV into coaxial, Toslink and stereo audio signals.
3Dformat support
All 3D formats
Passes all 3D formats, including 1080p@23.98/24Hz and 720p@59.94/60Hz/50Hz.
HECEthernet channel
Network access on one link
Converts the HEC signal from the HDTV into an Ethernet signal.
IN DAILY USENo more swapping cablesSeveral source devices share the single HDMI input on the display.
No separate audio runThe optical, coaxial and stereo audio outputs go straight to the amplifier.
Switching does not stallThe display waits for no second authentication when the source changes.
ApplicationsHome entertainment systems·Amplifier and audio system connections
