Audio and Video Products
›
HDMI
›
HDMI Matrix Switch
›
HDMI 4x4 Matrix Switch with Ultra HD 4K support
upTech

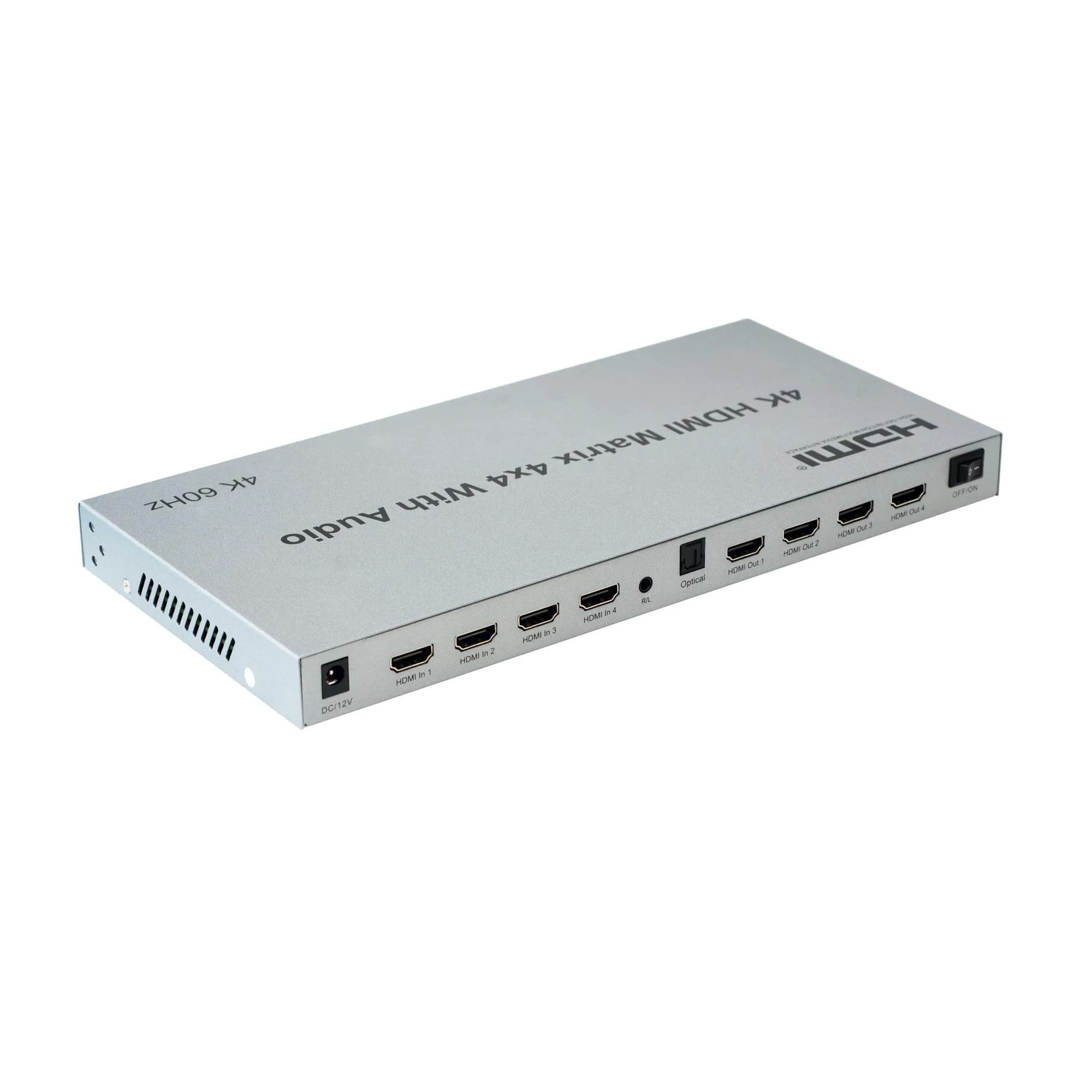

HDMI 4x4 Matrix Switch with Ultra HD 4K support
Stock Code: KX1444
Request Quote
Features
Technical
Downloads
Supports HDMI 1.4b
Supports 3D
Supports a maximum resolution of 4096 * 2160 / 30Hz
Supports a 3.2Gbps data rate and TMDS clock up to 320MHz
Supports 8/10/12-bit deep color
When the resolution is 1080p and below, it supports a standard HDMI cable input up to 15 meters and an output up to 25 meters.
When the resolution is 4K, it supports a standard HDMI cable input up to 12 meters and an output up to 25 meters.
4 HDMI Inputs, 4 HDMI Outputs
Supports 5.1 audio channels
Similar Products
upTech
KX2044
HDMX03-V2.0
upTech
KX1459
HDMX03-V2.0
upTech
KX141616

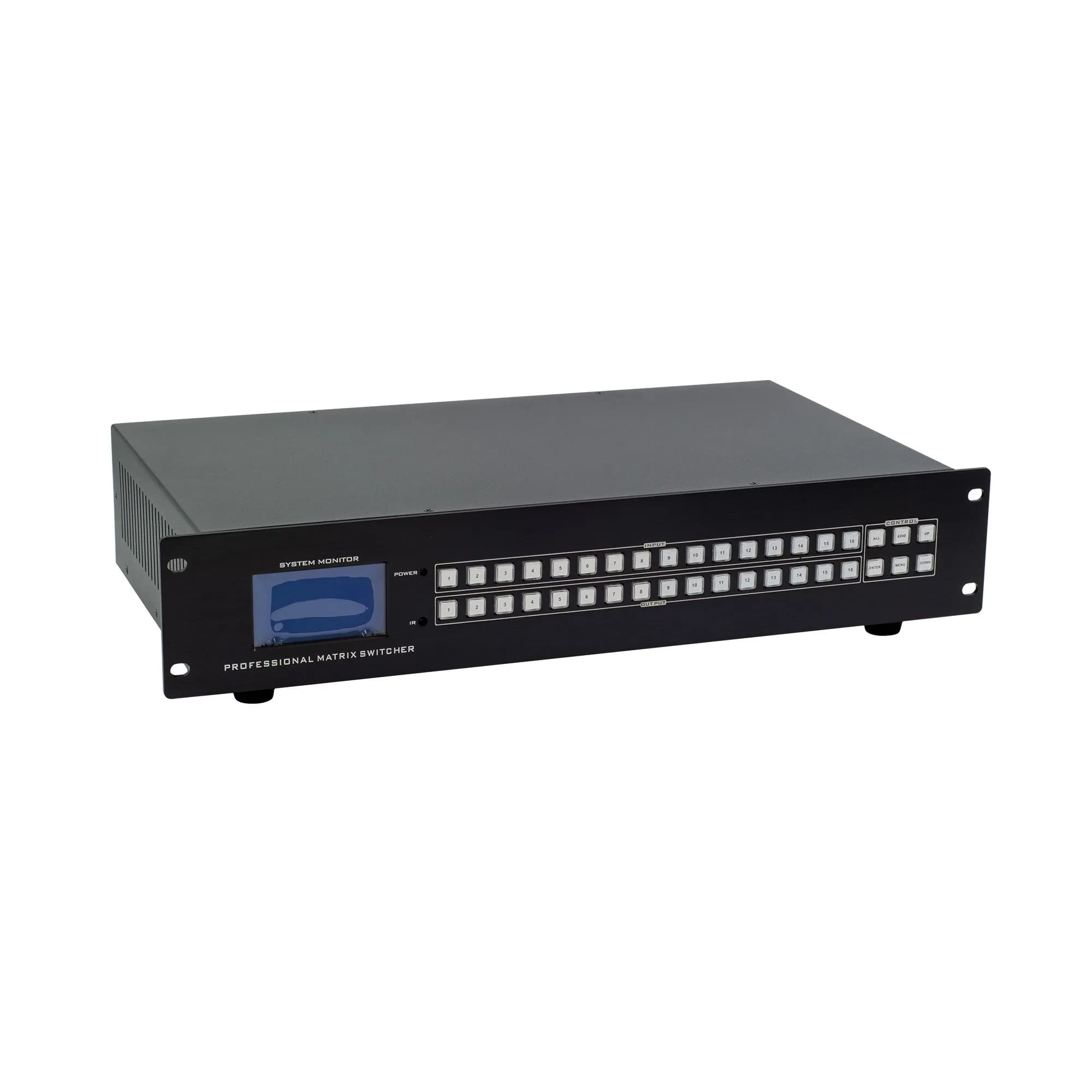

HDMI Ultra Matrix Switch 16x16 with Ultra HD 4K Support
upTech
KX1088

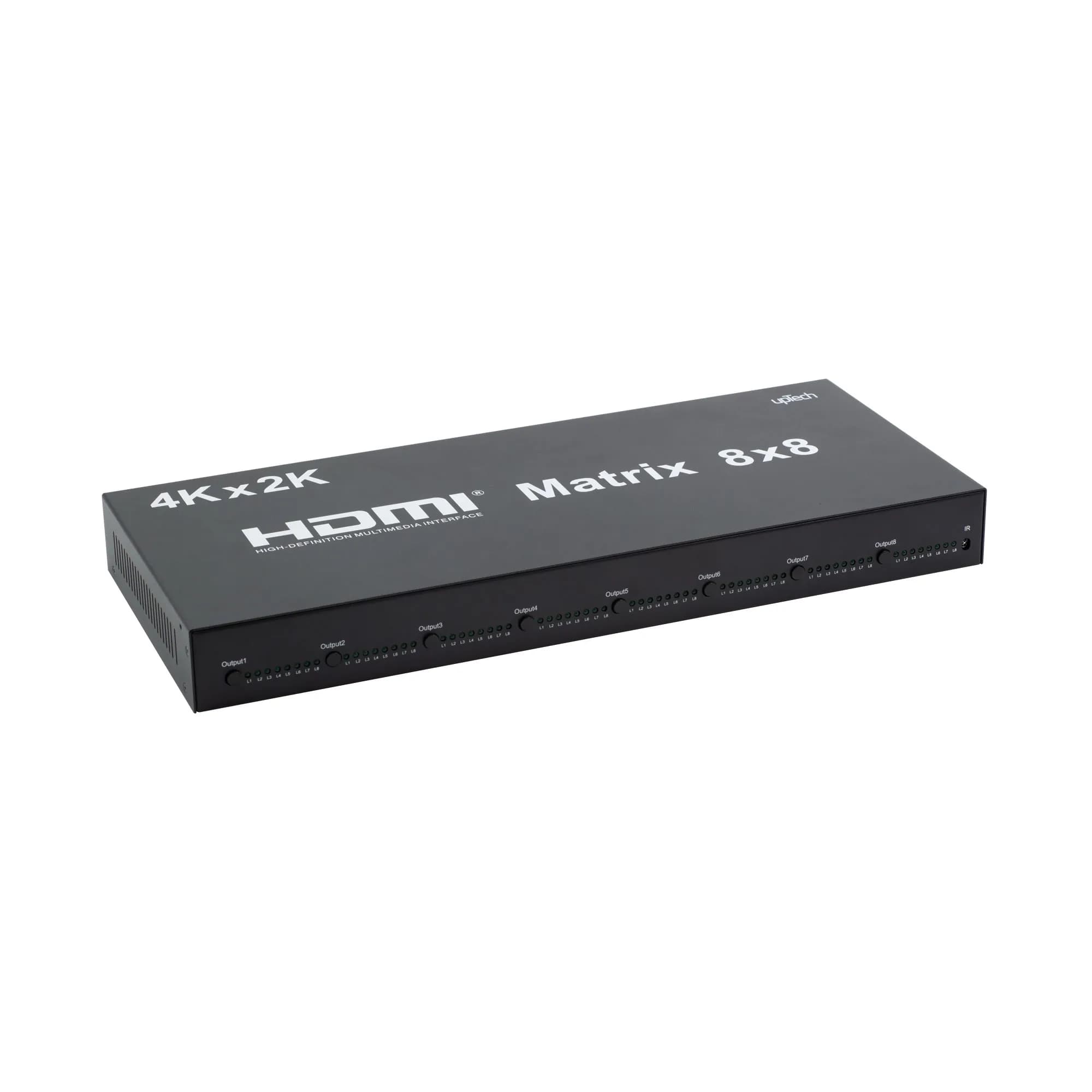

HDMI 8x8 Matrix Switch Full HD 1080P
