Carries HD video to a distant display over a network cable

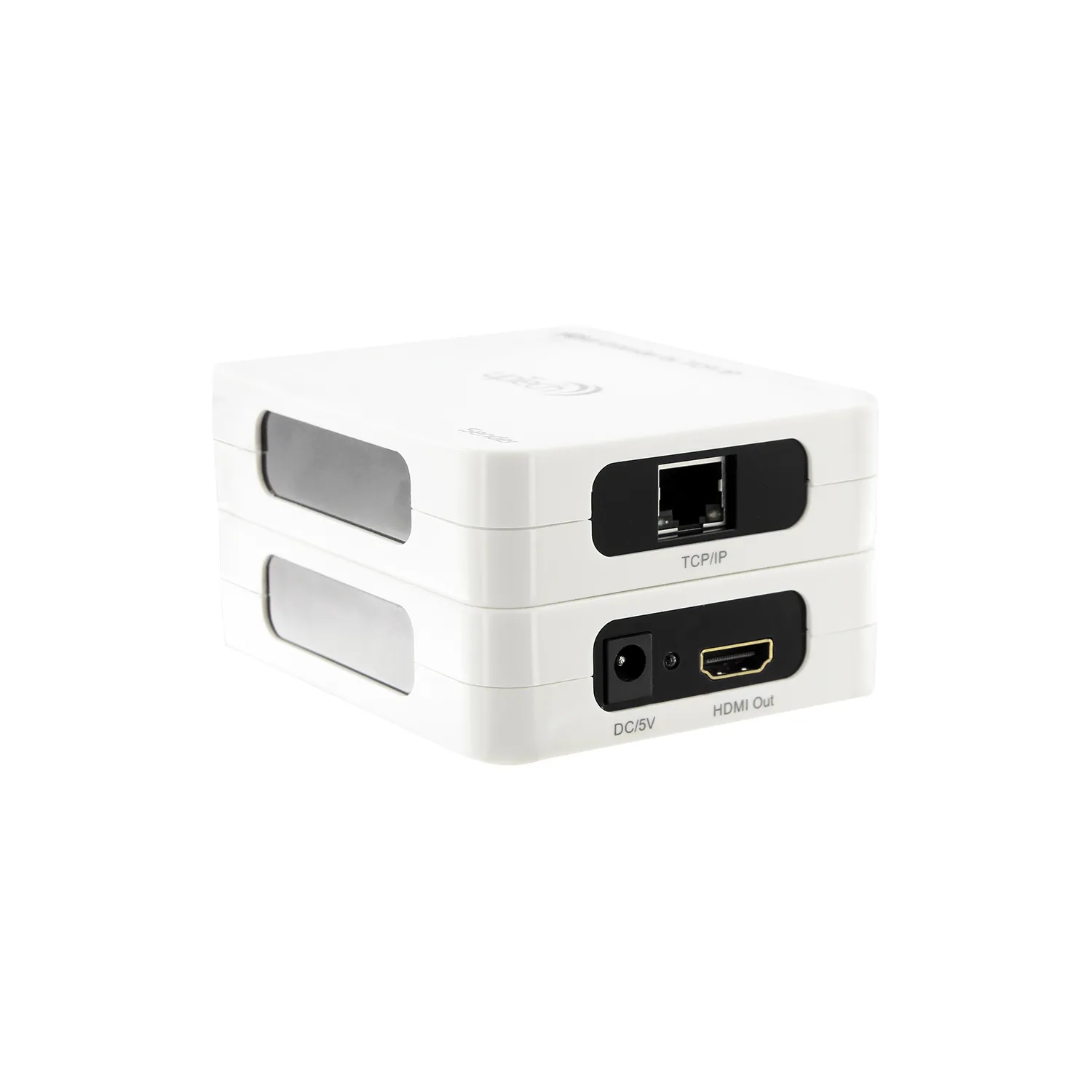

An HDMI extender set that works to TCP/IP standards. A single CAT5e or CAT6 cable builds the link between the transmitter and the receiver unit and carries 1080p/60Hz video up to 100 meters. The source device connects through its HDMI or DVI-D output.

100 mTransmission distance

1080p/60HzSupported resolution

1.65 GbpsVideo bandwidth

CAT5e/6Link cable

2.5 WPower draw per unit

Key features

100m

Long reach over network cable

Carries the picture to a remote point over a single CAT5e or CAT6 run.

1080p60Hz

Full HD video

Passes 480i, 576i, 720p and 1080p sources over the same link.

1.65Gbps

Wide video bandwidth

The video amplifier carries signals up to 165 MHz of bandwidth.

TCP/IPstandard

Runs on structured cabling

Uses cabling that follows the IEEE-568B standard.

2.5W

Low power draw

Both the transmitter and the receiver run on a DC 5V adapter.

IN DAILY USE

One transmitter, many screensOne to Multi-Display sends the same picture from a single transmitter to several receiver units.

Installation layoutThe transmitter sits at the source and the receiver at the display; existing network cabling covers the span.

Operating conditionsRuns between 0°C and +70°C.

Signal Input/Output

Sender Input/Output

HDMI Female x1
RJ45 Female x1

Receiver Input/Output

RJ45 Female x1
HDMI Female x1

Operating Frequency

Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

Max. 1.65Gbps/165Mhz

Supported Resolutions (HDTV)

Interlaced (50&60Hz)

480i, 576i, 1080i for HDMI

Progressive (50&60Hz)

480p, 576p, 720p, 1080p for HDMI

Mechanical

Dimensions (L-W-H)

103x84x25mm

Weight (Net)

200g

Warranty

2 Years

Environmental Effects

Operating Temperature

0°C to +70°C

Operating Humidity Range

10% to 85% RH non-condensing

Storage Temperature

-10°C to +80°C

Storage Humidity Range

5% to 90% RH non-condensing

Power Requirement

Power Adapter

DC 5V@2A X2

Power Consumption (Max.)

Sender: 2.5W
Receiver: 2.5W
