Finds and verifies the route of an underground cable.

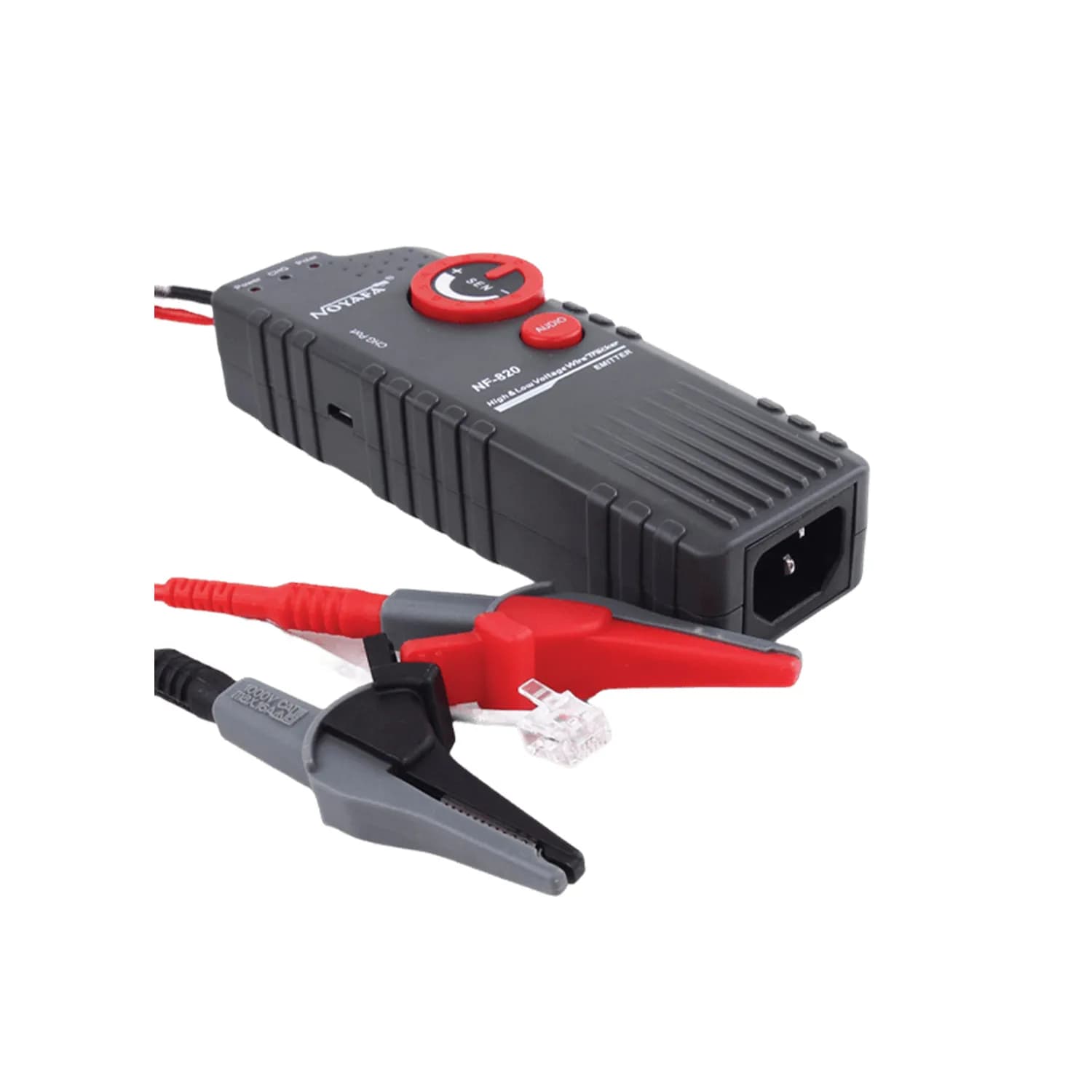

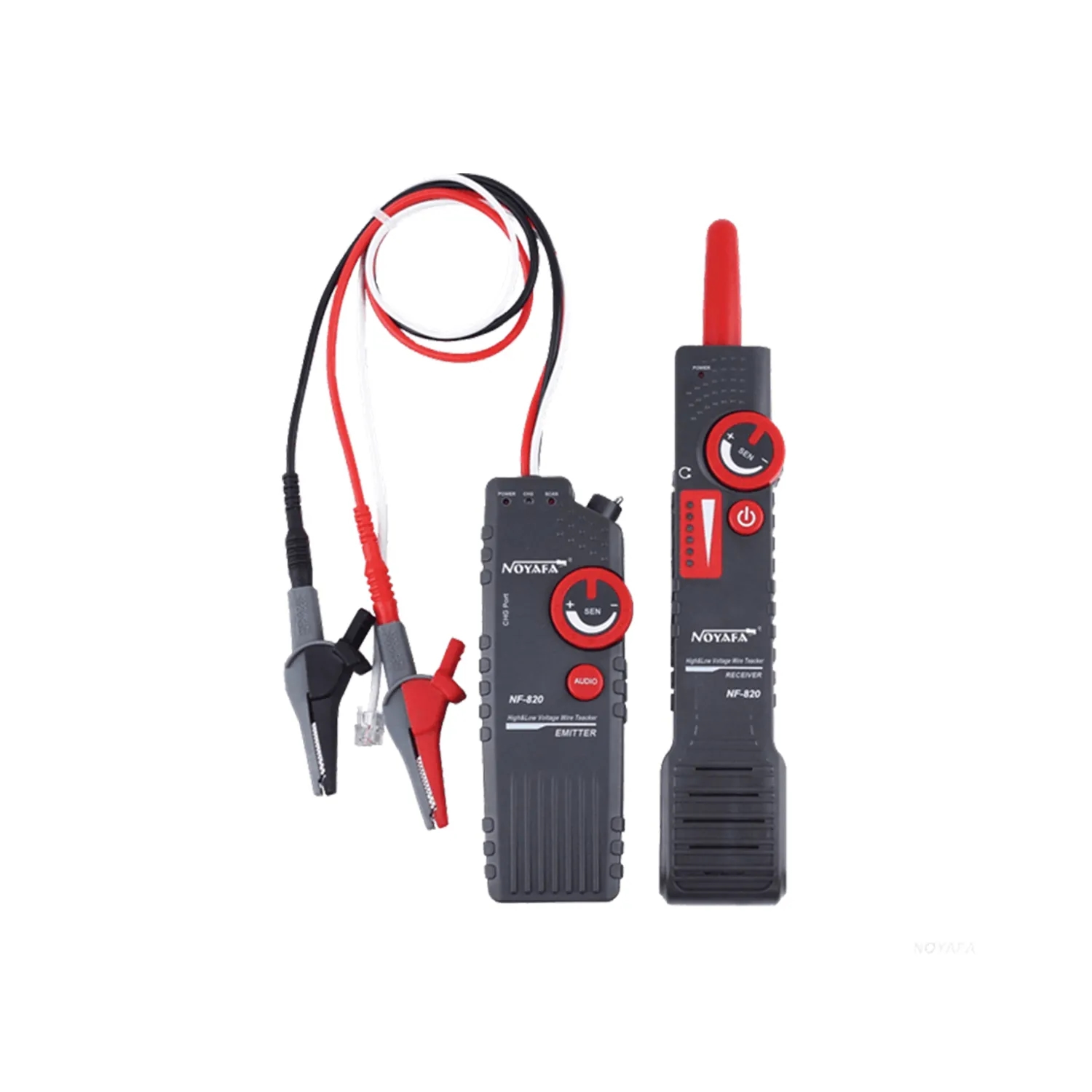

The transmitter drives a multi-frequency pulse onto the line and the receiver traces that signal from the surface to map the route. It works on single conductors, twisted pairs, telephone cables and de-energized electrical cables. A rechargeable lithium battery keeps the transmitter running through a long shift.
10 kmSignal transmission distance
21 Vp-pSignal output level
0 – 2 mSignal sensitivity distance
3.7 V 1800 mAhTransmitter battery
3.7 V 1100 mAhReceiver battery
800 mACharging current
Key features
Route verificationLocates the underground cable path and verifies the line end to end.
Adjustable signalSets the tone generator output across the 0 – 2 m sensitivity range.
Broad cable supportHandles single conductors, twisted pairs, telephone cables and de-energized electrical cables.

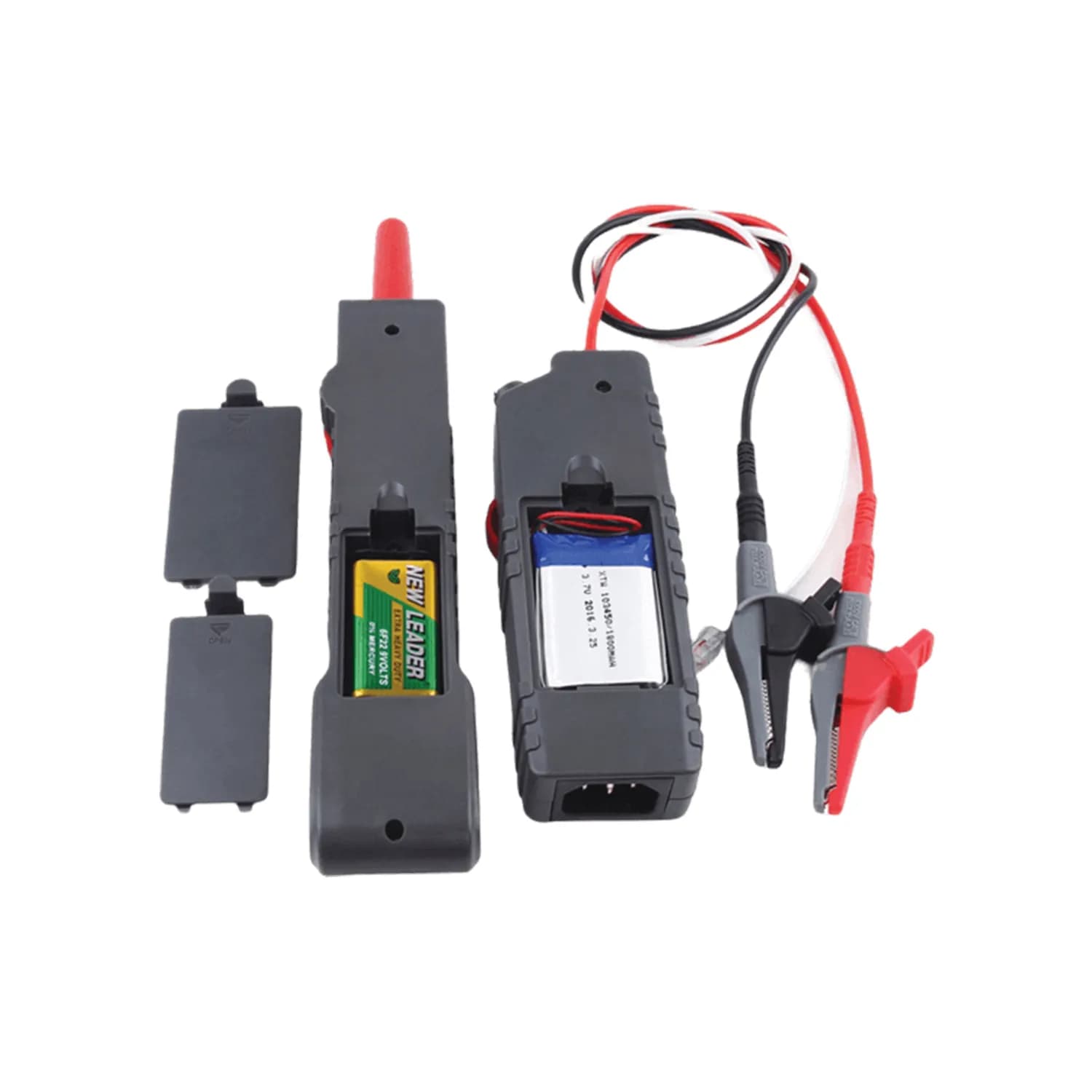

Rechargeable transmitterThe transmitter runs on a 3.7 V 1800 mAh lithium battery and charges at 800 mA.
Low battery indicatorWarns as the battery runs down and shows the state on each unit separately.
