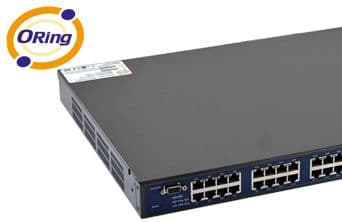

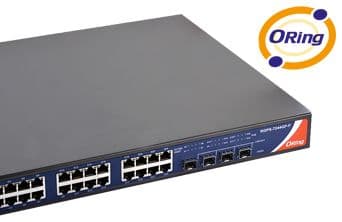

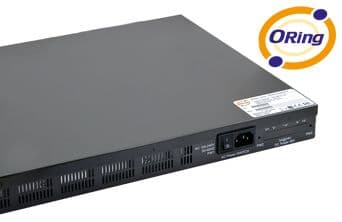

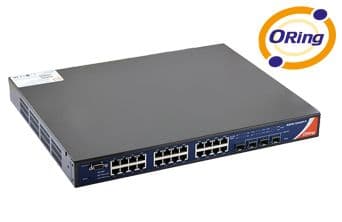

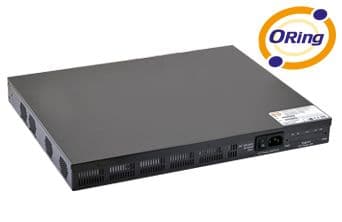

Name: Industrial 28-port rack mount managed Gigabit PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. and 4x1000Base-X, SFP socket
Brand: ORing
SKU: RGPS-7244GP-P

Manages 24 Gigabit PoE ports from a single rack unit.

A manageable industrial Gigabit PoE switch that mounts in a 19 inch rack. Its 24 10/100/1000Base-T(X) P.S.E. ports power cameras, NVRs and controllers along with data, while 4 1000Base-X SFP sockets reach the backbone over fiber.

24 + 4Port Count

56 GbpsSwitching Capacity

30 WPoE Power per Port

IP20Protection Grade

-40 ~ 70°COperating Temperature

100~240 VACPower Input

Key features

24ports

PoE-capable Gigabit copper

Every 10/100/1000Base-T(X) port acts as P.S.E. and powers the end device along with data.

4SFP

Fiber uplink sockets

The 1000Base-X SFP sockets carry the backbone link over fiber.

30W

IEEE 802.3at power class

P.S.E. ports run cameras and access points without a separate adapter.

30ms

O-Ring redundancy

On a ring of more than 250 units, a broken link comes back in under 30 ms.

9KByte

Jumbo frame support

Large packets travel without fragmentation, which lightens the load of video and backup traffic.

DAY-TO-DAY MANAGEMENT

One console for allIt configures over a web interface, Telnet and console, and the Open-Vision utility gathers switches on one screen.

Instant event alertsSyslog, email, SNMP trap and relay output carry an unexpected condition to the network administrator.

Locked-down accessIt admits only permitted IP and MAC addresses and blocks DOS/DDOS attacks in hardware.

ApplicationsIP camera and NVR networks·Mission-critical network backbone·Industrial PoE distribution

PoE power and total consumption follow the load; with all 24 ports fully loaded, consumption reaches 756 Watts.

General
ORing Switch Model	RGPS-7244GP-P
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 (Auto MDI/MDIX)	24
1000Base-X SFP Port	4
Technology
Ethernet Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table	8K
Priority Queues	4
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 µs Switching bandwidth: 56 Gbps Max. number of available VLANs: 4,096 IGMP multicast groups: 8,192 Port rate limiting: User define
Jumbo Frame	Up to 9K Bytes
Security Features	Enable/disable ports, MAC based port security Port based network access control (802.1x) VLAN (802.1Q) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30 ms over 250 units TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging and GVRP supported IGMP Snooping for multicast filtering Port configuration, status, statistics, monitoring, security DHCP Client
Network Redundancy	O-Ring STP RSTP MSTP
RS-232 Serial Console Port	RS-232 in DB9 connector with console cable. 115200 bps, 8, N, 1
LED Indicators
Power Indicator	Green: For AC power indicator
System Ready Indicator	Green: Indicates system ready
R.M. Indicator	Green: Indicates system operated in O-Ring Master mode
O-Ring Indicator	Green: Indicates system operated in O-Ring mode
10/100/1000Base-T(X) RJ45 Port Indicator	Green for port Link/Act. Amber for 100 Mbps indicator
1000Base-X SFP Port Indicator	Green for port Link/Act.
Power
Redundant Input Power	One 100~240 VAC with power cord
Power Consumption (Typ.)	36 Watts (Typ.), 756 Watts (24 ports P.S.E. fully loaded)
Overload Current Protection	Present
Physical Characteristics
Enclosure	19 inches rack mountable
Dimensions (W × D × H)	431 (W) × 342 (D) × 44 (H) mm
Weight	5740 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95%, non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) EN61000-4-8 EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Warranty
Warranty Period	5 years
Ordering Information
RGPS-7244GP-P_EU	Industrial 28-port rack mount managed Gigabit PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. and 4x1000Base-X SFP socket, power supply included, EU power cord
RGPS-7244GP-P_US	Industrial 28-port rack mount managed Gigabit PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. and 4x1000Base-X SFP socket, power supply included, US power cord
Accessories
Open-Vision M500	Powerful Network Management Windows Utility Suite, 500 IP devices
SFP1G series	1 Gbps SFP optical transceiver

RGPS-7244GP series is managed Redundant Ring Ethernet switch with 24x10/100/1000Base-T(X) ports with PoE (P.S.E.) function and 4x1000Base-X SFP ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1 s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. ORing’s thunder switch series provide advanced IP-based bandwidth management which can limit the maximum bandwidth for each IP device. User can configure IP camera and NVR with more bandwidth and limit other device bandwidth. ORing’s thunder switch series also support application-based QoS. Application-based QoS can set highest priority for data stream according to TCP/UDP port number. ORing’s special IP police function can only permit allowed IP address with MAC address to access the networking. Hacker cannot access the IP surveillance network without permission. It can avoid hacker from stealing video privacy data and attacking IP camera, NVR and controllers. ORing’s thunder series switch also provided advanced DOS/DDOS auto prevention. If there is any IP flow become big in short time, ORing’s thunder switch will lock the source IP address for certain time to prevent the attack. It’s hardware based prevention so it can prevent DOS/DDOS attack immediately and completely. RGPS-7244GP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each RGPS-7244GP series switch has 24X10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. All function of RGPS-7244GP series can be managed centralized and convenient by a powerful windows utility — Open-Vision v3.0 or above. Therefore, these switches are one of the most reliable choice for highlymanaged and Gigabit Fiber Ethernet application with PoE function.
