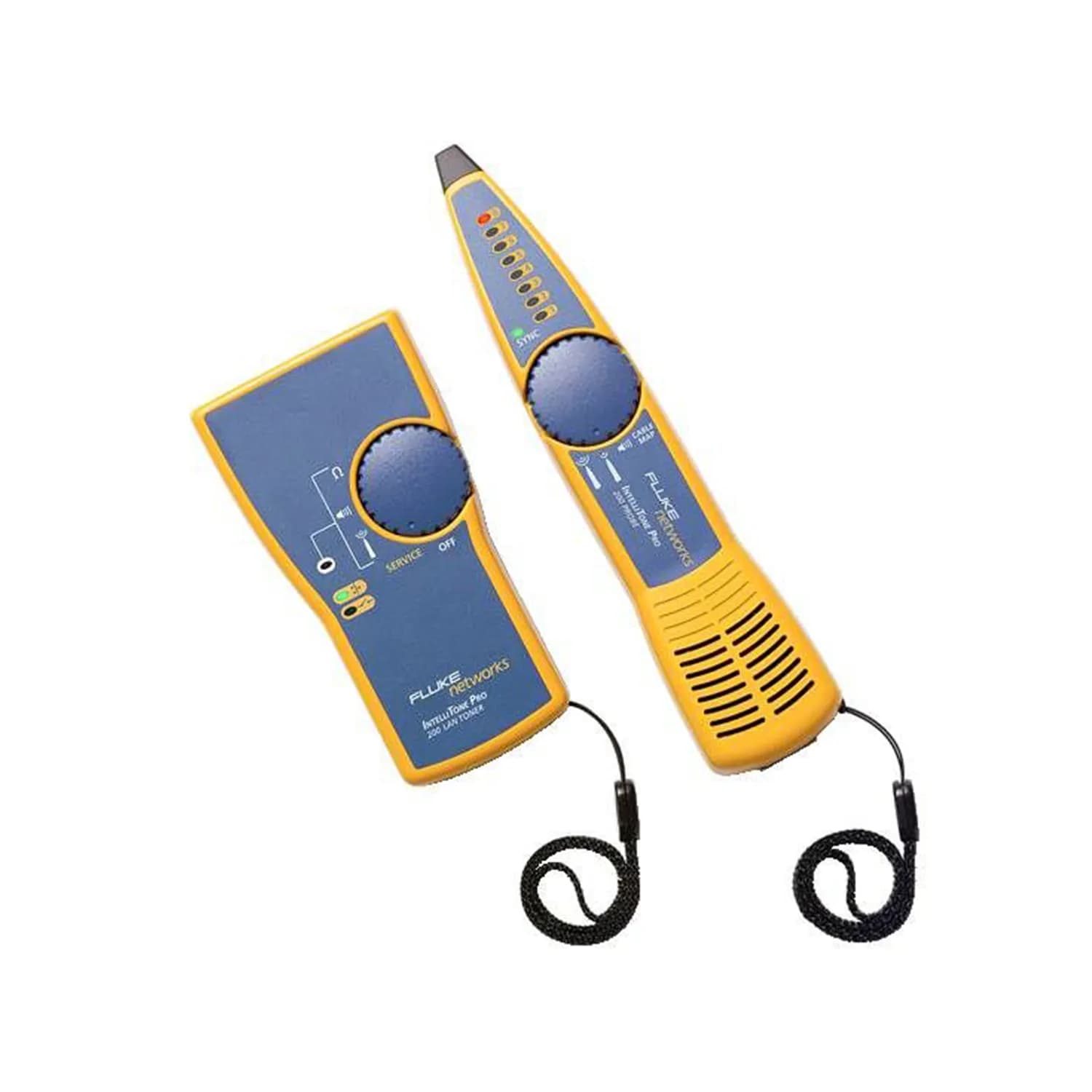

Stock Code: MT-8200-63A
| General Specs | |
|---|---|
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to 60 °C) |
| Operating relative humidity (% RH without condensation) | 95% (50 °F to 95 °F, 10 °C to 35 °C) 75% (59 °F to 104 °F, 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cablemap function of the IntelliTone 200. |
| Toner Specs | |
| Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) |
| Display | LED |
| Control | Thumbwheel switch |
| Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP/STP cabling. F Connector for coaxial cabling. Banana Jack Plugs (2) - two conductor wiring |
| Toner signal | IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500-1200 Hz, 4 Songs |
| Output power | 5 V p-p |
| Auto power down | Turns off automatically after 2.5 hours of inactivity |

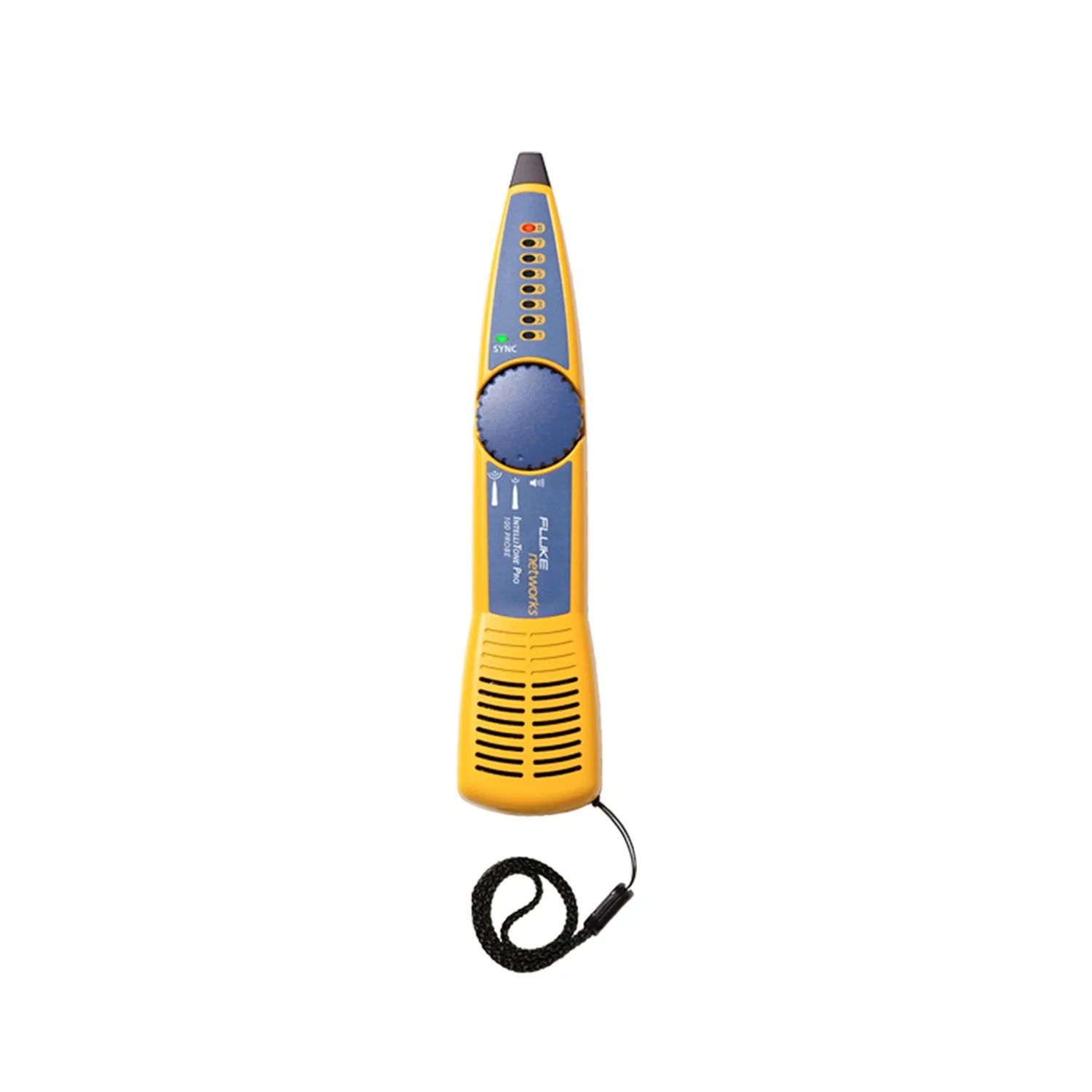

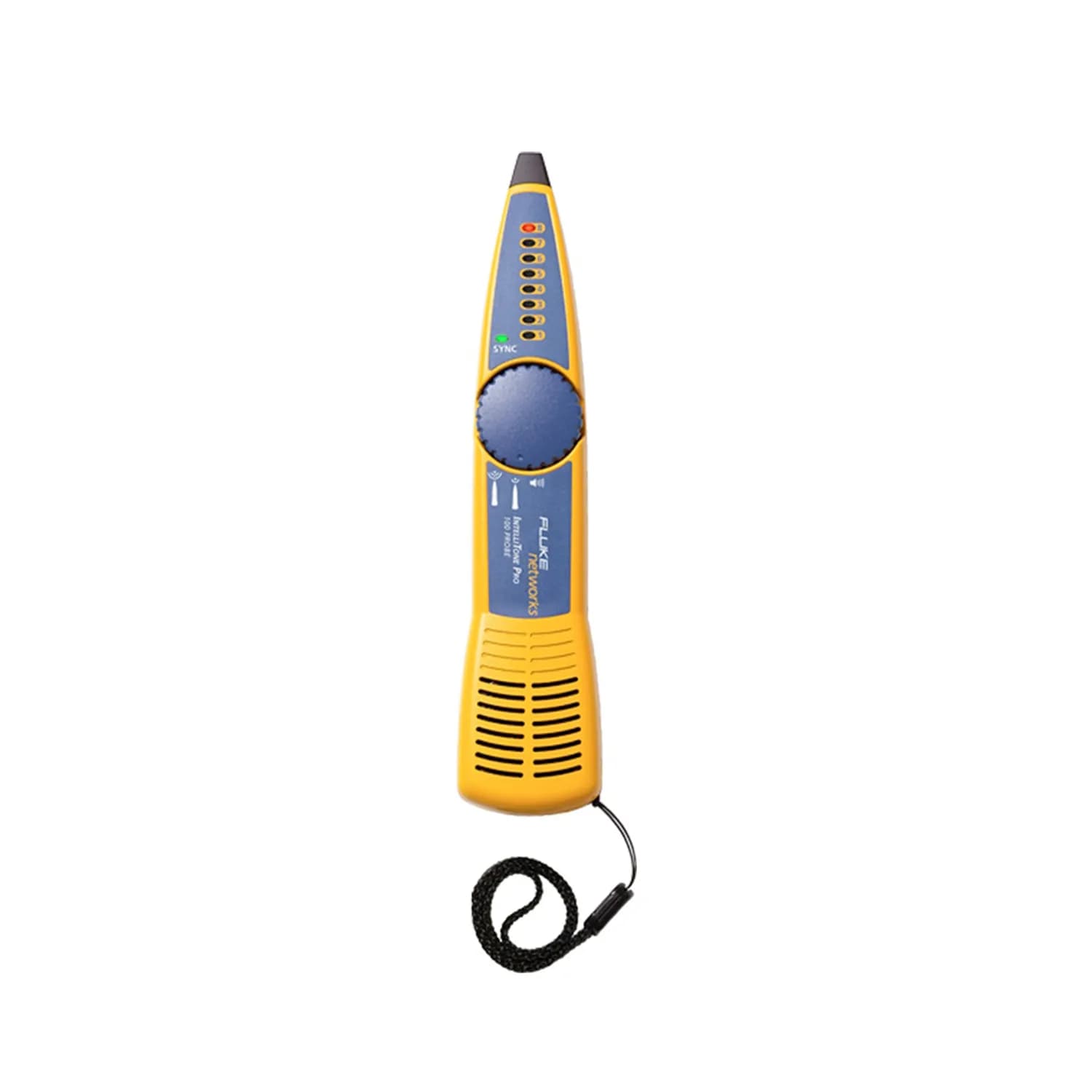

| Probe Specs | |
| Dimensions | 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel |
| Probe interface | Main Mod8 port for cablemap on all 4 pairs of UTP/STP cabling |
| Auto power down | Turns off automatically after 1 hour of inactivity |
