Monitors the door station and IP cameras on a single screen.

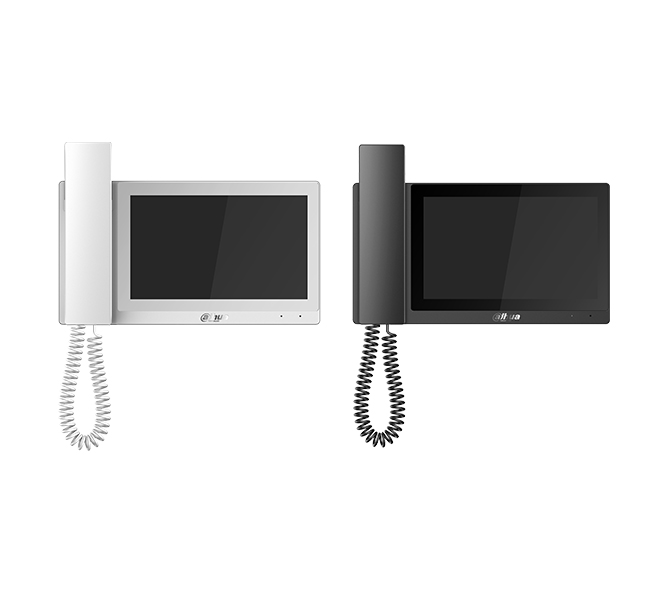

A touchscreen monitor mounted inside the apartment in intercom systems. It handles the door call on its 7 inch capacitive screen, monitors connected IP cameras and follows the alarm lines.

7" 1024x600Display

H.264Video Compression

6 / 1Alarm In / Out

Micro SD, max. 32 GBMemory Card Support

DC 12V, PoE (802.3af)Power Options

-10°C ~ +55°COperating Temperature

Key features

TouchscreenThe 7" TFT capacitive panel runs at 1024x600 resolution and opens the menus with a direct touch.

Door and camera monitoringIt shows the image coming from the door station and monitors connected IP cameras in the same interface.

Two-way talkThe all-direction microphone and the built-in loudspeaker carry the voice call with the visitor, and G.711 handles audio compression.

Alarm integration6 alarm inputs and 1 alarm output connect sensors and a siren directly, and an RS485 line stays ready.

Recording and snapshotThe Micro SD slot takes a card of up to 32 GB; recording and snapshot require that card.

Power and installationIt draws power from the DC 12V input or the PoE (802.3af) line and supports surface and desktop mounting.

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Audio

Audio Compression

G.711

Audio Input

All-direction Microphone

Audio Output

Built-in Loudspeaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Display

LCD Screen

7" 1024x600, Capacitive

Operation Mode

Input

Touch screen

Interface

Alarm In

Alarm Out

RS485

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Memory Slot

Micro SD, Max 32GB

Installation

Surface & Desktop

Power

DC 12V, PoE (802.3af)

Power Consumption

Standby ≤3.5W, Work ≤5W

Working Temperature

-10°C ~ +55°C

Relative Humidity

10% ~ 90% RH

Dimensions

236mm × 165.5mm × 43.2mm

Weight

0.9Kg
