Connects the building entrance to a video intercom over the IP network

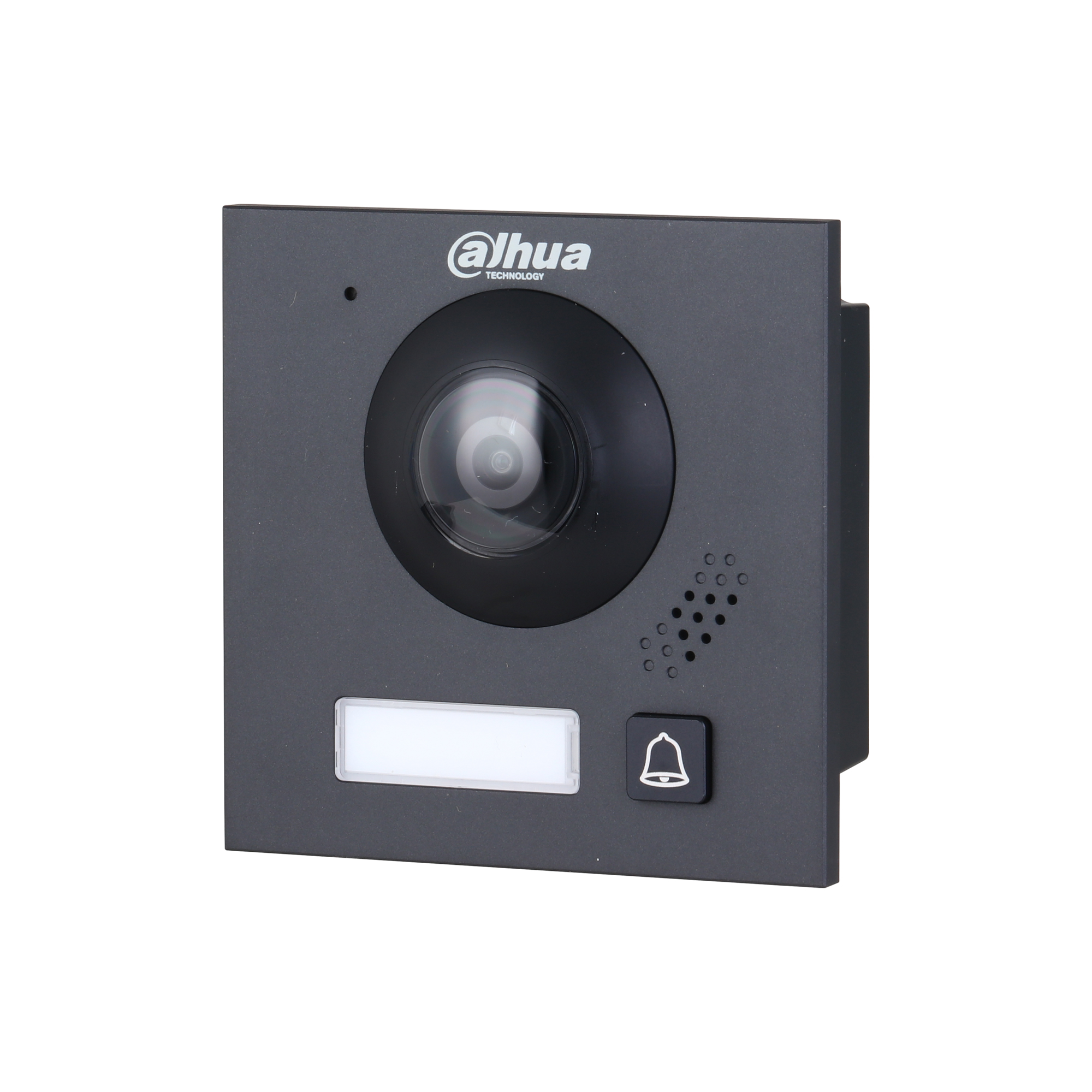

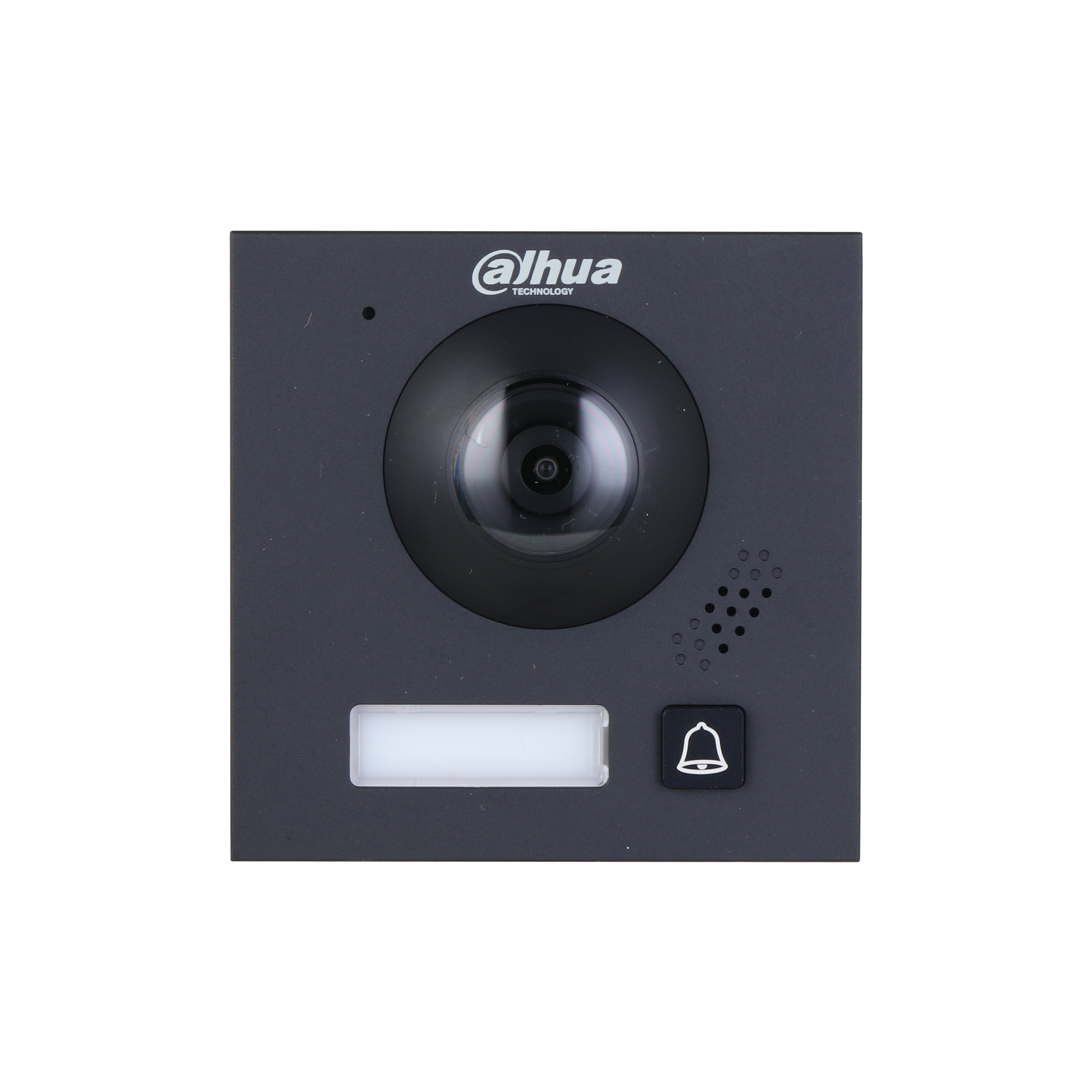

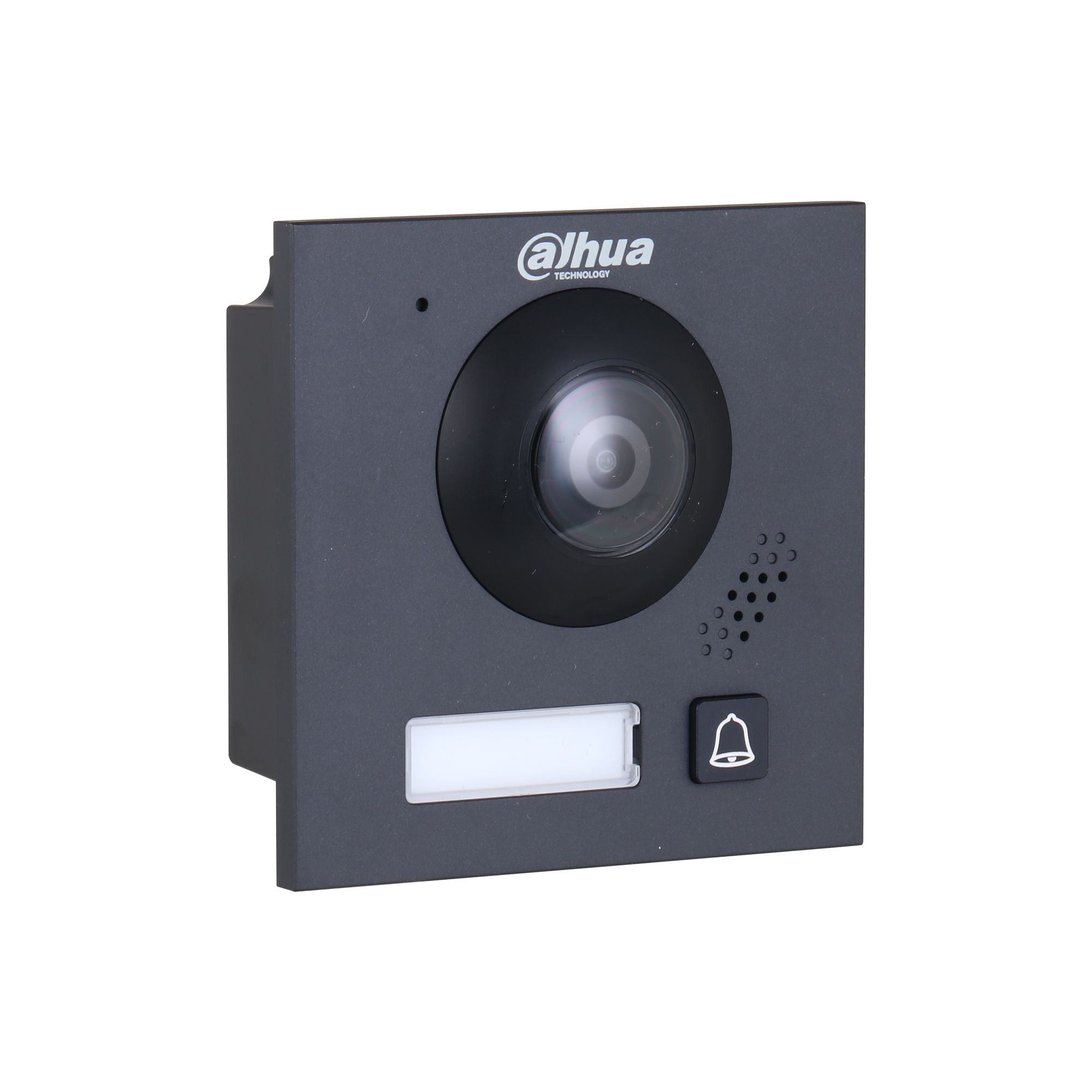

The main camera module of the modular apartment door station keeps the whole entrance in frame with a 2 MP CMOS sensor and a 168.6° horizontal field of view. It compresses the image with H.265 or H.264, carries it over a single RJ-45 port and takes its power through standard PoE.

2 MPImage sensor

168.6°Horizontal field of view

H.265 / H.264Video Compression

10/100 MbpsNetwork port

PoE (802.3af/at)Power supply

IK07; IP65Protection Grade

Key features

120dB

Faces stay visible against backlight

WDR keeps the visitor out of deep shadow at an entrance that faces daylight.

176.7°

Sees the doorway edge to edge

The diagonal field of view also brings the area right at the door into frame.

600mA

Powers the lock directly

The 12 V power output runs an external lock or card reader without a separate adapter.

Low load in continuous service

It stays under 5 W while working and under 4 W in standby.

49.4mm

Slim casing

The 100.0 mm × 100.0 mm × 49.4 mm body fits both flush and surface boxes.

IN DAILY USE

Unlocks from the phoneWhen a visitor rings, the mobile app carries the video to the phone; the resident talks and releases the lock remotely.

Stands up to outdoor conditionsThe aluminum front panel resists impact and rain, and two-way audio carries the conversation at the door.

Fits an existing IP setupONVIF and CGI support connect the device to an installed IP system, and SIP calls run through the exchange.

IP65 and IK07 protection require silicone sealant during installation; an installation that feeds a load from the 12 V output needs a PSE switch compliant with the 802.3.at standard.

System

Main Processor

Embedded Processor

Operating System

Embedded Linux Operation System

Interoperability

CGI; ONVIF

Network Protocol

UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP

Camera

Image Sensor

1/2.9" 2 MP CMOS

Field of View

Horizontal: 168.6°; Vertical: 87.1°; Diagonal: 176.7°

WDR

120 dB

Noise Reduction

3D NR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Video

Video Compression

H.265; H.264

Audio

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Compression

G.711a; G.711u; PCM

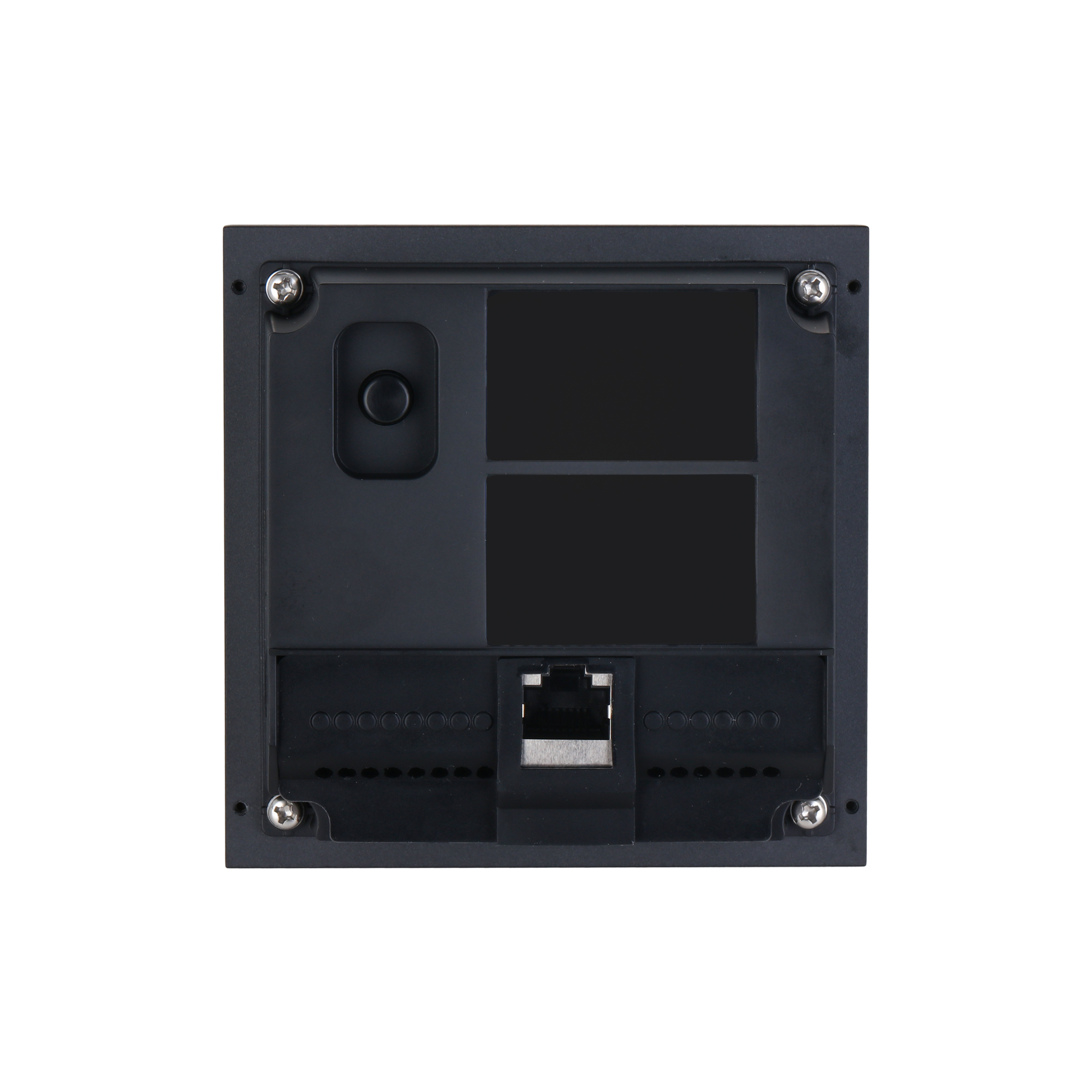

Ports

RS-485

Alarm Output

Lock Control

Exit Button

Network Port

1 × RJ-45 port, 10/100 Mbps network port

Power Output

1 port, 12 V/600 mA

General

Protection Grade

IK07; IP65

Casing Material

Aluminum

Power Supply

12 VDC, 2 A; PoE (802.3af/at)

Power Consumption

≤ 4 W (standby); ≤ 5 W (working)

Dimensions

100.0 mm × 100.0 mm × 49.4 mm

Weight

0.43 kg (0.95 lb)
