IP& Wi-Fi Indoor Monitor

Name: IP& Wi-Fi Indoor Monitor
Brand: Dahua
SKU: VTH8641KMS-WP

Stock Code: VTH8641KMS-WP

Handles door calls, camera views and alarm zones on one screen.

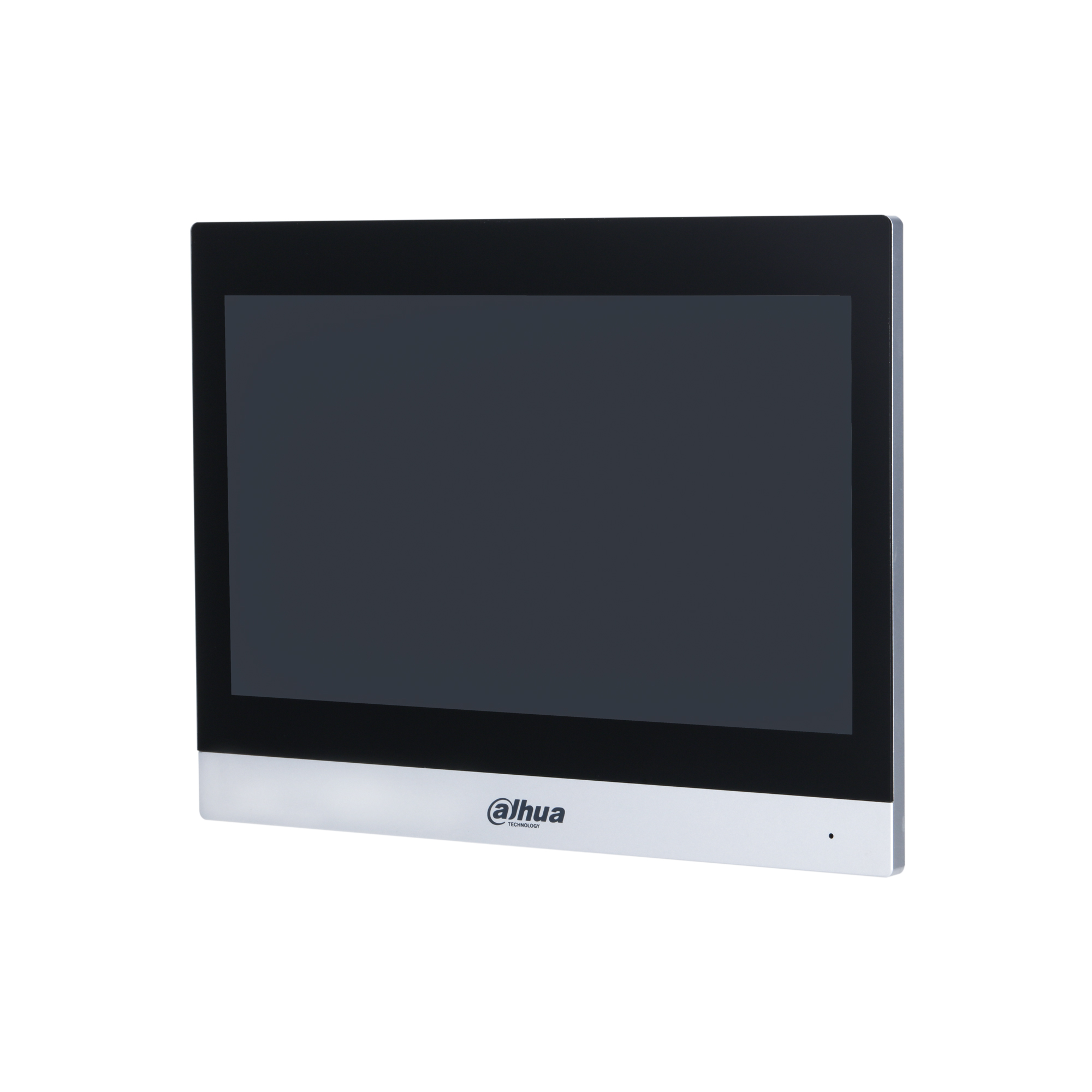

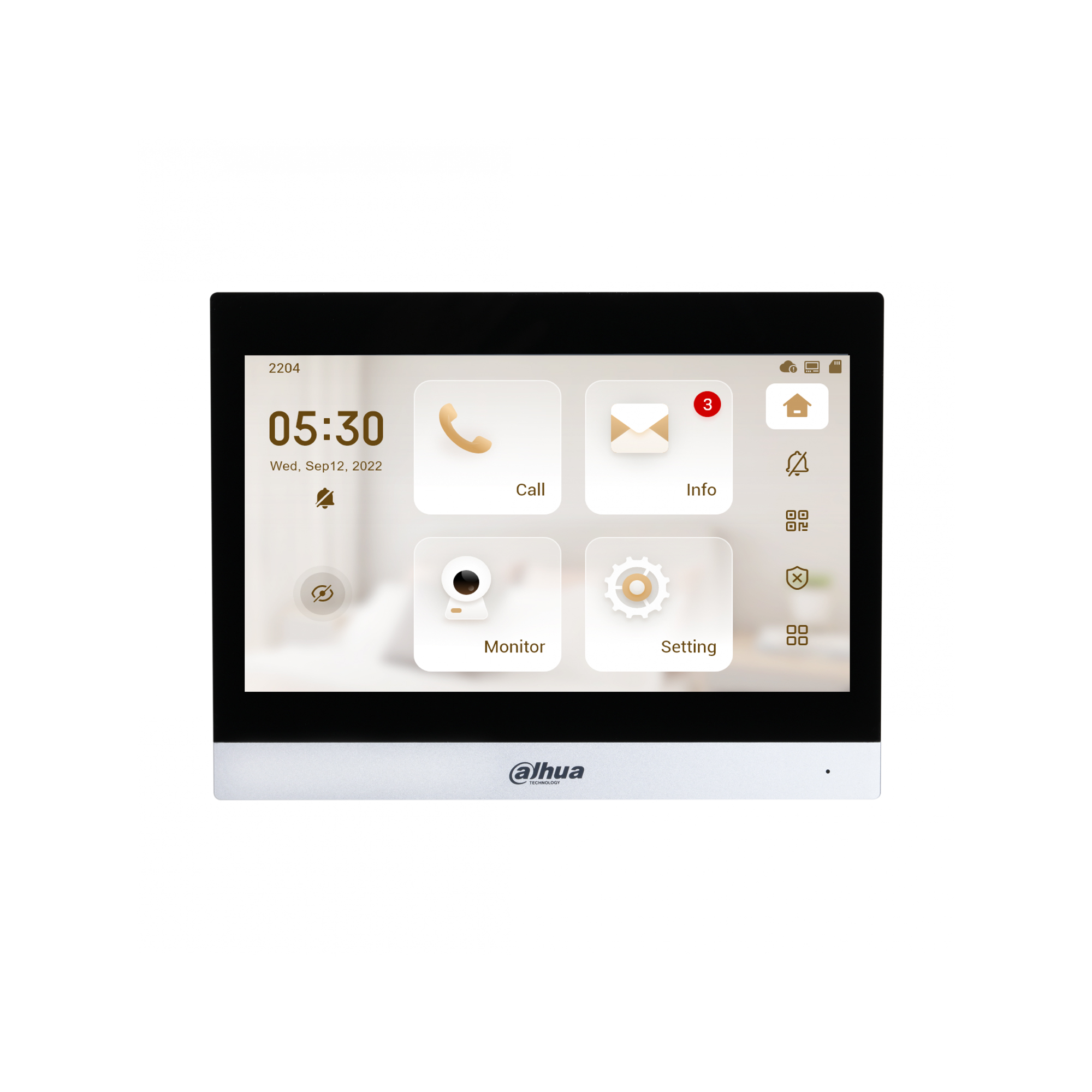

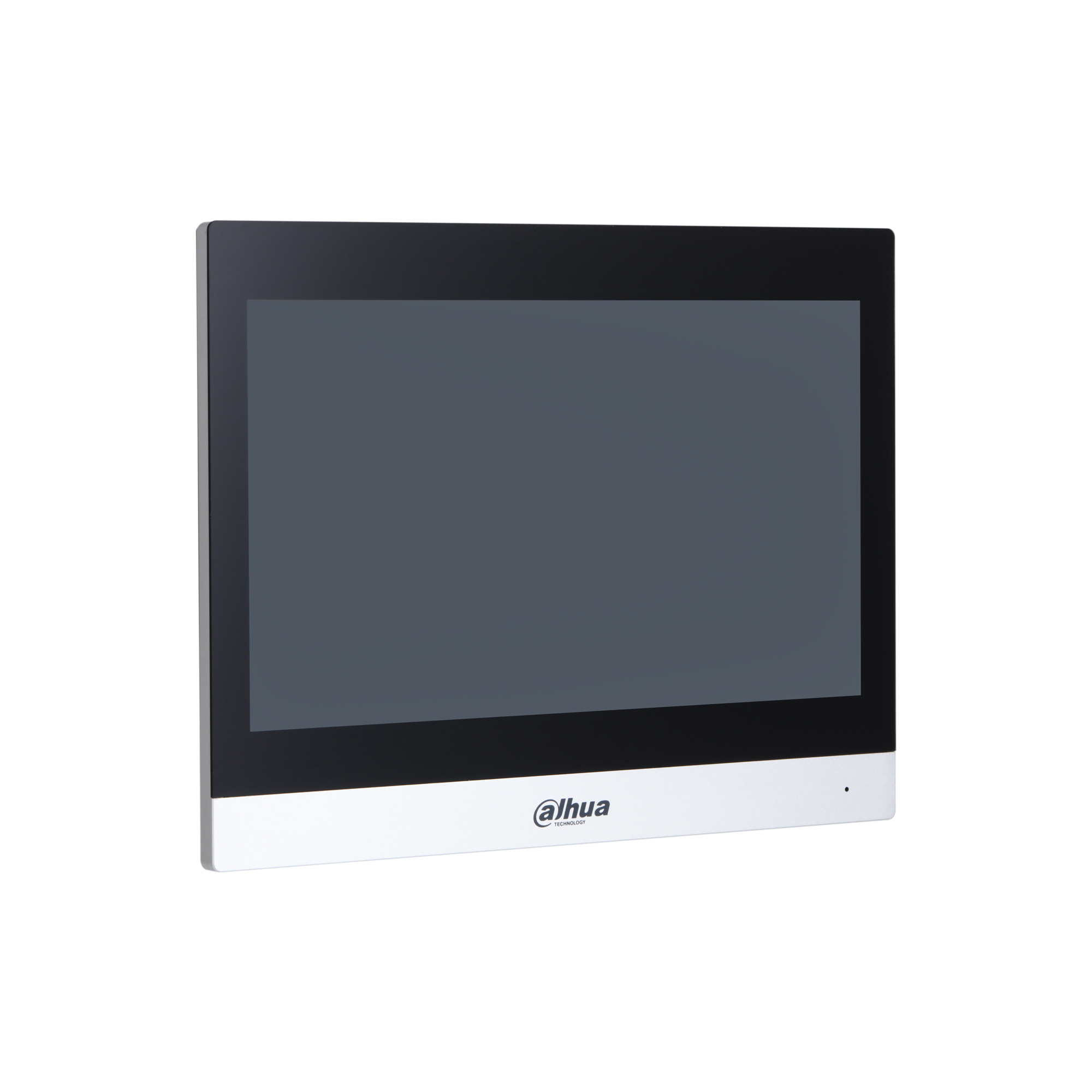

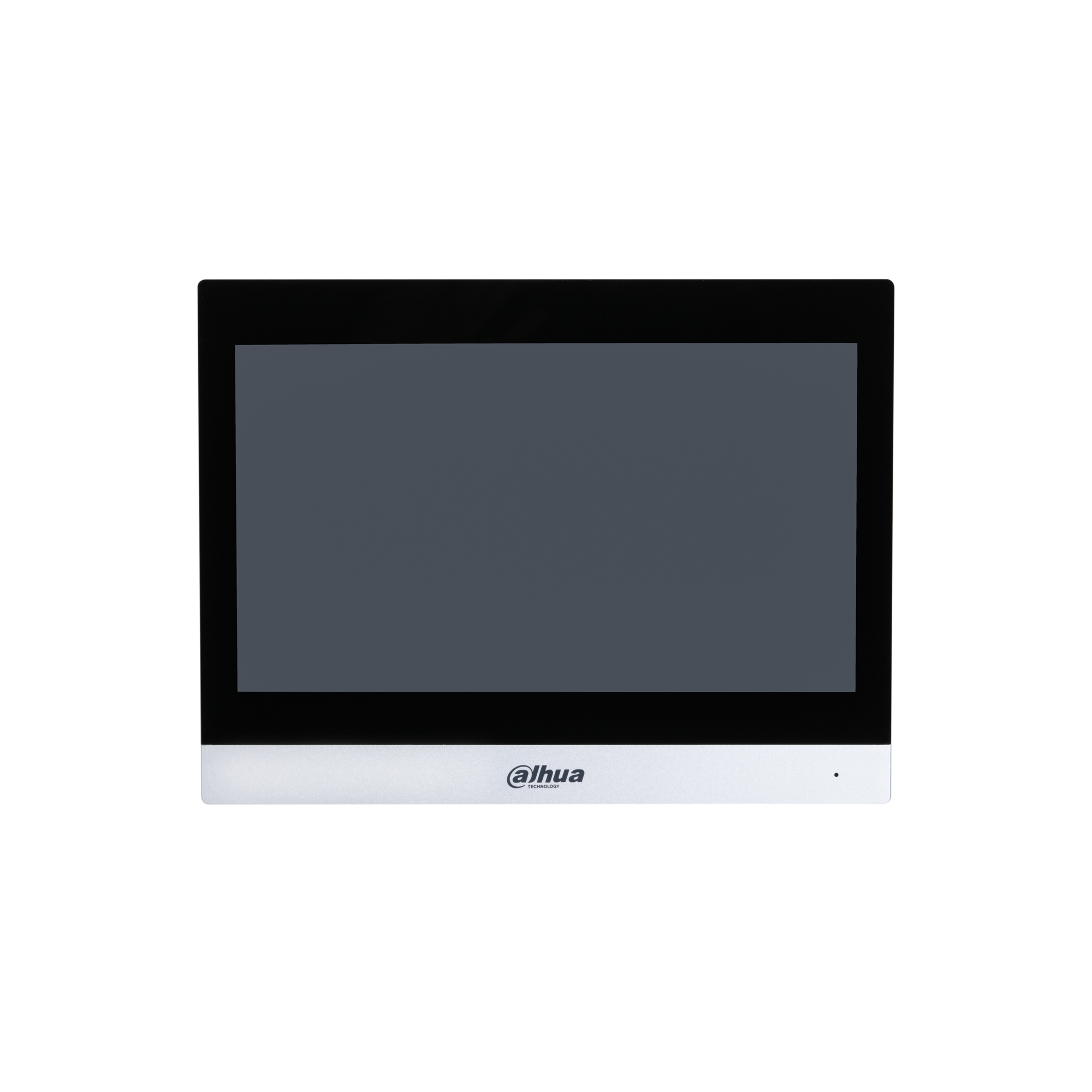

The aluminum alloy indoor monitor opens the incoming door station call and the camera view on its 10" capacitive touchscreen. It runs on an embedded Linux operating system and uses the wired network and Wi-Fi side by side.

10"Capacitive Touchscreen

1024 × 600Resolution

6 / 1Alarm In / Out

64 GBMemory Card Support

12 V DC / PoEPower Supply

Key features

Automatic view on callBrings up the camera image as soon as a call arrives from the door station.

Alarm zonesWatches 6 wired alarm input channels and triggers 1 alarm output.

SOS and do not disturbSends an SOS message to the management center in an emergency, and the Do Not Disturb mode mutes calls during the hours the user sets.

StorageThe Micro SD card slot takes cards up to 64 GB.

Audio qualityThe speaker and microphone carry two-way conversation clearly.

Flexible powerAccepts a 12 V DC adapter or standard PoE power.

System
Main Processor	Embedded processor
Operating System	Embedded Linux operating system
Interoperability	ONVIF; SDK
Network Protocol	RTSP; RTP; SIP; DNS; SSH
Display & Audio
Screen Type	10" TFT Capacitive Touchscreen
Resolution	1024 × 600
Audio Compression	G.711a; G.711u; PCM
Audio Mode	2-way Audio (Built-in speaker)
Function & Wireless
Communication Mode	Full digital
Wi-Fi	Yes (IEEE802.11b/g/n)
Storage	Micro SD card (up to 64 GB)
Performance & General
Alarm In/Out	6 Inputs / 1 Output
Power Supply	12 VDC 1A / Standard PoE
Dimensions	250 mm × 190 mm × 23.5 mm
Weight	Net: 0.67 kg / Gross: 0.85 kg

Datasheet

VTH8641KMS-WP

12/11/2026
