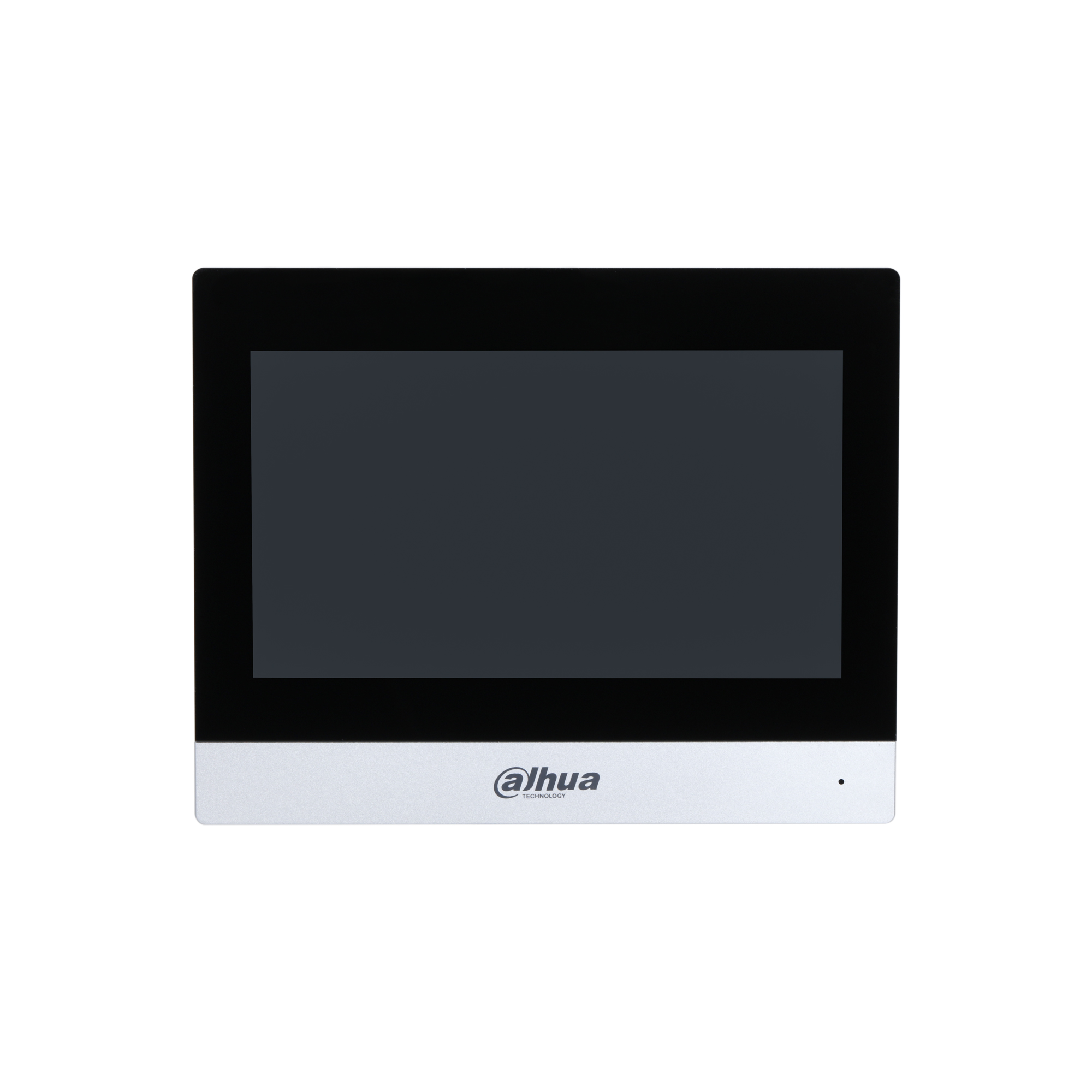

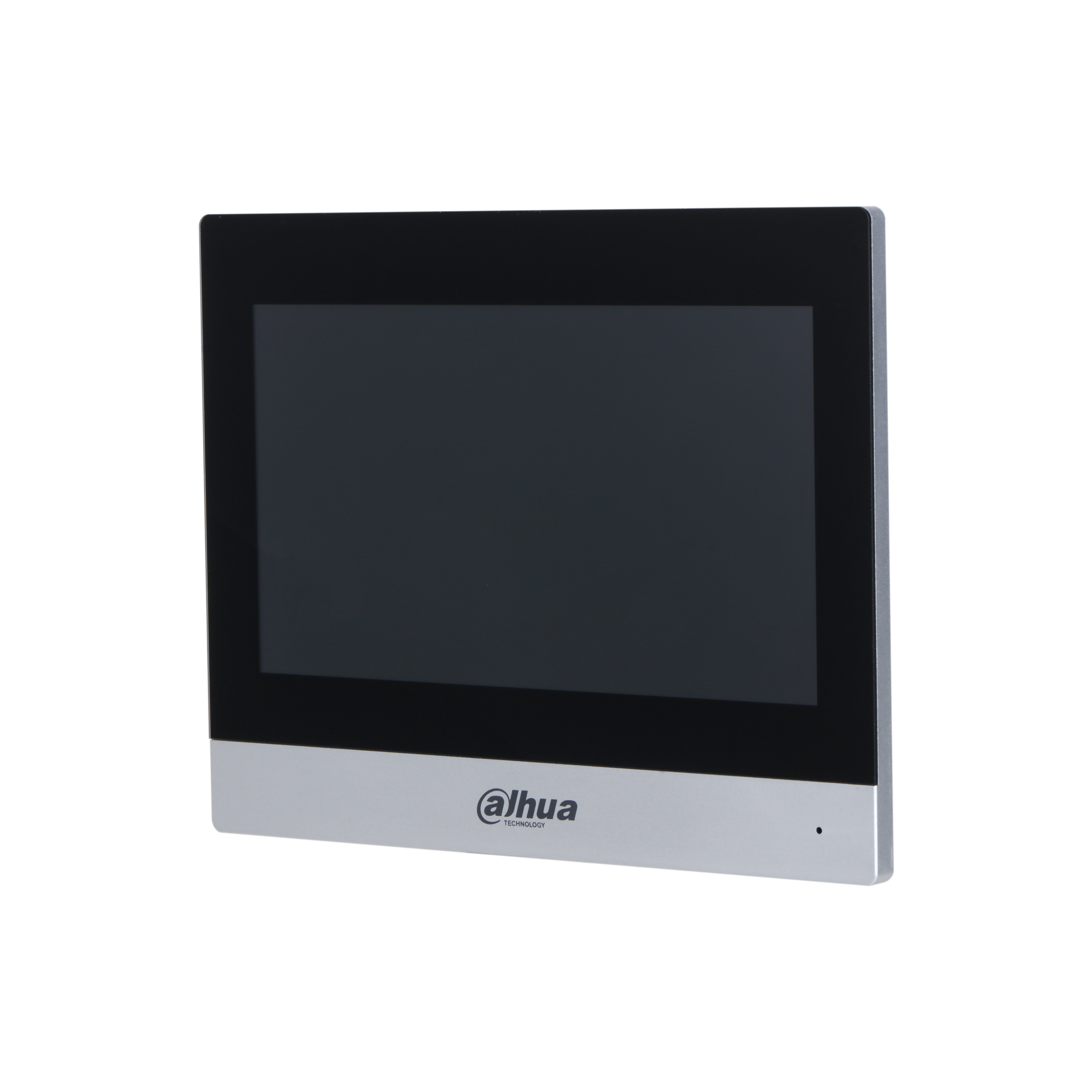

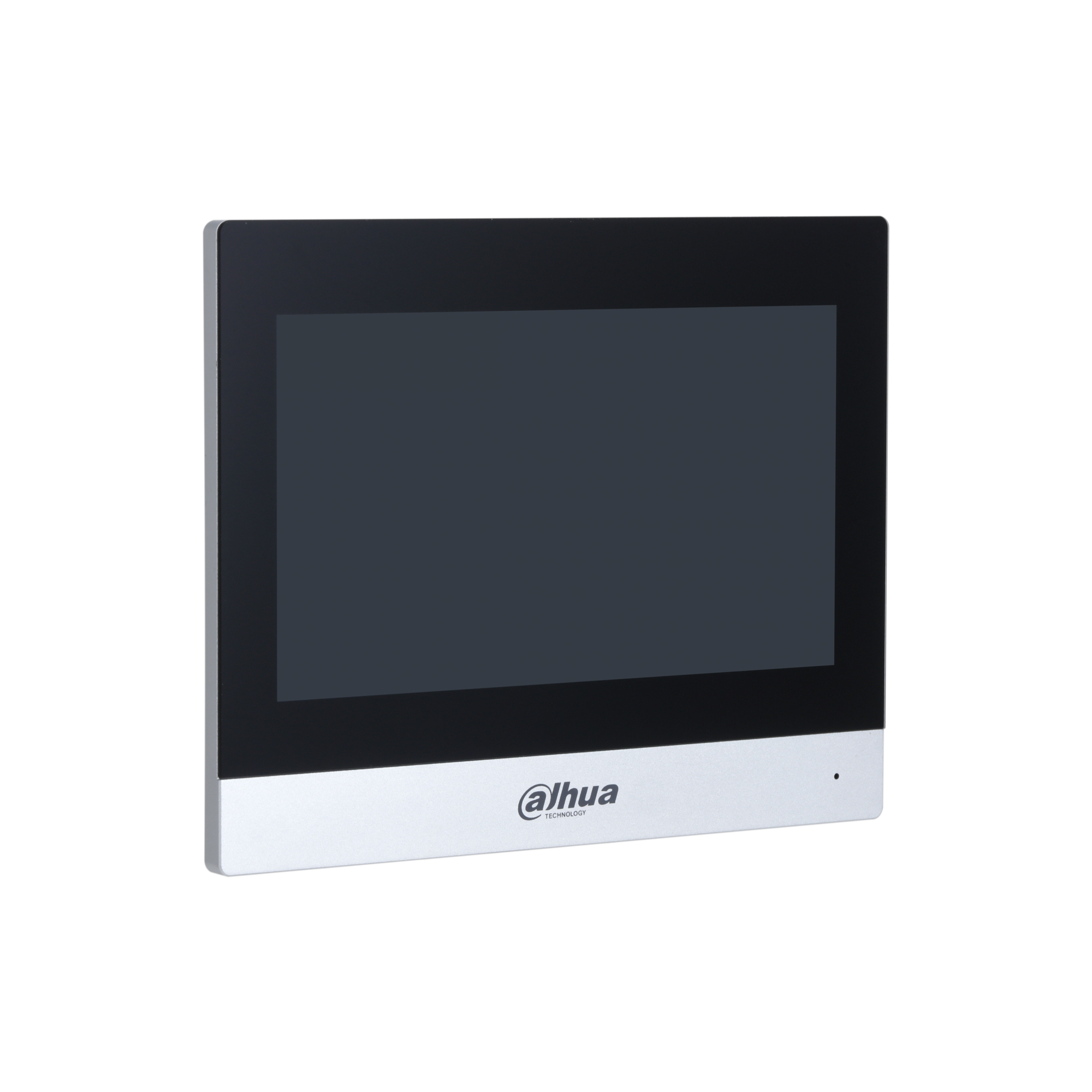

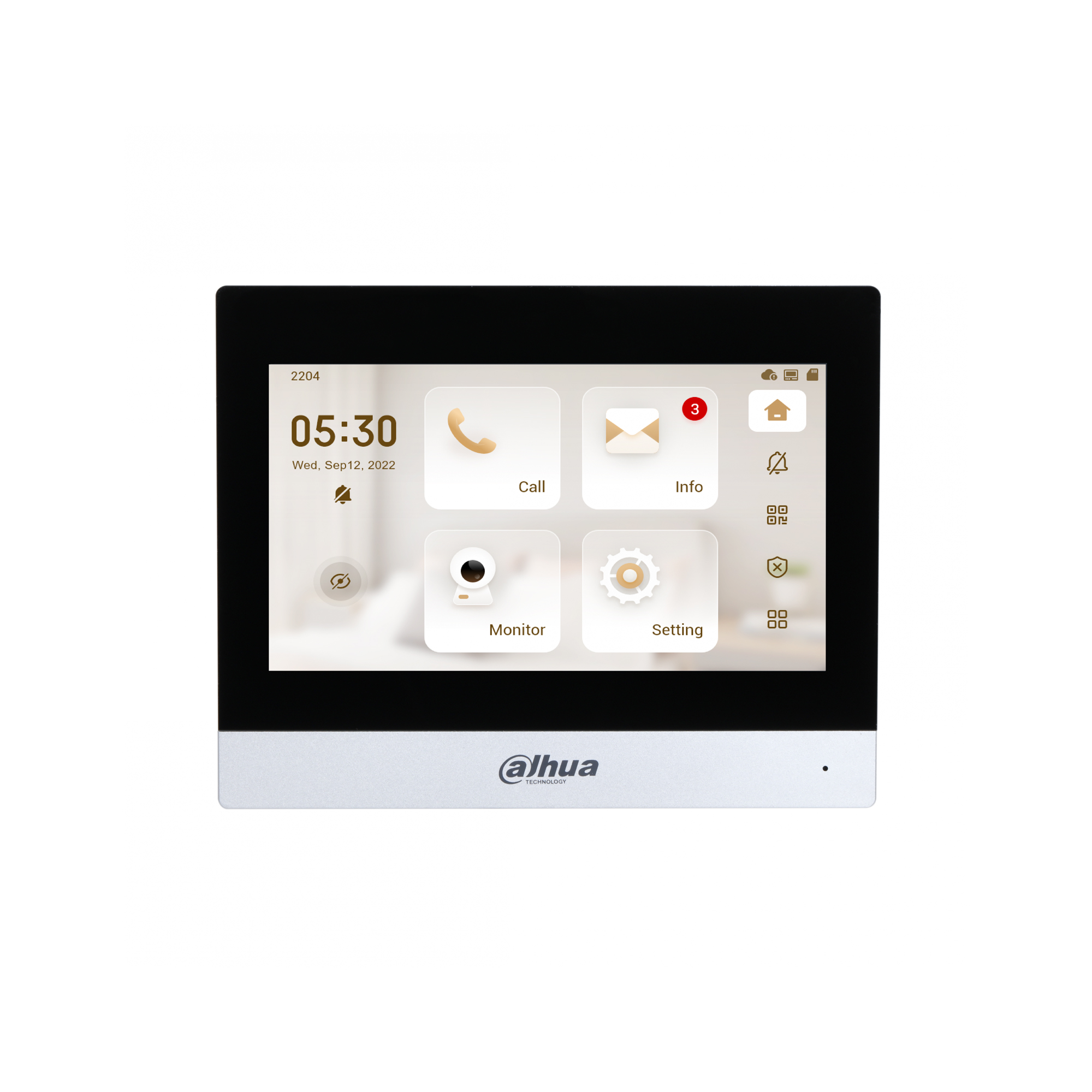

Combines the door call and the camera view on a compact touchscreen.

The aluminum alloy indoor monitor shows the door station call and the camera image on its 7" capacitive touchscreen. It runs on an embedded Linux operating system and fits narrow wall surfaces.

7"Capacitive Touchscreen

1024 × 600Resolution

6 / 1Alarm In / Out

64 GBMemory Card Support

12 V DC / PoEPower Supply

Key features

Automatic view on callBrings up the camera image as soon as a call arrives from the door station.

Alarm zonesWatches 6 wired alarm input channels and triggers 1 alarm output.

Network connectionA 10/100 Mbps Ethernet port and IEEE 802.11b/g/n Wi-Fi put the monitor on a wired or wireless network.

SOS and do not disturbSends an SOS message to the management center, and the Do Not Disturb mode mutes calls during the hours the user sets.

StorageThe Micro SD card slot takes cards up to 64 GB.

Compact bodyThe 185 mm × 147 mm × 22.4 mm body weighs 0.39 kg and sits flat on the wall.

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF; SDK

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Display & Audio

Screen Type

7" TFT Capacitive Touchscreen

Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Mode

2-way Audio (Built-in speaker)

Function & Wireless

Communication Mode

Full digital

Wi-Fi

Yes (IEEE 802.11b/g/n)

Storage

Micro SD card (up to 64 GB)

Interface & General

Alarm In/Out

6 Inputs / 1 Output

Network Port

One 10/100 Mbps Ethernet

Power Supply

12 VDC 1A / Standard PoE

Dimensions

185 mm × 147 mm × 22.4 mm

Weight

Net: 0.39 kg / Gross: 0.58 kg
