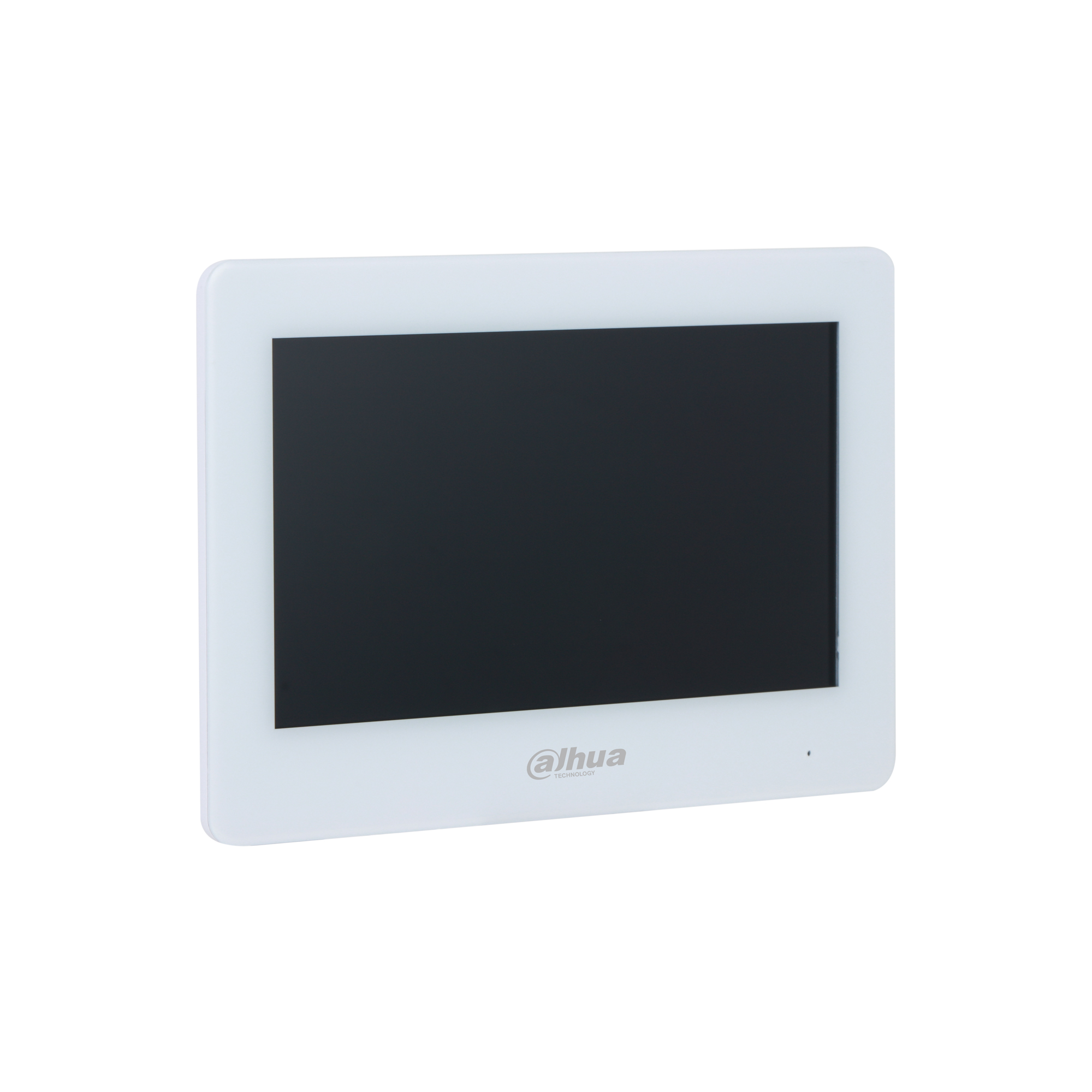

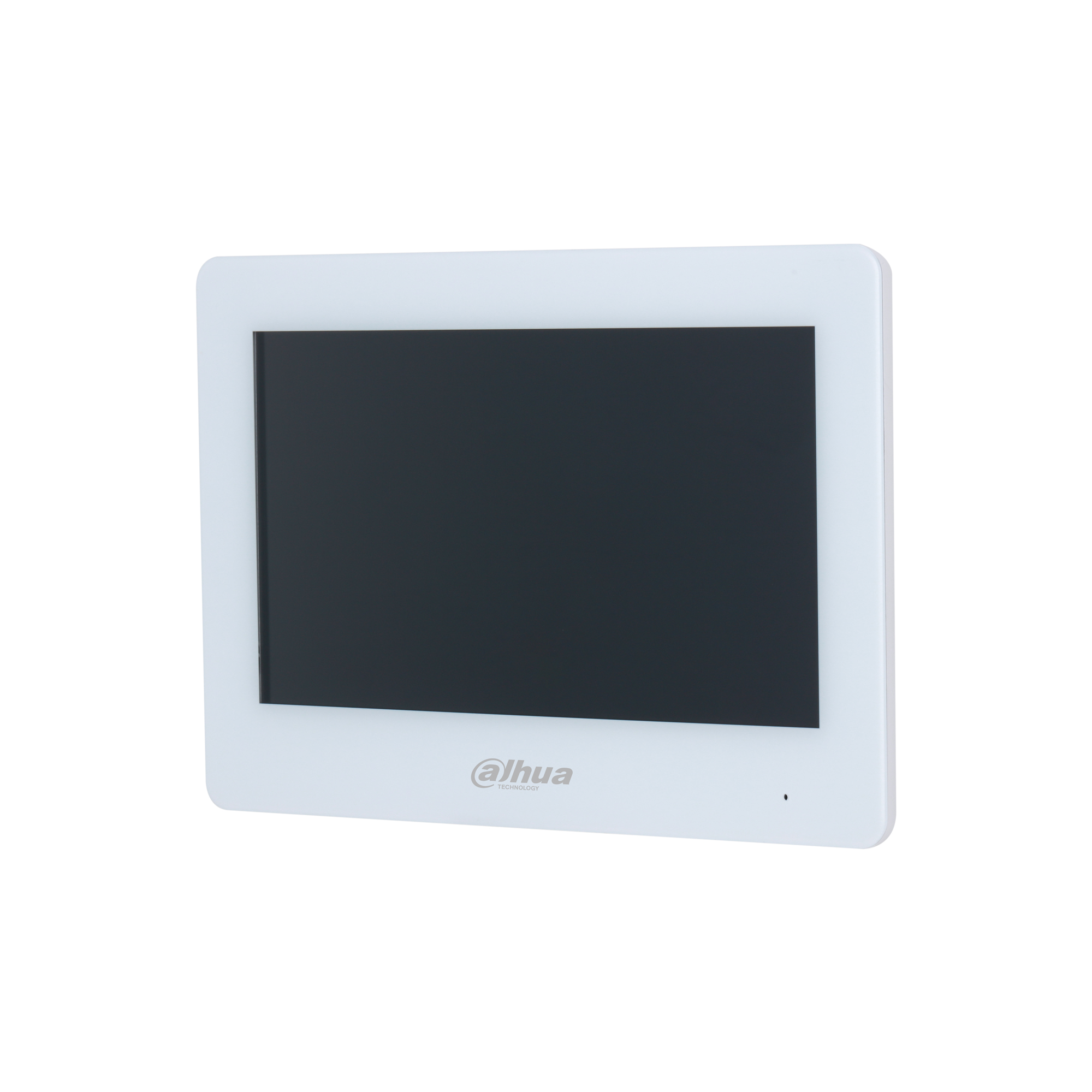

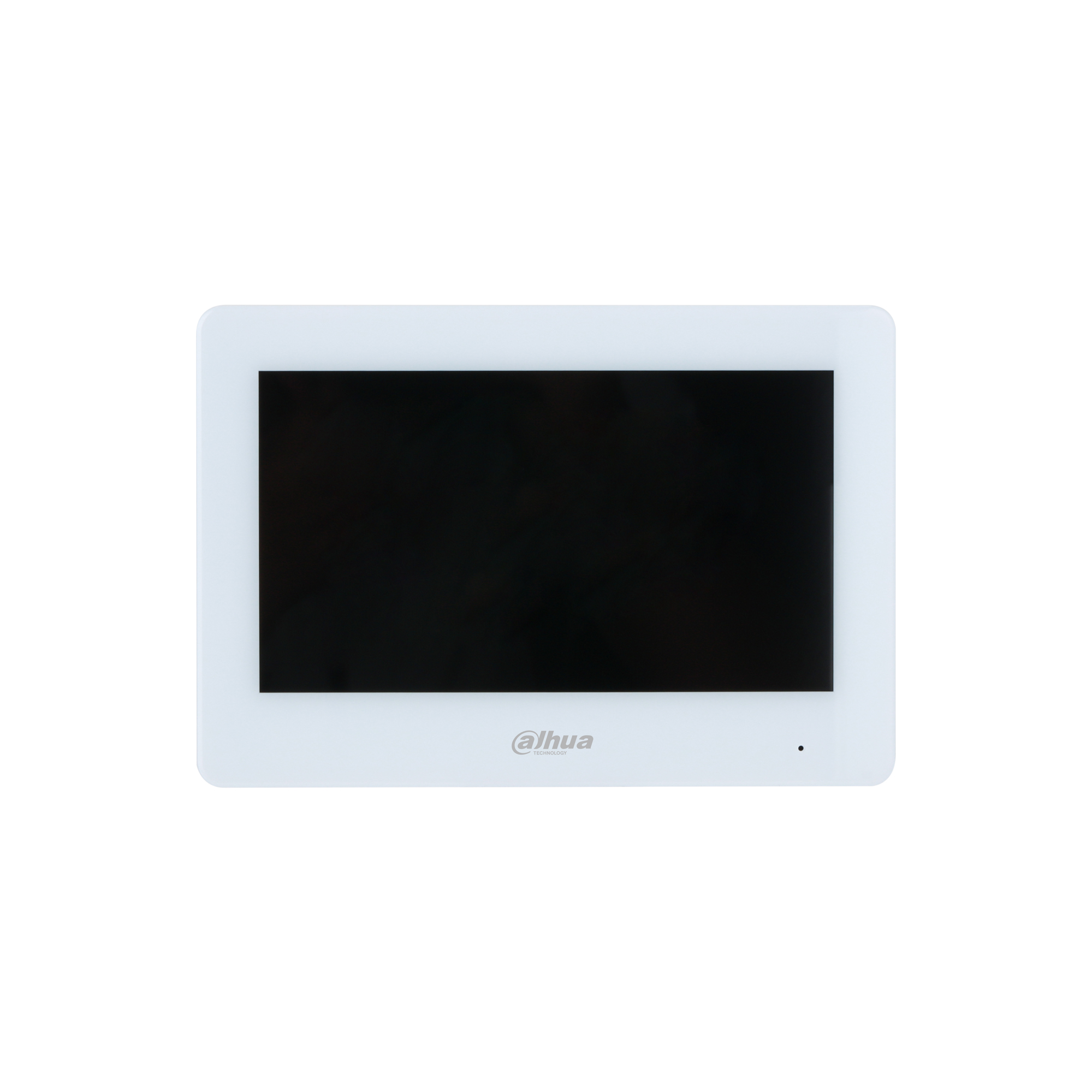

Watches the door station and the IP cameras on one touchscreen.

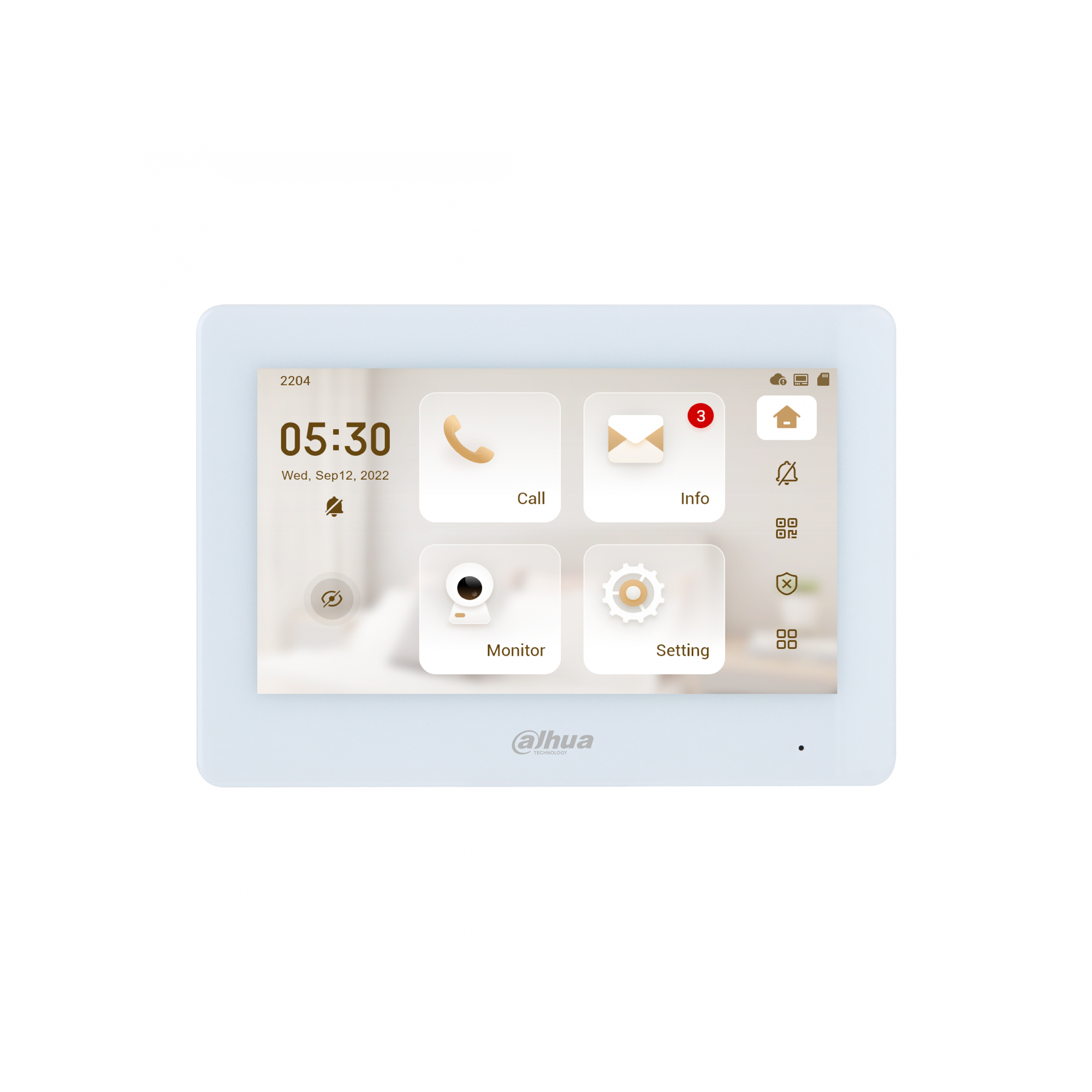

Running on embedded Linux, the indoor monitor opens the door call and the IP camera view on its 7" capacitive touchscreen. The Wi-Fi link puts the monitor on the network without cabling.
Video decodingDecodes H.265 and H.264 streams and brings the door station and IP camera images to the screen.
Alarm zonesWatches 6 alarm input channels and triggers 1 alarm output channel.
Wireless linkJoins a Wi-Fi network on the IEEE 802.11b/g/n standard.
External powerA 12 V, 100 mA power output feeds a connected device.
StorageThe Micro SD card slot takes cards up to 64 GB.
Compact bodyThe PC + ABS body measures 189.0 mm × 130.0 mm × 26.9 mm and works from -10 °C to +55 °C.
