Manages door calls and alarm zones together on a wide touch screen.

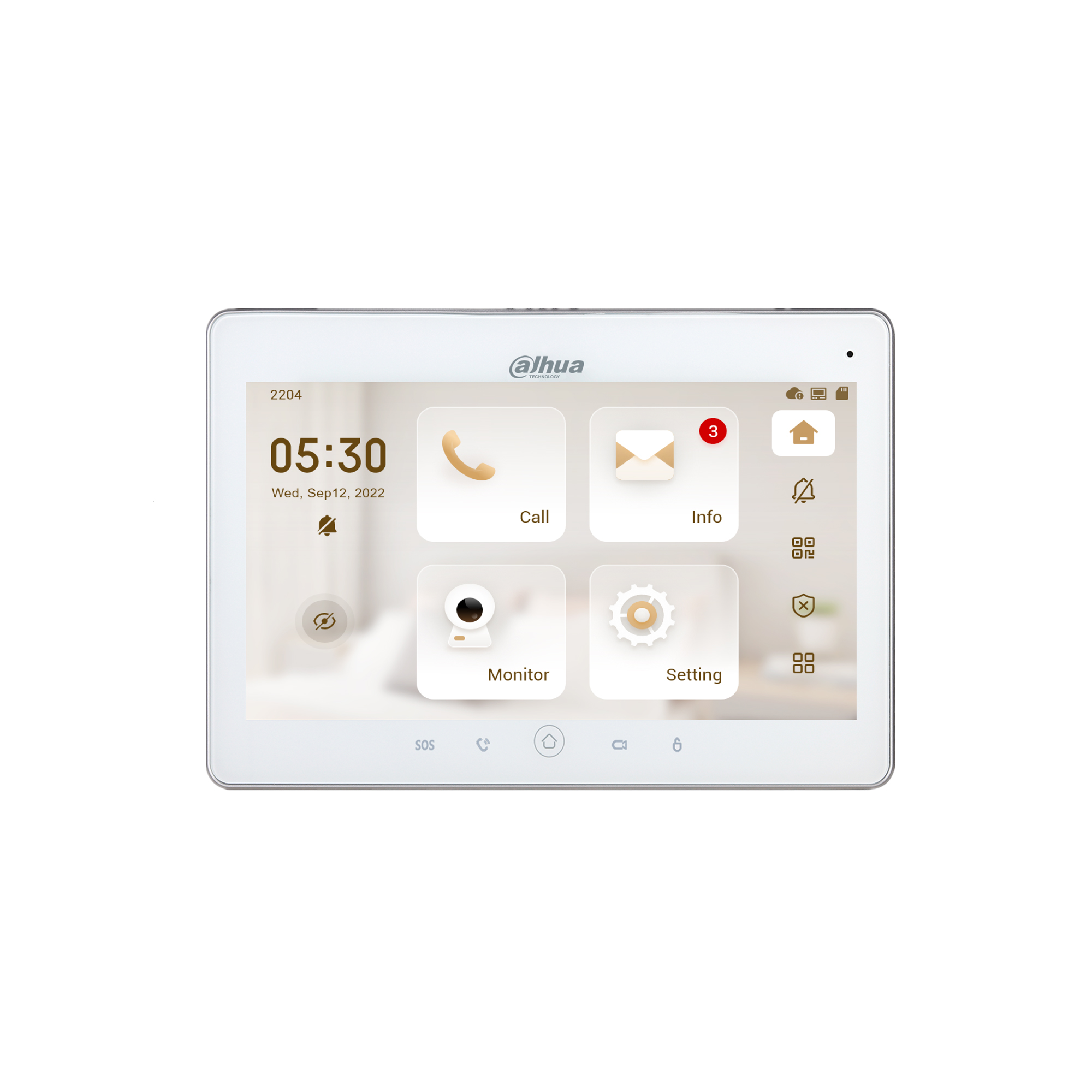

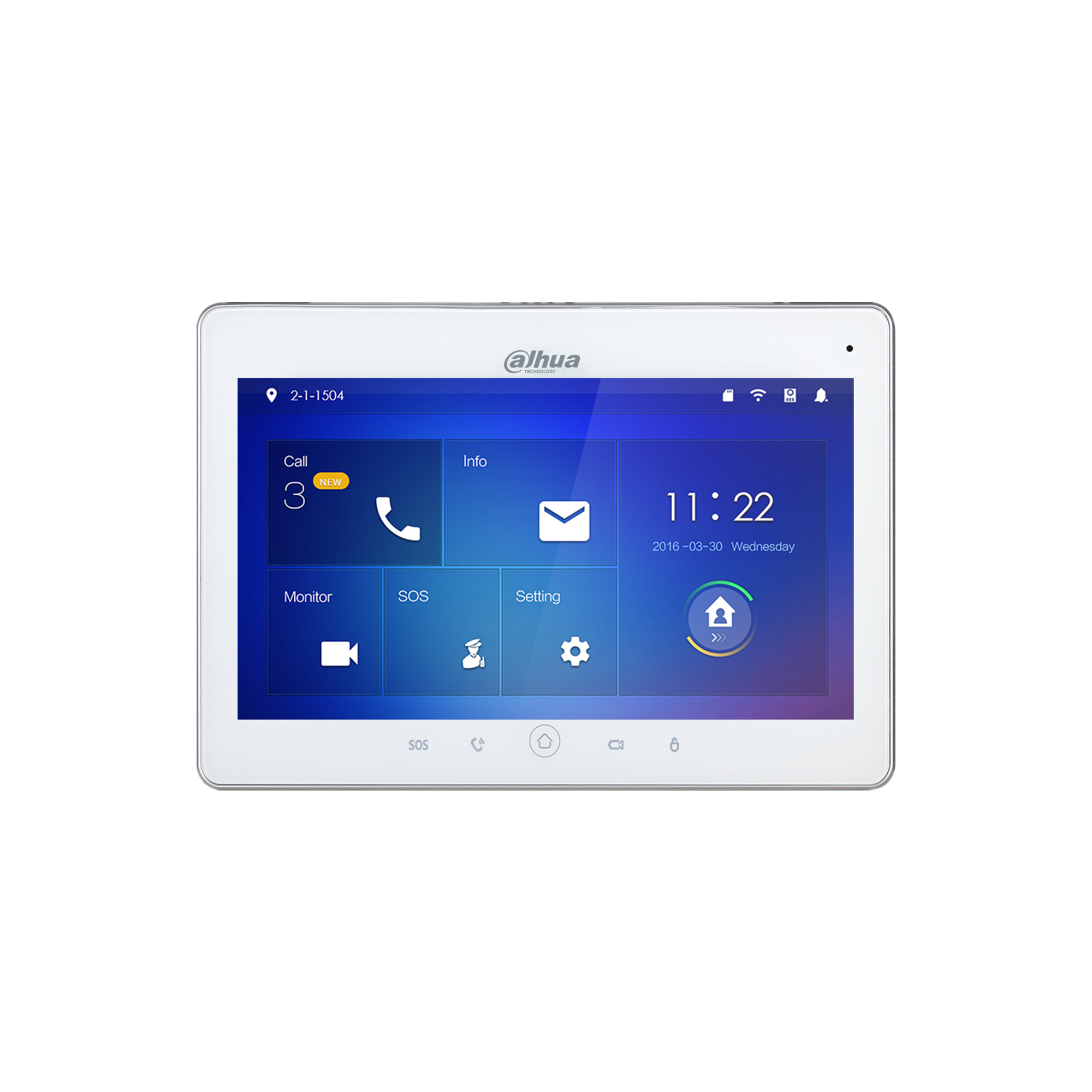

An indoor monitor that gathers door station video, IP camera surveillance and alarm zones on one panel. Its 10" LCD screen works at 1024 × 600 resolution and takes commands from touch buttons and a capacitive surface. It carries Wi-Fi and Ethernet connectivity side by side.

10"LCD touch screen

1024 × 600Resolution

6 / 1Wired alarm zones / alarm output

433 MHzWireless alarm band

32 GBMemory Card Support

12 V DC / PoEPower supply

Key features

Wide touch screenThe 10" LCD panel displays at 1024 × 600 resolution and responds to touch buttons and the capacitive screen.

Alarm zonesConnects 6 wired zones, accepts 433 MHz wireless detectors on the same system, and carries 1 alarm output and 1 RS485 port.

Wired and wireless networkSwitches between IEEE802.11b/g/n Wi-Fi and 10M / 100 Mbps Ethernet.

Video and audioRuns H.264 video compression and G.711 audio compression; an all-direction microphone and a built-in loudspeaker carry two-way talk.

Recording and storageTakes a Micro SD card of up to 32GB; recording and snapshot need a card.

Power and operating rangeRuns on a DC 12V adapter or PoE (802.3af) and operates between -10°C and +55°C.

System & Display

Main Processor

Embedded Micro Processor

Operating System

Embedded LINUX OS

Display

10" LCD, 1024x600 Resolution

Operation Mode

Touch buttons and capacitive screen

Audio & Video

Video Compression

H.264

Audio Compression

G.711

Audio Input/Output

All-direction Microphone / Built-in Loudspeaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Interface & Network

Wired / Wireless Zones

6 On-board zones / 8 Wireless zones

Alarm Out / RS485

1 Alarm Out / 1 RS485 Port

Wi-Fi / Ethernet

IEEE802.11b/g/n / 10M/100Mbps Self-adaptive

General Parameters

Memory Slot

Micro SD, Max 32GB

Power Supply

DC 12V, PoE (802.3af)

Dimensions / Weight

265.0mm × 180.0mm × 22.5mm / 1kg

Operating Temperature

-10°C to +55°C
