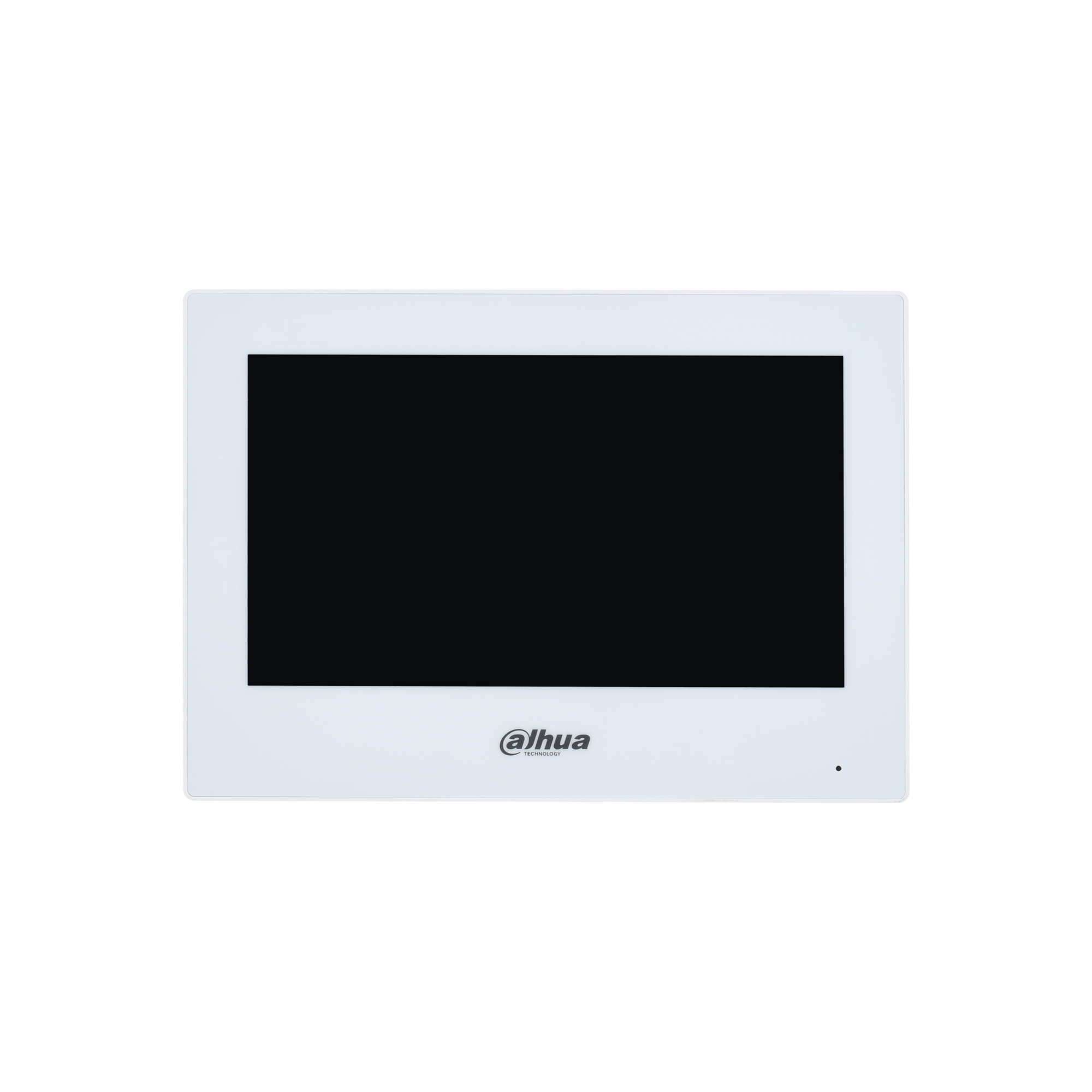

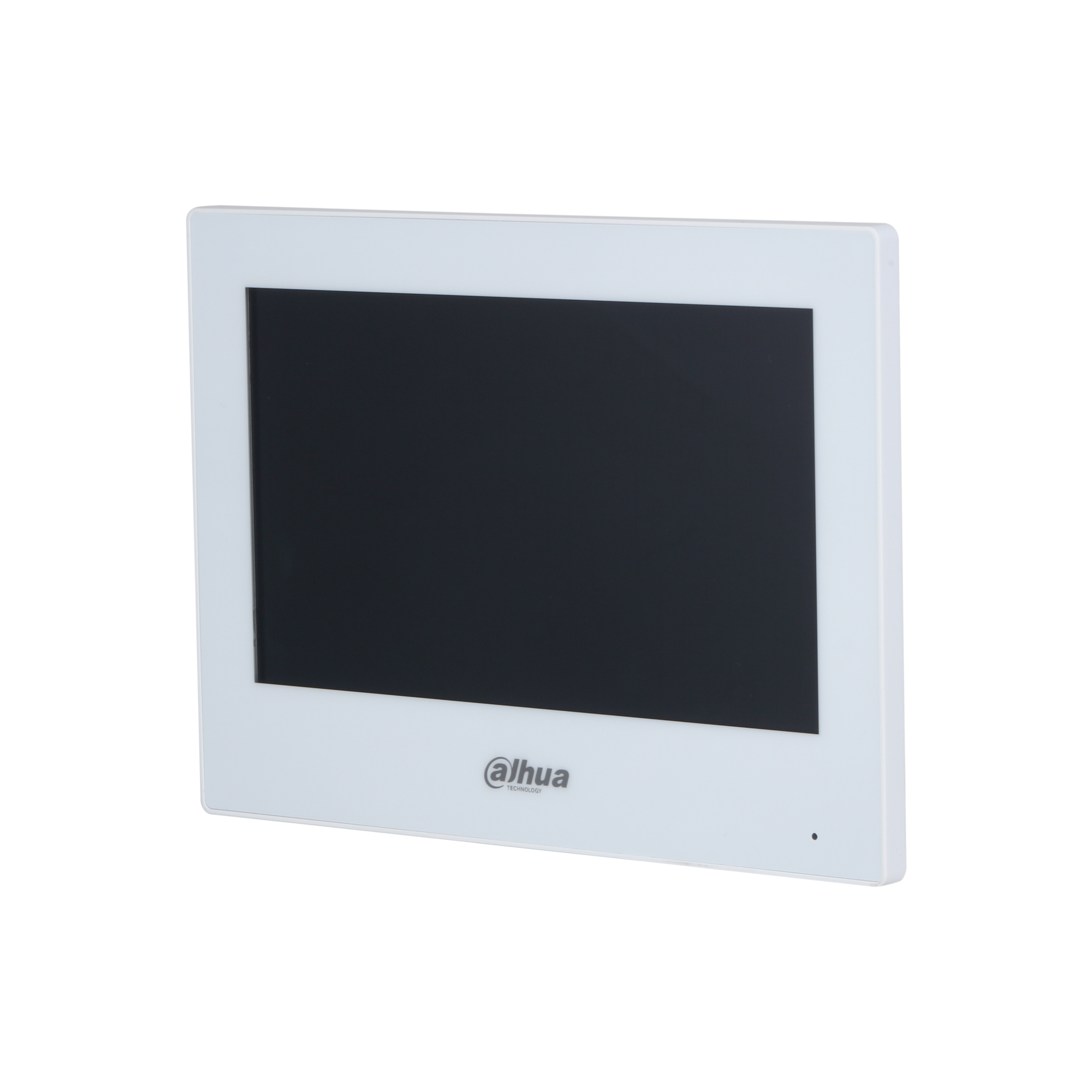

A touch indoor monitor that gathers Wi-Fi and PoE connectivity in one body.

An indoor monitor that decodes door station and IP camera video with a dual-core processor. Its 7" TFT capacitive touchscreen works at 1024 × 600 resolution and switches between 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet. It runs on standard PoE or a 12 VDC supply.

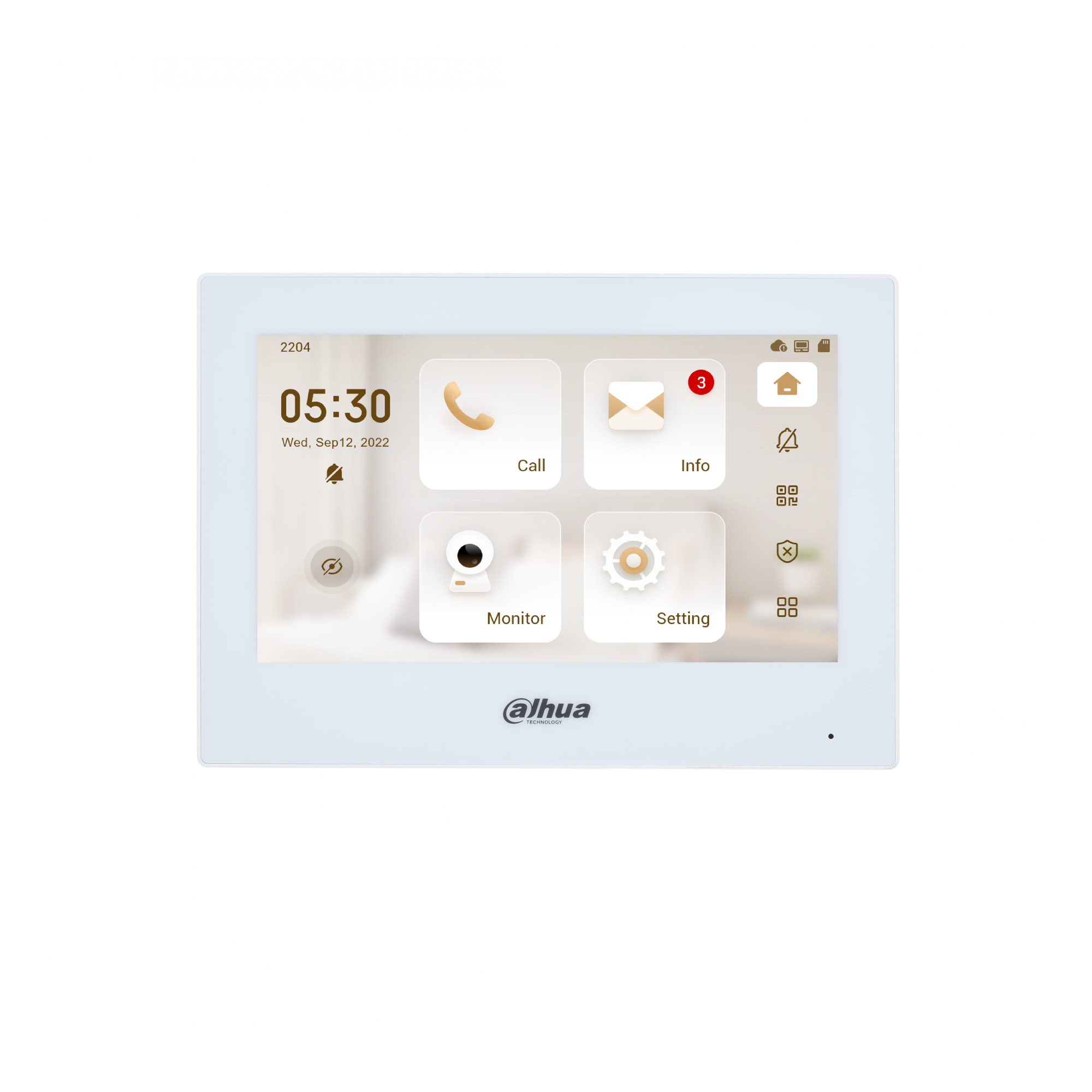

7"TFT capacitive touchscreen

1024 × 600Resolution

6 / 1Alarm input / output channels

10/100 MbpsEthernet port

64 GBMemory Card Support

12 VDC / PoEPower supply

Key features

Dual-core processorA 1.2 GHz dual-core processor with 128 MB RAM and 128 MB ROM keeps the interface responsive.

Display and audioThe 7" TFT capacitive touchscreen works at 1024 × 600 resolution; two-way audio runs echo suppression and decodes the G.711a, G.711u and PCM codecs.

Wi-Fi and extensionUses IEEE802.11b/g/n in the 2.4 GHz band and scales up to 9 indoor units in villa installations and 4 in apartment installations.

Alarm and doorbellConnects 6 alarm input channels and 1 alarm output channel and recognizes a doorbell call on the alarm input.

Network and storageConnects through a 10/100 Mbps RJ-45 port and takes a Micro SD card of up to 64 GB.

Power and consumptionRuns on a 12 VDC 1A adapter or standard PoE (36-57 V), and stays within 6W while working and 2W on standby.

System & Display Features

Processor / OS

Dual Core 1.2 GHz / Embedded Linux OS

Memory (RAM/ROM)

128 MB / 128 MB

Display Specifications

7" TFT Capacitive Touchscreen (1024 × 600)

Interoperability

ONVIF; SDK; RTSP; RTP; SIP; DNS; SSH

Audio & Wireless Connectivity

Audio Input / Output

1-ch Input / Built-in Speaker (Two-way Audio)

Audio Enhancement

Echo Suppression; G.711a; G.711u; PCM

Wi-Fi Standards

Yes; IEEE802.11b/g/n (2.4 GHz)

Extension Capacity

Villa: 9; Apartment: 4; Wi-Fi Intercom: 1 Main + 2 Ext

Interface & Functions

Alarm Input / Output

6 Channels In / 1 Channel Out (Doorbell supported)

Network Port / Storage

10/100 Mbps RJ-45 / Micro SD (Max. 64 GB)

Smart Features

Information Release (Text); DND Mode

General Parameters

Power Supply

12 VDC 1A or Standard PoE (36–57 V)

Dimensions / Color

189.6 mm × 134.6 mm × 26.0 mm / Black or White

Operating Conditions

–10 °C to +55 °C; 10%–95% RH

Power Consumption / Weight

Work: ≤ 6W (Standby: ≤ 2W) / Net: 0.34 kg
