Stock Code: VTO2111D-P-S3

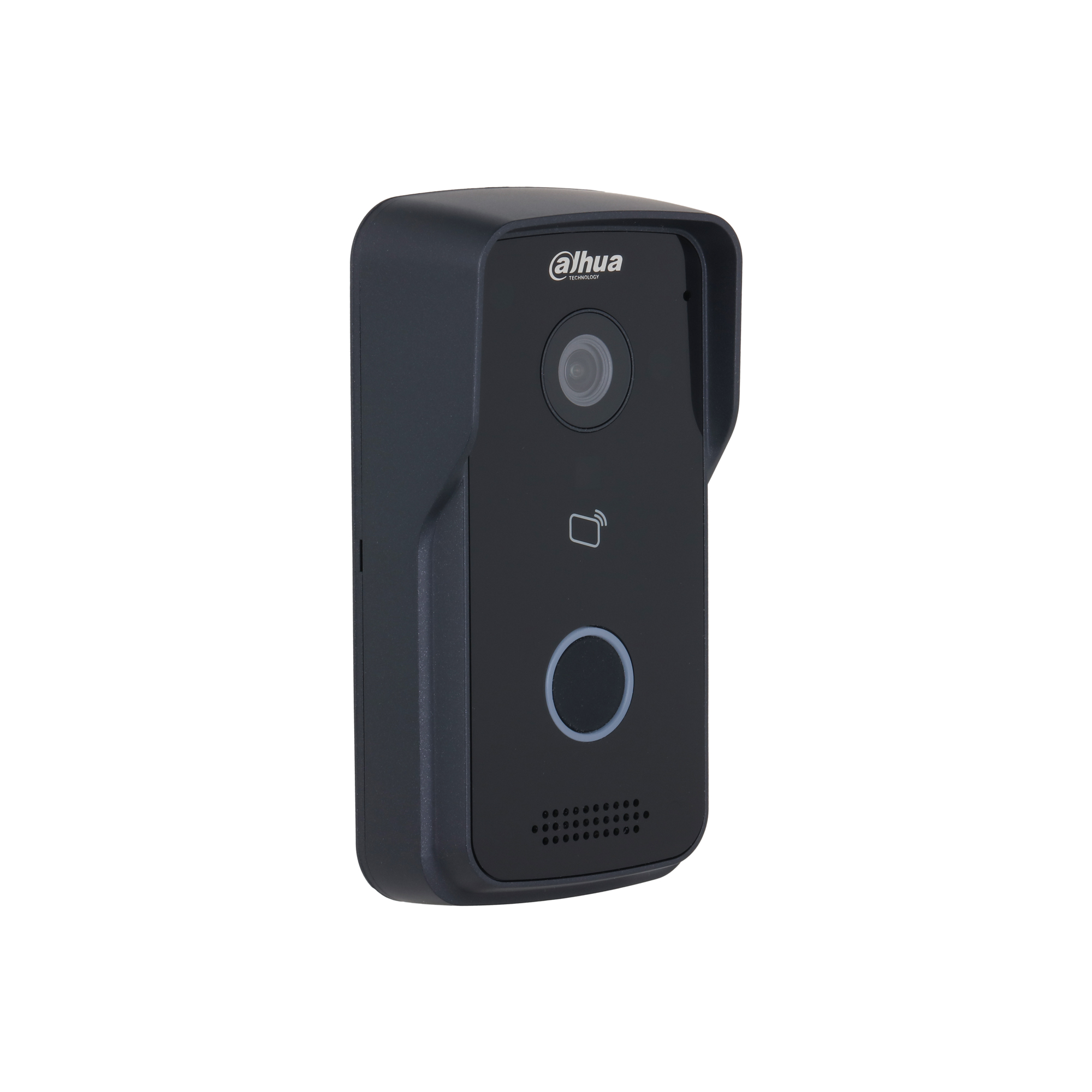

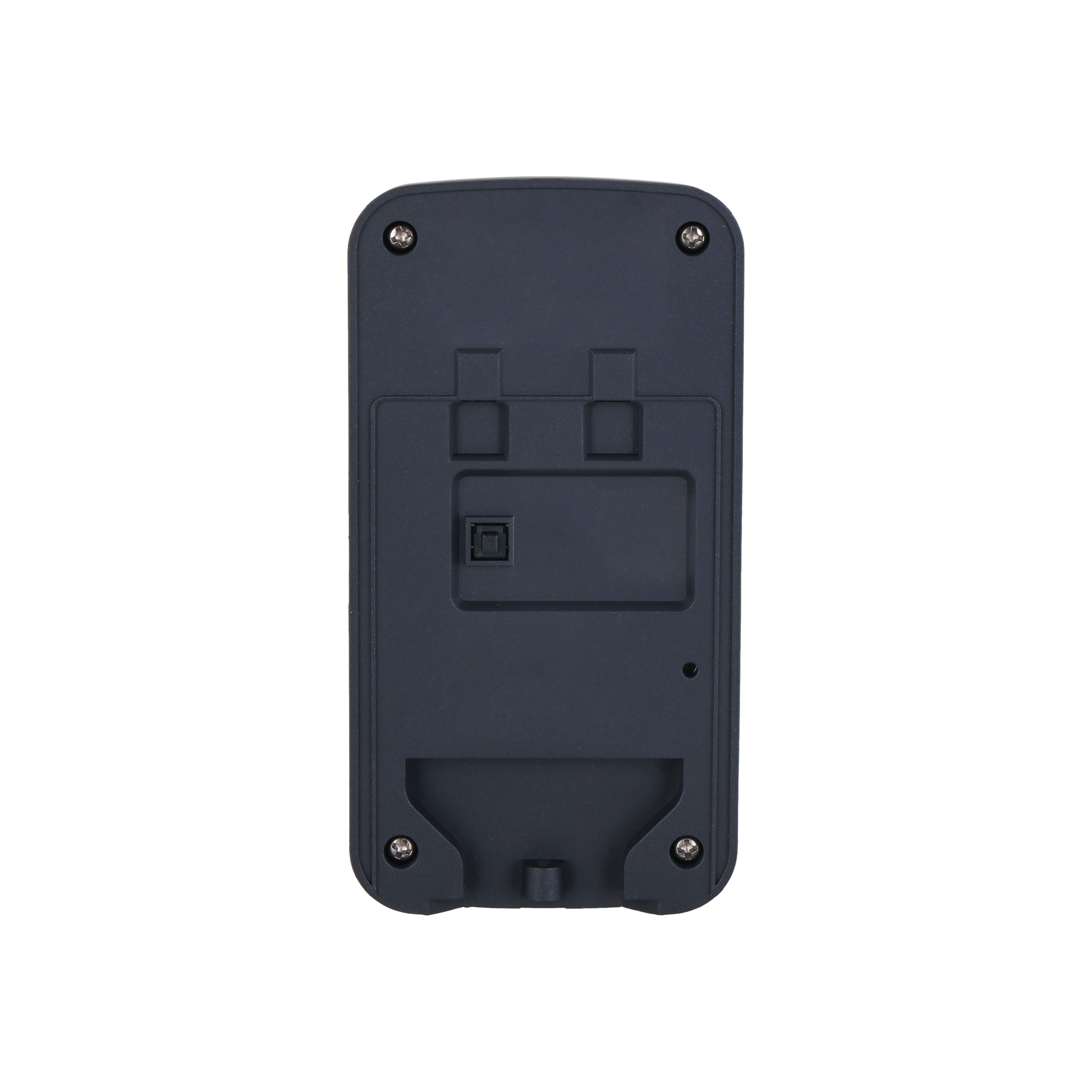

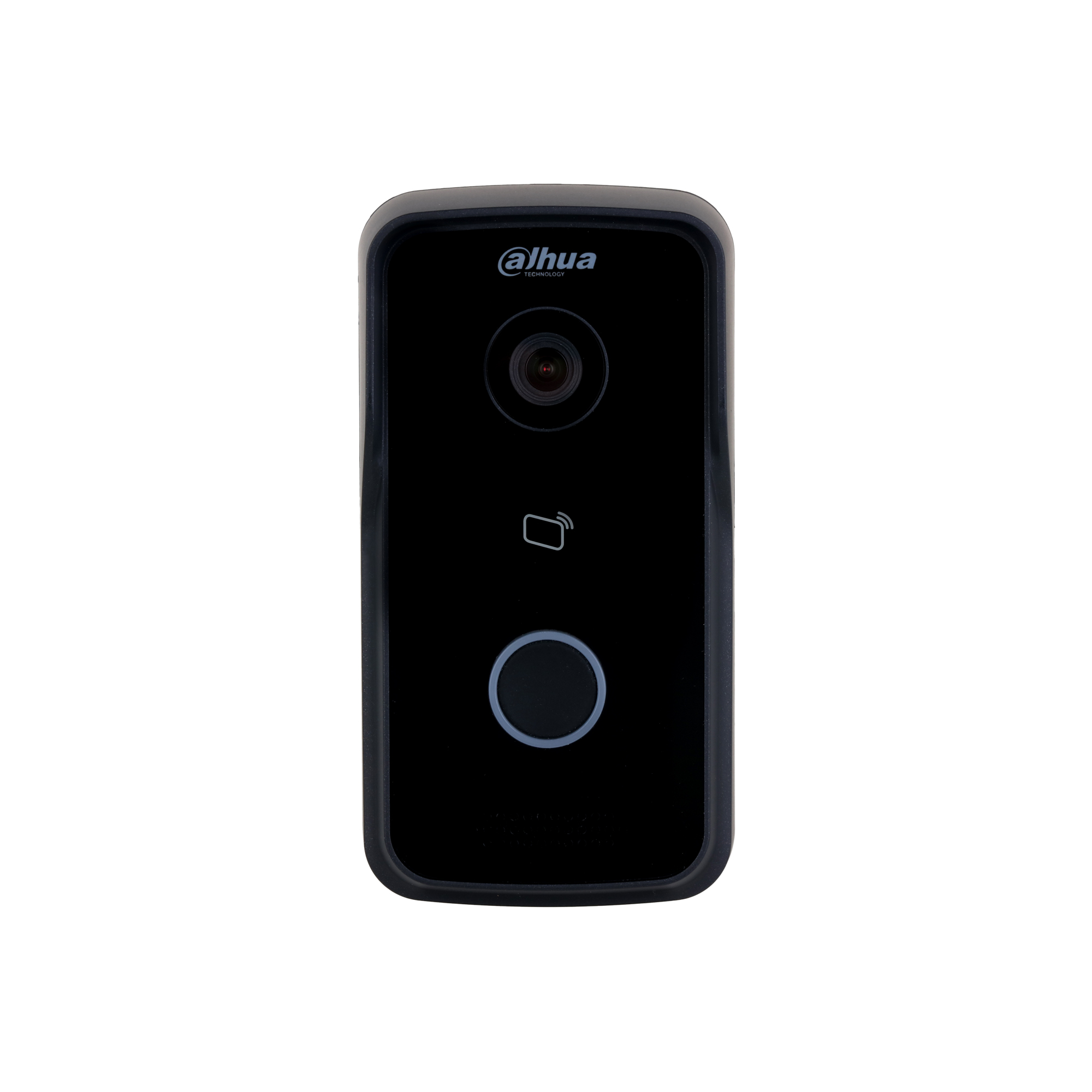

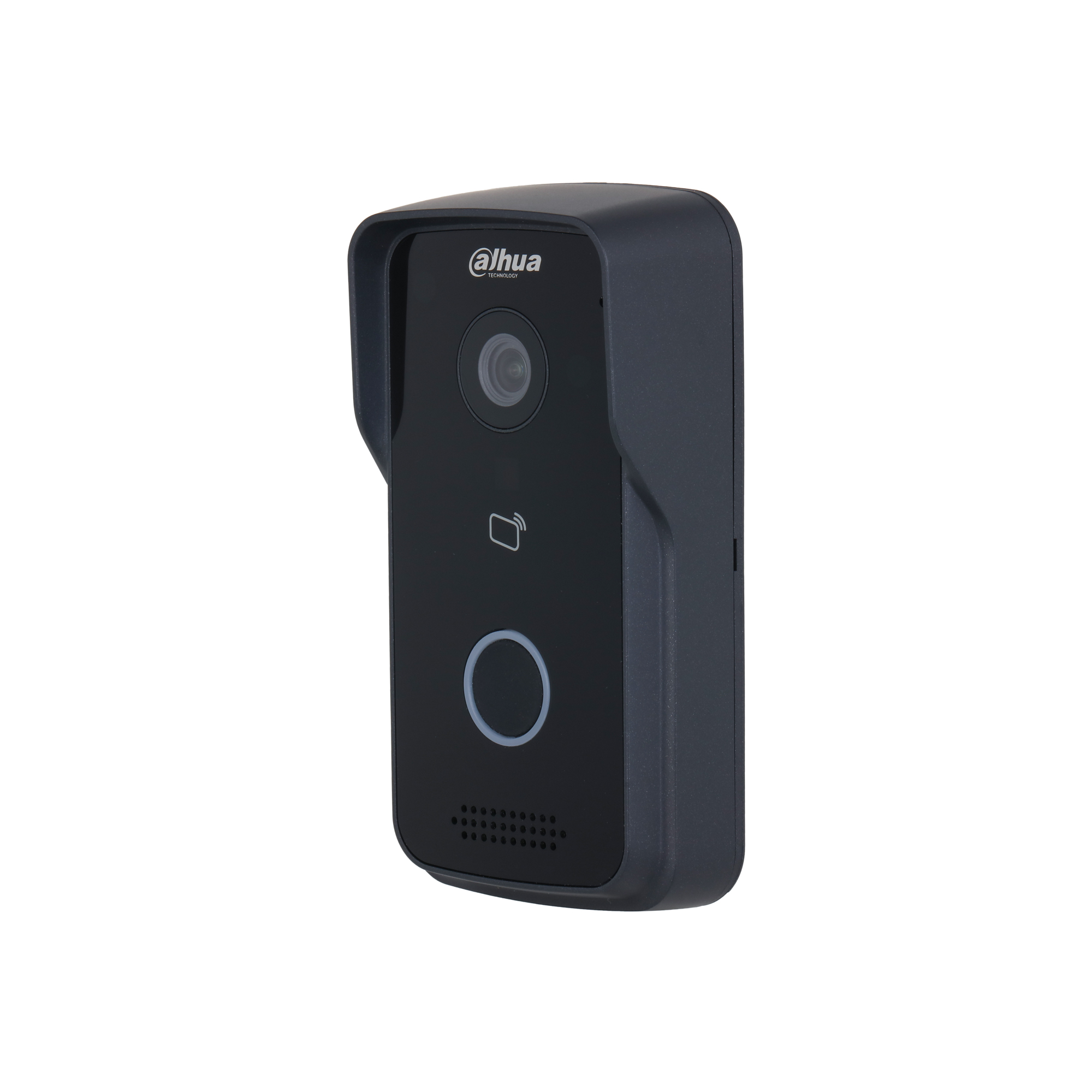

| DHI-VTO2111D-P-S3 Compact IP Villa Door Station | |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" 2MP CMOS (Low Illumination / DWDR / Color / IR) |
| Field of View | H: 107°; V: 60°; D: 122° |
| Imaging | DWDR; 3D NR; Auto IR Light Compensation |
| Day/Night | Auto (ICR) / Color / B/W |
| Video | |
| Video Compression | H.265 / H.264 |
| Resolution | Main: 720p, WVGA, D1, CIF; Sub: 1080p, WVGA, D1, QVGA, CIF |
| Frame Rate | PAL: 25 fps; NTSC: 30 fps |
| Bit Rate | 256 Kbps – 8 Mbps |
| Access & Verification | |
| Button Type | Mechanical (Single Call Button) |
| Unlock Mode | IC Card (Mifare); App (DMSS); Indoor Monitor |
| Card Capacity | 10,000 Cards |
| General | |
| Casing Material | PC + Acrylic (Black) |
| Protection Rating | IP65 (Weatherproof); IK04 |
| Power Output | 12 V DC, 200 mA |
| Power Supply | 12 V DC, 1 A / Standard PoE |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Dimensions | 135.1 mm × 70.6 mm × 34.6 mm |
| Weight | 326 g |
| Interface & Connection Ports | |
| Control I/O | 1 RJ-45 (8-core); 1 RS-485; 1 Lock Control (NC); 1 Exit Button; 1 Door Status Detection |
