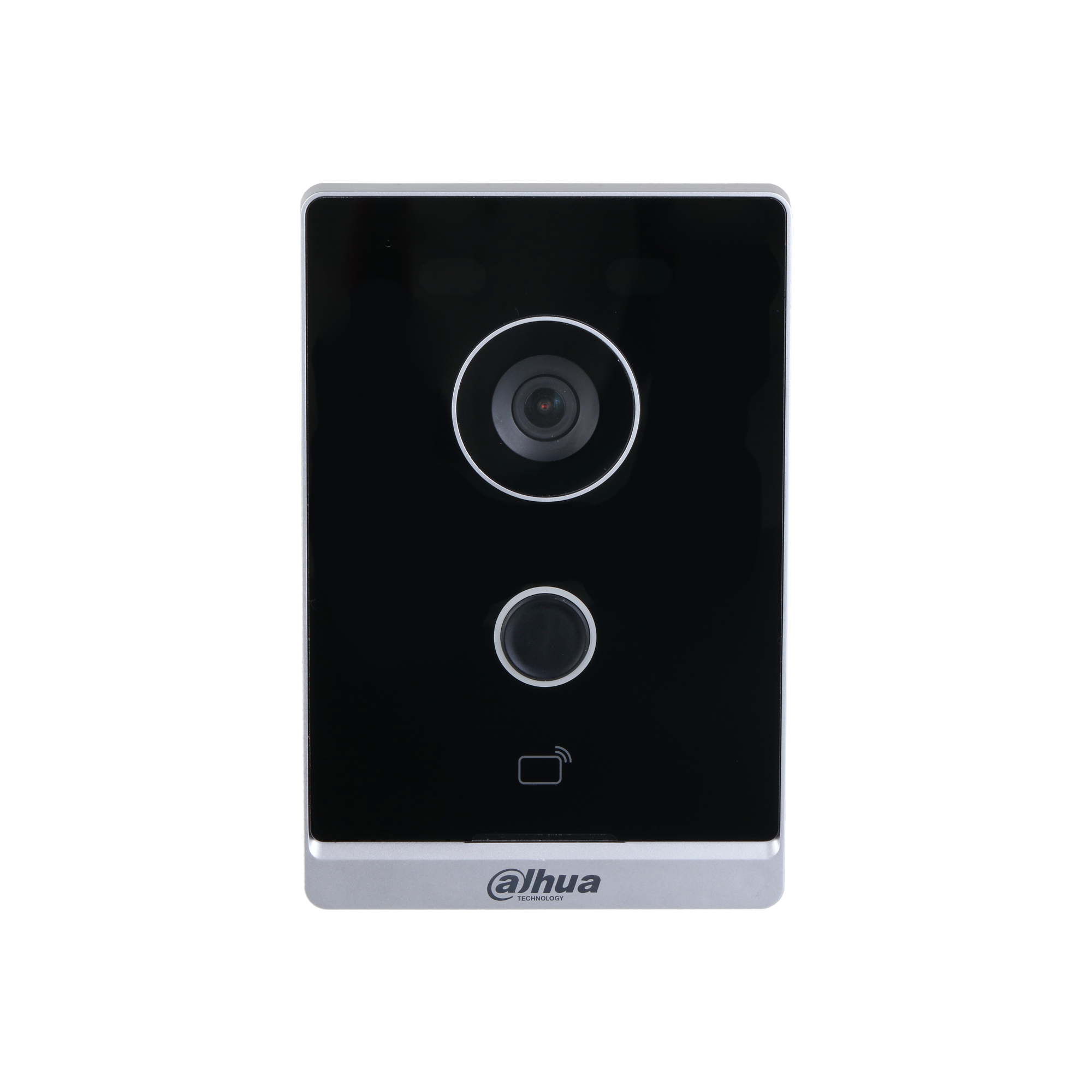

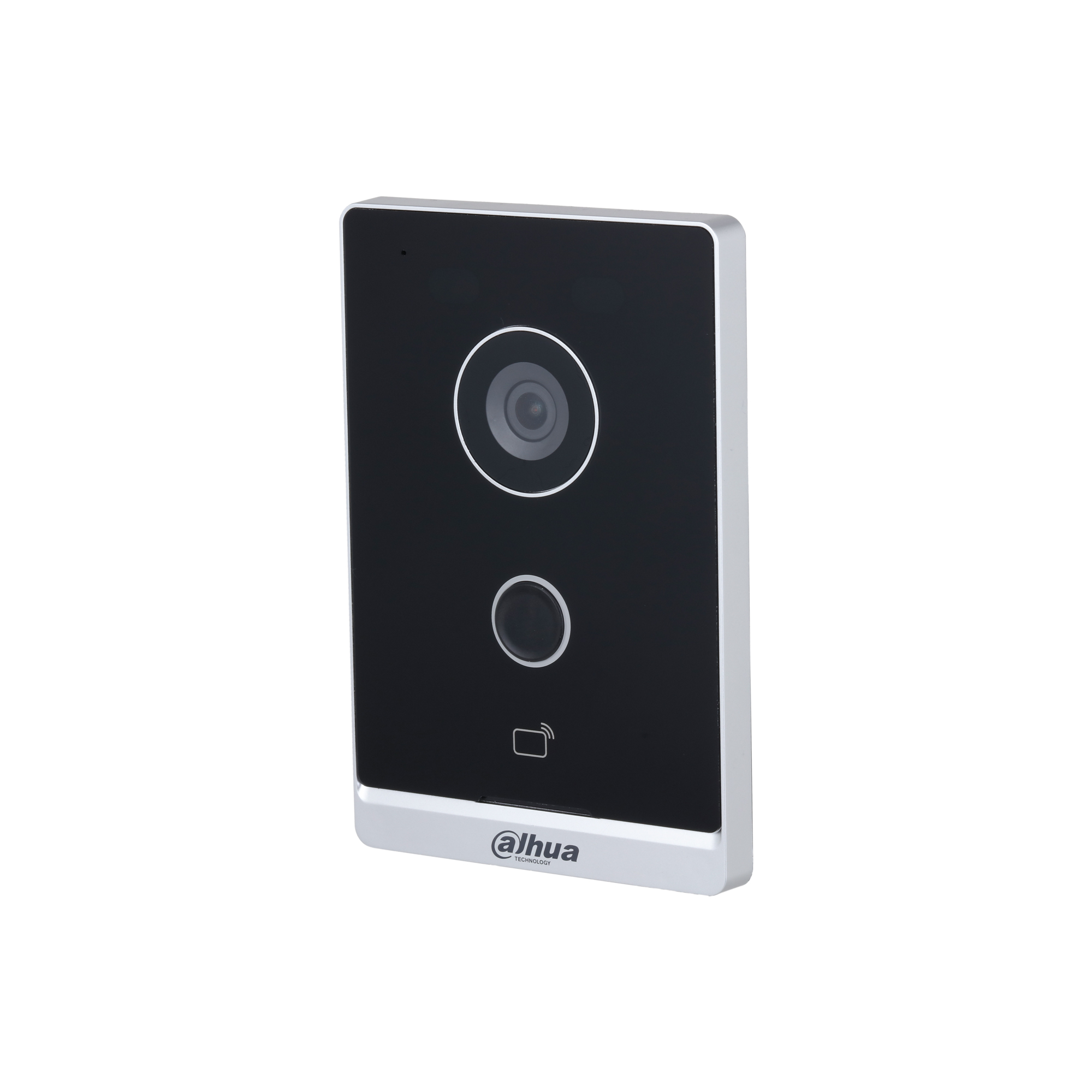

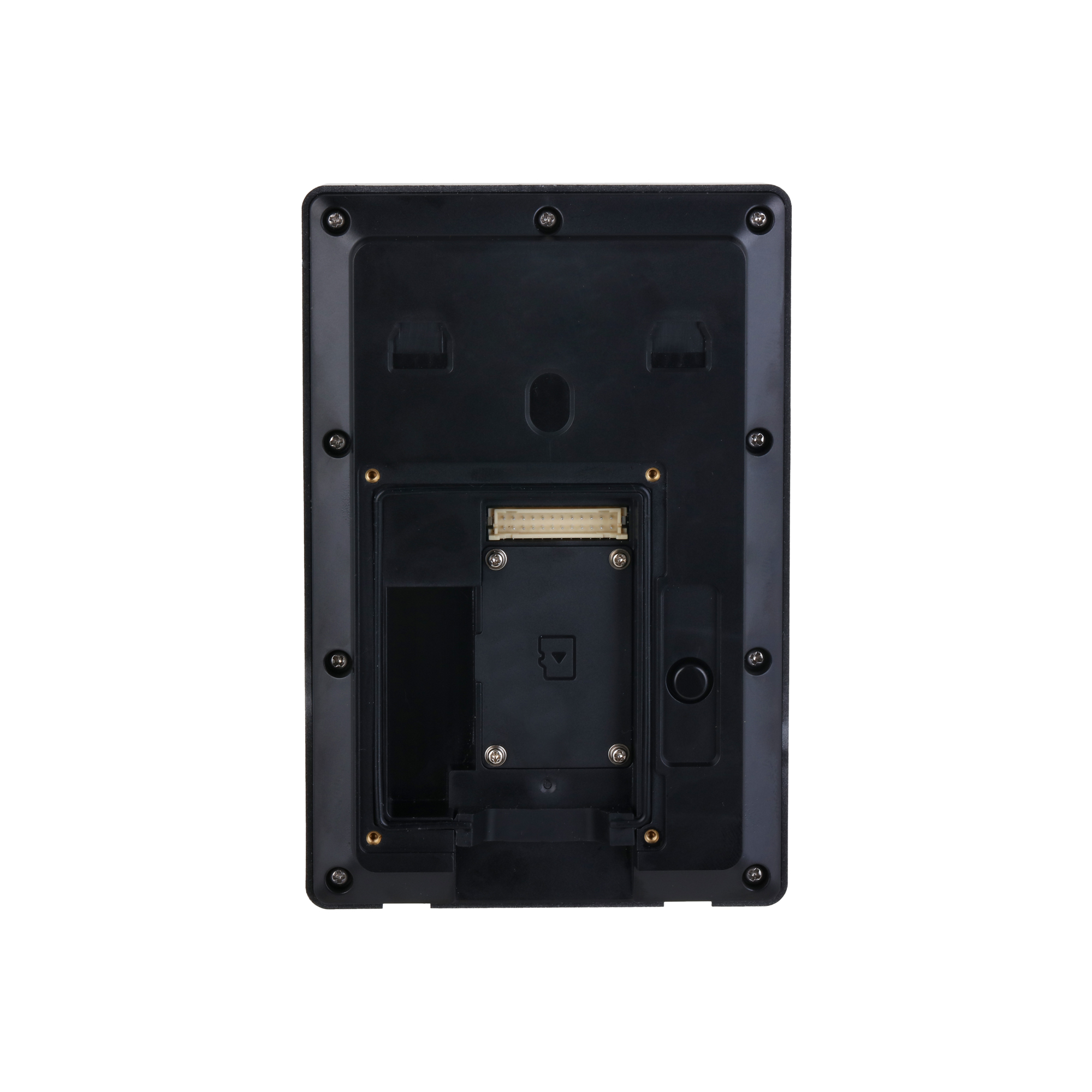

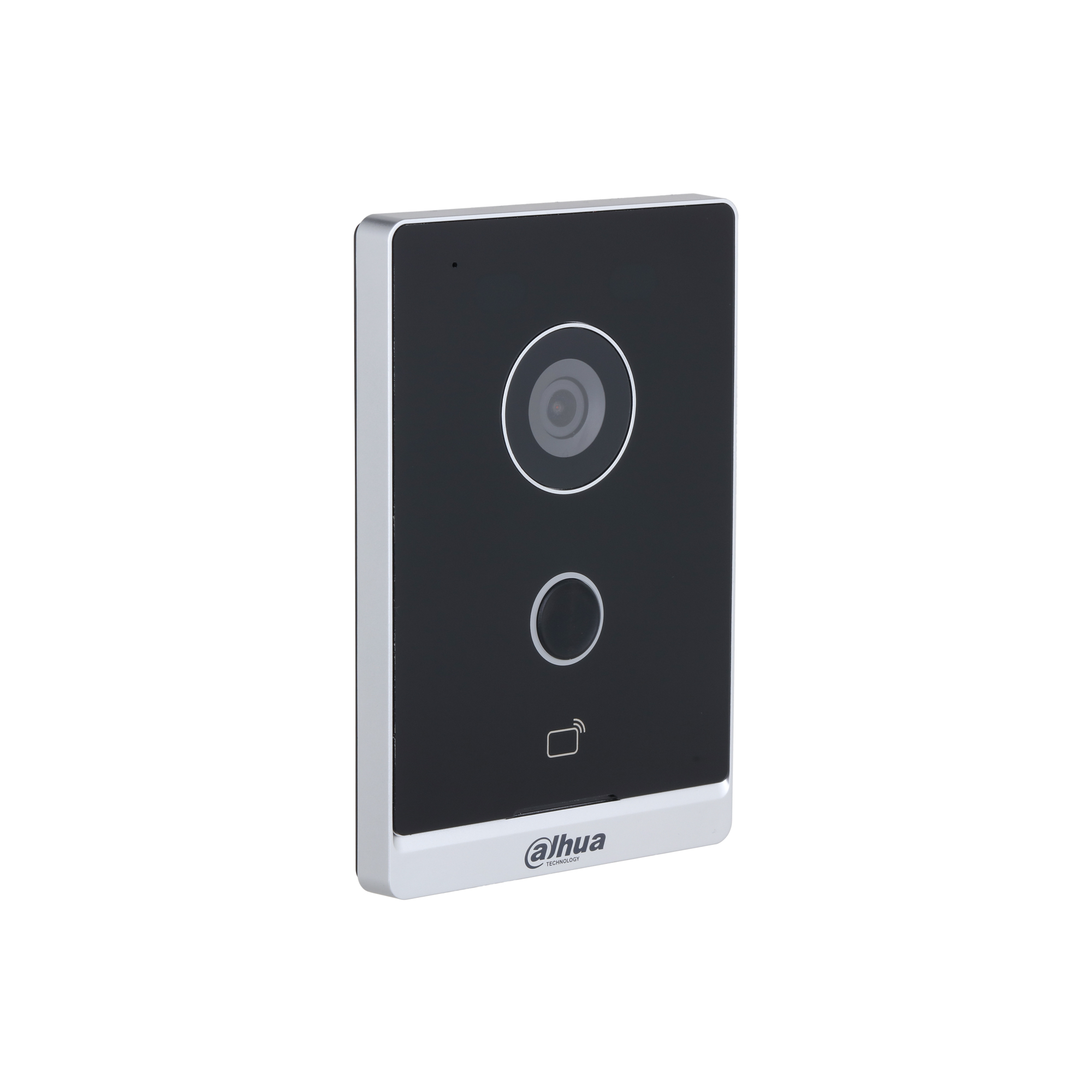

Stock Code: VTO2211G-P-S2
| System | |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operating System |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Camera | |
| Image Sensor | 1/2.8" 2MP HD CMOS (Low Illumination) |
| Field of View | H: 125°; V: 71°; D: 142° (Ultra Wide Angle) |
| WDR | 120 dB True WDR |
| Noise Reduction | 3D NR |
| Night Vision | Auto IR Night Vision |
| Functions | |
| Button Type | Mechanical (1 Call Button) |
| Unlock Mode | Card; App (DMSS); Indoor Monitor |
| Card Type | IC/Mifare Card |
| Card Capacity | 10,000 |
| Ports | |
| RS-485 | 1 Port |
| Alarm Input/Output | 1/1 |
| Lock Control | 1 Port (NC) |
| Network Port | 1 x RJ-45 (10/100 Mbps) |
| Storage | Micro SD Card (up to 256 GB) |
| General | |
| Casing Material | PC + Acrylic |
| Ingress Protection | IP65 (silicone sealant is needed) |
| Power Supply | 12 VDC 1A / Standard PoE |
| Power Output | 12 V DC, 200 mA |
| Product Dimensions | 150.0 mm × 100.0 mm × 25.4 mm |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 10% – 90% (RH), non-condensing |
| Weight | 510 g (1.12 lb) |
