Stock Code: VTO6531F-S2

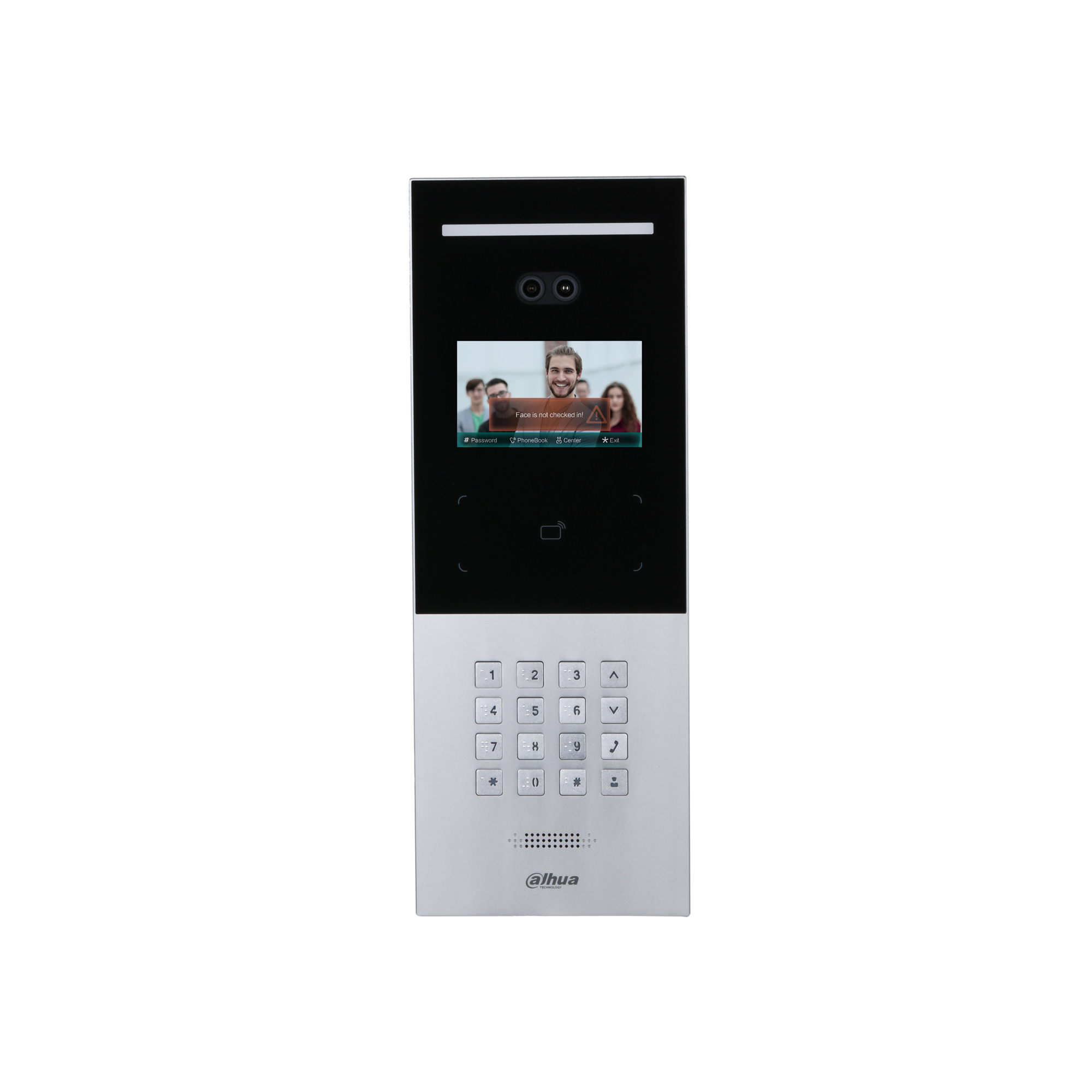

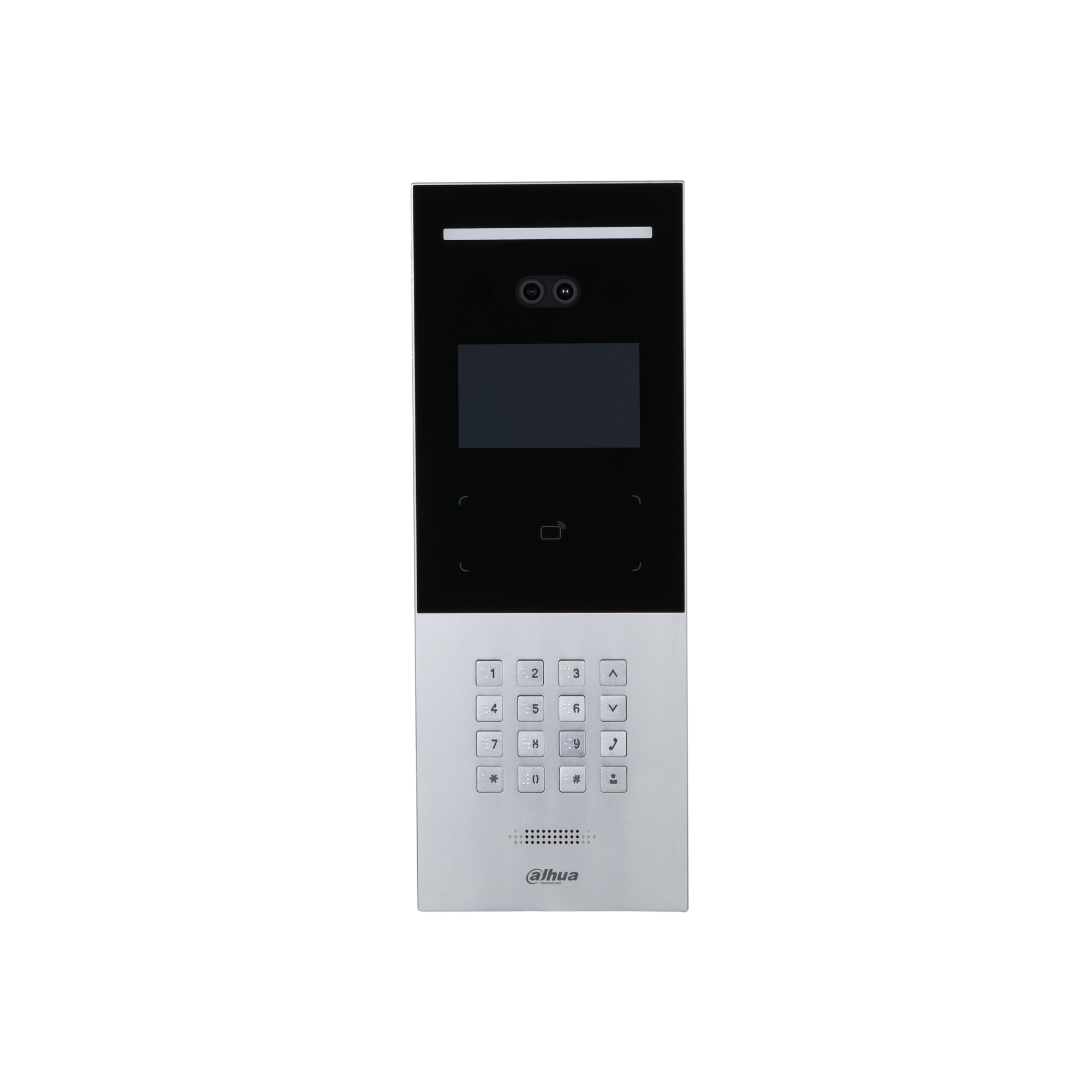

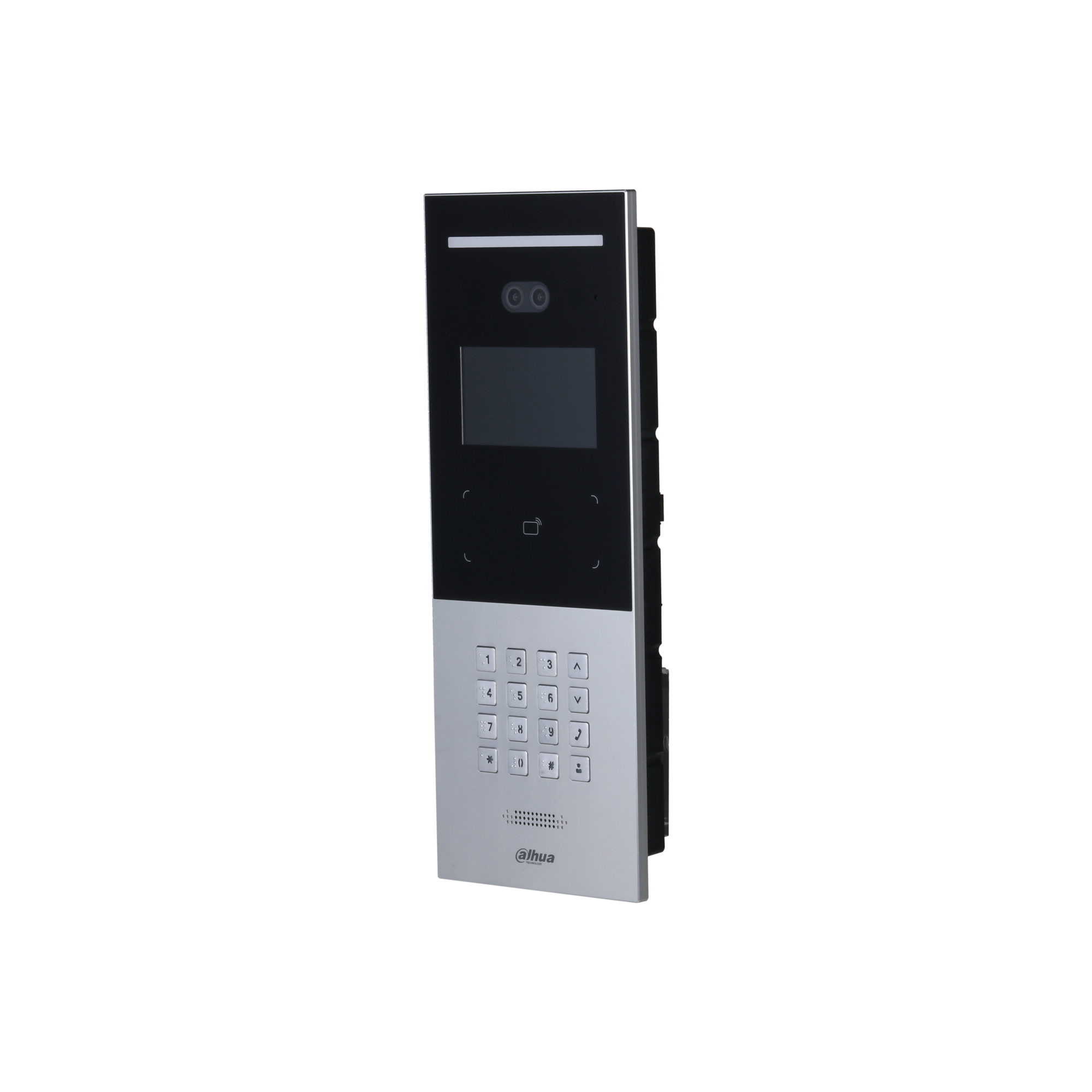

| DHI-VTO6531F-S2 IP Face Recognition Apartment Door Station | |
|---|---|
| System | |
| Operating System | Embedded Linux |
| Button Type | Mechanical |
| Interoperability | CGI; ONVIF |
| Network Protocol | FTP; RTMP; HTTP/HTTPS; DNS; RTSP; SSH; ONVIF; SIP; RTP |
| Display | |
| Screen Type | 4.3-inch LCD, Non-touch |
| Resolution | 800 (H) × 480 (V) |
| Camera | |
| Image Sensor | 1/2.8" 2MP CMOS (Dual Cameras) |
| Field of View | H: 95°; V: 50°; D: 110° |
| WDR | 120 dB |
| Video Compression | H.264; H.265 |
| Face Recognition | |
| Recognition Distance | 0.3 m – 2.0 m (0.98 ft – 6.56 ft) |
| Accuracy | 99.9% |
| Recognition Time | 0.2 s |
| Access Control | |
| Verification Methods | Face, IC Card, Password, QR Code, Remote |
| Capacity | 40,000 Users; 20,000 Faces; 20,000 IC Cards |
| Interface & Ports | |
| Network | 1 × 10/100 Mbps Ethernet |
| IO / Control | 1 RS-485; 1 Wiegand (In/Out); 2 Alarm In; 2 Alarm Out; 1 Lock Control; 1 Door Status Detection |
| Power | |
| Power Supply | 12 V DC, 2A; Standard PoE (802.3af) |
| Power Consumption | ≤ 5 W (standby); ≤ 18 W (working) |
| Power Output | 12 V, 500 mA (1 port) |
| General | |
| Casing Material | Aluminum Alloy (Silver) |
| Ingress Protection | IP65 |
| Operating Temperature | –30 °C to +60 °C |
| Operating Humidity | 0% – 90% (Non-condensing) |
| Dimensions | 389 mm × 145 mm × 44.1 mm |
| Weight | 1.7 kg |
