Hardware Specifications
Copper Port	10/100/1000BASE-T Ethernet TP interface. Maximum 100 m distance. Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot	1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP
Flow Control	Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size	9K
LED Indicators	System: Power (green) Fiber 100/1000BASE-X: LNK/ACT (green) TP 10/100/1000BASE-T: LNK/ACT (green) PoE: Power-in-use (Amber)
Dimensions (W × D × H)	30 × 70 × 104 mm
Weight	231 g
Power Requirements	DC 48~56V, supports reverse polarity protection (>51V DC for PoE+ output recommended)
Power Consumption	System ON without loading: DC 48V: 0.96W / 3.27BTU DC 56V: 1.12W / 3.82BTU Full loading with PoE: DC 48V: 35W / 119BTU (PoE: 30W) DC 56V: 42W / 143BTU (PoE: 36W)
DIP Switch	Off: LFP (Link Fault Passthrough) disable On: LFP (Link Fault Passthrough) enable FEF (Far End Fault) works with LFP to prevent data loss The DIP switch is turned off by default.
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount ear
ESD Protection	6KV DC
Cables	10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125µm or 62.5/125µm optical fiber Single-mode: 9/125µm optical fiber
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus
PoE Power Output	48~56V DC: 36 watts max.
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	36 watts
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Protocols and Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE)
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75°C Storage: -40~85°C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)

Powers PoE+ devices at the end of a fiber link.

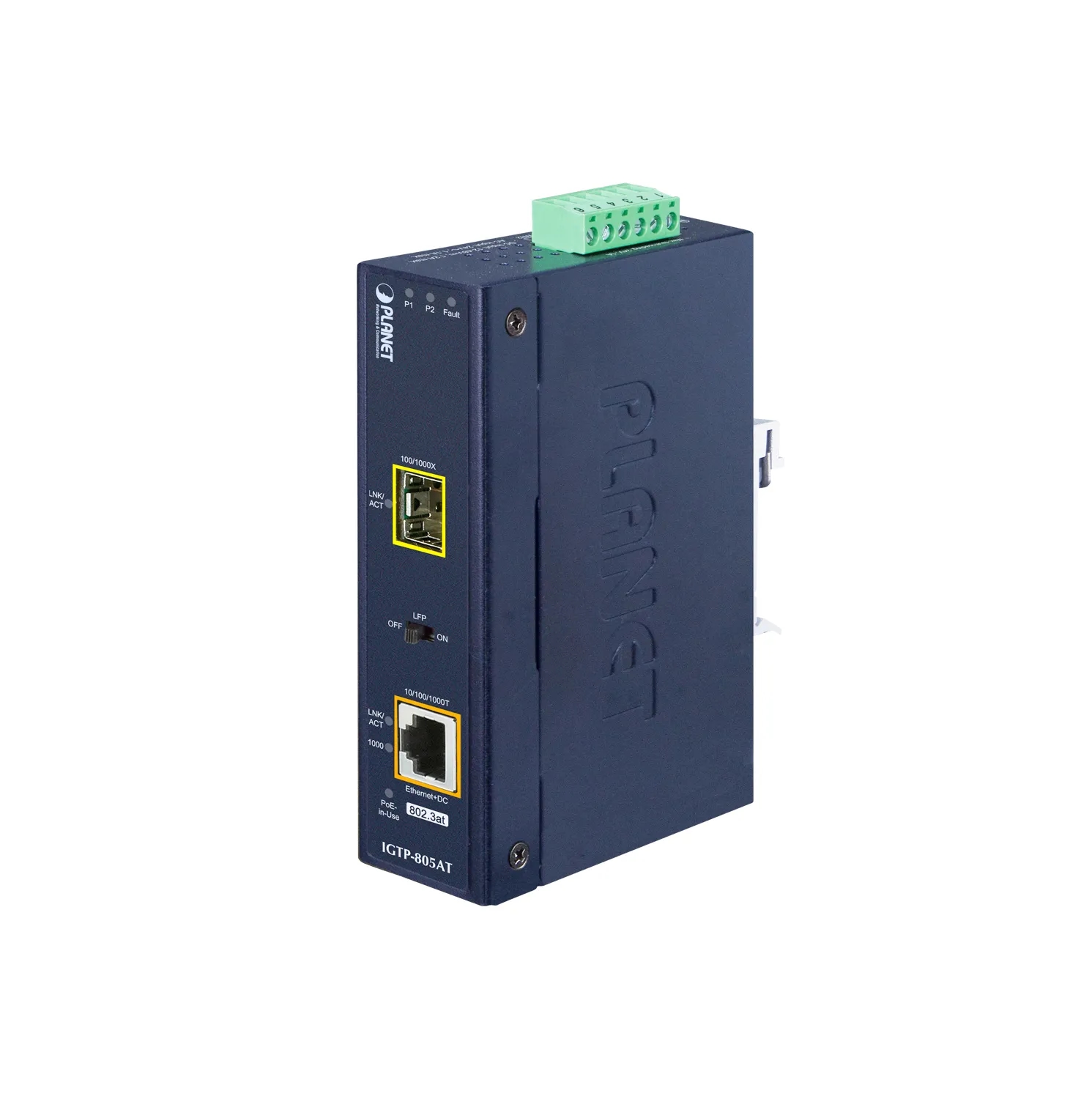

A compact industrial media converter that joins a 100/1000BASE-X SFP slot with a 10/100/1000BASE-T copper port carrying 802.3at PoE+. It runs cameras, access points and other PoE devices at the far end of a fiber backbone without a separate adapter.

10/100/1000BASE-TCopper port (PoE+)

100/1000BASE-X SFPFiber interface

36 WPoE power budget

48 ~ 56V DCPower input

-40 ~ 75 °COperating Temperature

Key features

36W

802.3at PoE+ output

The copper port carries power and data over 100 m of UTP cable.

120km

Long reach over fiber

The SFP slot widens the PoE deployment area with 100BASE-FX and 1000BASE-X modules.

6KV

ESD immunity

Withstands 6KV DC contact discharge and 8KV DC air discharge.

231g

Compact body

The 30 × 70 × 104 mm IP30 metal case fits tight cabinets.

DAILY USE

Plug and playIt joins an existing network with no software configuration.

Fits tight spacesA wall-mount ear and a DIN rail kit place the unit inside small cabinets and enclosures.

Reports a broken linkLFP enabled from the DIP switch mirrors a lost link to the device at the far end.

Usage AreasOutdoor IP cameras·Wireless access points·IP phone deployments·Campus and public areas

Hardware Specifications

Copper Port

10/100/1000BASE-T Ethernet TP interface. Maximum 100 m distance.
Auto-negotiation, auto MDI/MDI-X with PoE injector function

SFP Slot

1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP

Flow Control

Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode

Maximum Frame Size

LED Indicators

System: Power (green)
Fiber 100/1000BASE-X: LNK/ACT (green)
TP 10/100/1000BASE-T: LNK/ACT (green)
PoE: Power-in-use (Amber)

Dimensions (W × D × H)

30 × 70 × 104 mm

Weight

231 g

Power Requirements

DC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)

Power Consumption

System ON without loading:
DC 48V: 0.96W / 3.27BTU
DC 56V: 1.12W / 3.82BTU
Full loading with PoE:
DC 48V: 35W / 119BTU (PoE: 30W)
DC 56V: 42W / 143BTU (PoE: 36W)

DIP Switch

Off: LFP (Link Fault Passthrough) disable
On: LFP (Link Fault Passthrough) enable
FEF (Far End Fault) works with LFP to prevent data loss
The DIP switch is turned off by default.

Enclosure

IP30 metal case

Installation

DIN-rail kit and wall-mount ear

ESD Protection

6KV DC

Cables

10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
Multi-mode: 50/125µm or 62.5/125µm optical fiber
Single-mode: 9/125µm optical fiber

Power over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet Plus

PoE Power Output

48~56V DC: 36 watts max.

PoE Power Supply Type

End-span

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

36 watts

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A, CE

Protocols and Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Environment

Temperature

Operating: -40~75°C
Storage: -40~85°C

Humidity

Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
