Panel module that reads ID cards

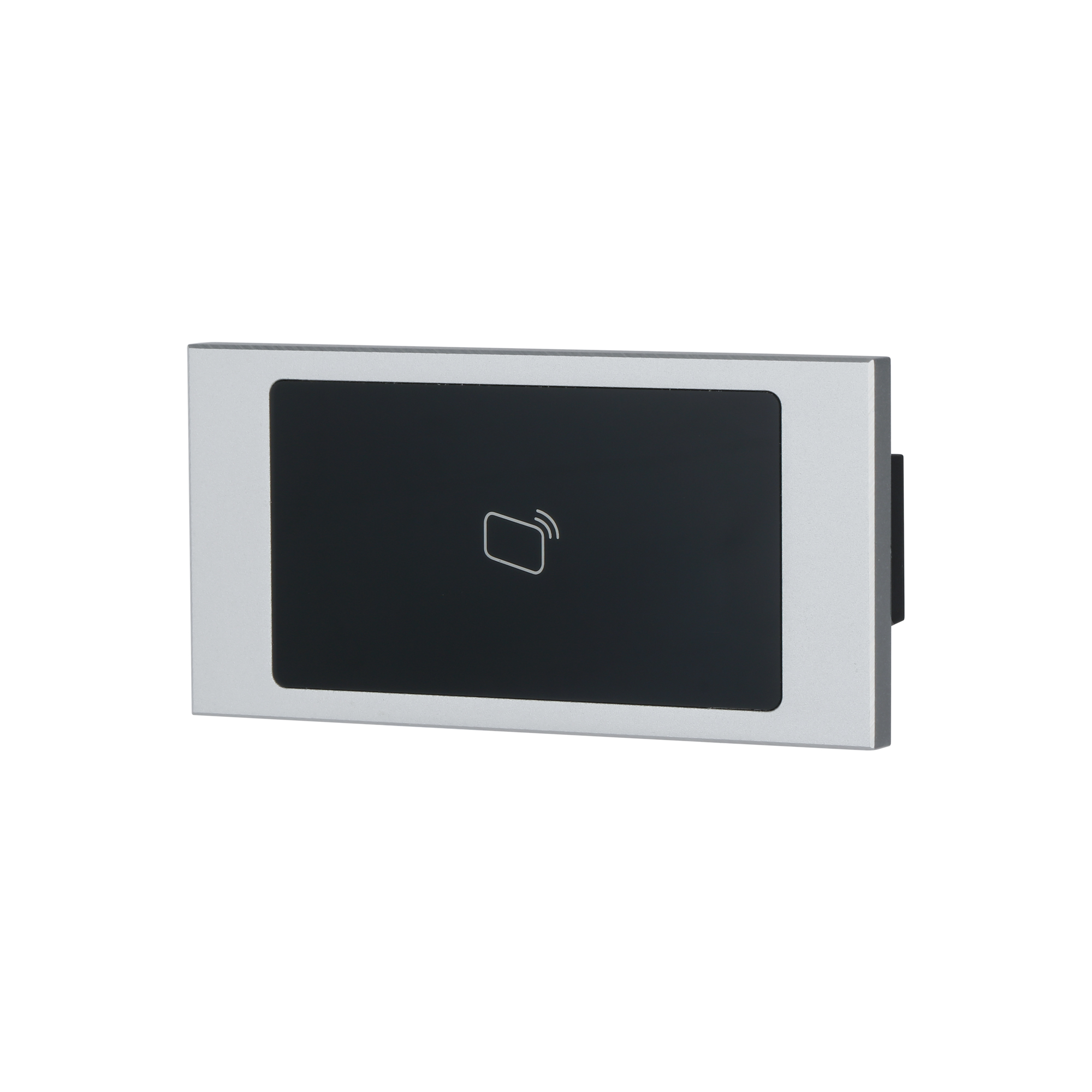

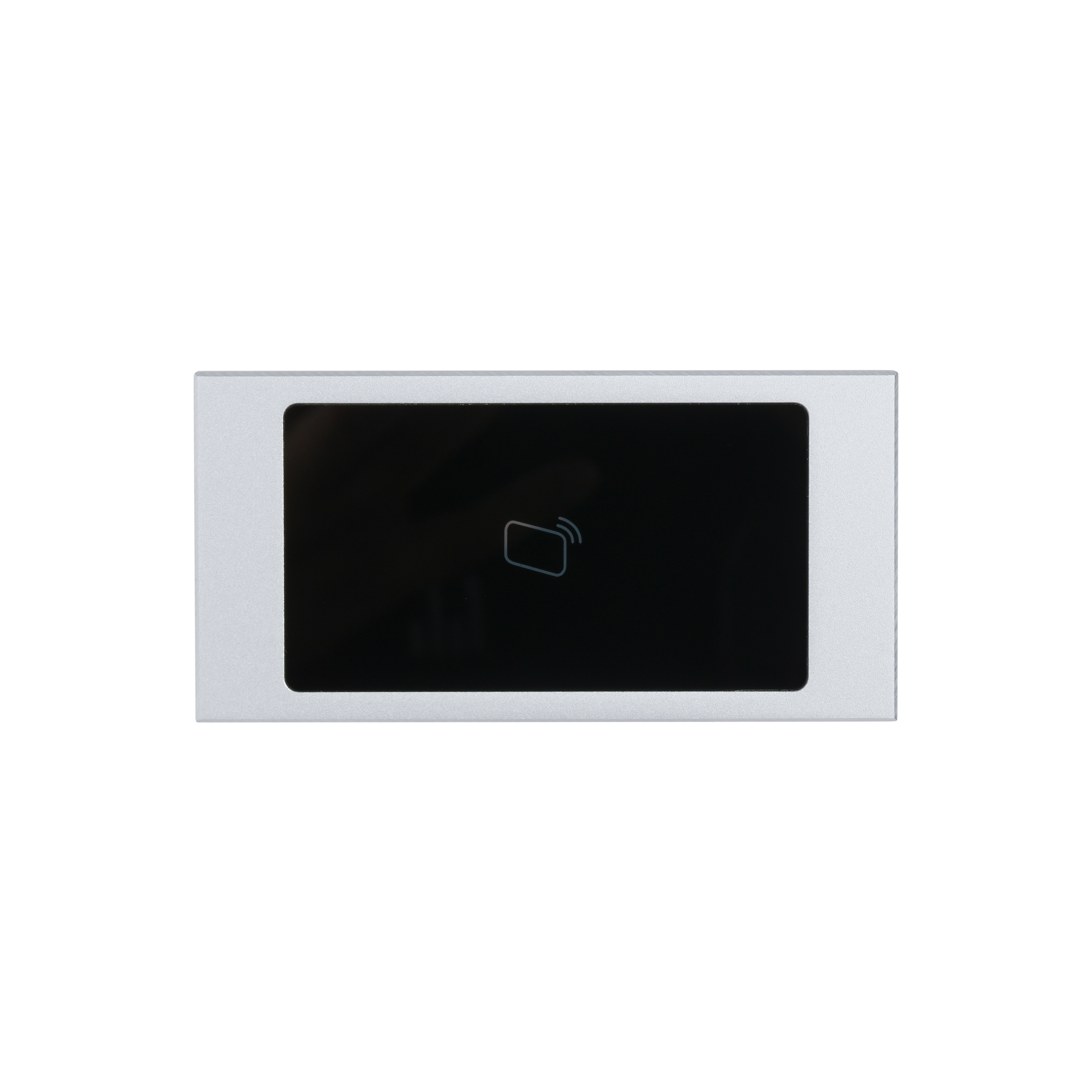

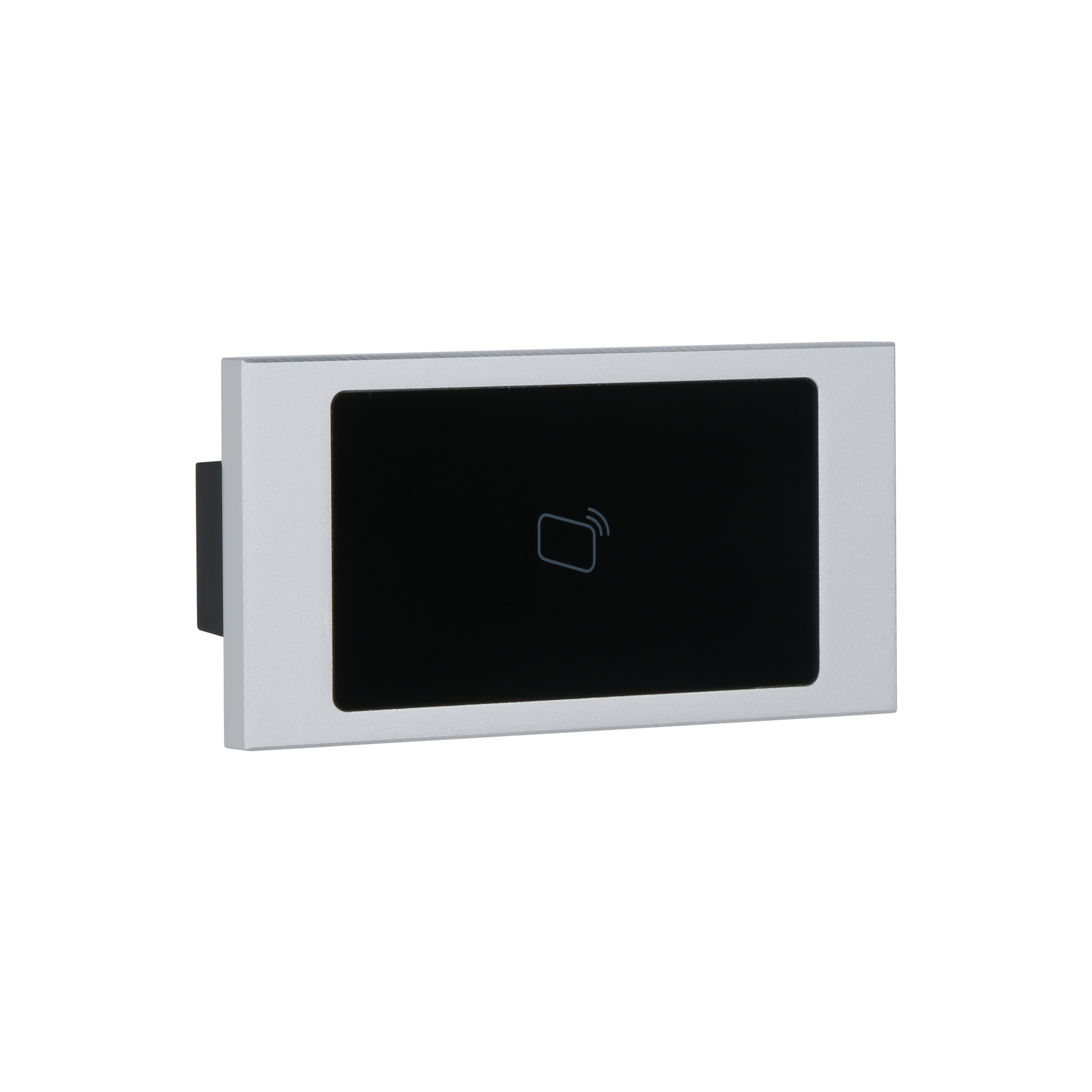

A module that adds a 125 kHz ID card reader to a modular panel system. The silver aluminum alloy body combines IK07 impact resistance with IP65 dust and water protection. It draws power from the other modules and passes 5 V DC to the modules on the same line.
IP65Protection Grade
IK07Impact Resistance
-30 °C to +60 °COperating Temperature
5 V DCPower Supply
125 kHzCard Frequency
100 × 50 × 28.50 mmDimensions
Key features
ID card readingThe module reads 125 kHz ID cards.
Silver aluminum bodyThe silver aluminum alloy casing protects the module against conditions at the door.

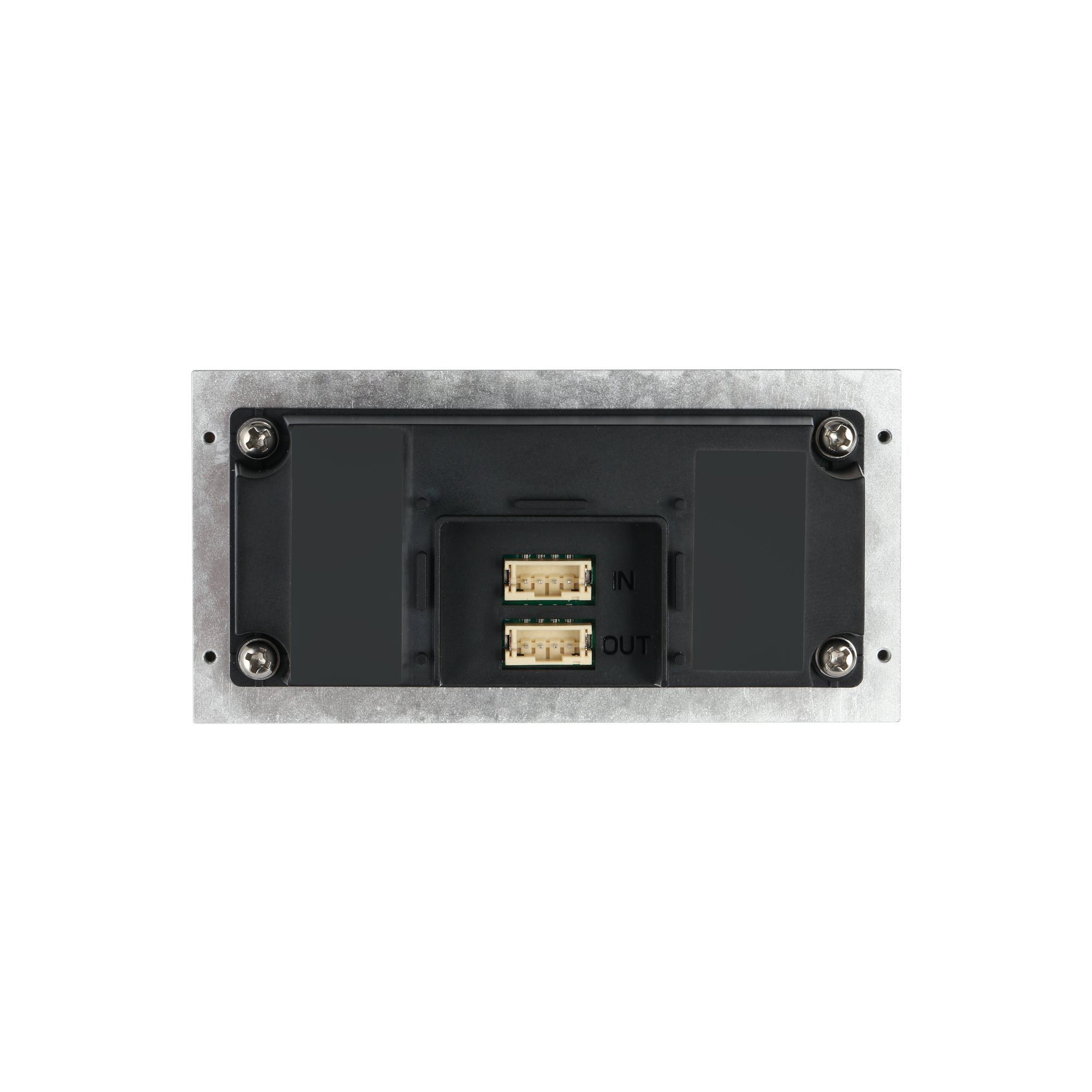

Modular powerIt draws power from the other modules and feeds 5 V DC to the modules on the same line.
Flush and surface mountIt supports both flush mount and surface mount installation.
Operating conditionsIt works between -30 °C and +60 °C and withstands 10% to 90% relative humidity.
Installation requires silicone sealant; the IP65 rating depends on it.
