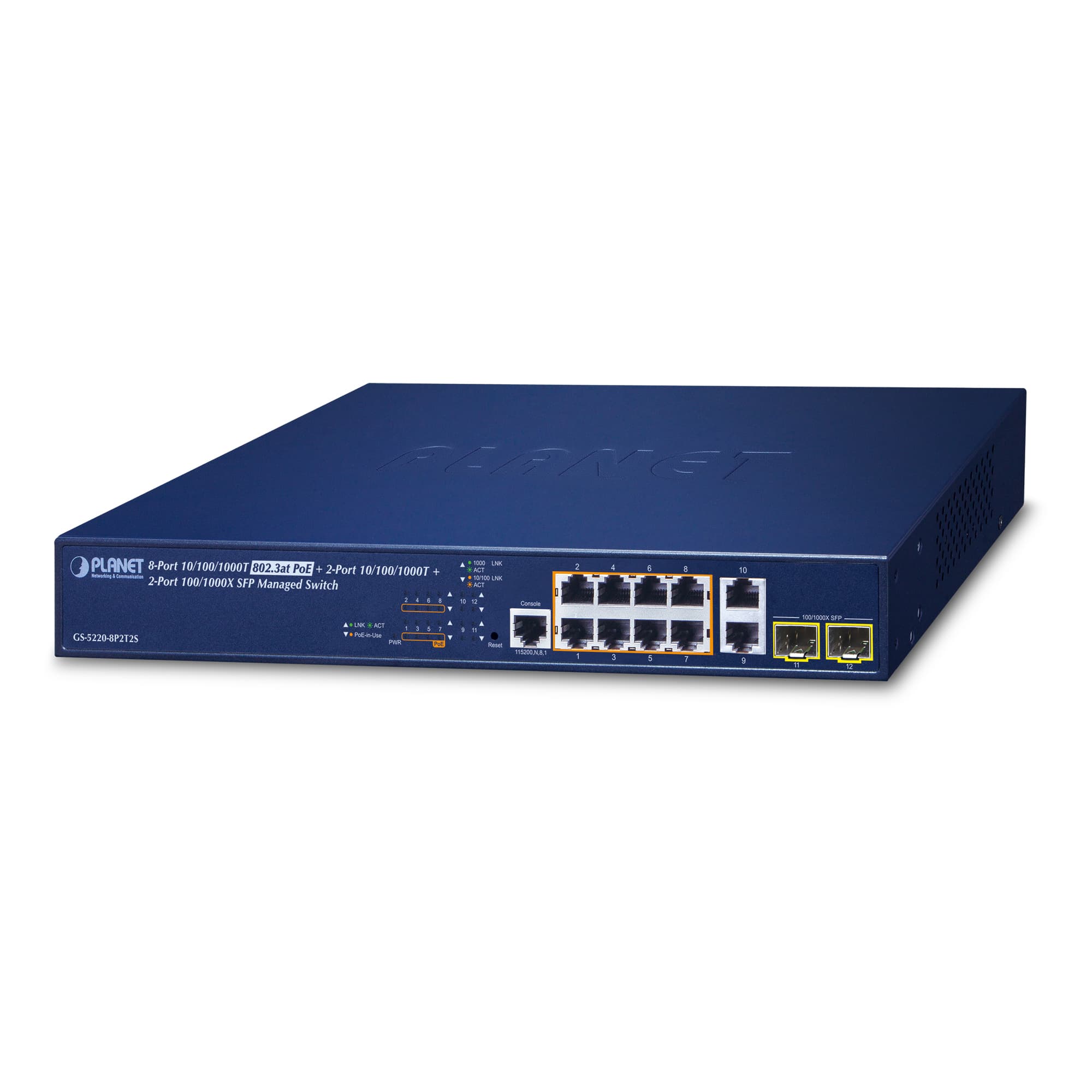

Name: L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch
Brand: Planet
SKU: GS-5220-8P2T2S

Powers, manages and routes an eight-camera surveillance network across VLANs.

A Layer 2+ managed Gigabit PoE switch for IP surveillance networks. Each of its 8 PoE ports delivers up to 30.8 watts, and the 240-watt total budget covers groups of cameras and access points. 2 Gigabit copper ports and 2 SFP slots carry the NVR and backbone links separately.

8 ports10/100/1000BASE-T PoE ports

240 wattsTotal PoE power budget

30.8 wattsPoE output per port

24 GbpsSwitching Capacity

2 x SFPUplink slots

0 ~ 50 °COperating Temperature

Key features

30.8watts

PoE power per port

Each of the 8 PoE ports powers an IEEE 802.3at class device over a single cable.

240watts

Total PoE budget

Delivers 240 watts at 25 °C and 200 watts at 50 °C, carrying 8 devices in the 30-watt class.

2x Gigabit copper ports

Extra uplink

Beyond the PoE ports, ports 9 and 10 carry the NVR or server link.

32routing entries

Static routing between VLANs

IPv4 and IPv6 static routing moves traffic across 8 VLAN interfaces.

24Gbps

Non-blocking switching

Reaches 17.76 Mpps throughput with 64-byte packets.

4schedule profiles

PoE schedule

Sets the feeding hours of each port through a profile and switches it off outside business hours.

IN DAILY USE

ONVIF device discoveryLists the ONVIF cameras on the network, shows their positions on a floor map and reboots a port from the interface.

SMTP and SNMP event alertsReports a broken link, PoE power loss or a reboot by email or trap message.

PD alive checkWatches the ping response of the connected device and restores port power when the reply stops.

Usage AreasIP security camera networks·VoIP phone systems·Wireless access points·SMB office networks

Hardware Specifications
Copper Ports	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP / mini-GBIC Interfaces	2 x 100/1000BASE-X SFP interfaces (Port-11 to Port-12) Supports 100/1000Mbps dual mode and DDM
PoE Injector Port	8 ports with 802.3at/af PoE injector function (Port-1 to Port-8)
Console	1 x RJ45 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot > 5 sec: Factory Default
Smart Fan	1
Power Requirements	100~240V AC, 50/60Hz, 4A
Power Consumption (Full Loading)	282 watts / 962 BTU
ESD Protection	6KV DC
Dimensions (W x D x H)	330.2 x 200 x 44 mm, 1U high
Weight	3.9 kg
LED	System: 　Power (Green) PoE Ethernet Interfaces (Port 1 to Port 8): 　LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Amber) 10/100/1000BASE-T Ports (Port 9 to Port 10): 　1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Amber) 100/1000Mbps SFP Interfaces (Port 11 to Port 12): 　1000 (LNK/ACT, Green), 100 (LNK/ACT, Amber)
Switching
Switch Architecture	Store-and-Forward
Switch Fabric	24Gbps / non-blocking
Throughput	17.76Mpps @64Bytes
Address Table	8K entries, automatic source address learning and ageing
SDRAM	128 Mbytes
Flash	64 Mbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	9K bytes
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, 590mA, max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	240 watts max. @25 degrees C 200 watts max. @50 degrees C
Number of PDs, 7 watts	8 units
Number of PDs, 15.4 watts	8 units
Number of PDs, 30 watts	8 units
PoE Management
Active PoE Device Alive Detection	Yes
PoE Power Recycling	Yes, daily or predefined schedule
PoE Schedule	4 schedule profiles
PoE System Management	System PoE admin control PoE Management Mode options Over-temperature threshold alarm PoE usage threshold alarm
Layer 3 Functions
IP Interface	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing IPv6 software static routing
Layer 2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable
Port Status	Display each port's speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor
Port Backup	4 groups with Active/Backup port assign
VLAN	802.1Q tag-based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4095 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 12 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, strict priority and WRR 8-Level priority for switching 　Port Number 　802.1p priority 　802.1Q VLAN tag 　DSCP/TOS field in IP packet
IGMP Snooping	IPv4 IGMP Snooping (v1/v2/v3) IPv4 IGMP Querier mode support Up to 255 multicast groups
MLD Snooping	IPv6 MLD Snooping (v1/v2) IPv6 MLD Querier mode support Up to 255 multicast groups
Bandwidth Control	Per port bandwidth control 　Ingress: 10Kbps~3276Mbps 　Egress: 10Kbps~3276Mbps
Security Functions
Access Control List	IP-based ACL/MAC-based ACL ACL based on: 　MAC Address 　IP Address 　Ethertype 　Protocol Type 　VLAN ID 　DSCP 　802.1p Priority Up to 256 entries
Security	Port security IP source guard Dynamic ARP inspection Command line authority control based on user level
AAA	RADIUS client TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication
Management Functions
Basic Management Interfaces	Console; Telnet; Web Browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility
Event Management	Remote Syslog Local System log SMTP
ONVIF	ONVIF device discovery ONVIF device monitoring Floor Map
SNMP MIBs	RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Hardware Specifications

Copper Ports

10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP / mini-GBIC Interfaces

2 x 100/1000BASE-X SFP interfaces (Port-11 to Port-12)
Supports 100/1000Mbps dual mode and DDM

PoE Injector Port

8 ports with 802.3at/af PoE injector function (Port-1 to Port-8)

Console

1 x RJ45 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot
> 5 sec: Factory Default

Smart Fan

Power Requirements

100~240V AC, 50/60Hz, 4A

Power Consumption (Full Loading)

282 watts / 962 BTU

ESD Protection

6KV DC

Dimensions (W x D x H)

330.2 x 200 x 44 mm, 1U high

Weight

3.9 kg

LED

System:
　Power (Green)
PoE Ethernet Interfaces (Port 1 to Port 8):
　LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Amber)
10/100/1000BASE-T Ports (Port 9 to Port 10):
　1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Amber)
100/1000Mbps SFP Interfaces (Port 11 to Port 12):
　1000 (LNK/ACT, Green), 100 (LNK/ACT, Amber)

Switching

Switch Architecture

Store-and-Forward

Switch Fabric

24Gbps / non-blocking

Throughput

17.76Mpps @64Bytes

Address Table

8K entries, automatic source address learning and ageing

SDRAM

128 Mbytes

Flash

64 Mbytes

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

9K bytes

Power over Ethernet Specifications

PoE Standard

IEEE 802.3at Power over Ethernet Plus PSE

PoE Power Supply Type

End-span

PoE Power Output

Per port 54V DC, 590mA, max. 30.8 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

240 watts max. @25 degrees C
200 watts max. @50 degrees C

Number of PDs, 7 watts

8 units

Number of PDs, 15.4 watts

8 units

Number of PDs, 30 watts

8 units

PoE Management

Active PoE Device Alive Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE System Management

System PoE admin control
PoE Management Mode options
Over-temperature threshold alarm
PoE usage threshold alarm

Layer 3 Functions

IP Interface

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing
IPv6 software static routing

Layer 2 Functions

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable

Port Status

Display each port's speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX/RX/Both
Many-to-1 monitor

Port Backup

4 groups with Active/Backup port assign

VLAN

802.1Q tag-based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 12 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol

QoS

Traffic classification based, strict priority and WRR
8-Level priority for switching
　Port Number
　802.1p priority
　802.1Q VLAN tag
　DSCP/TOS field in IP packet

IGMP Snooping

IPv4 IGMP Snooping (v1/v2/v3)
IPv4 IGMP Querier mode support
Up to 255 multicast groups

MLD Snooping

IPv6 MLD Snooping (v1/v2)
IPv6 MLD Querier mode support
Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control
　Ingress: 10Kbps~3276Mbps
　Egress: 10Kbps~3276Mbps

Security Functions

Access Control List

IP-based ACL/MAC-based ACL
ACL based on:
　MAC Address
　IP Address
　Ethertype
　Protocol Type
　VLAN ID
　DSCP
　802.1p Priority
Up to 256 entries

Security

Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level

AAA

RADIUS client
TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication

Management Functions

Basic Management Interfaces

Console; Telnet; Web Browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility

Event Management

Remote Syslog
Local System log
SMTP

ONVIF

ONVIF device discovery
ONVIF device monitoring
Floor Map

SNMP MIBs

RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2

Environments

Operating

Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Datasheet

GS-5220-8P2T2S

A&E Dökümanları

GS-5220-8P2T2S

Kullanım Kılavuzu

GS-5220-8P2T2S

Hızlı Kurulum Kılavuzu

GS-5220-8P2T2S

GS-5220-8P2T2S

Similar Products

L2 Gigabit Ethernet Access / Aggregation Switch with 4 10G Uplinks

10 Port L2 Gigabit Ethernet PoE Switch

High-performance 1000M Ethernet Switches

24-Port PoE Gigabit Managed Switch

L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Datasheet

GS-5220-8P2T2S

A&E Dökümanları

GS-5220-8P2T2S

Kullanım Kılavuzu

GS-5220-8P2T2S

Hızlı Kurulum Kılavuzu

GS-5220-8P2T2S

GS-5220-8P2T2S

Similar Products

L2 Gigabit Ethernet Access / Aggregation Switch with 4 10G Uplinks

10 Port L2 Gigabit Ethernet PoE Switch

High-performance 1000M Ethernet Switches

24-Port PoE Gigabit Managed Switch
