    Noyafa

    Laser Distance Meter

    Stock Code: NF-273L

    Calculates triangle, trapezoid and point-to-point measurements on a single device.
    A Bluetooth-enabled laser distance meter for interior design and on-site detection. It measures with ±2 mm accuracy in 60, 80 and 100 m versions and announces the result by voice.
    60 / 80 / 100 mMeasurement distance
    ±2 mmAccuracy
    100 setsData storage
    850 mAhLithium battery
    IP40Protection Grade
    Key features
    Bluetooth linkTransfers measurement data wirelessly over its Bluetooth hardware.
    Triangle and trapezoidCalculates triangular area, trapezoid and point-to-point measurements directly.
    Pythagorean measurementMeasures indirectly with the Pythagorean method where the point cannot be reached.
    Digital bubble levelThe digital bubble level shows the tilt and the unit picks horizontal or vertical measurement on its own.
    Storage and chargingKeeps 100 measurements in memory and runs on an 850 mAh lithium battery.
    Auto-offRated IP40; the laser shuts off after 30 s and the unit after 2 mins.
    Specifications
    Measurement Distance 60m/80m/100m
    Accuracy ±2mm
    Test Time 0.2~3S
    LCD Screen FSTN with backlight
    Buttons 7
    Units m/ft/in/ft+in
    Benchmark ?
    Single/Continuous Measurement ?
    Distance/Area/Volume Measurement ?
    Triangular Area Measurement ?
    Trapezoidal Measurement ?
    Point-to-Point Measurement ?
    Countdown Measurement ?
    Pythagorean Measurement ?
    Addition/Subtraction Measurement ?
    Digital Bubble Level ?
    Voice Broadcast ?
    Bluetooth 4.x ?
    Data Storage 100 sets
    Laser Auto-off 30s
    Auto-off Time 2mins
    Power Supply 850mAh Lithium battery
    Working Temperature 0°C~40°C
    Storage Temperature -10°C~60°C
    Protection Level IP40
    Applied Range
    Used for interior design and decoration technology field.
    Construction supervision & on-site detection function.
    Real estate, fire control and assessment of industry planning.
    Public facilities use.

    Fotoğraf

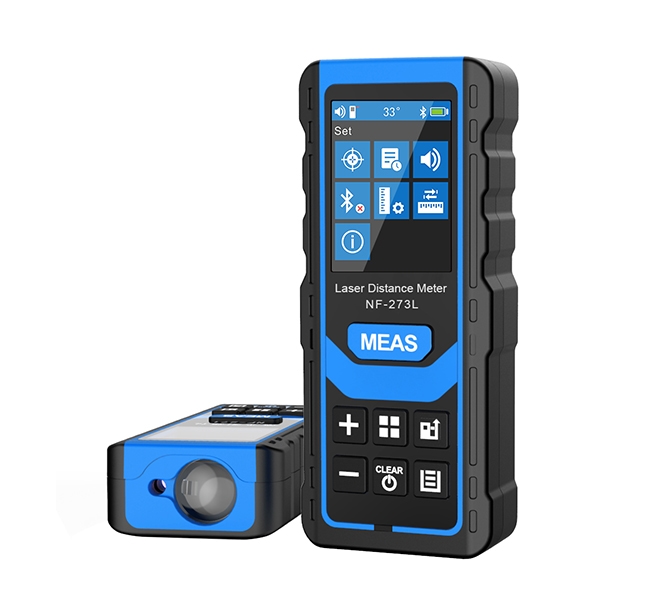

    NF-273L

    jpg12/30/2020

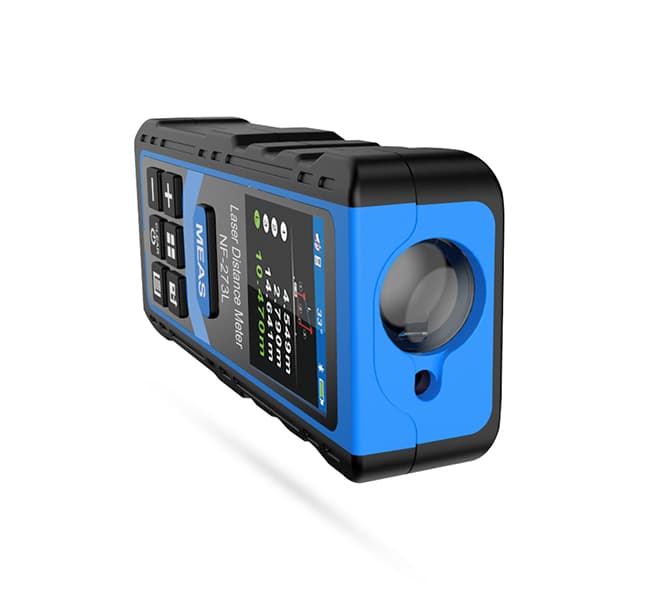

    NF-273L

    jpg12/30/2020

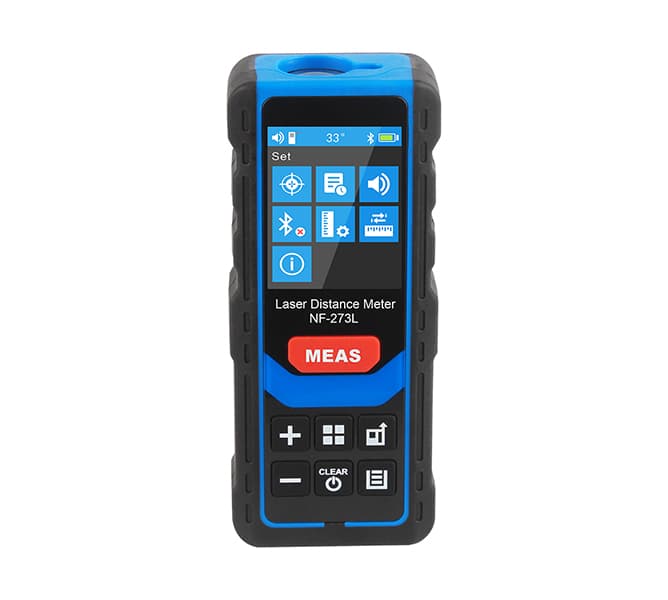

    NF-273L
