Records 8 PoE cameras onboard and carries the footage to the center over the mobile network.

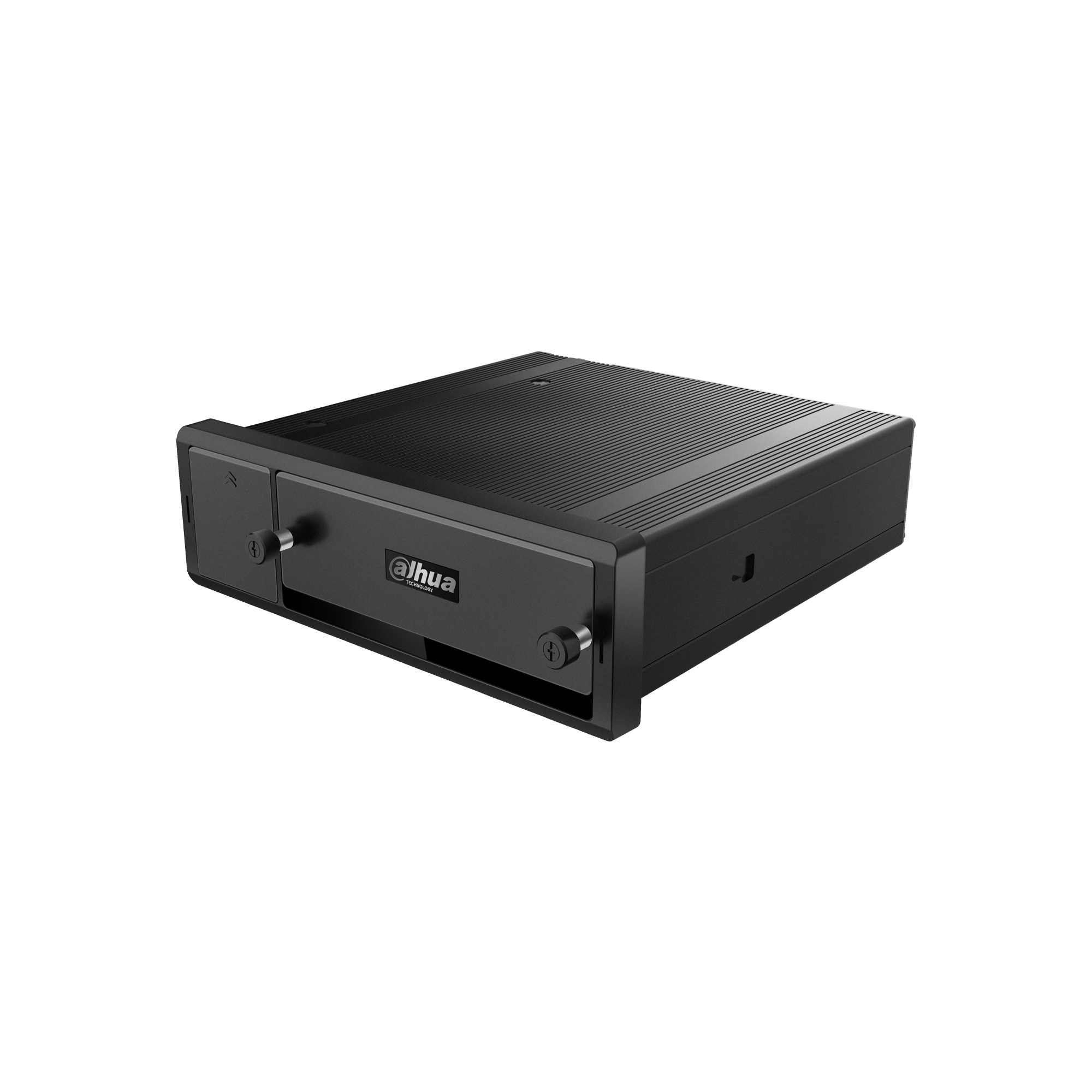

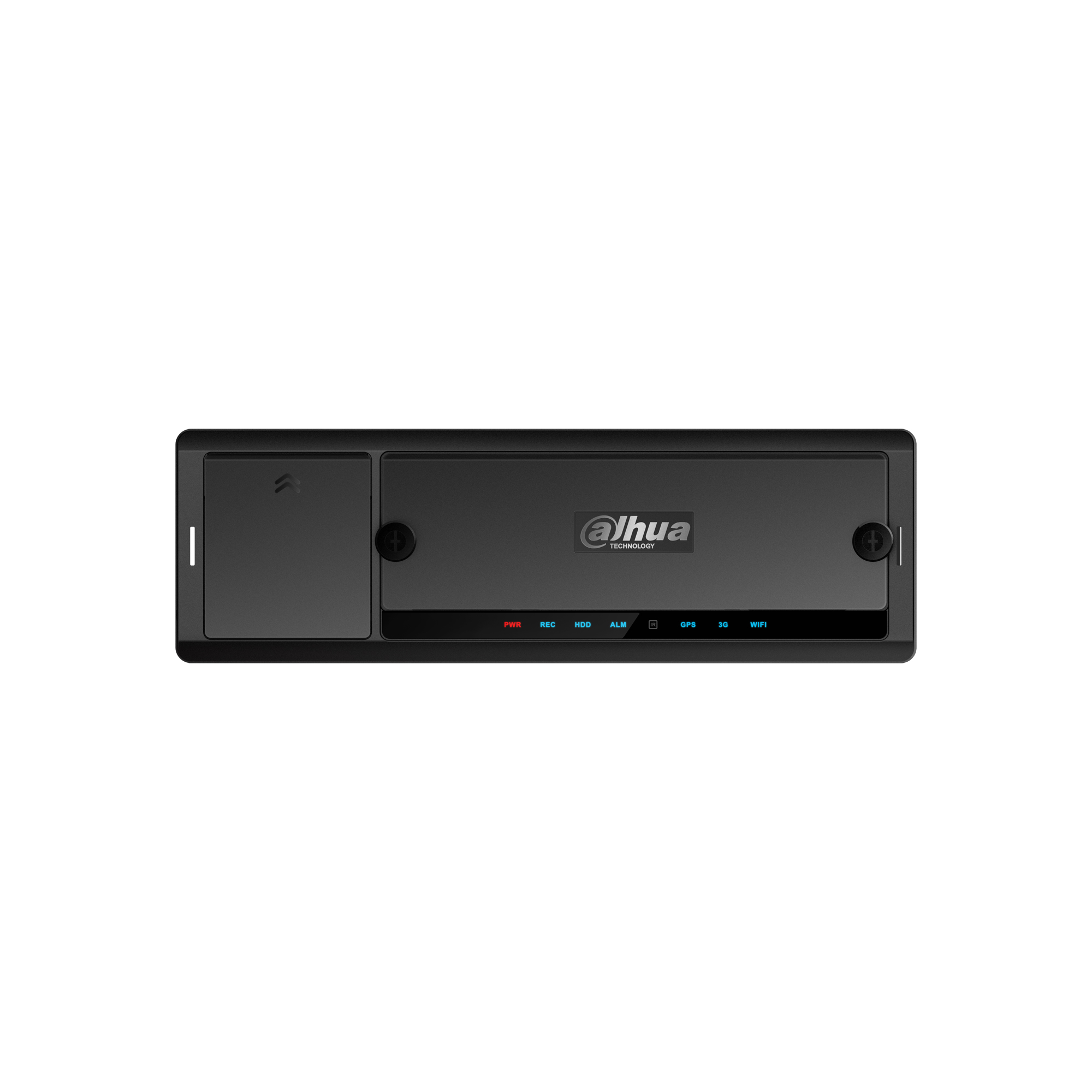

An 8 channel mobile network video recorder for onboard surveillance. Its PoE interfaces power the cameras, distributing 36 W per group and up to 25.4 W from a single port. A 100M/1000M Ethernet port, Wi-Fi and satellite positioning modules keep the vehicle visible from the control center.

8Number of channels

1080pRecording resolution

H.265Video compression

2Number of HDD's

256 GBSD card

6 - 36 V DCPower supply

Key features

8channels

PoE camera input

The PoE interfaces both connect and power the IP cameras.

2disks

Dual disk bays

The 2.5 inch HDD or SSD bays hold up to 2 TB of recording each.

256GB

SD card

Next to the disks, an SD card takes the recording onto a second medium.

25.4W

PoE power per port

Delivers up to 25.4 W from a single port and also drives PTZ cameras.

5000m

Altitude rating

Runs at altitudes up to 5000 m.

0.1W

Low power mode

In low power mode the draw falls to 0.1 W.

IN DAILY USE

Driver monitoringIt tells drowsiness, distraction, calling and seatbelt status apart.

Road eventsThe gyroscope detects rollover, collision and sharp turns, and marks the recording.

Remote accessRecordings open through the web viewer, Mobile Center and DMSS.

System
Operating System	Embedded Linux
IP Camera Input	8-ch (via PoE interfaces)
Total PoE Output Power	Max. 36 W per group (ch1–ch4 and ch5–ch8 separate groups)
Single Port Max. Power	25.4 W
PTZ Control	Yes
Video and Audio
Video Compression	H.265 / smart H.265 / H.264 / smart H.264
Encoding Capacity	1080p / 720p / 960H / D1 / CIF
Dual-stream	Supported (sub stream up to D1)
Frame Rate (PAL)	1–25 fps
Frame Rate (NTSC)	1–30 fps
Video Output	1 × CVBS; 1 × VGA; 1 × HDMI (800×600 / 1280×1024)
Display Modes	1 / 4 / 8 / 9
Audio Compression	G.711A / G.711U / PCM
Recording and Playback
Recording Priority	Manual > alarm > motion > timed
Playback Channels	1 / 4
Backup	HDD/SSD; USB flash drive; network
Storage
HDD/SSD	2 × 2.5-inch HDD/SSD (SATA), up to 2 TB each
SD Card	1 slot (up to 256 GB)
Cooling	Built-in fan
Intelligence
DSM (Driver State Monitor)	Drowsiness, distraction, calling, no driver, IR sunglasses, smoking, lens tampering, unbelted
Face Recognition	Attribute detection and comparison
ANPR	License plate, vehicle color and vehicle brand recognition
Alarm
Detection Types	Motion; video loss; tampering; local alarm; camera offline
Abnormal Alarms	HDD errors; capacity issues; illegal login; low battery; high temperature; rollover; collision; speeding; network security exceptions
Alarm Linkage	Log; record; snapshot; tour; buzzer; email; relay output
Sensor
Gyroscope	Rollover, collision, rapid acceleration/deceleration and sharp turn detection
Network
Network Port	1 × 100M/1000M RJ-45
4G Bands (Eurasian)	LTE-FDD B1/3/5/7/8/20; LTE-TDD B38/40/41; WCDMA B1/5/8; GSM/EDGE B3/8
4G Bands (Latin America)	LTE-FDD B1/2/3/4/5/7/8/28; LTE-TDD B40; WCDMA B1/2/4/5/8; GSM/EDGE B2/3/5/8
Transmit Power	GSM850/EGSM900 (33 dBm ± 2 dB); DCS1800/PCS1900 (30 dBm ± 2 dB); WCDMA/LTE (23 dBm ± 2 dB)
Wi-Fi Frequency	2.4 GHz
Wi-Fi Protocol	802.11 b/g/n
Positioning	GPS / GLONASS
Interoperability (ONVIF)	ONVIF (Profile S/G/T)

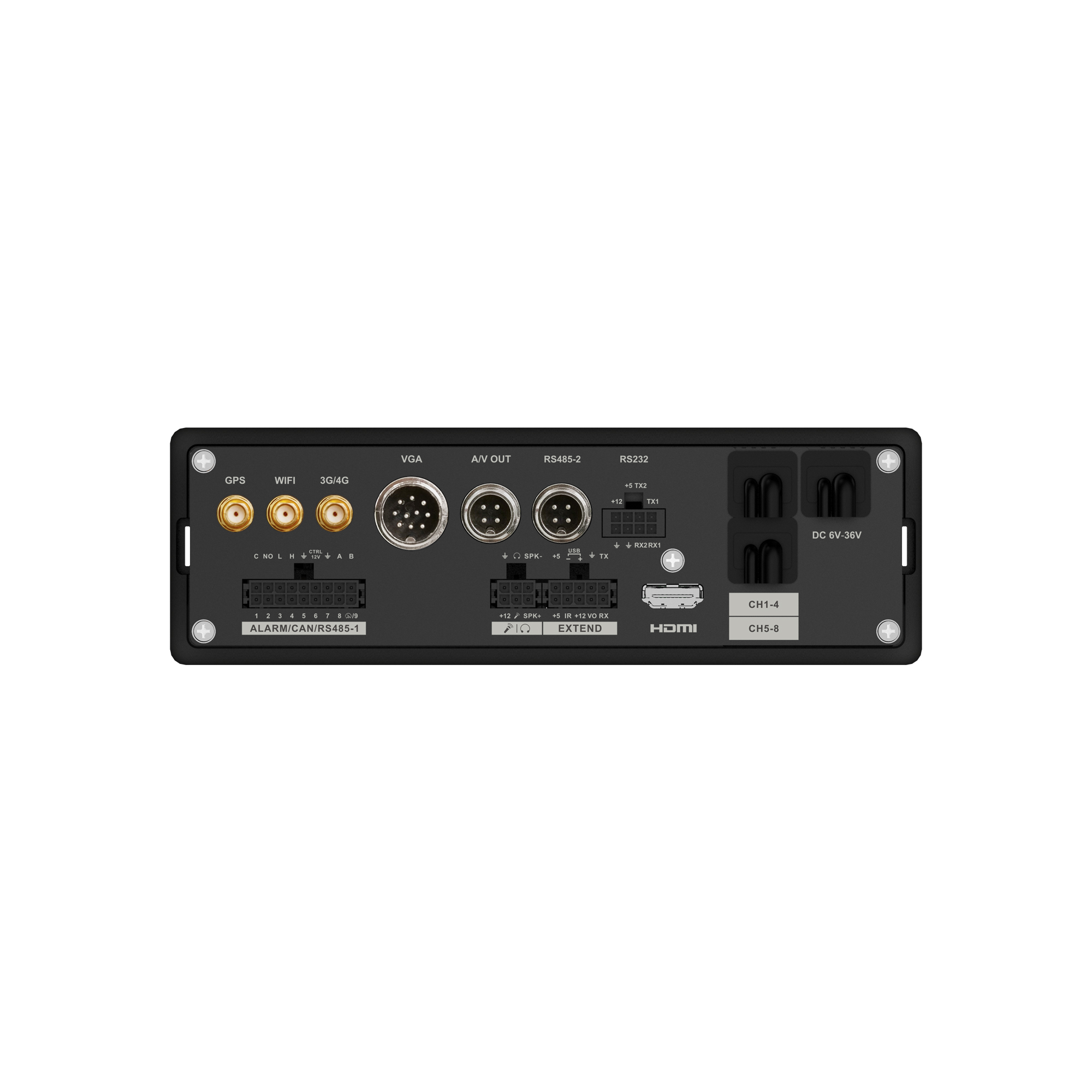

Port
Alarm Input	9 channels
Alarm Output	2 channels (1 relay; 1 × 12 VDC 0.5 A)
Audio Talk	Supported
RS-232	4 ports
RS-485	2 ports
CAN	1 port
USB	2 × front (USB 2.0); 1 × rear (USB 2.0)
Power
Power Supply	6–36 VDC
Power Consumption	11.1 W (peripherals excluded); < 0.1 W (low power mode)
Environment
Operating Temperature	–30 °C to +70 °C
Operating Humidity	10% to 90%
Operating Altitude	Up to 5000 m
Structure
Dimensions	180 mm × 190 mm × 50 mm
Weight	2.93 kg
Installation	Embedded or bracket
Certification
Certifications	CE; FCC; E-mark; EN 50155

System

Operating System

Embedded Linux

IP Camera Input

8-ch (via PoE interfaces)

Total PoE Output Power

Max. 36 W per group (ch1–ch4 and ch5–ch8 separate groups)

Single Port Max. Power

25.4 W

PTZ Control

Yes

Video and Audio

Video Compression

H.265 / smart H.265 / H.264 / smart H.264

Encoding Capacity

1080p / 720p / 960H / D1 / CIF

Dual-stream

Supported (sub stream up to D1)

Frame Rate (PAL)

1–25 fps

Frame Rate (NTSC)

1–30 fps

Video Output

1 × CVBS; 1 × VGA; 1 × HDMI (800×600 / 1280×1024)

Display Modes

1 / 4 / 8 / 9

Audio Compression

G.711A / G.711U / PCM

Recording and Playback

Recording Priority

Manual > alarm > motion > timed

Playback Channels

1 / 4

Backup

HDD/SSD; USB flash drive; network

Storage

HDD/SSD

2 × 2.5-inch HDD/SSD (SATA), up to 2 TB each

SD Card

1 slot (up to 256 GB)

Cooling

Built-in fan

Intelligence

DSM (Driver State Monitor)

Drowsiness, distraction, calling, no driver, IR sunglasses, smoking, lens tampering, unbelted

Face Recognition

Attribute detection and comparison

ANPR

License plate, vehicle color and vehicle brand recognition

Alarm

Detection Types

Motion; video loss; tampering; local alarm; camera offline

Abnormal Alarms

HDD errors; capacity issues; illegal login; low battery; high temperature; rollover; collision; speeding; network security exceptions

Alarm Linkage

Log; record; snapshot; tour; buzzer; email; relay output

Sensor

Gyroscope

Rollover, collision, rapid acceleration/deceleration and sharp turn detection

Network

Network Port

1 × 100M/1000M RJ-45

4G Bands (Eurasian)

LTE-FDD B1/3/5/7/8/20; LTE-TDD B38/40/41; WCDMA B1/5/8; GSM/EDGE B3/8

4G Bands (Latin America)

LTE-FDD B1/2/3/4/5/7/8/28; LTE-TDD B40; WCDMA B1/2/4/5/8; GSM/EDGE B2/3/5/8

Transmit Power

GSM850/EGSM900 (33 dBm ± 2 dB); DCS1800/PCS1900 (30 dBm ± 2 dB); WCDMA/LTE (23 dBm ± 2 dB)

Wi-Fi Frequency

2.4 GHz

Wi-Fi Protocol

802.11 b/g/n

Positioning

GPS / GLONASS

Interoperability (ONVIF)

ONVIF (Profile S/G/T)

Port

Alarm Input

9 channels

Alarm Output

2 channels (1 relay; 1 × 12 VDC 0.5 A)

Audio Talk

Supported

RS-232

4 ports

RS-485

2 ports

CAN

1 port

USB

2 × front (USB 2.0); 1 × rear (USB 2.0)

Power

Power Supply

6–36 VDC

Power Consumption

11.1 W (peripherals excluded); < 0.1 W (low power mode)

Environment

Operating Temperature

–30 °C to +70 °C

Operating Humidity

10% to 90%

Operating Altitude

Up to 5000 m

Structure

Dimensions

180 mm × 190 mm × 50 mm

Weight

2.93 kg

Installation

Embedded or bracket

Certification

Certifications

CE; FCC; E-mark; EN 50155
