Adds 10 separate call buttons to the door station.

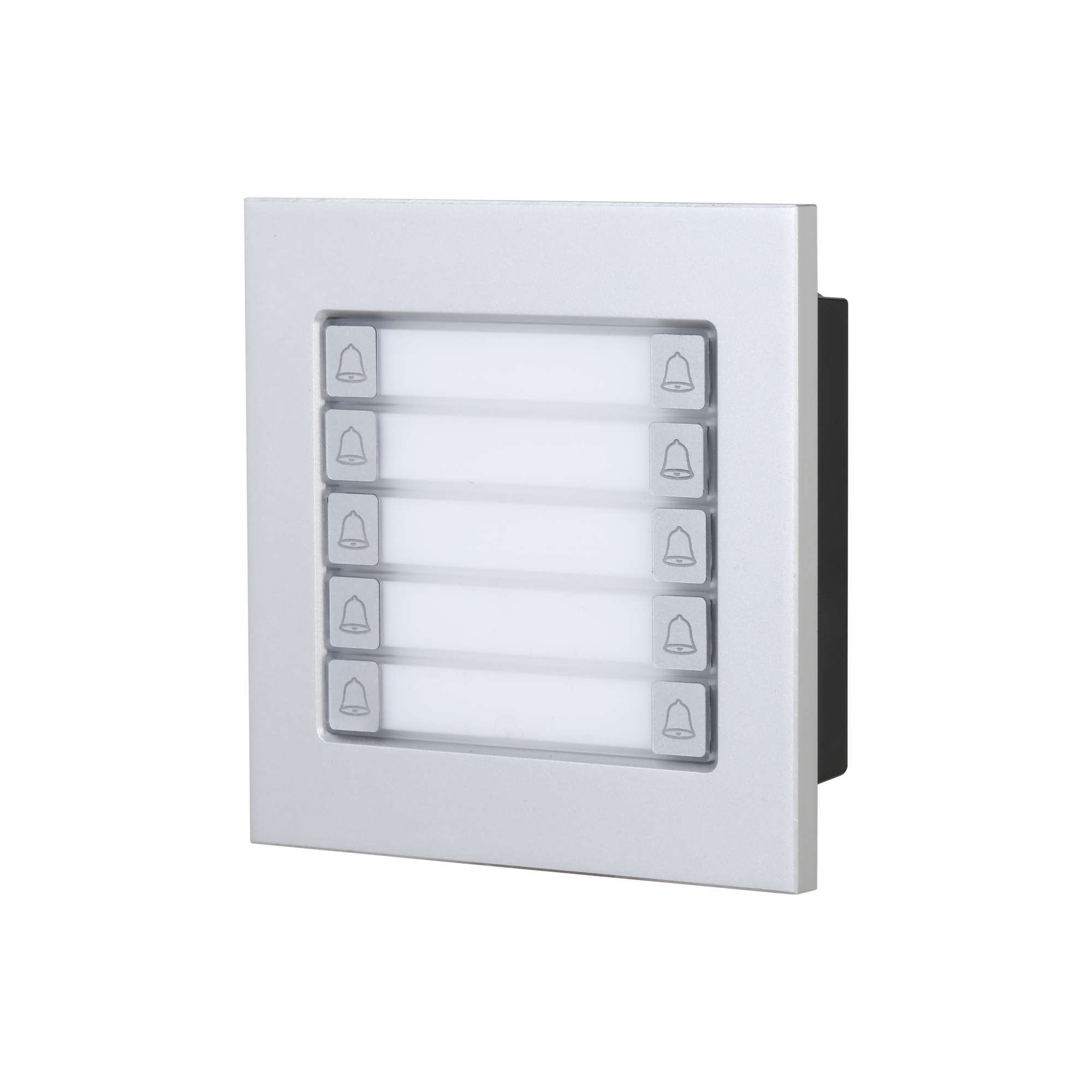

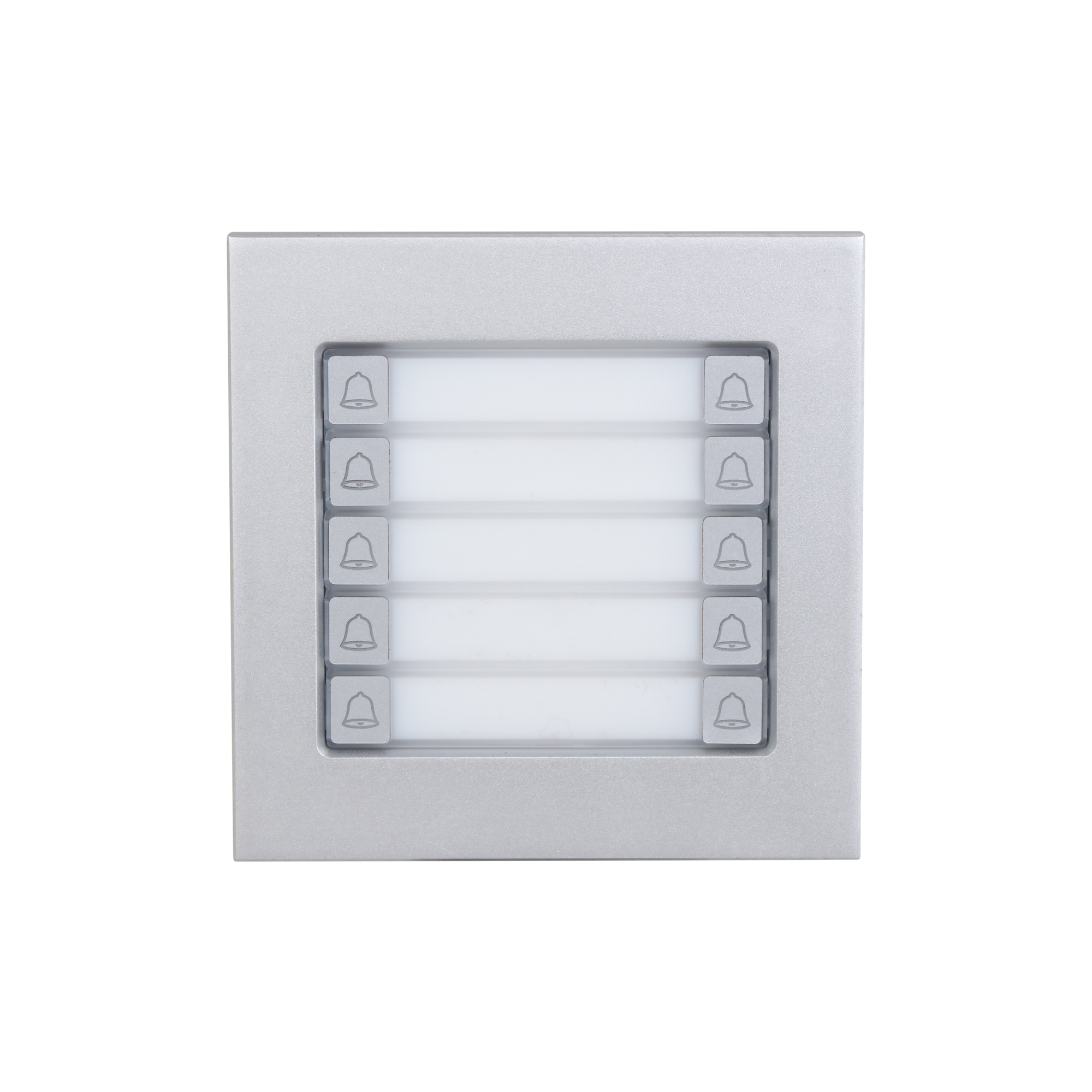

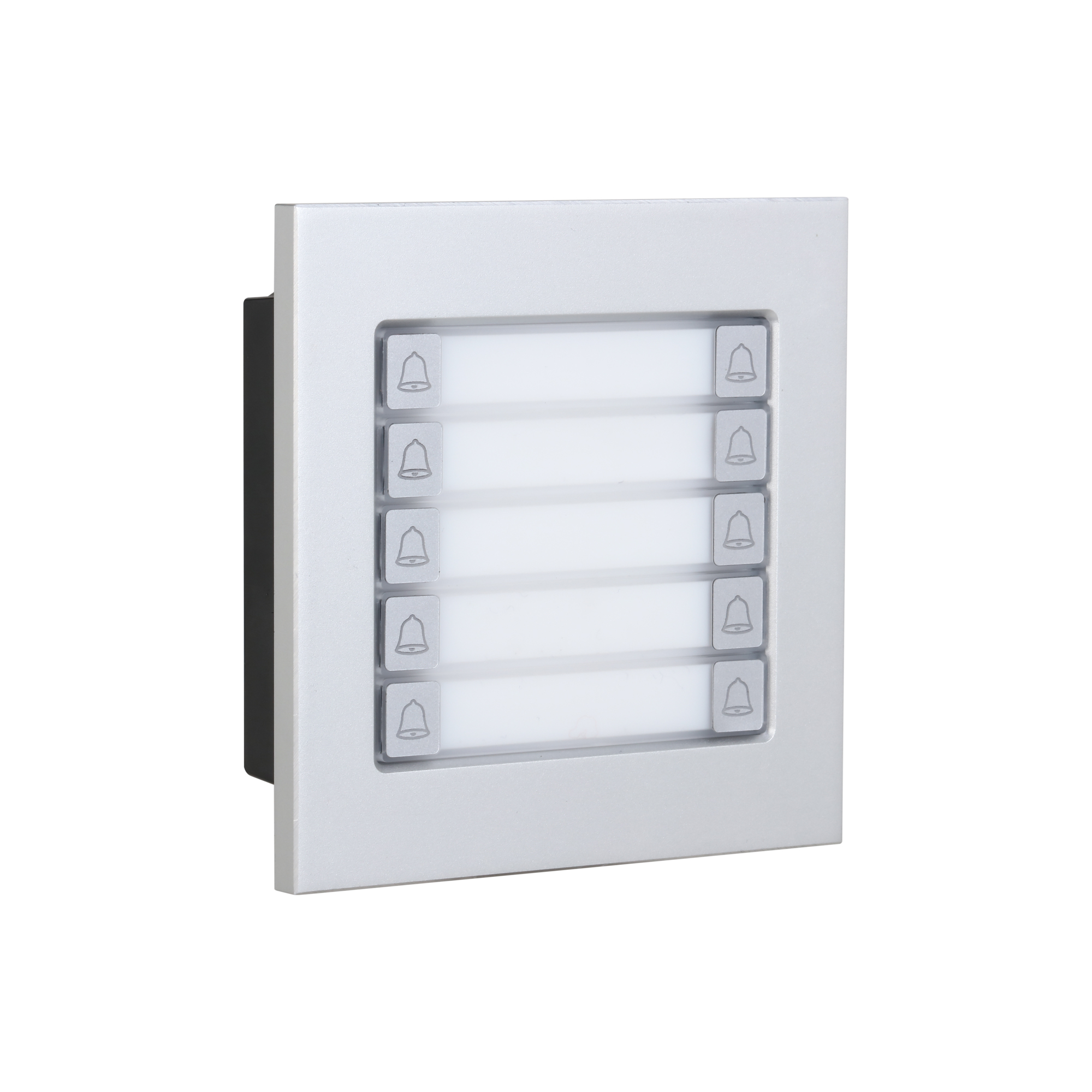

This is the multi-tenant call unit of the modular outdoor door station. The 100 × 100 × 26 mm aluminum alloy panel groups 10 buttons on a single face and draws its power from the other modules on the panel.
IP65Protection Grade
IK07Impact Resistance
100 × 100 × 26 mmDimensions
0.33 kgGross Weight
5 VDCPower Supply
-30 °C to +60 °COperating Temperature
Key features
Button layoutAs an enhanced 10-button module it occupies 100 × 100 × 26 mm on the panel.
Casing and protectionThe silver aluminum alloy casing carries an IP65 protection grade and IK07 impact resistance.
Power supplyIt draws 5 VDC from the other modules in the system.
Operating environmentIt operates from -30 °C to +60 °C at 10% – 90% relative humidity, non-condensing.
InstallationIt supports both flush mount and surface mount installation.
IP65 protection requires a silicone sealant at installation.
