Adds an information display surface to the door station.

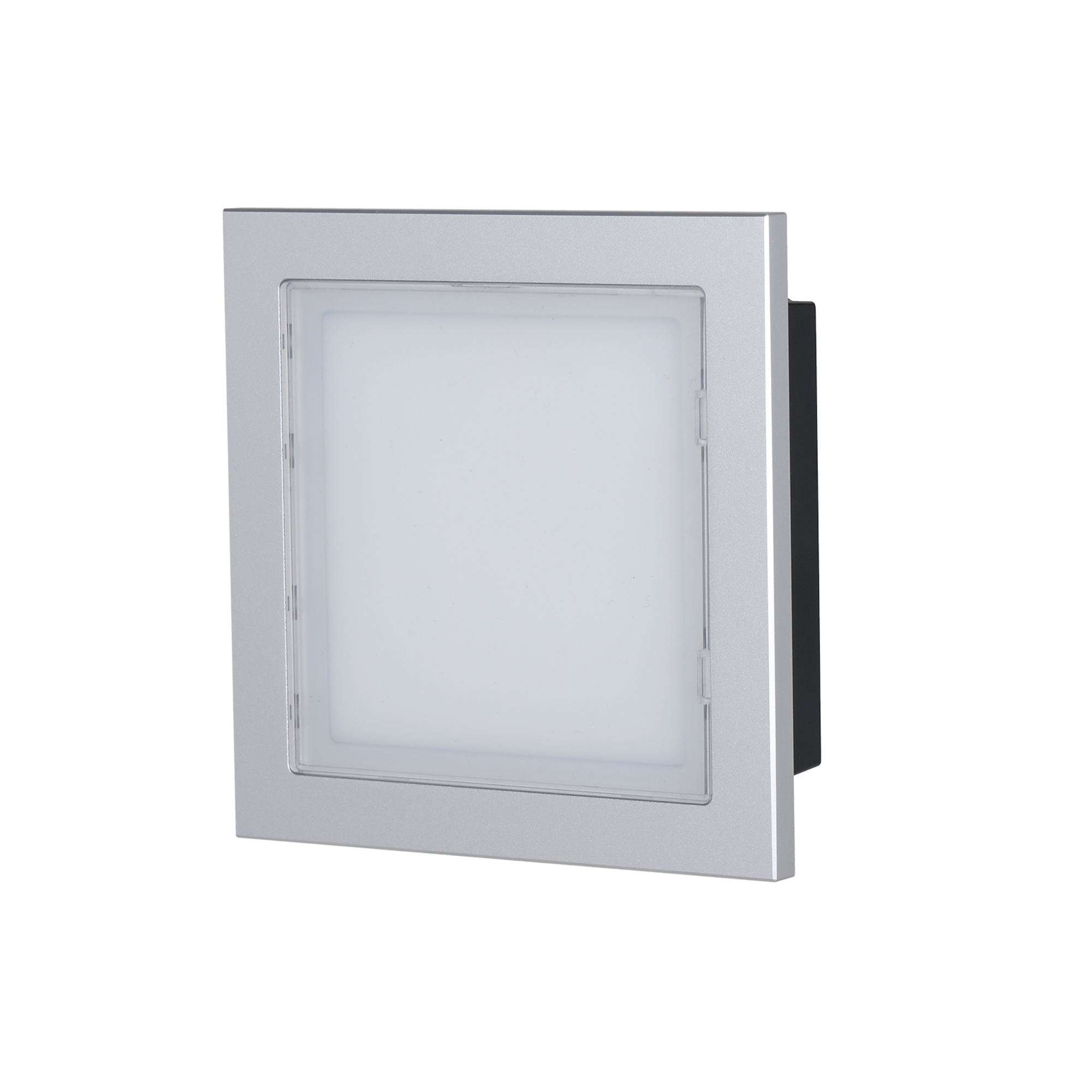

This is the information display unit of the modular outdoor door station. The aluminum alloy panel carries the display surface in a weather-sealed casing and draws its power from the other modules on the panel.
IP65Protection Grade
IK07Impact Resistance
100 × 100 × 28.50 mmDimensions
0.28 kgGross Weight
5 VDCPower Supply
-30 °C to +60 °COperating Temperature
Key features
Information displayAs an information display module it occupies 100 × 100 × 28.50 mm on the panel.
Casing and protectionThe silver aluminum alloy casing carries an IP65 protection grade and IK07 impact resistance.
Power supplyIt draws 5 VDC from the other modules in the system and consumes 0.5 W.
Operating environmentIt operates outdoors from -30 °C to +60 °C at 10% – 90% relative humidity, non-condensing.
IP65 protection requires a silicone sealant at installation.
