Adds a status indicator light to the door station.

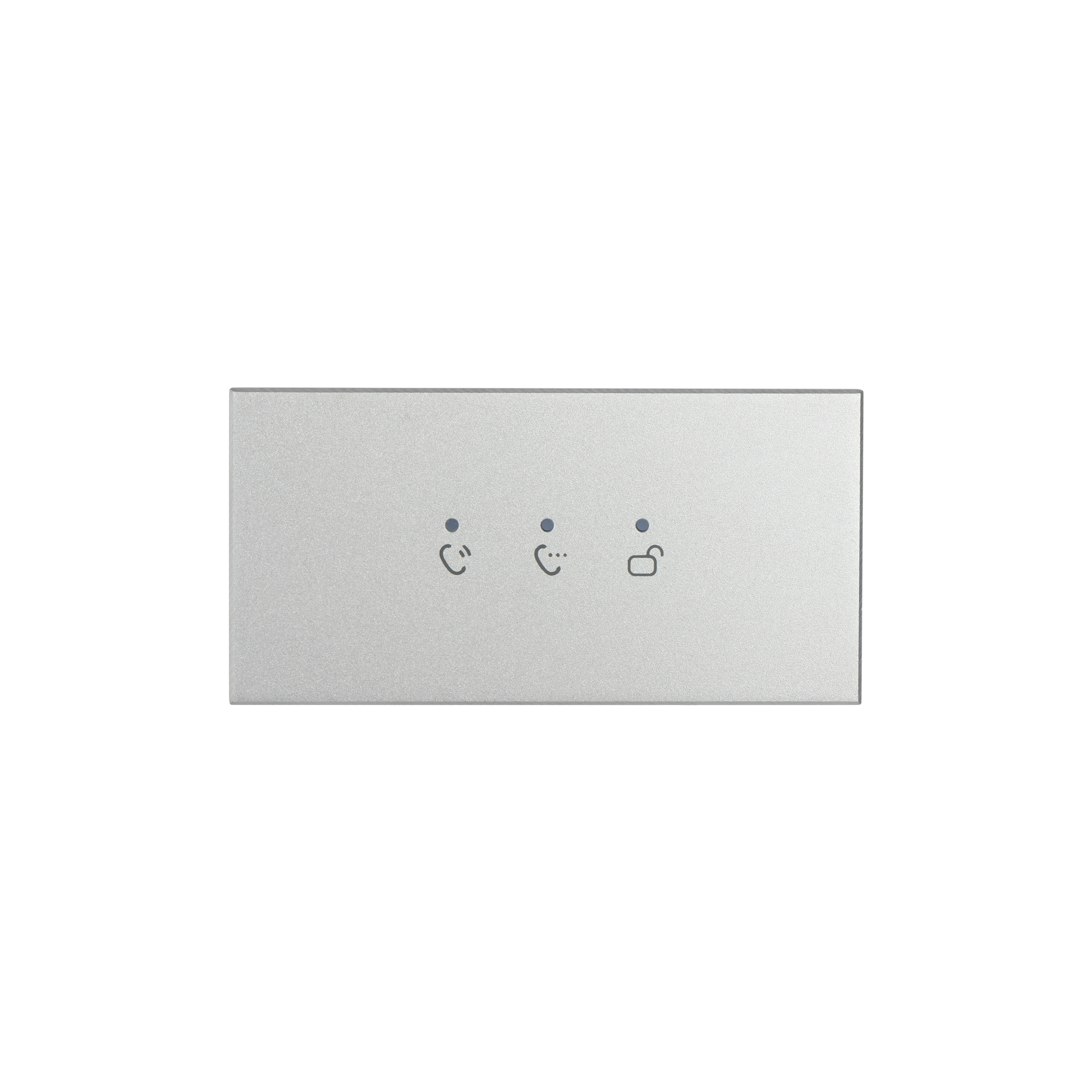

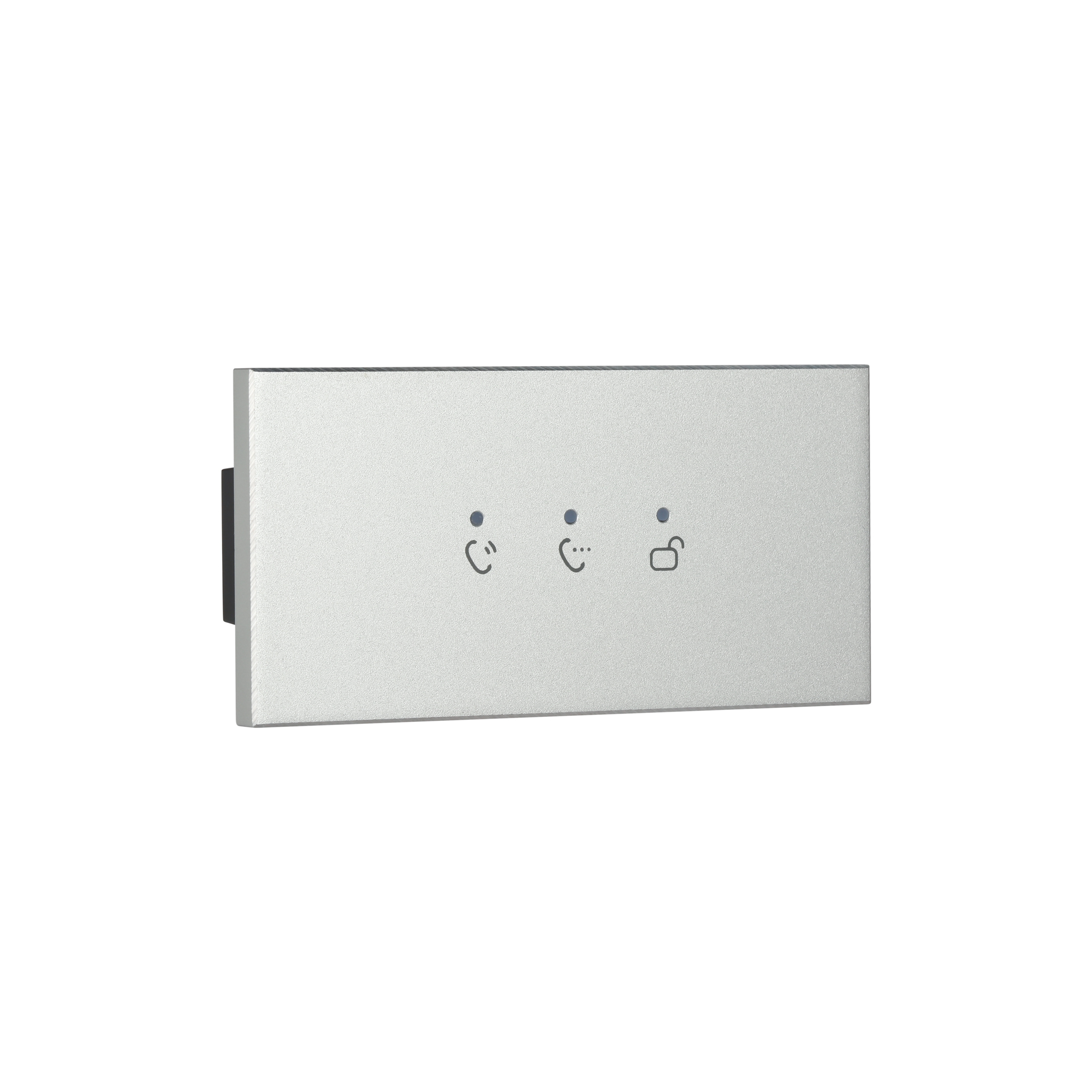

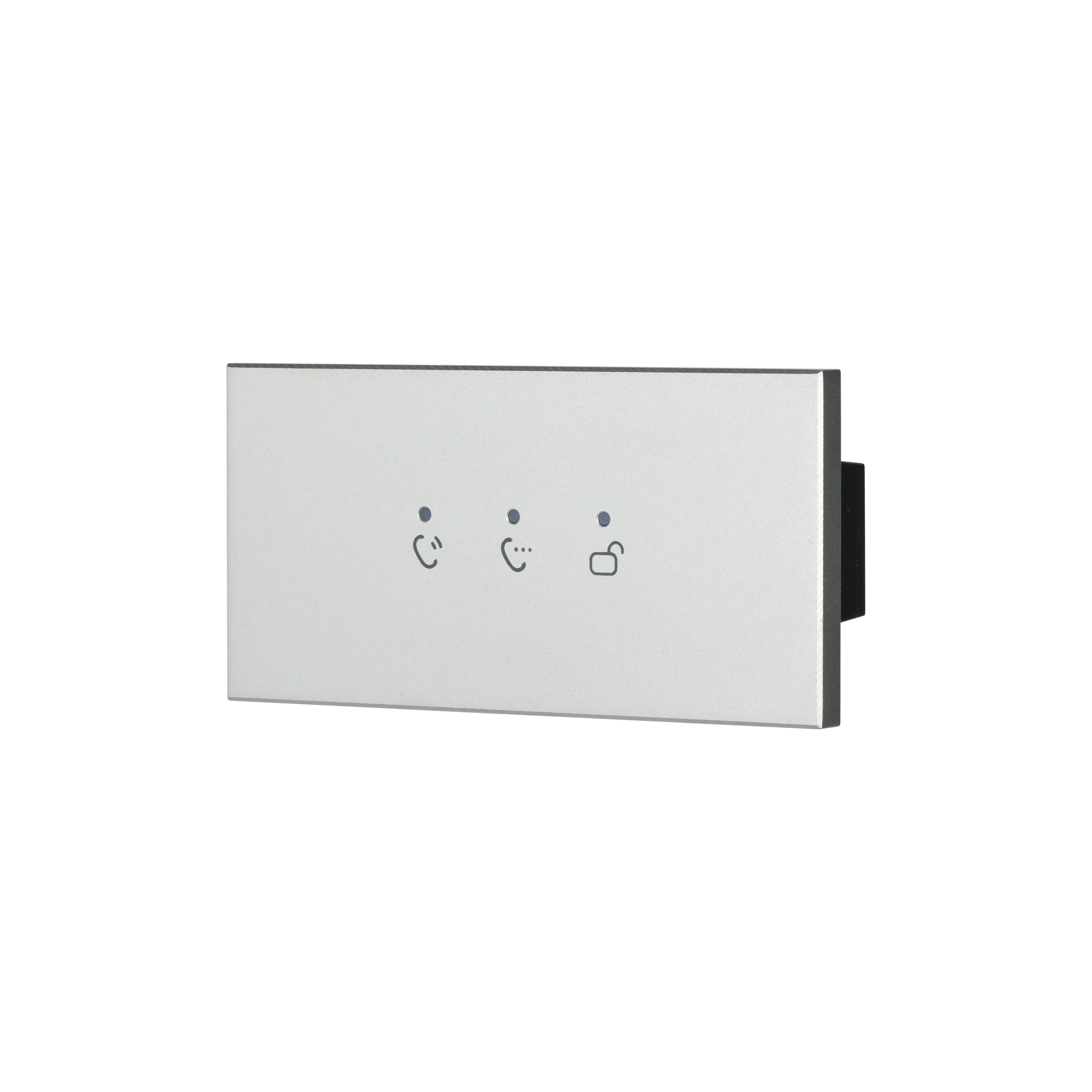

This is the status light unit of the modular outdoor door station. The aluminum alloy panel carries the indicator light in a weather-sealed casing and draws its power from the other modules on the panel.
IP65Protection Grade
IK07Impact Resistance
100 × 50.0 × 28.50 mmDimensions
0.19 kgGross Weight
5 VDCPower Supply
-30 °C to +60 °COperating Temperature
Key features
Status indicatorAs a status light module it occupies 100 × 50.0 × 28.50 mm on the panel.
Casing and protectionThe silver aluminum alloy casing carries an IP65 protection grade and IK07 impact resistance.

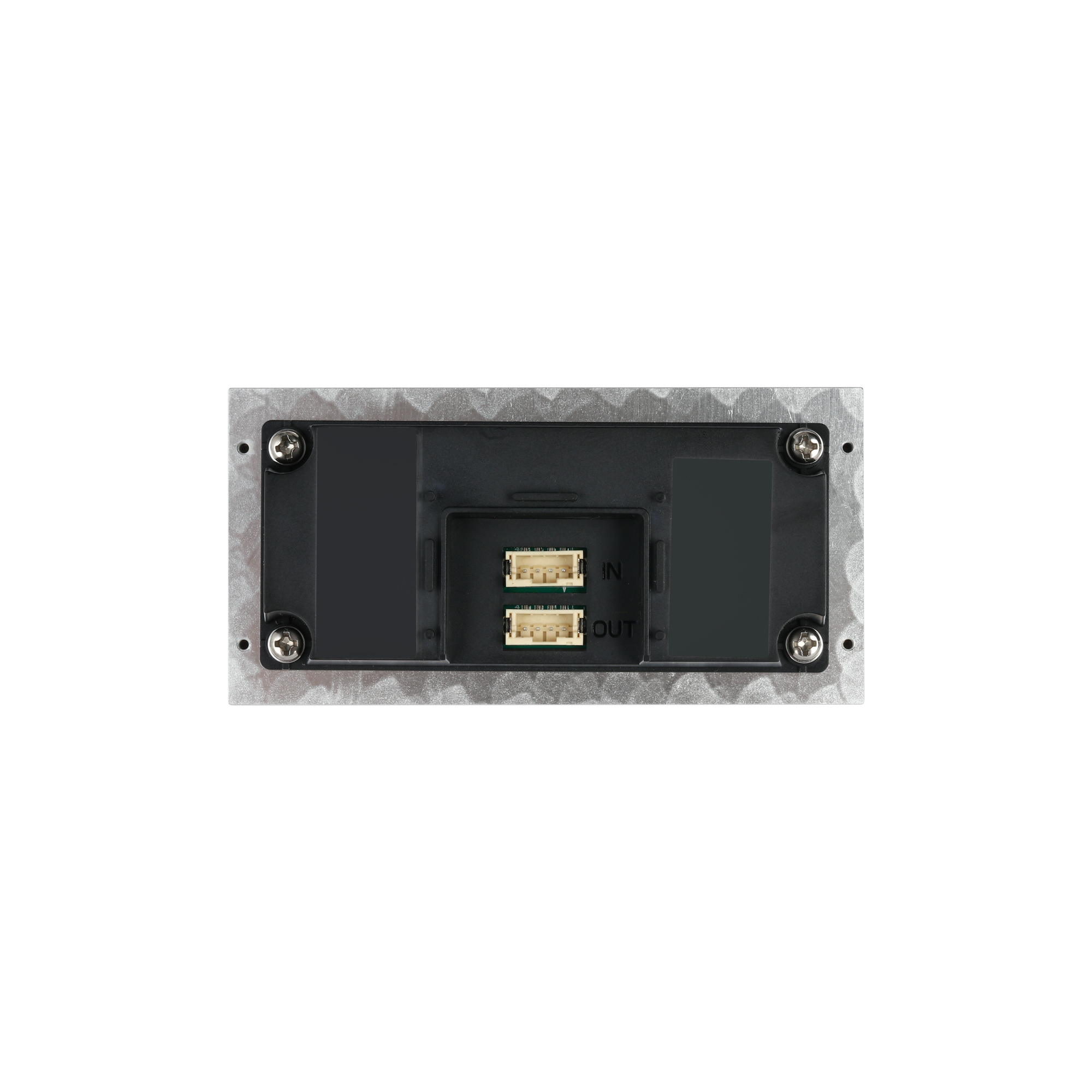

Power supplyIt draws 5 VDC from the other modules over a cascade connection and consumes at most 2 W.
Operating environmentIt operates from -30 °C to +60 °C at 10% ~ 90% relative humidity, non-condensing.
IP65 protection requires a silicone sealant at installation.
