Module

Name: Module
Brand: Dahua
SKU: VTO4202F-MN

Stock Code: VTO4202F-MN

Covers the unused module slots of the door station.

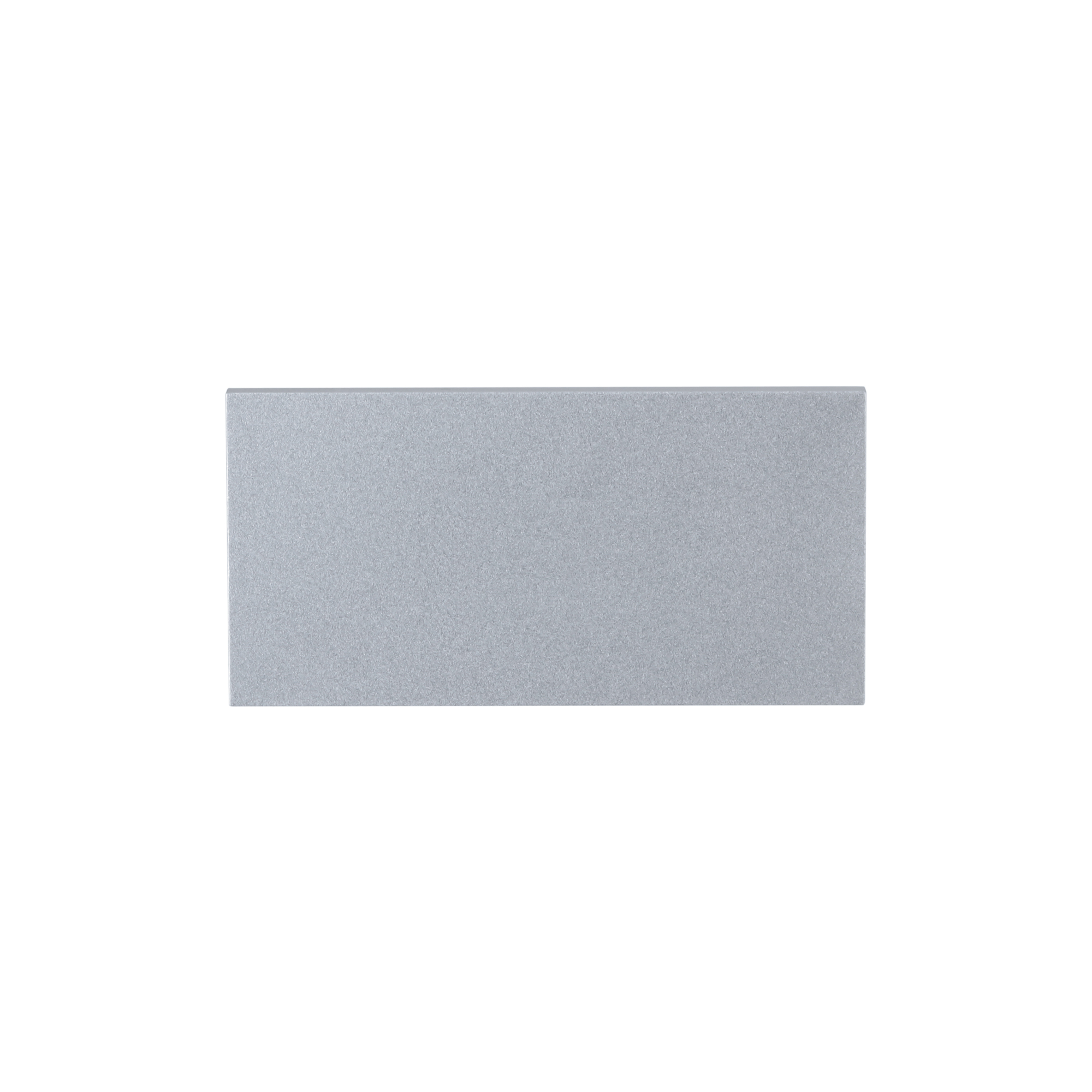

This is the blank panel unit of the modular outdoor door station. It closes an unused module slot with an aluminum alloy cover and keeps both the weather protection and the visual continuity of the panel intact.

IP65Protection Grade

IK07Impact Resistance

100 × 50.0 × 28.50 mmDimensions

0.17 kgGross Weight

5 VDCPower Supply

-30 °C to +60 °COperating Temperature

Key features

Blank panelAs a blank module panel it occupies 100 × 50.0 × 28.50 mm on the panel.

Casing and protectionThe silver aluminum alloy casing carries an IP65 protection grade and IK07 impact resistance.

Power supplyIt draws 5 VDC from the other modules over a cascade connection and consumes at most 0.5 W.

Operating environmentIt operates indoors and outdoors from -30 °C to +60 °C at 10% ~ 90% relative humidity, non-condensing.

InstallationIt supports both flush mount and surface mount installation.

IP65 protection requires a silicone sealant at installation.

DHI-VTO4202F Modular Intercom System Technical Specifications
Model	Type / Specific Function	Dimensions (mm)	Gross Weight	Power Consumption
MB1 / MB2	1 / 2-Button Mechanical Module	100 × 50.0 × 30.50	0.18 kg / 0.17 kg	≤ 0.5 W
MB5	5-Button Mechanical Module	100 × 100 × 30.50	0.31 kg	≤ 0.5 W
MDB2 / MDB4	Enhanced 2 / 4-Button Module	100.0 × 50.0 × 26.0	0.23 kg / 0.24 kg	≤ 0.6 W
MDB10	Enhanced 10-Button Module	100.0 × 100.0 × 26.0	0.33 kg	≤ 0.6 W
MF	Fingerprint Recognition Module	100 × 100 × 38.50	0.33 kg	≤ 0.5 W
MK	Keypad Module (Black)	100 × 100 × 31.0	0.32 kg	≤ 0.5 W
MR / MR1	IC (13.56MHz) / ID (125kHz) Card Reader	100 × 50.0 × 28.50	0.16 kg	≤ 2 W
MI / MS	Indicator / Display Module	100 × 100 × 28.50	0.28 kg / 0.34 kg	≤ 0.5 W / ≤ 2 W
ML / MN	Status Light / Blank Panel Module	100 × 50.0 × 28.50	0.19 kg / 0.17 kg	≤ 2 W / ≤ 0.5 W
MV	Vigik Module Installation Panel	100.0 × 50.0 × 6.0	0.28 kg	N/A
General Technical Data
Casing Material	Aluminum Alloy (Silver; except MK)
Protection Rating	IP65 (silicone sealant required for installation); IK07
Power Supply	5 VDC (Daisy-chained from other modules)
Operating Temperature	-30 °C ~ +60 °C (-22 °F ~ +140 °F)
Operating Humidity	10% ~ 90% (RH), non-condensing
Environment	Indoor / Outdoor; Altitude 0 m – 3,000 m
Installation Type	Flush Mount / Surface Mount
