Adds 125 kHz ID card entry to the door station.

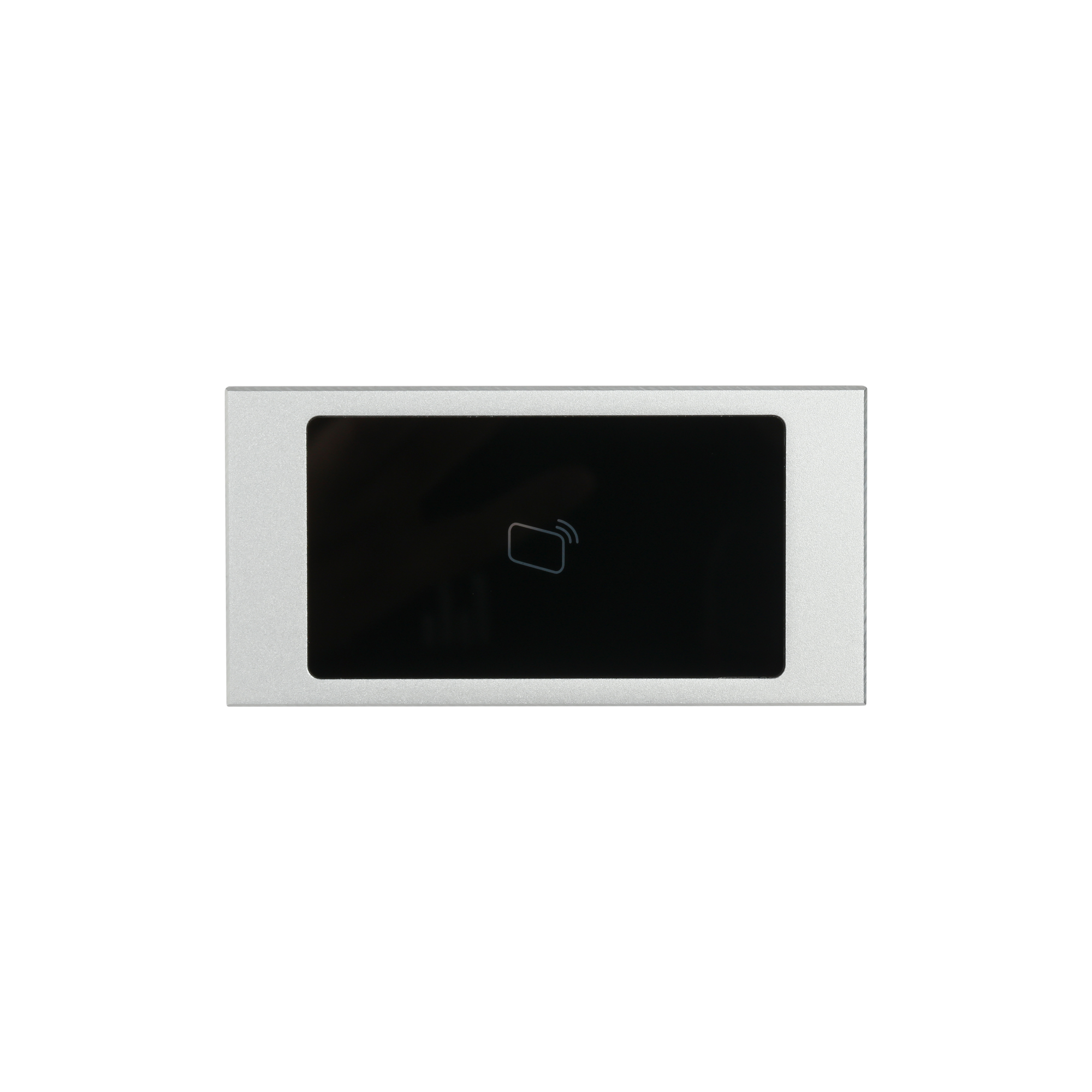

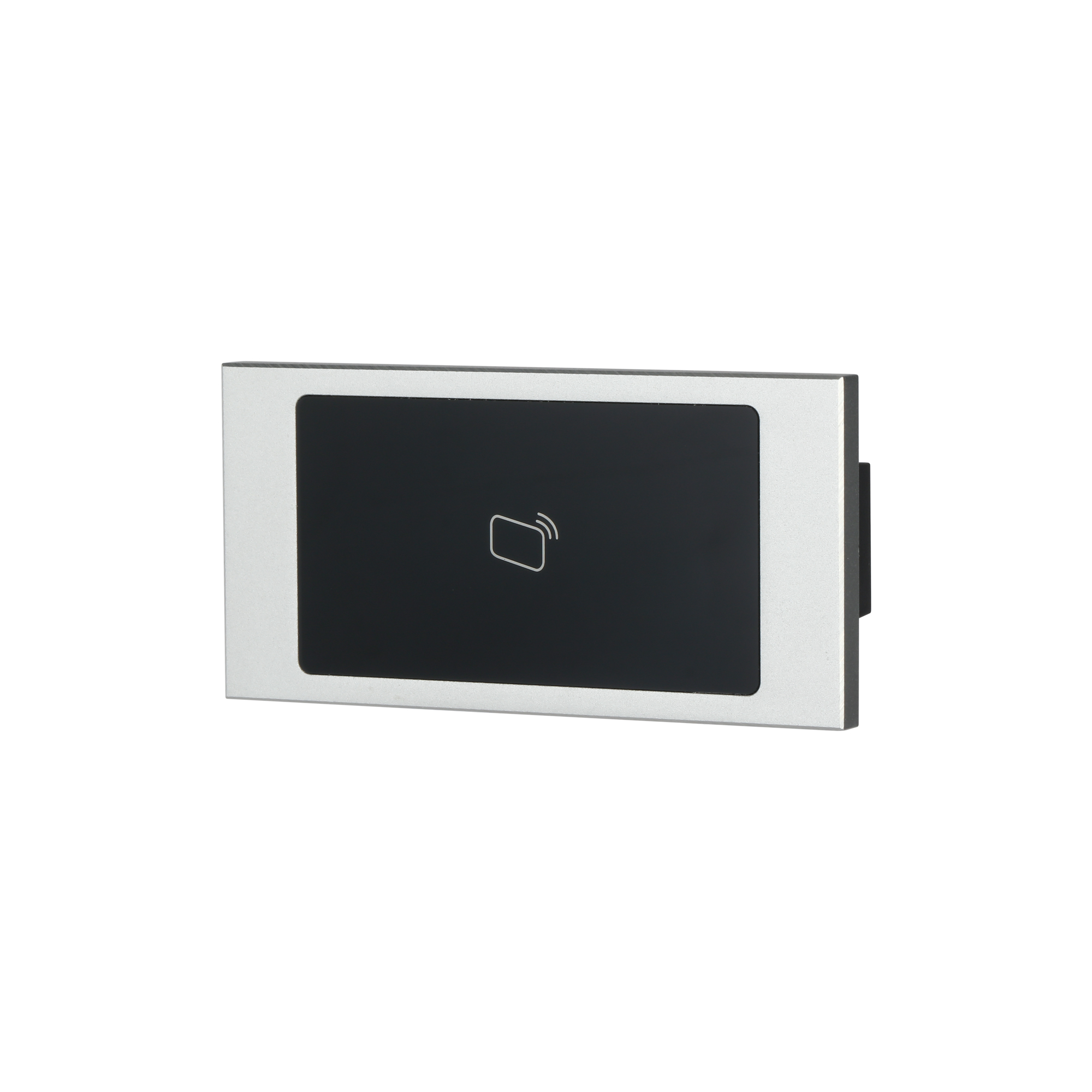

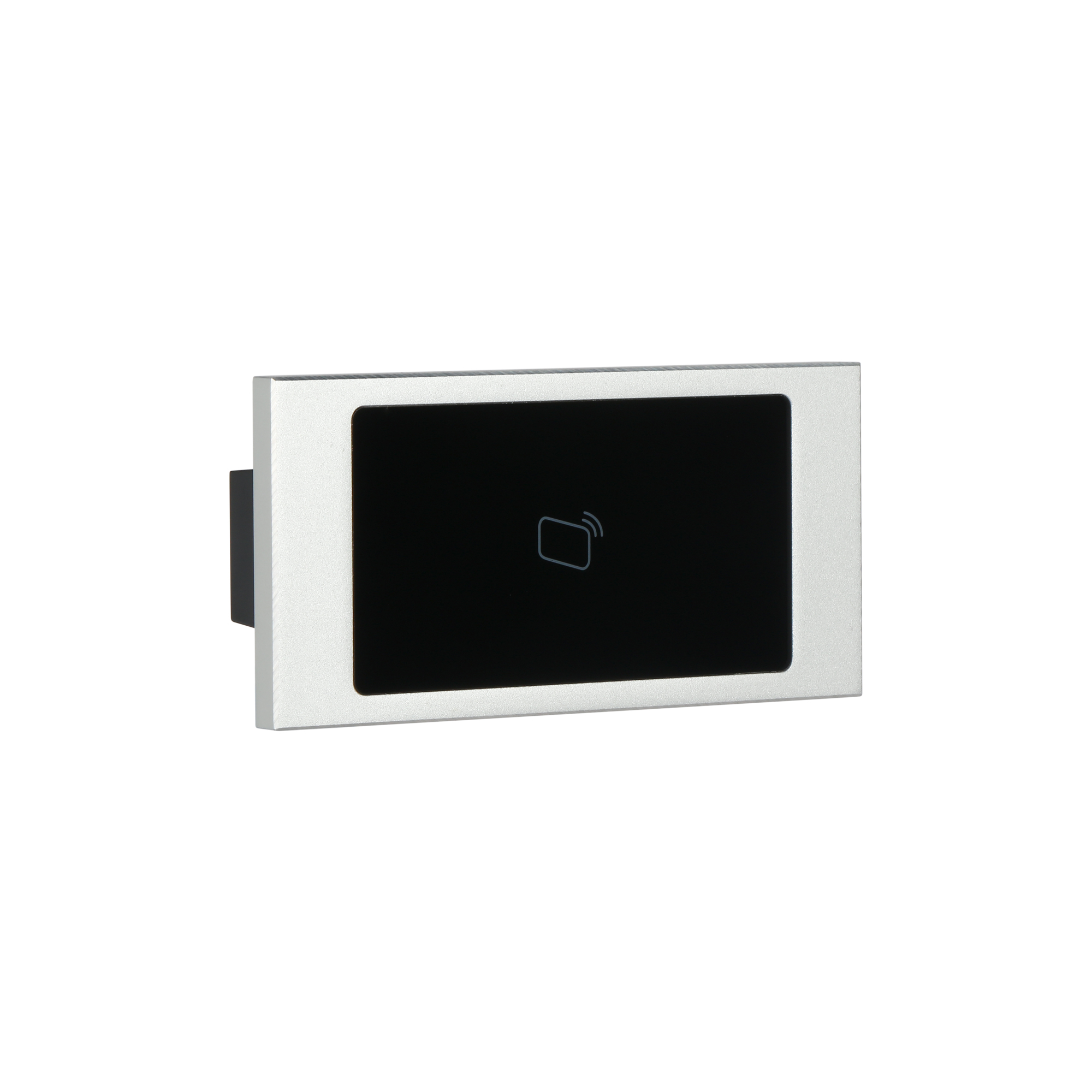

This is the card reader unit of the modular outdoor door station. It reads 125 kHz ID cards and draws its power from the other modules on the panel over a cascade connection.
125 kHzCard Read Frequency
IP65Protection Grade
IK07Impact Resistance
100 × 50.0 × 28.50 mmDimensions
0.16 kgGross Weight
-30 °C to +60 °COperating Temperature
Key features
Card readingAs a 125 kHz ID card reader module it occupies 100 × 50.0 × 28.50 mm on the panel.
Casing and protectionThe aluminum alloy casing carries an IP65 protection grade and IK07 impact resistance.

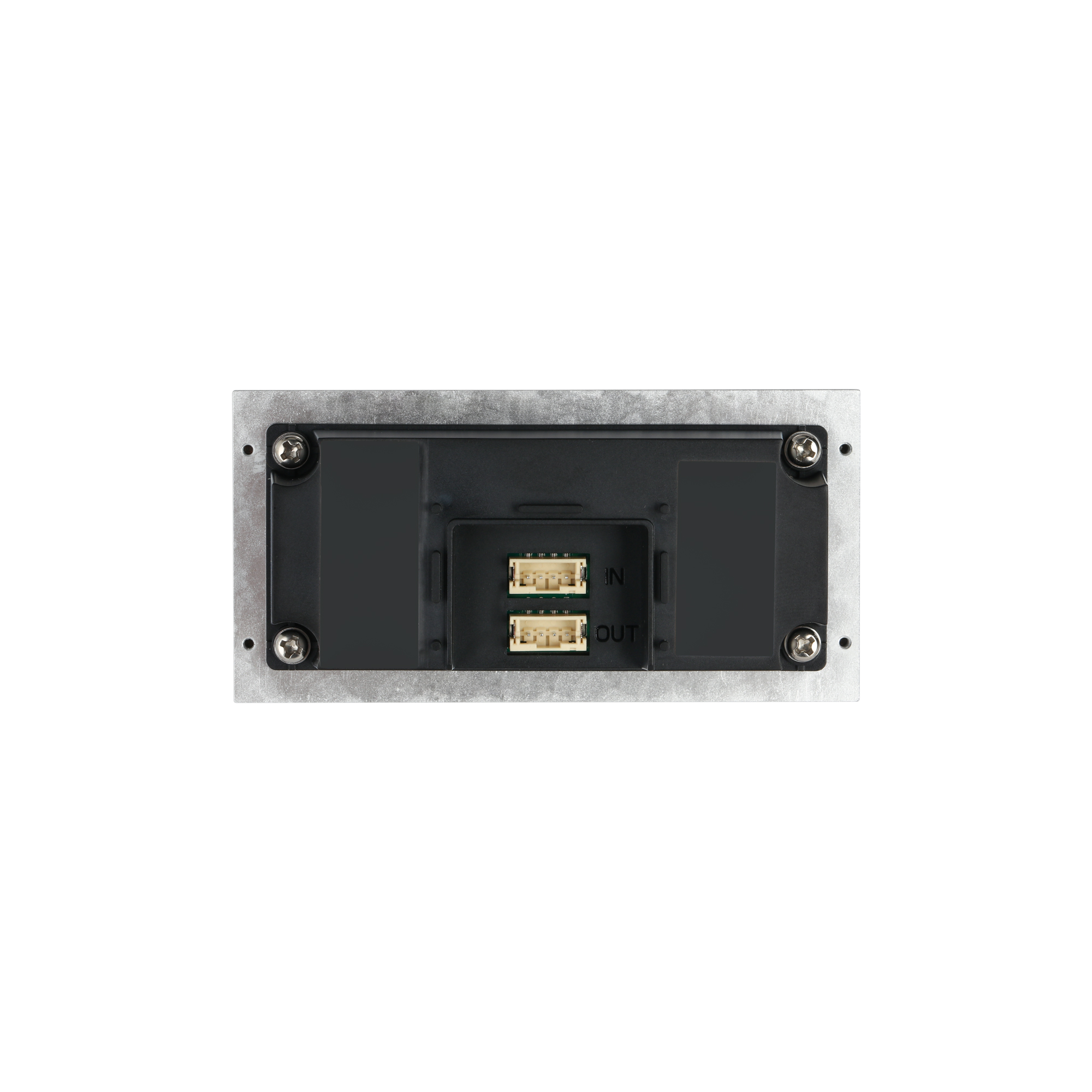

Power supplyIt draws 5 VDC from the other modules over a cascade connection and consumes at most 2 W.
Operating environmentIt operates outdoors from -30 °C to +60 °C at 10% – 90% relative humidity.
InstallationIt supports both flush mount and surface mount installation.
IP65 protection requires a silicone sealant at installation.
