Adds two call buttons to the door station

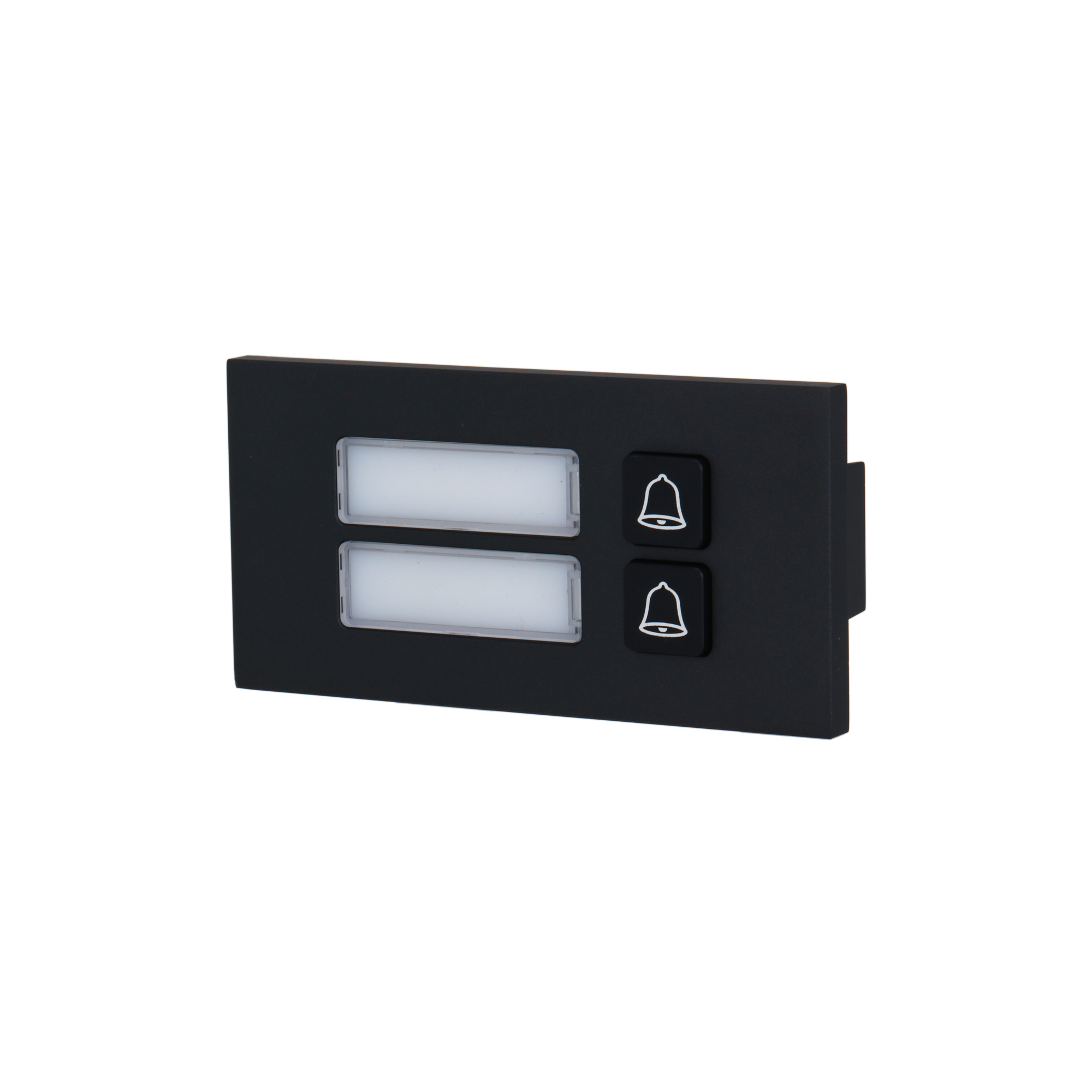

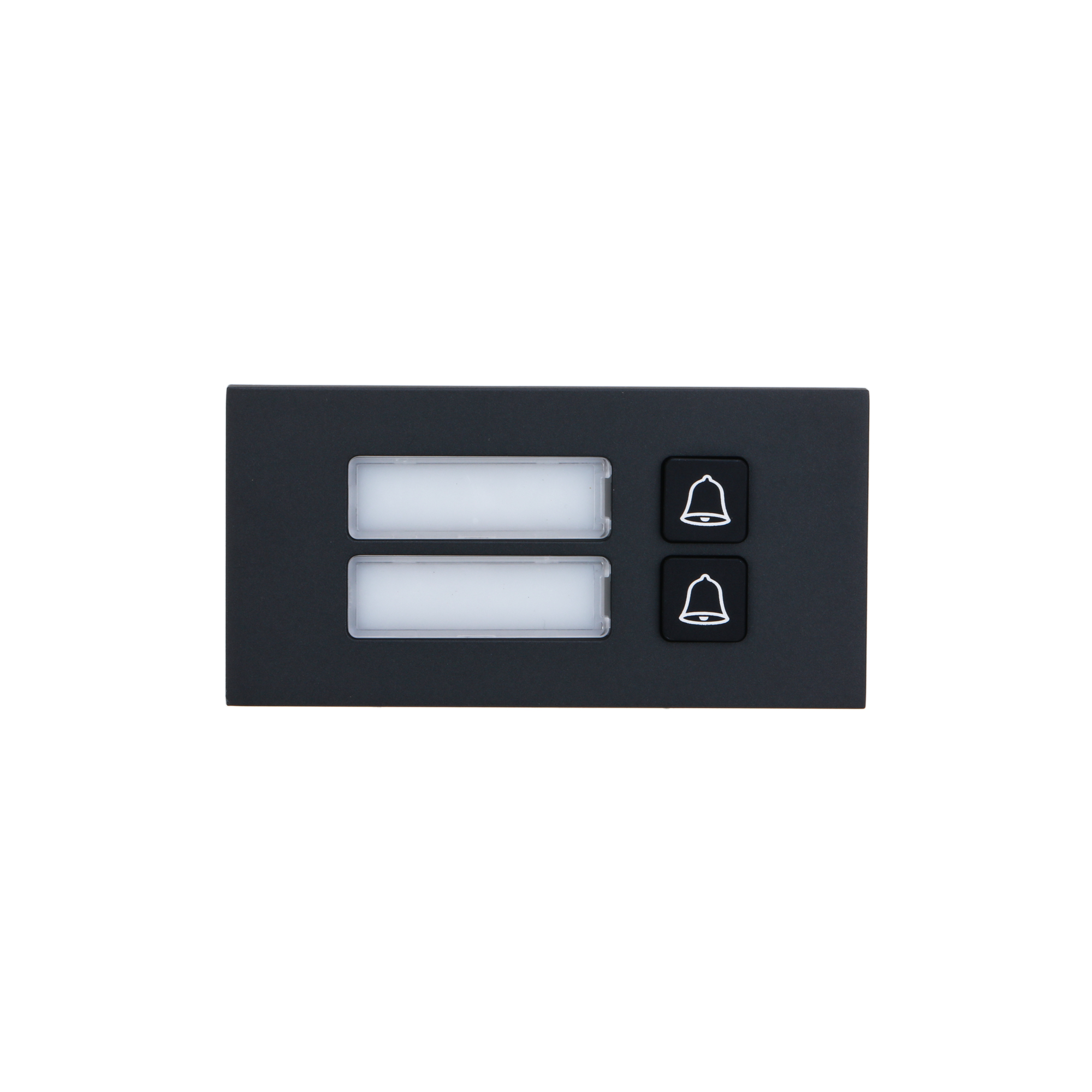

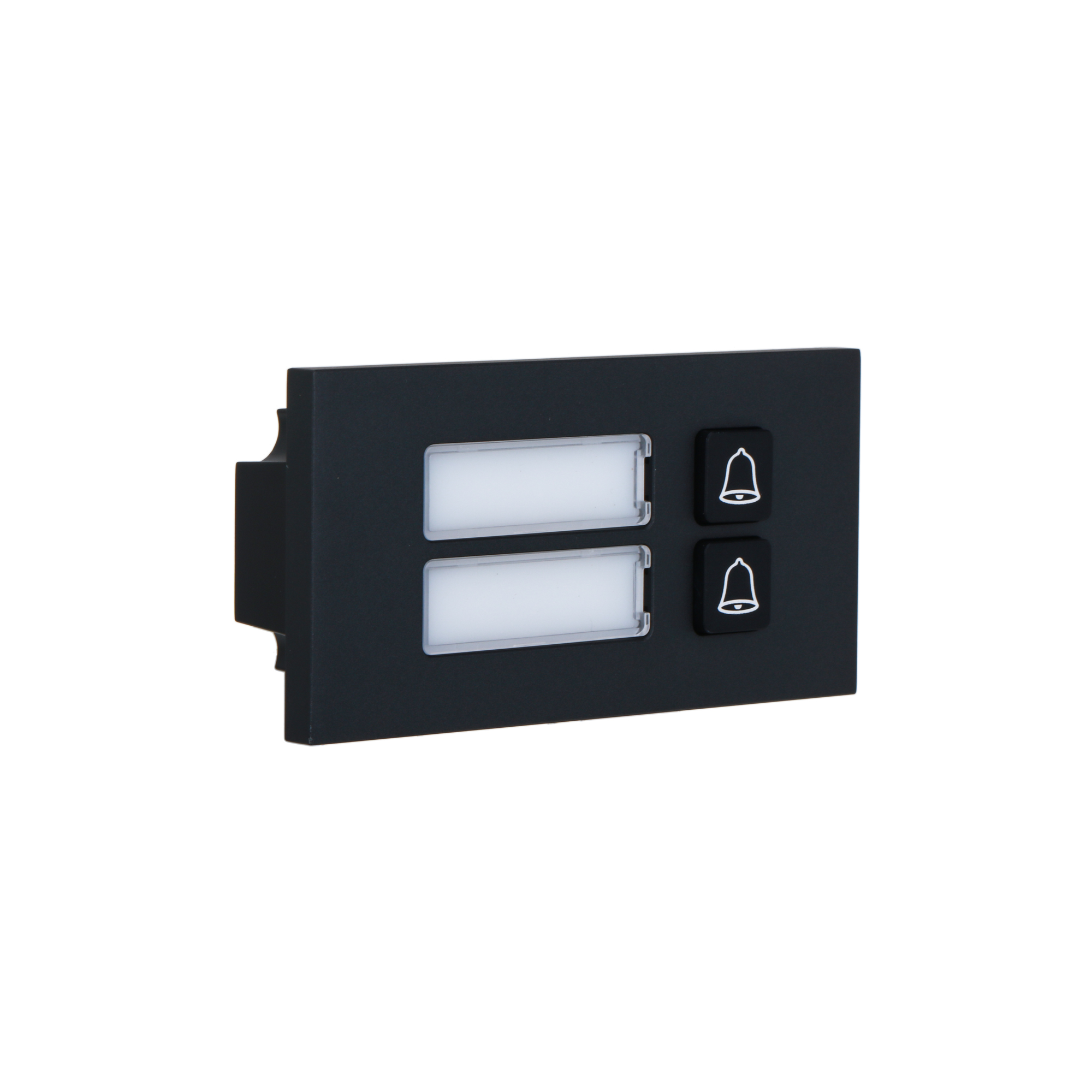

The two-button mechanical module calls a separate apartment from each button. Its 100 × 50.0 × 30.50 mm black aluminum alloy body takes half a slot in the module array and draws power from the other modules.
100 × 50.0 × 30.50 mmDimensions
0.17 kgGross weight
≤ 0.5 WPower consumption
IP65; IK07Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Two mechanical buttonsTwo buttons call two separate apartments, each one carrying its own call.
Black aluminum alloy bodyIK07 impact resistance and IP65 protection take the module out to an outdoor entrance.
Cascade powerThe module draws 5 VDC from the other modules on the line.
Flush and surface mountingThe same body fits a flush box and a surface box alike.
Wide temperature rangeIt works between -30 °C and +60 °C.
IP65 protection requires a silicone seal during installation.
