Adds five call buttons to the door station

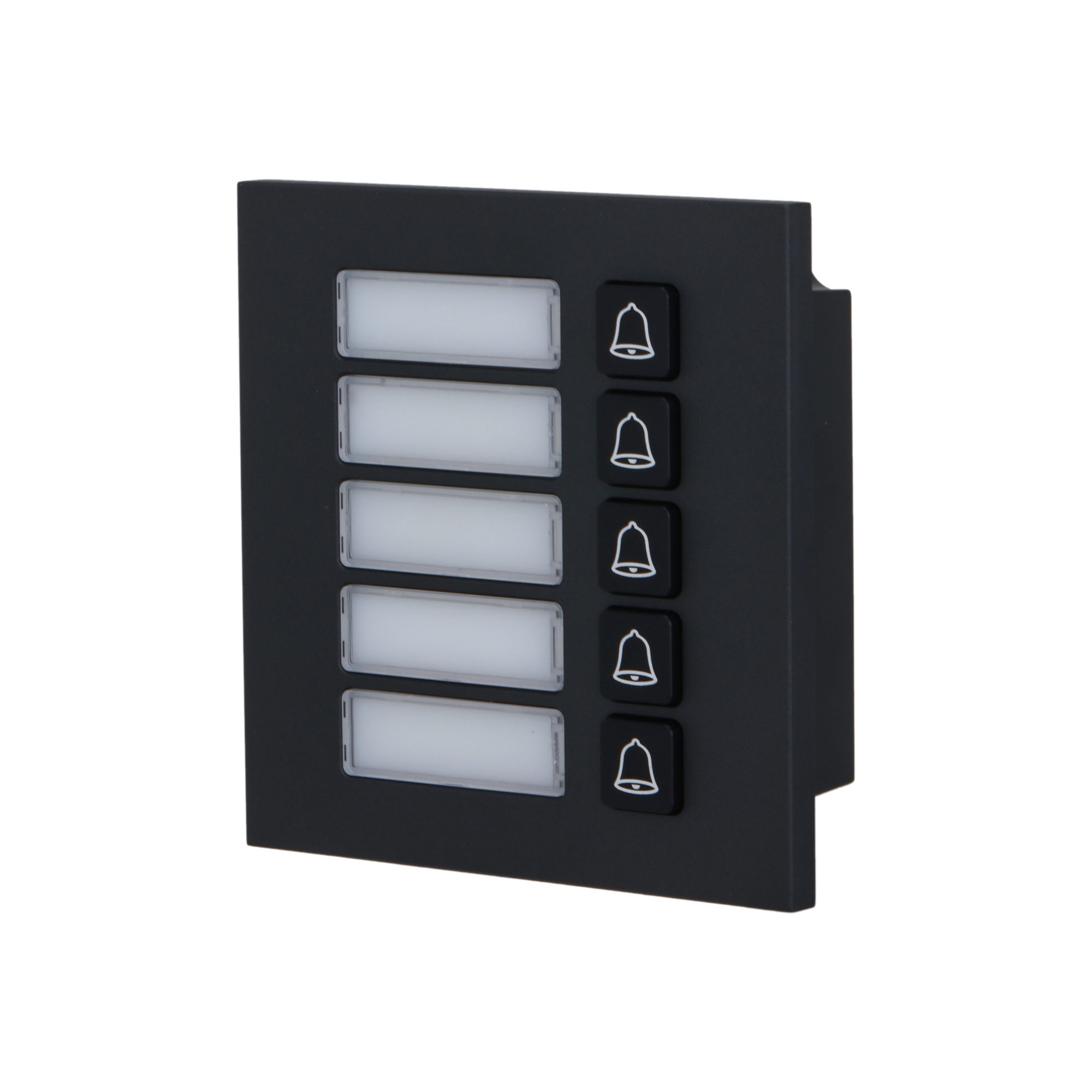

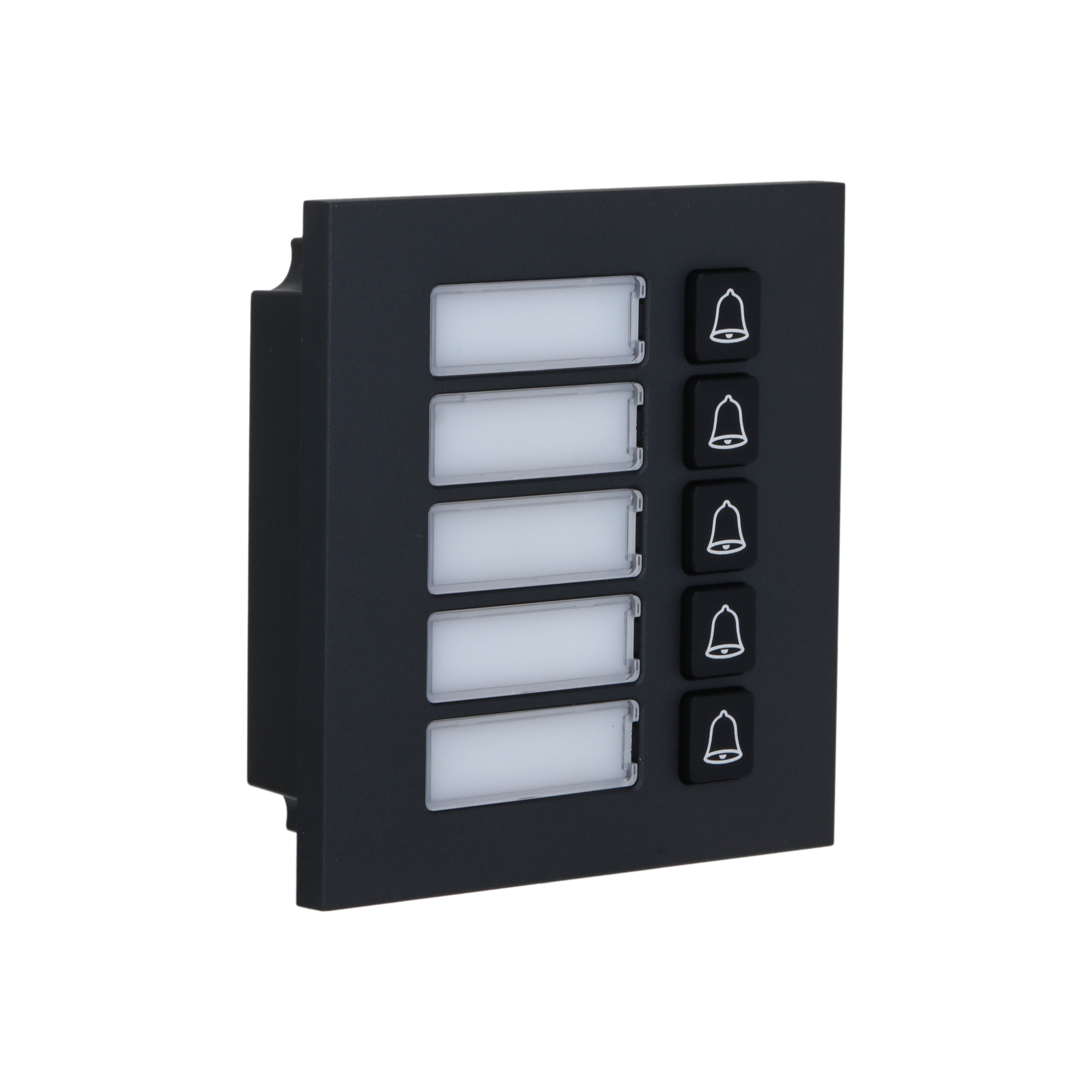

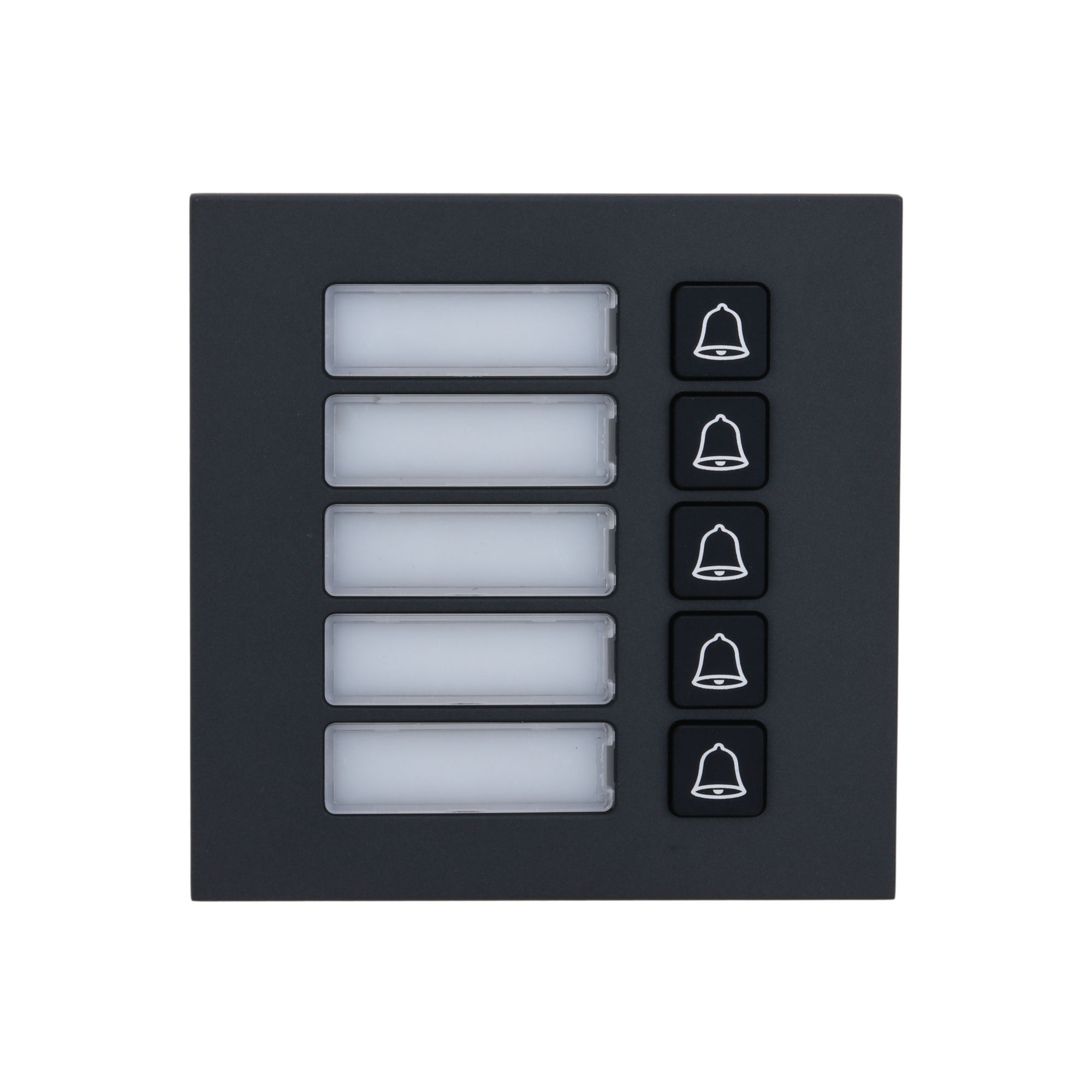

The five-button mechanical module calls five apartments from a single panel. Its 100 × 100 × 30.50 mm aluminum alloy body matches the width of the main camera module and draws power from the neighboring modules.
100 × 100 × 30.50 mmDimensions
0.31 kgGross weight
0.5 WPower consumption
IP65; IK07Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Five mechanical buttonsFive buttons call five separate apartments, so one module covers a small building.
Aluminum alloy bodyIK07 impact resistance and IP65 protection guard the module at an outdoor entrance.
Cascade powerThe module draws 5 VDC from the neighboring modules.
Flush and surface mountingThe same body fits a flush box and a surface box alike.
Wide operating rangeIt works between -30 °C and +60 °C and at 10% to 90% relative humidity.
IP65 protection requires a silicone seal during installation.
