Adds an enhanced two-button call module to the door station

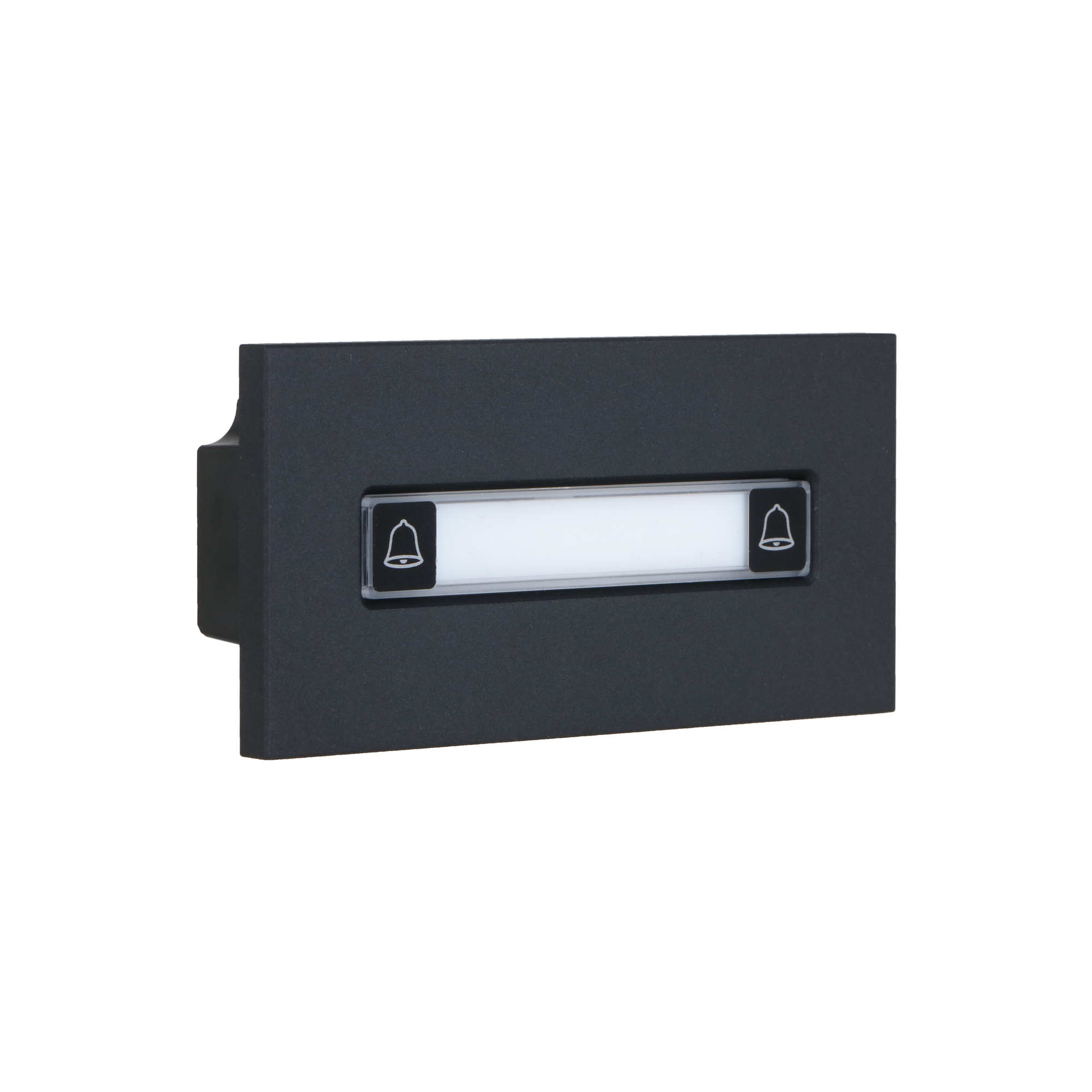

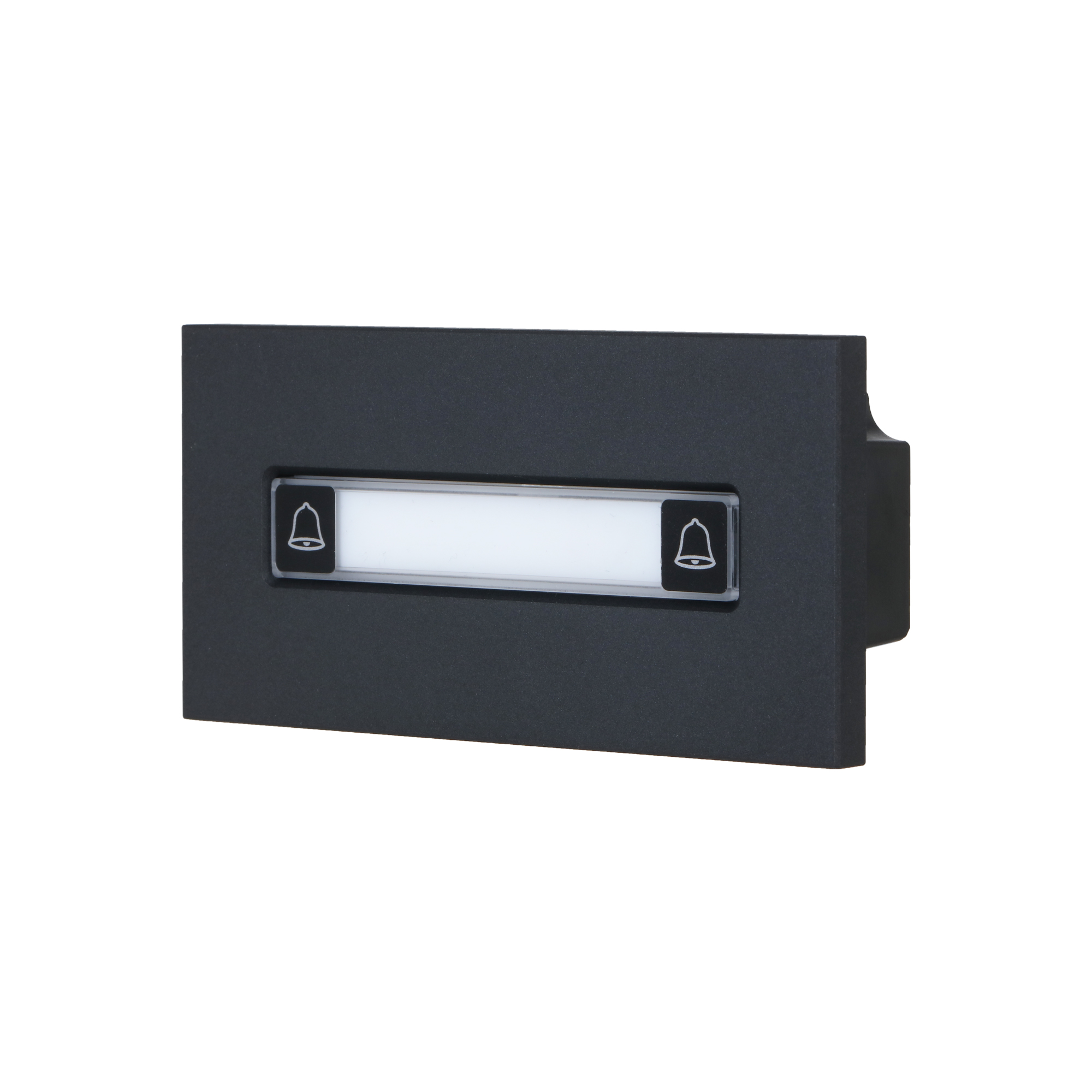

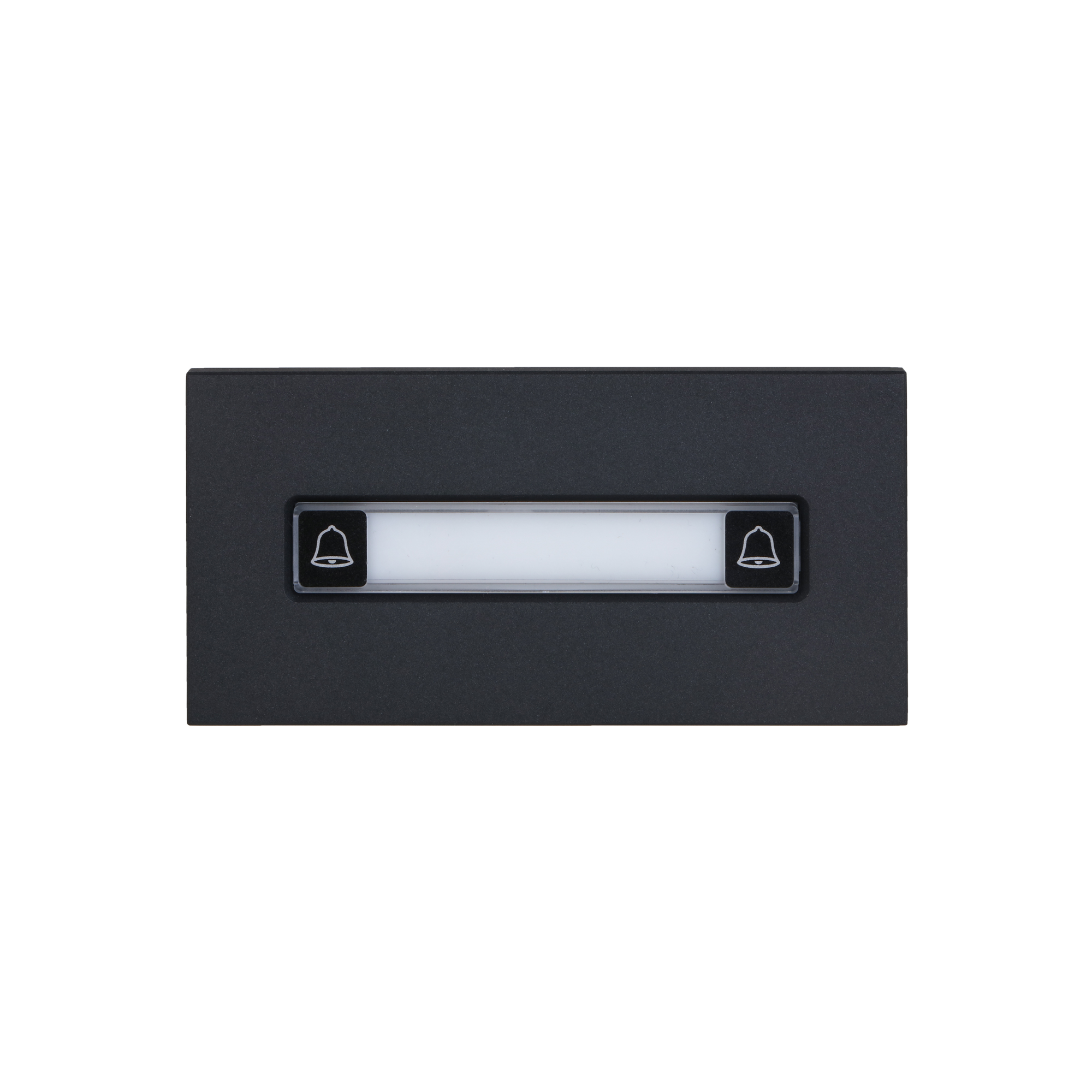

The enhanced two-button module rings two apartments from separate buttons. Its 100.0 × 50.0 × 26.0 mm aluminum alloy body sits next to the main module and draws power from the main VTO module through the cascade connection.
100.0 × 50.0 × 26.0 mmDimensions
0.23 kgGross weight
≤ 0.6 WPower consumption
IP65; IK07Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Two-button callingEach button rings its own apartment.
Low consumptionIt stays under 0.2 W in standby and under 0.6 W while working.
Aluminum alloy bodyThe black aluminum alloy casing carries IK07 impact resistance and IP65 protection out to the door.
Cascade powerThe module draws 5 VDC from the main VTO module.
Wide operating rangeIt works between -30 °C and +60 °C and at 10% to 90% relative humidity, non-condensing.
IP65 protection requires silicone sealant during installation.
