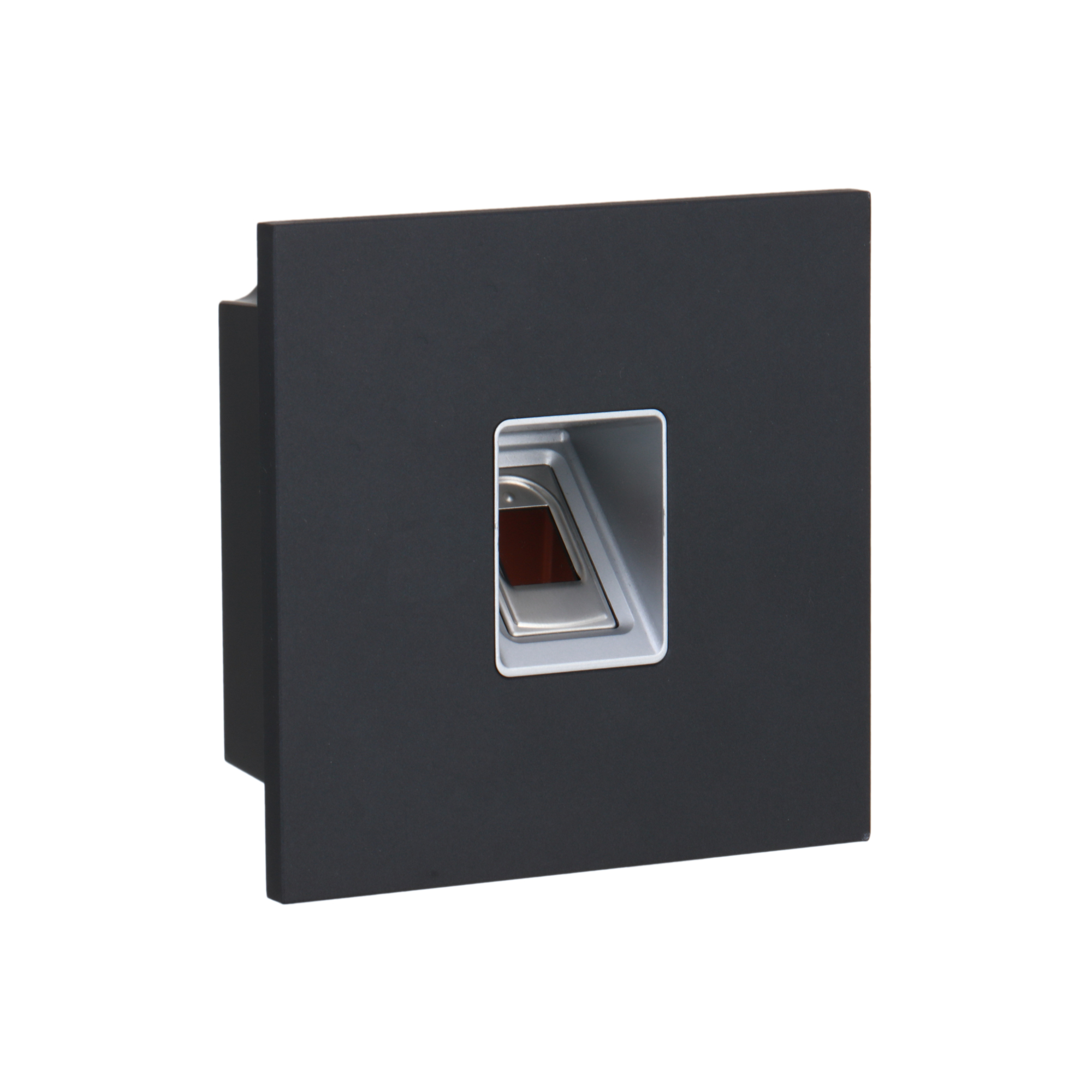

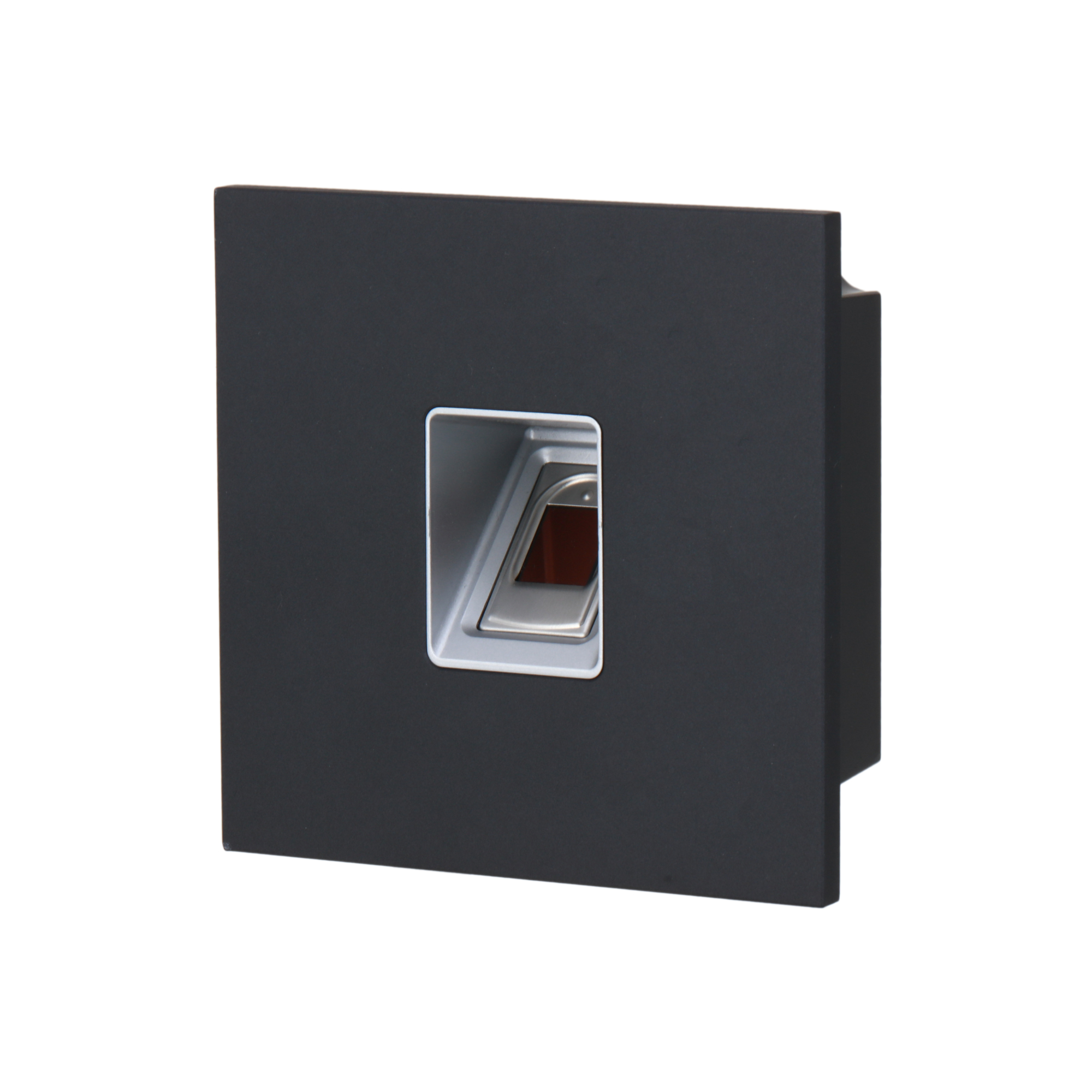

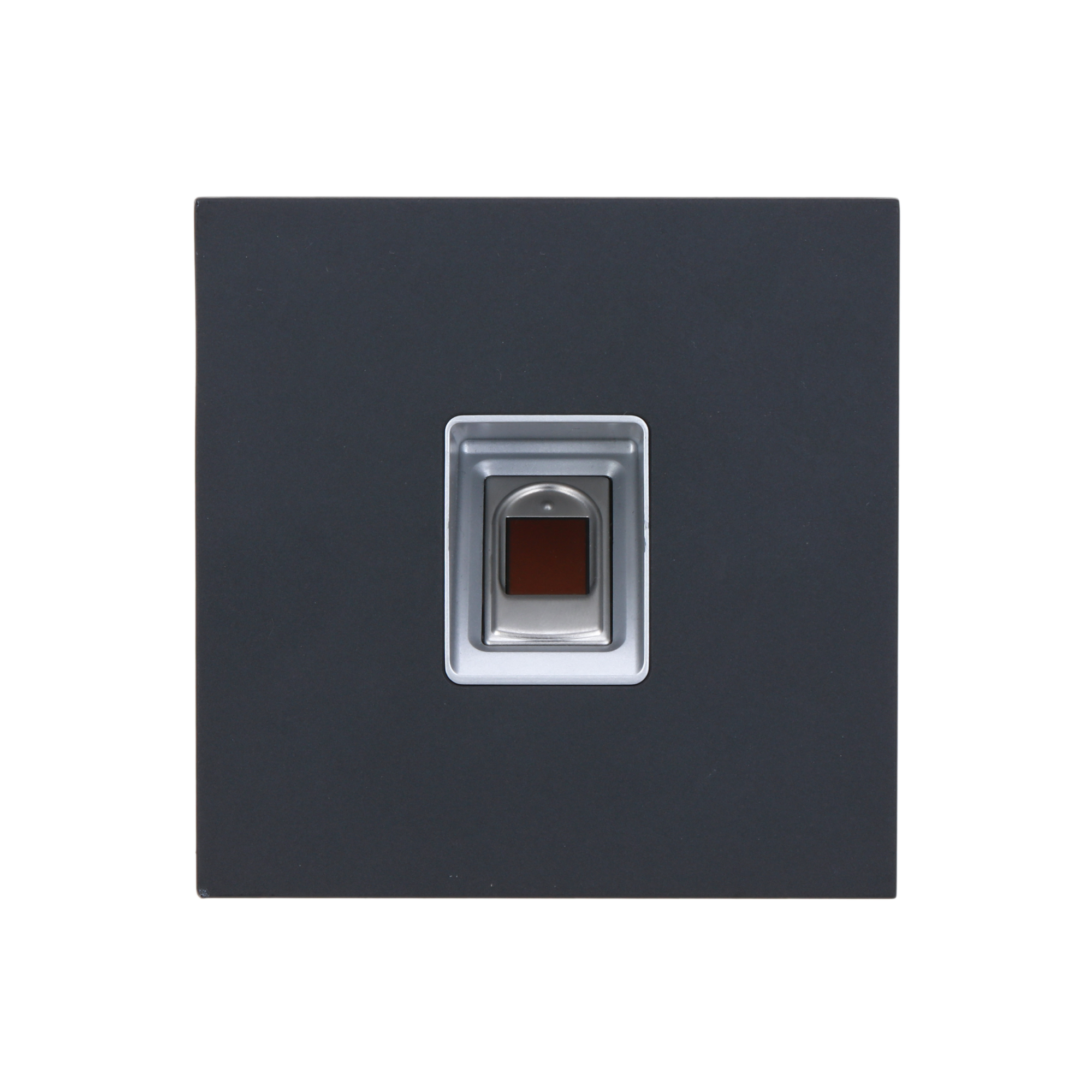

Opens the door with a fingerprint
The fingerprint reader module recognizes the resident without a card or a password. Its 100 × 100 × 38.50 mm aluminum alloy body fills a full-width slot in the array and draws power from the other modules through the cascade connection.
100 × 100 × 38.50 mmDimensions
0.33 kgGross weight
≤ 0.5 WPower consumption
IP65; IK07Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Fingerprint ScannerThe module recognizes the resident from a fingerprint and removes the need to carry a card or remember a password.
Full-width moduleThe 100 × 100 × 38.50 mm body matches the width of the main camera module.
Aluminum alloy bodyIK07 impact resistance and IP65 protection guard the reader at an outdoor entrance.
Cascade powerThe module draws 5 VDC from the other modules and stays under 0.5 W.
Wide temperature rangeIt works between -30 °C and +60 °C.
IP65 protection requires silicone sealing during installation.
