Carries the status light beside the door station

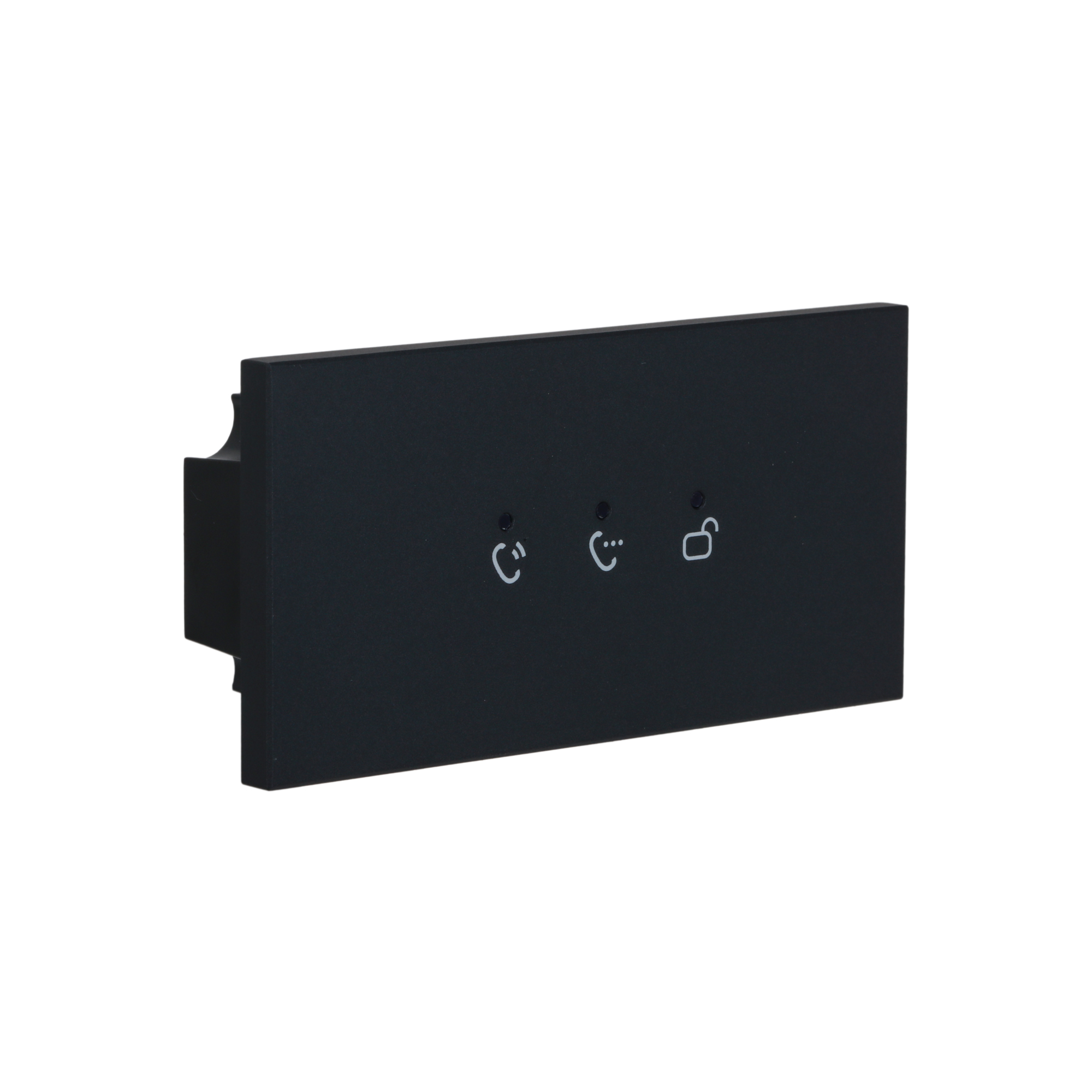

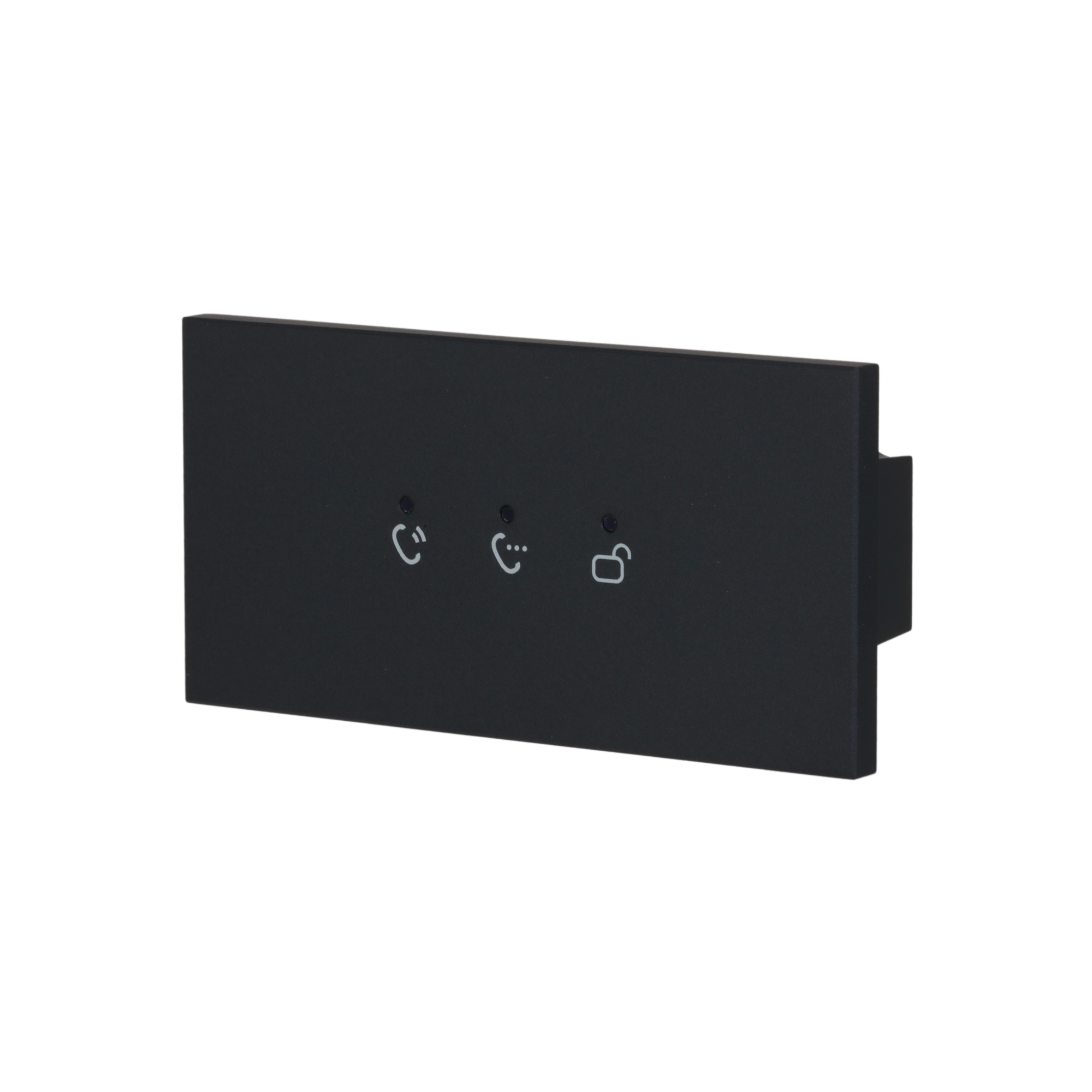

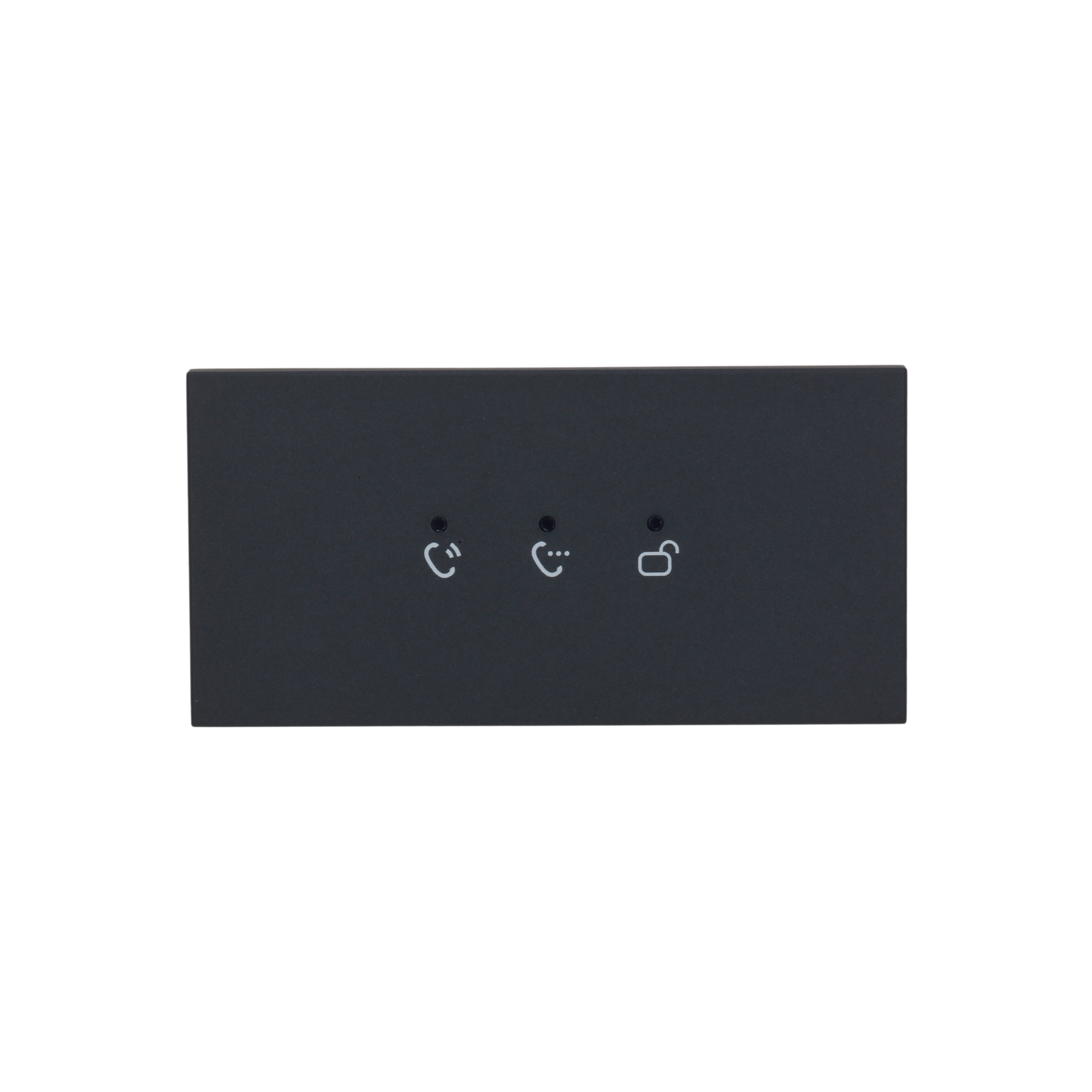

The status light module takes half a slot in the array with its 100 × 50.0 × 28.50 mm aluminum alloy body and guides people at the door with a lit indicator. It draws power from the same line as the neighboring modules.
100 × 50.0 × 28.50 mmDimensions
0.19 kgGross weight
≤ 2 WPower consumption
IP65; IK07Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Status lightIt runs on the same line as the other modules in the array and serves as a lit indicator at the door.
Half-width moduleThe 100 × 50.0 × 28.50 mm body shares the slot size of the button modules.
Aluminum alloy bodyThe black aluminum alloy casing holds IK07 impact resistance and IP65 protection at an outdoor door.
Cascade powerThe module draws 5 VDC from the neighboring modules and stays under 2 W.
Wide operating rangeIt works between -30 °C and +60 °C and at 10% to 90% relative humidity.
IP65 protection requires silicone sealing during installation.
