Closes an unused module slot

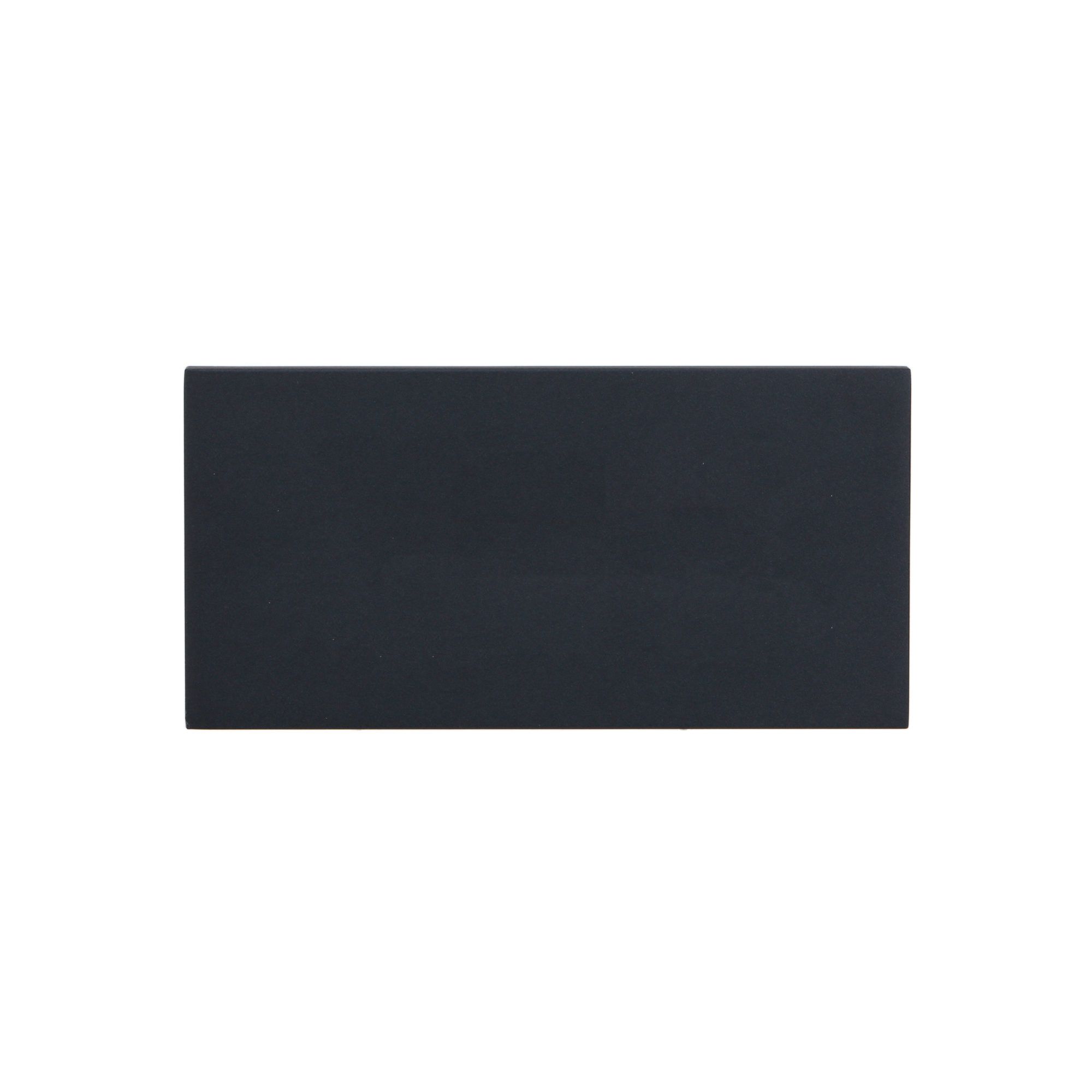

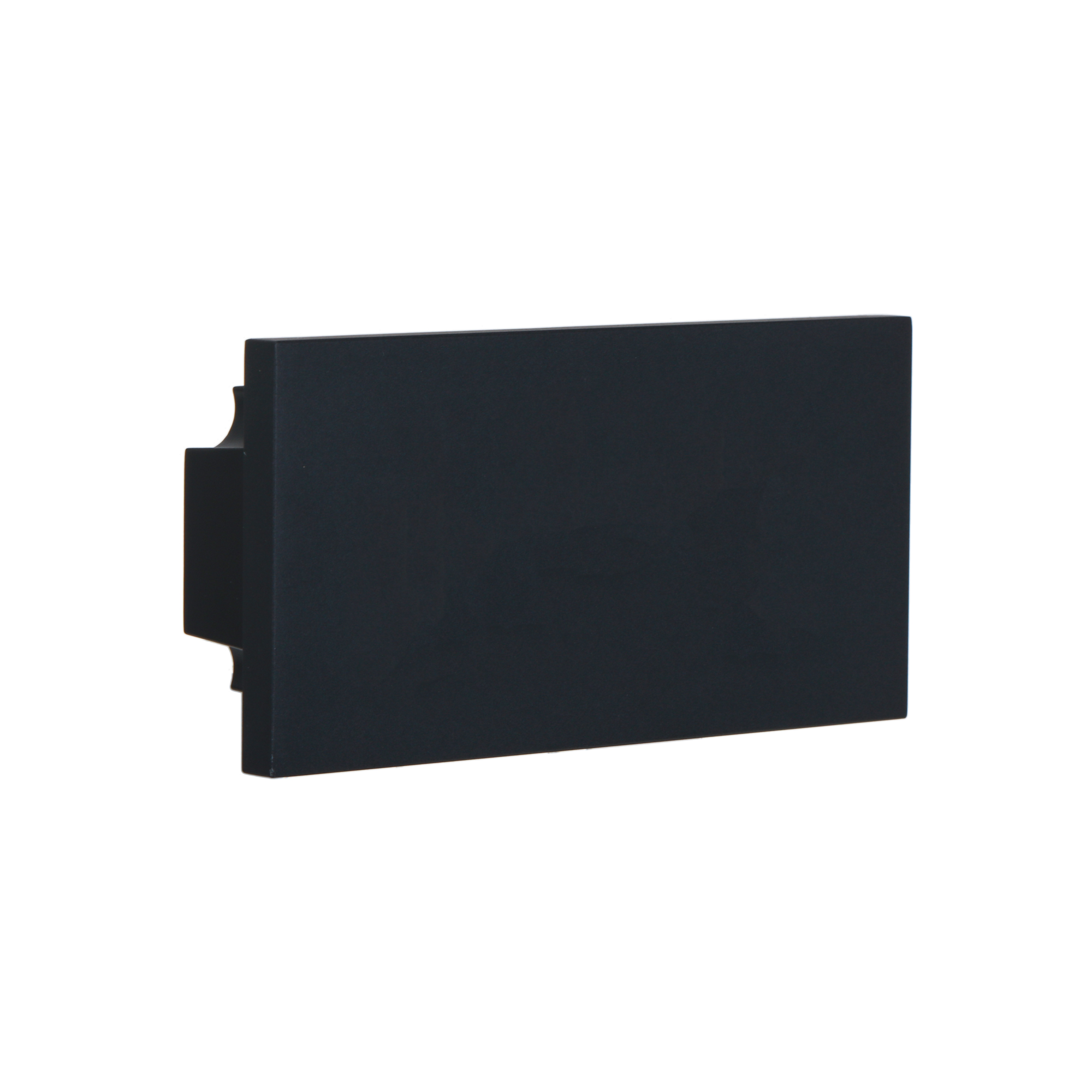

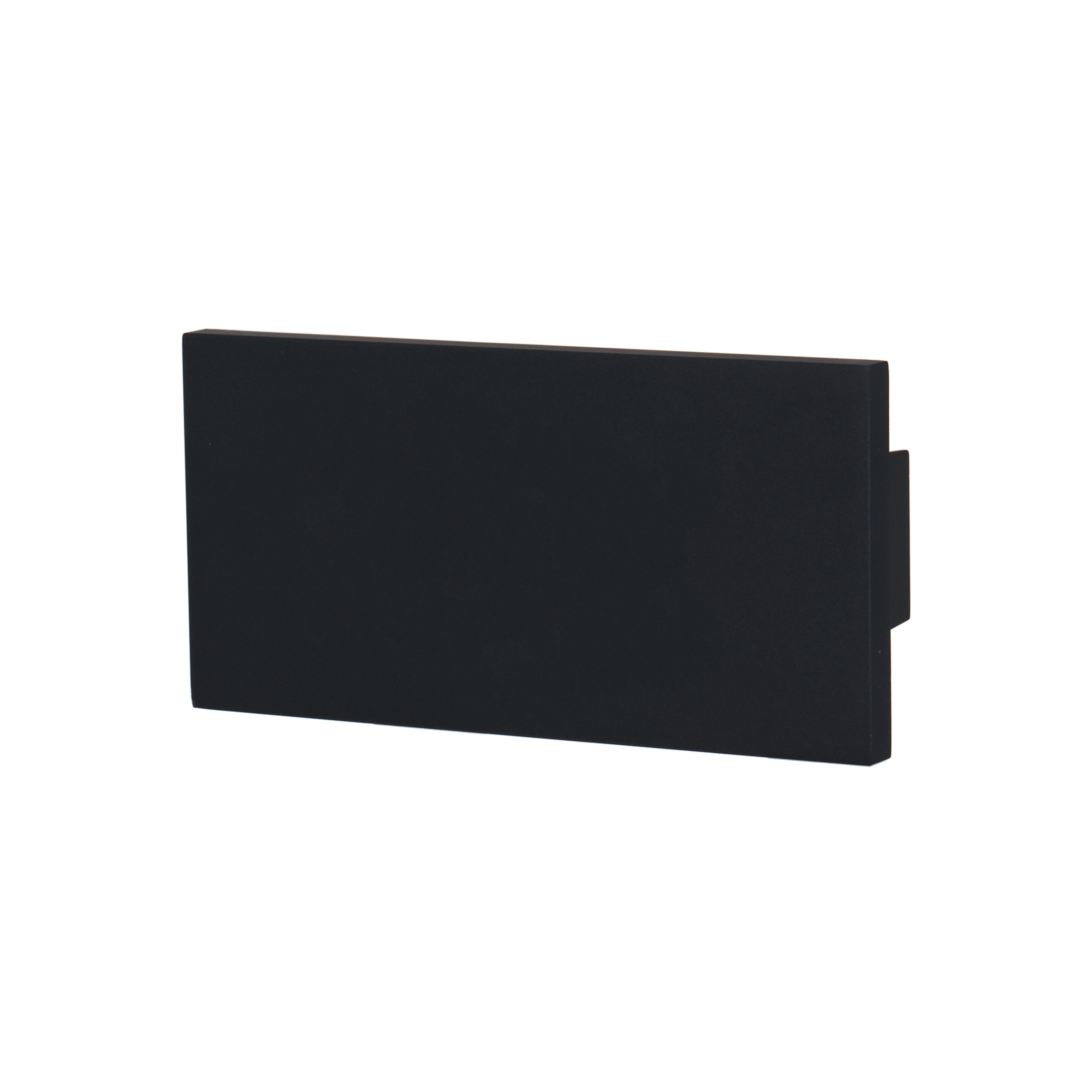

The blank panel module covers an empty slot in the array with a 100 × 50.0 × 28.50 mm aluminum alloy plate and completes the flat face of the panel. It stays on the same supply line as the other modules.
100 × 50.0 × 28.50 mmDimensions
0.17 kgGross weight
≤ 0.5 WPower consumption
IK07; IP65Protection Grade
-30 °C ~ +60 °COperating Temperature
5 VDCPower supply
Key features
Blank panelIt closes an unused slot and keeps dust and water out of the panel.
Half-width moduleThe 100 × 50.0 × 28.50 mm body shares the slot size of the button modules.
Aluminum alloy bodyThe black aluminum alloy plate holds IK07 impact resistance and IP65 protection at the same level as the rest of the array.
Cascade lineThe module stays on the 5 VDC line of the array and draws no more than 0.5 W.
Wide operating rangeIt works between -30 °C and +60 °C and at 10% to 90% relative humidity, non-condensing.
IP65 protection requires silicone sealing during installation.
