Stock Code: VTO4103F-MB5
| General System and Performance Specifications | |
|---|---|
| Main Processor / Casing Material | Embedded Processor / Aluminum Alloy (MI Model: Aluminum) |

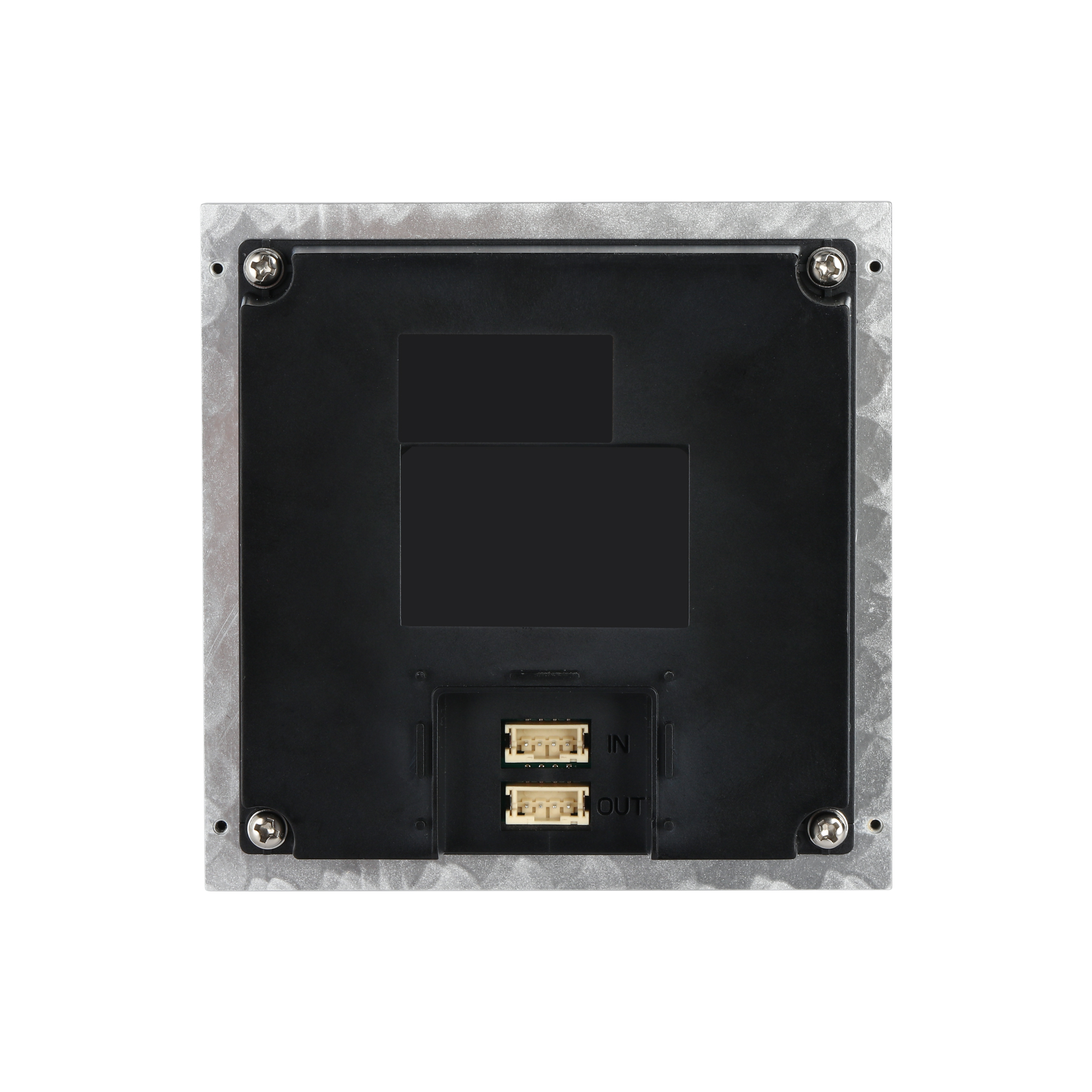

| Power Supply (In/Out) | 5 VDC (Daisy-chain power supply; provides power to other modules) |
| Protection and Durability | IK07; IP65 (Silicone sealant application is required during installation) |
| Operating Conditions | -30 °C ~ +60 °C (-22 °F ~ +140 °F); 10% – 90% RH (Non-condensing) |
| Operating Environment | Outdoor (Altitude: 0 m – 3,000 m) |
| Button and Functional Module Details | |

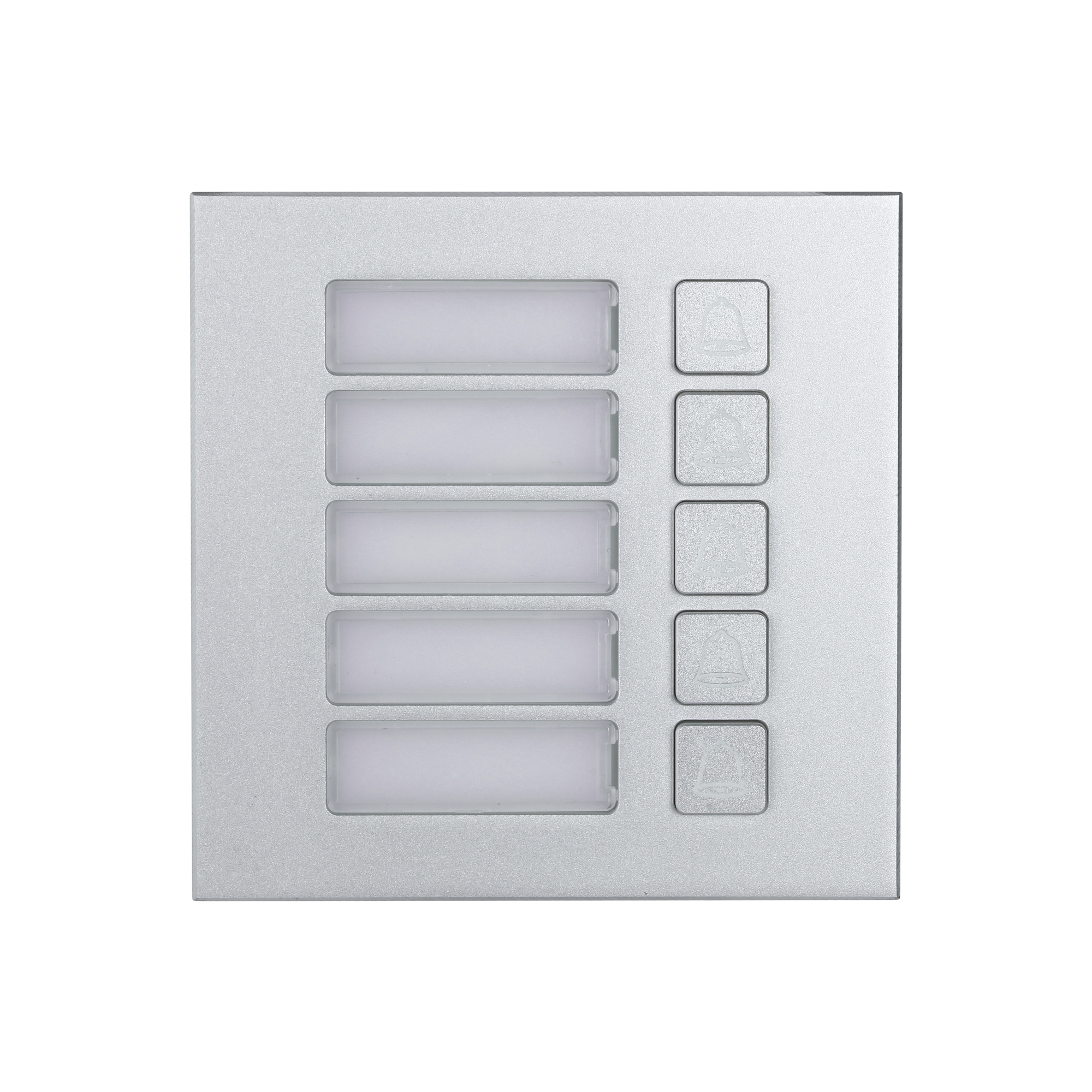

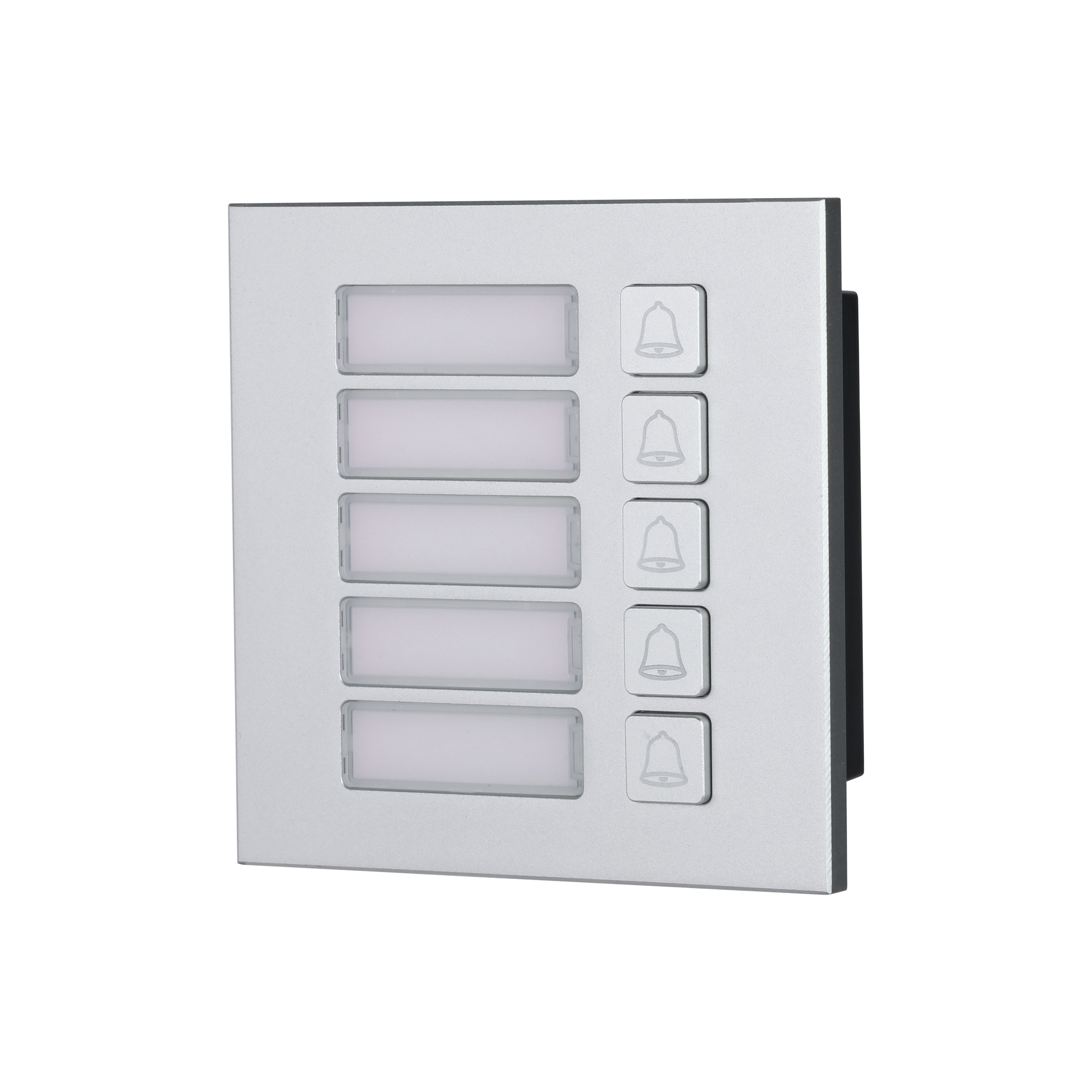

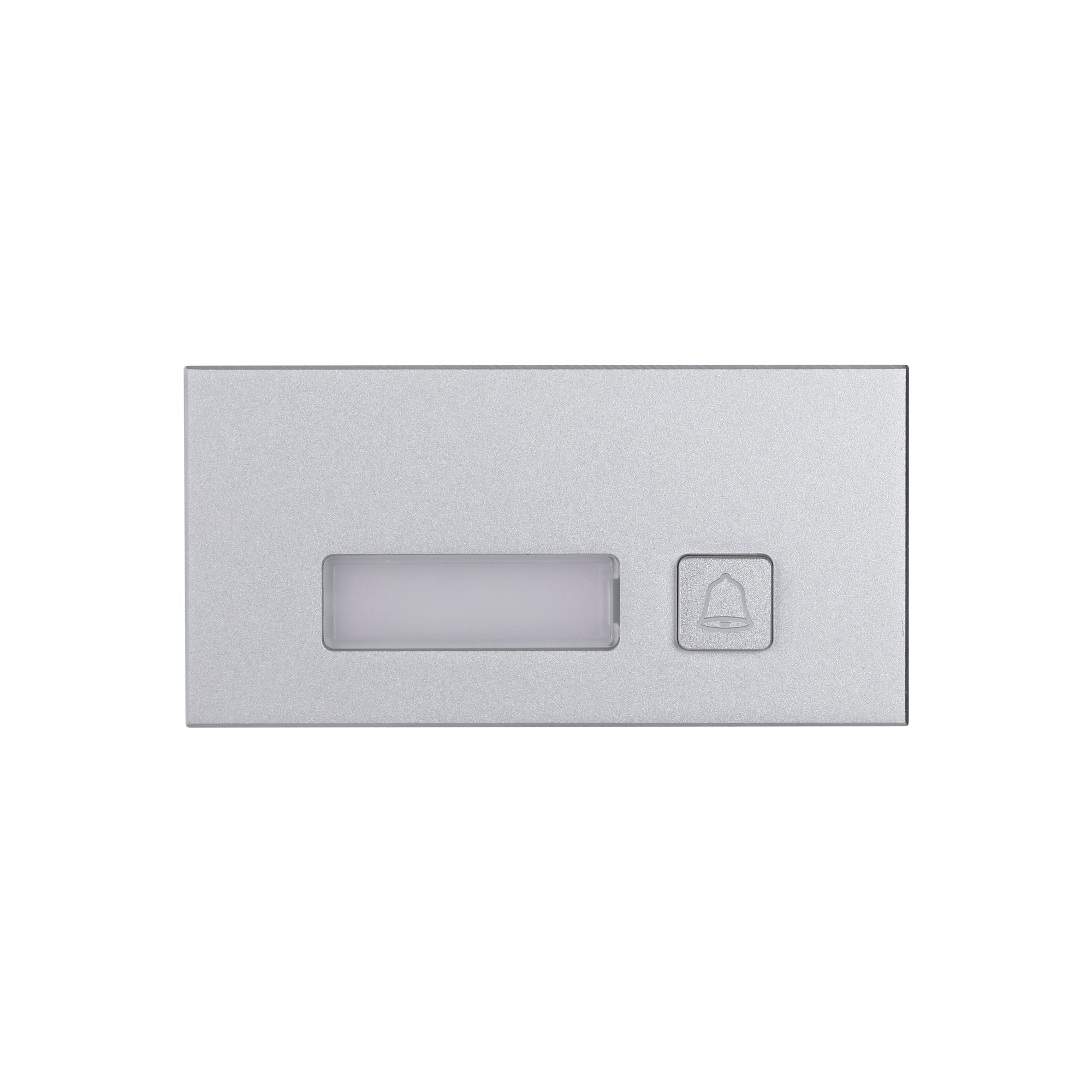

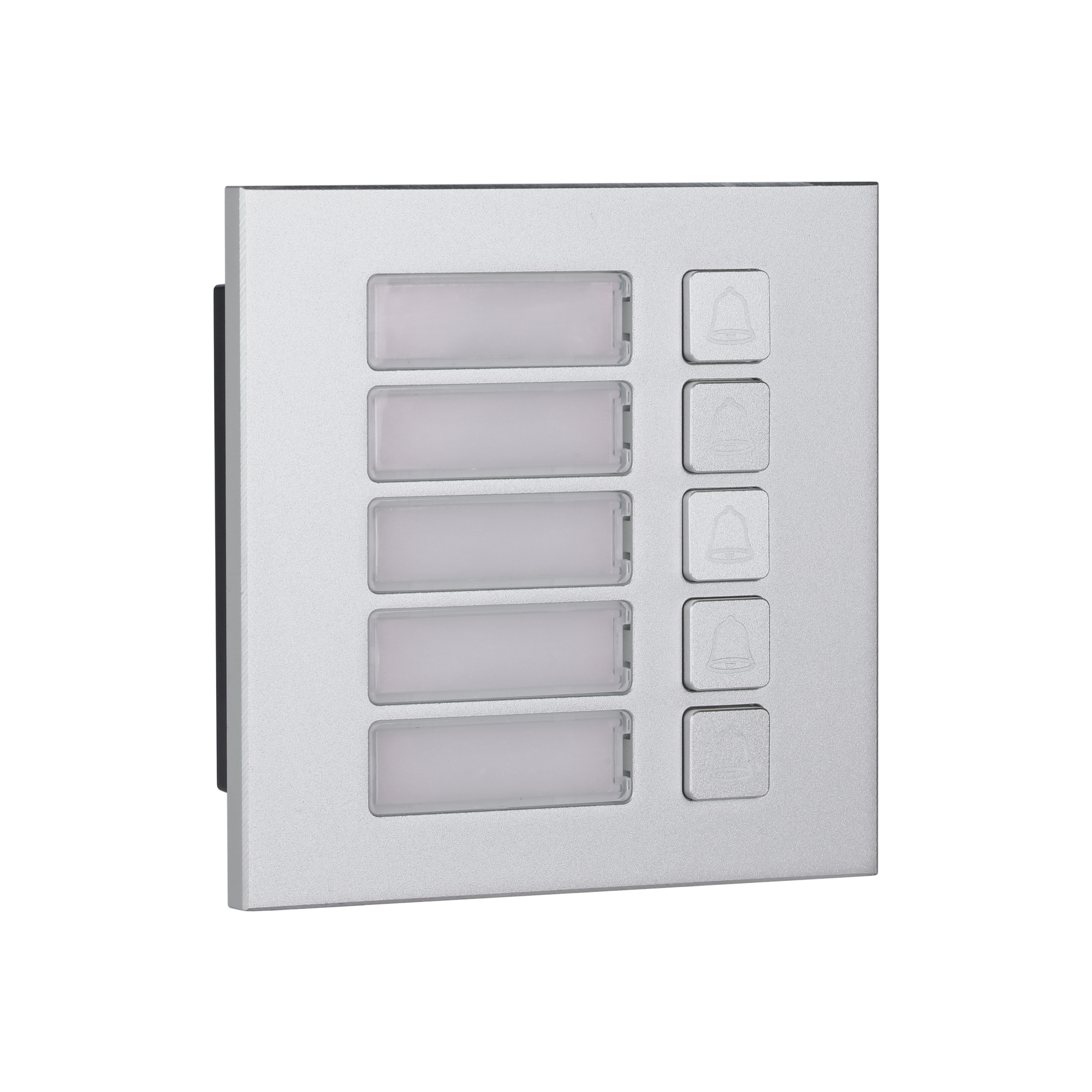

| MB1 / MB2 / MB5 | Mechanical Button Modules; Power: ≤0.5 W (MB1/2: 100×50 mm, MB5: 100×100 mm) |
| MDB2 / MDB4 / MDB10 | Multi-Mechanical Buttons (2/4/10); Power: ≤0.6 W |
| MF / MK Modules | MF: Fingerprint / MK: Mechanical Keypad (Black); Power: ≤0.5 W |
| ML / MN / MI | ML: Indicator (≤2 W); MN: Blank Module (≤0.5 W); MI: Information Module (≤0.5 W) |
| Reader and Security Modules | |
| MR (IC Card Reader) | 13.56 MHz; Power: ≤2 W; Reading Distance: 1 cm – 3 cm |
| MR1 (ID Card Reader) | 125 kHz; Power: ≤2 W; Reading Distance: 1 cm – 3 cm |
| MV (Vigik Module) | Special mounting panel designed for Vigik module installation |
