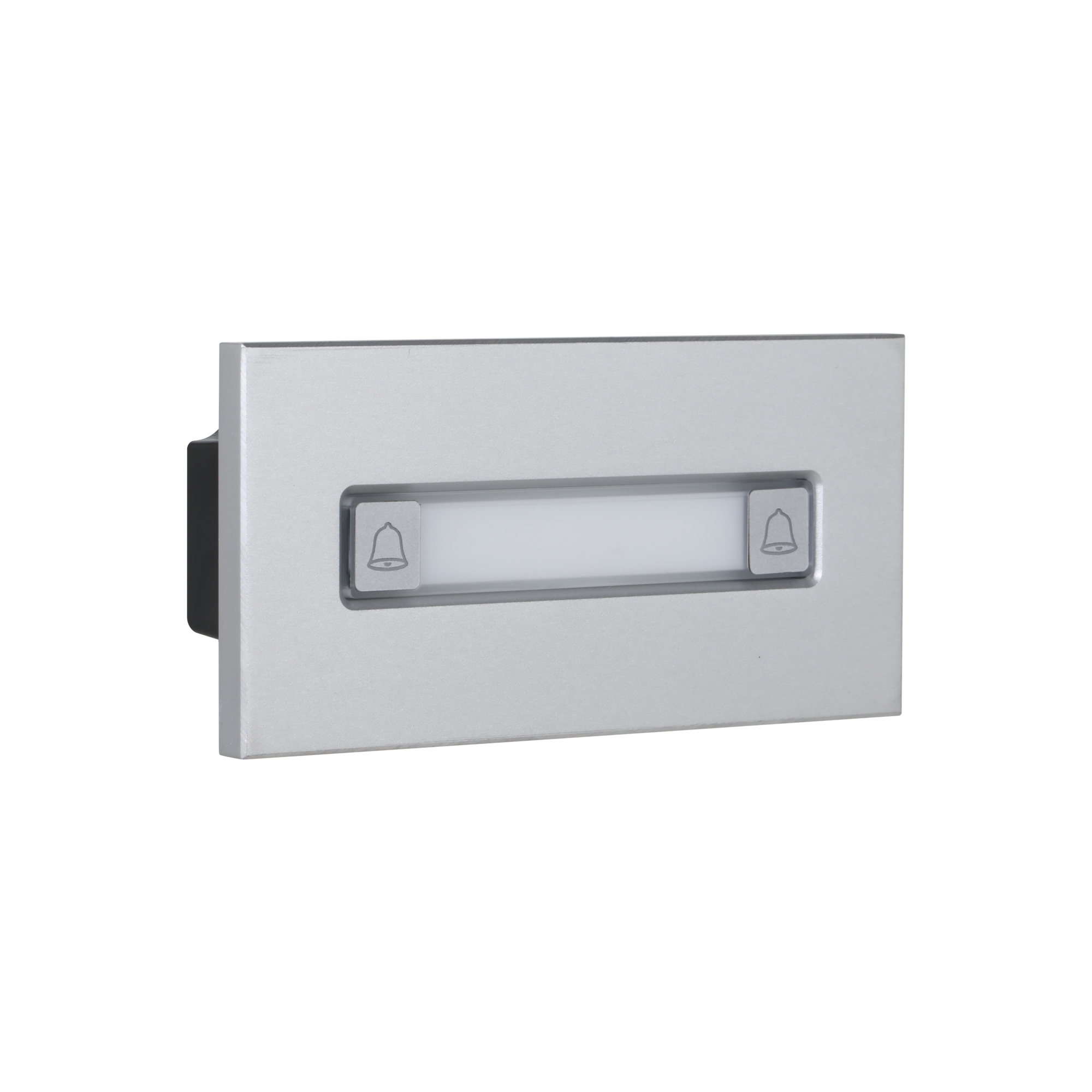

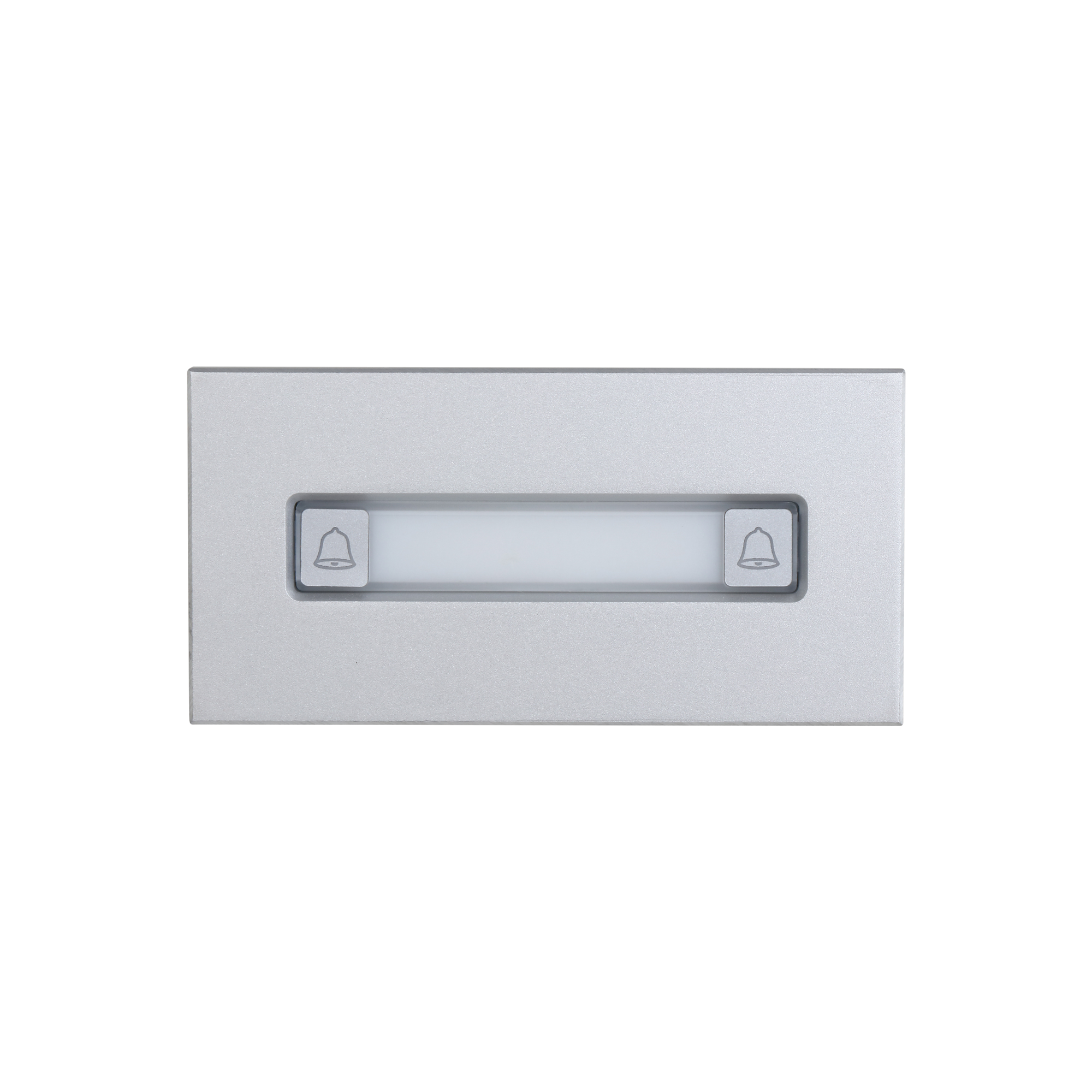

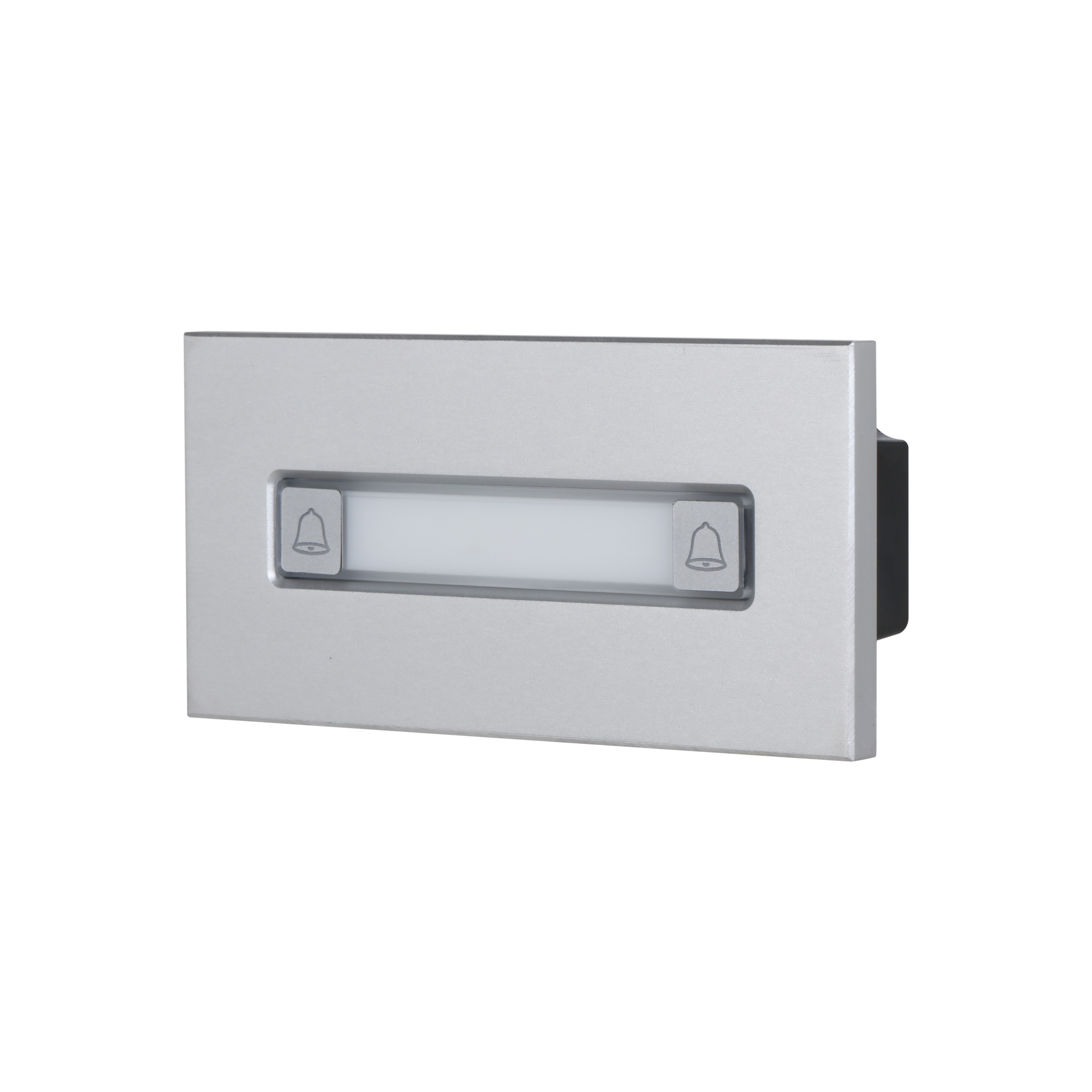

Silver panel module with two mechanical buttons

An outdoor module that adds 2 mechanical buttons to a modular panel system. The silver aluminum alloy body combines IK07 impact resistance with IP65 dust and water protection. It draws power from the other modules and passes 5 V DC to the modules on the same line.

2Mechanical Button Count

IP65Protection Grade

IK07Impact Resistance

-30 °C to +60 °COperating Temperature

5 V DCPower Supply

≤0.6 WPower Consumption

Key features

Two mechanical buttonsThe module combines 2 mechanical buttons in a single body.

Silver aluminum bodyThe silver aluminum alloy casing protects the module against outdoor conditions.

Modular powerIt draws power from the other modules and feeds 5 V DC to the modules on the same line.

Size and weightThe body measures 100.0 mm × 50.0 mm × 26 mm and weighs 0.23 kg.

Low consumptionIt uses ≤0.2 W in standby and ≤0.6 W while working.

Outdoor durabilityIt works outdoors between -30 °C and +60 °C and withstands 10% to 90% relative humidity.

Installation requires silicone sealant; the IP65 rating depends on it.

System

Button Type

Mechanical

Number of Buttons

Performance

Casing Material

Aluminum Alloy

Power Output

5 VDC (Provide power for other modules)

General

Appearance Color

Silver

Power Supply

5 VDC (Provided with power by other modules)

Power Consumption

≤0.2 W (Standby); ≤0.6 W (Working)

Certifications

CE EMC; CE LVD

Construction

Dimensions

100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")

Gross Weight

0.23 kg (0.51 lb)

Ingress Protection

IK07; IP65 (Silicone sealant is needed for installation)

Operating and Storage Conditions

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% RH (Non-condensing)

Operating Environment

Outdoor; Altitude: 0 m – 3,000 m (0 ft – 9,842.52 ft)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75% RH
