Dahua

Module

Name: Module
Brand: Dahua
SKU: VTO4103F-MDB4

Stock Code: VTO4103F-MDB4

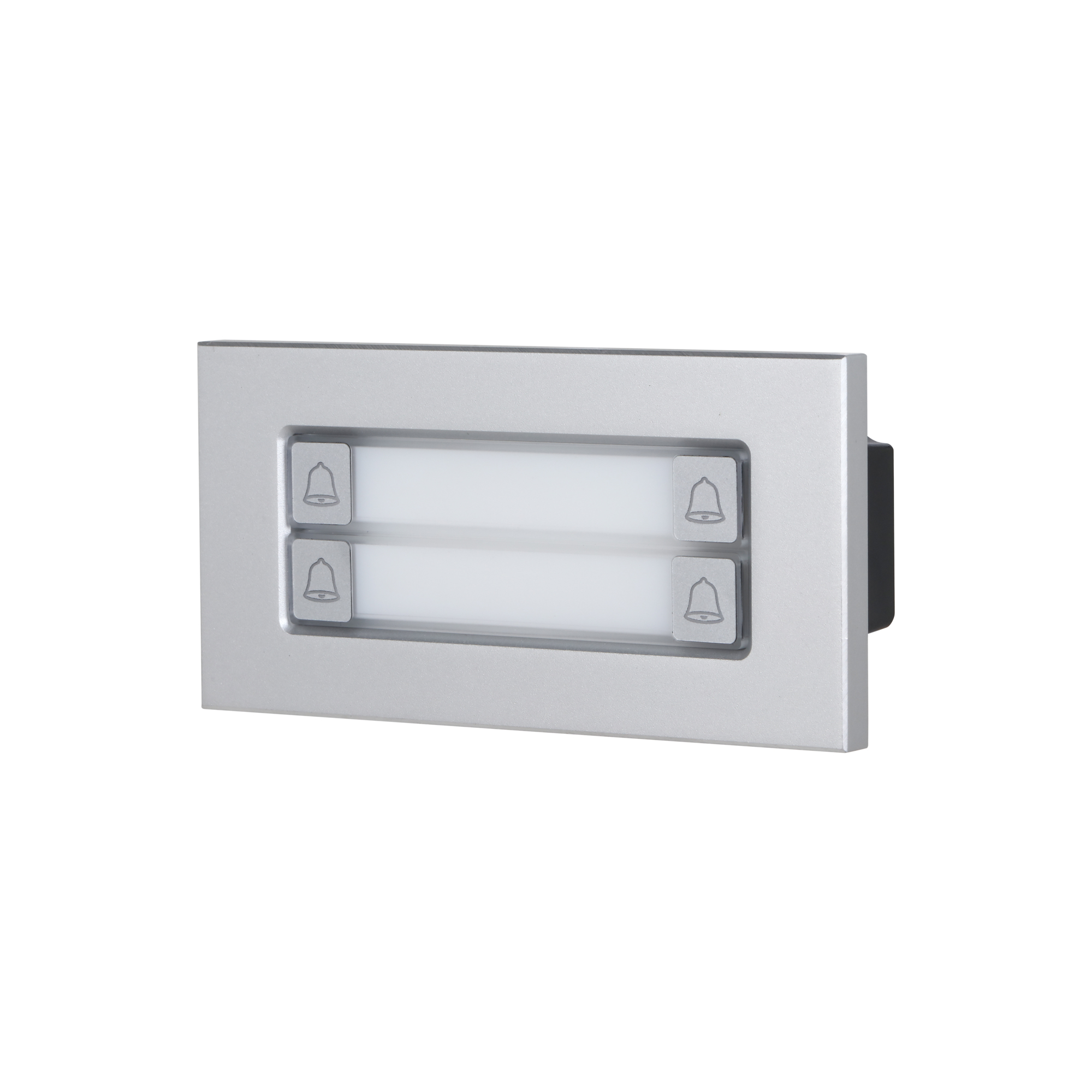

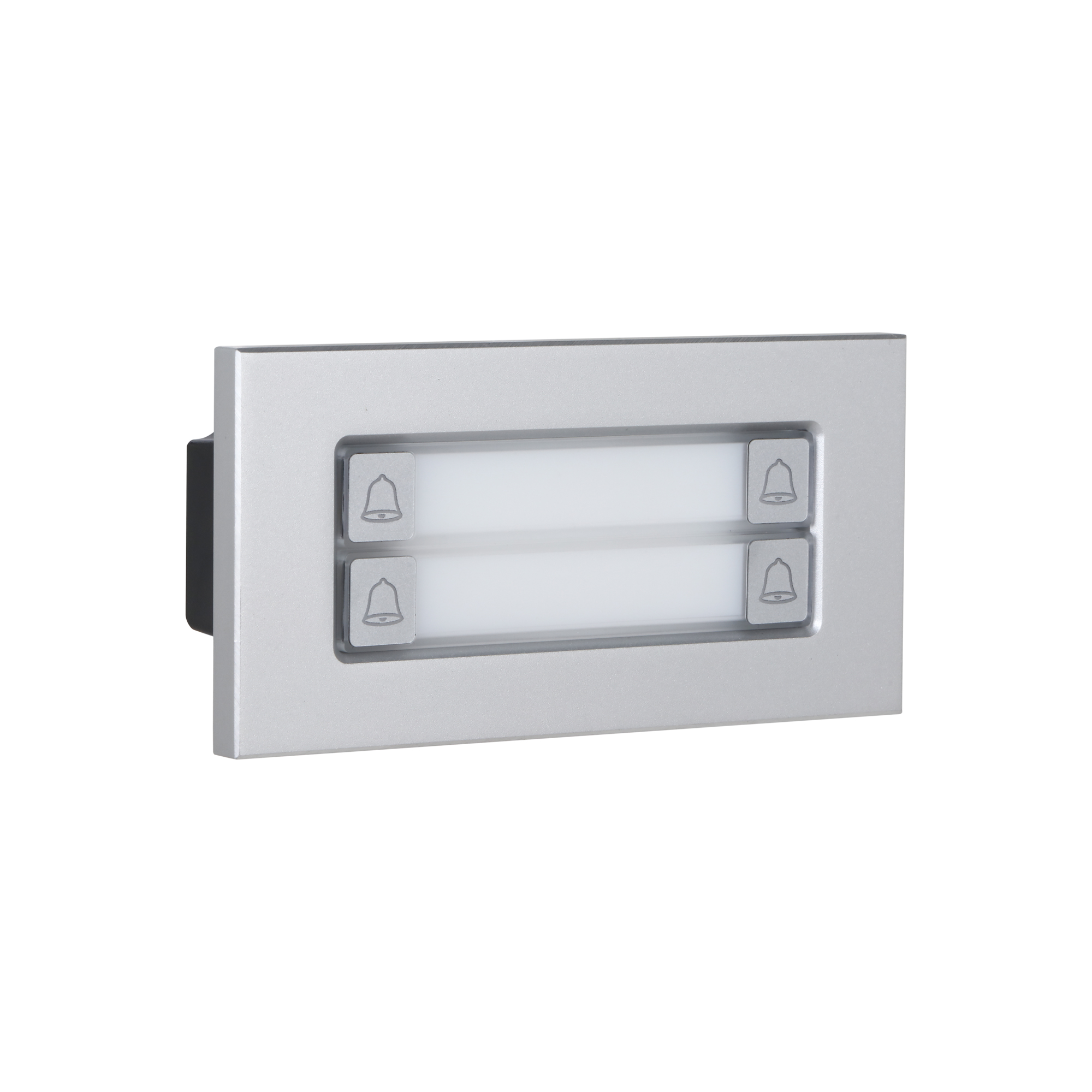

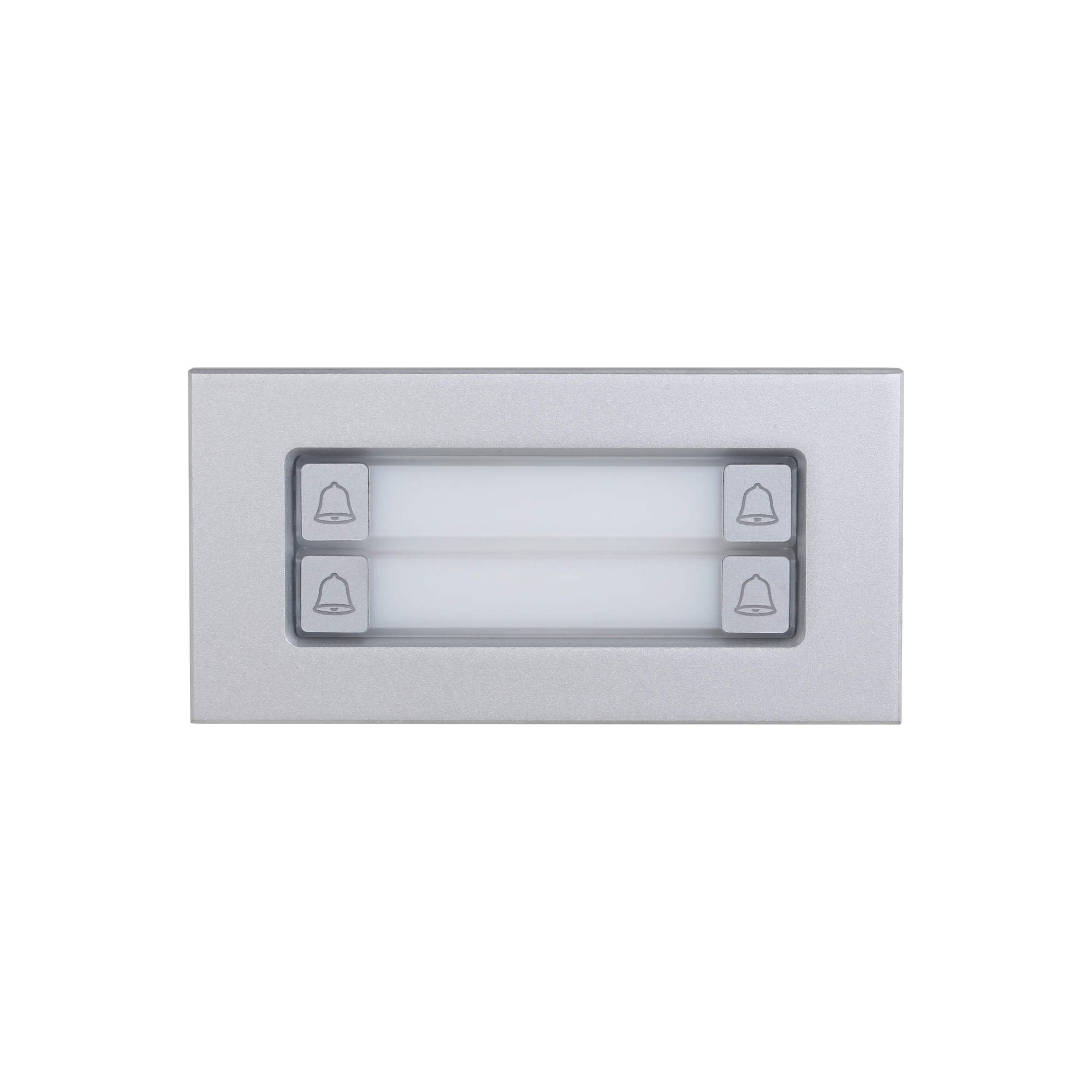

Panel module with four mechanical buttons

An outdoor module that adds 4 mechanical buttons to a modular panel system. The aluminum alloy body combines IK07 impact resistance with IP65 dust and water protection. It draws power from the other modules and passes 5 V DC to the modules on the same line.

4Mechanical Button Count

IP65Protection Grade

IK07Impact Resistance

-30 °C to +60 °COperating Temperature

5 V DCPower Supply

≤0.6 WPower Consumption

Key features

Four mechanical buttonsThe module combines 4 mechanical buttons in a single body.

Aluminum bodyThe aluminum alloy casing protects the module against outdoor conditions.

Modular powerIt draws power from the other modules and feeds 5 V DC to the modules on the same line.

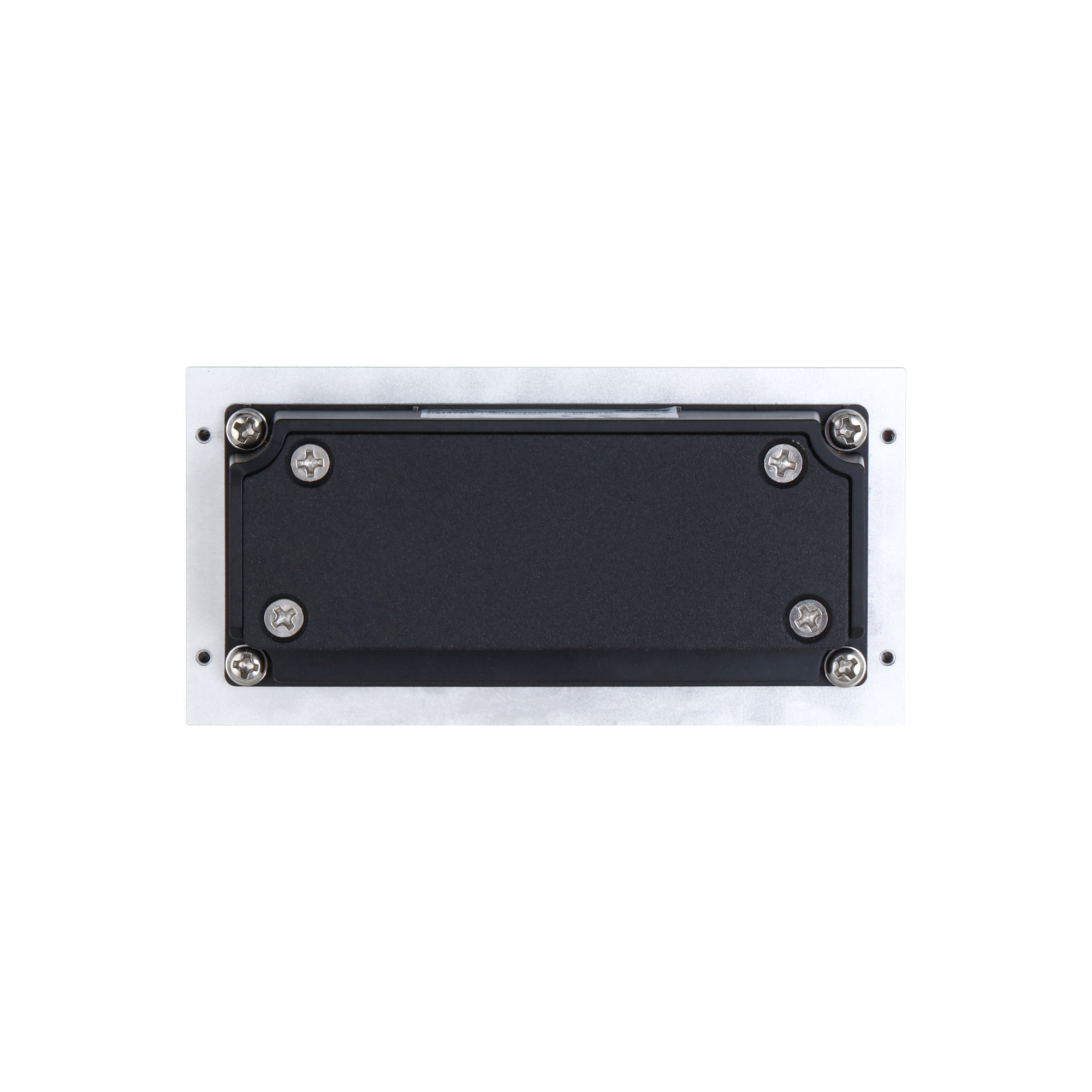

Flush and surface mountIt supports both flush mount and surface mount installation.

Low consumptionIt uses ≤0.2 W in standby and ≤0.6 W while working.

Outdoor durabilityIt works outdoors between -30 °C and +60 °C and withstands 10% to 90% relative humidity.

Installation requires silicone sealant; the IP65 rating depends on it.

Common Technical Specifications
Main Processor / Button Type	Embedded Processor / Mechanical Button
Casing Material	Aluminum Alloy (Aluminum for MI model)
Power Supply (In/Out)	5 VDC (Provides power to other modules / Supplied by other modules)
Installation & Protection	Flush or Surface Mount; IK07; IP65 (Silicone sealant required)
Operating Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F); 10%–90% RH (Non-condensing)
Operating Environment	Outdoor (Altitude: 0 m – 3,000 m)
Module Dimensions, Weight & Power Consumption
DHI-VTO4103F-MB1/2	100 × 50.0 × 30.50 mm; 0.17 kg - 0.18 kg; Power: ≤0.5 W
DHI-VTO4103F-MB5	100 × 100 × 30.50 mm; 0.31 kg; Power: ≤0.5 W
DHI-VTO4103F-MDB Series	100 mm Width; 0.23 kg - 0.33 kg; Power: ≤0.2 W (Standby) / ≤0.6 W (Working)
DHI-VTO4103F-MF/MK	Fingerprint / Keypad Module; 0.32 kg - 0.33 kg; Power: ≤0.5 W
DHI-VTO4103F-ML/MN/MR	Indicator / Blank / Reader Module; 0.16 kg - 0.19 kg; Power: ≤2 W
DHI-VTO4103F-MV (Vigik)	100.0 × 50.0 × 6 mm; Used to install Vigik module (0.28 kg)
Function and Storage Details
Card Type / Frequency	IC Card (13.56 MHz) / ID Card (125 kHz); Read Distance: 1 cm – 3 cm
RFID Modulation / Certs	AM (Amplitude) Modulation; CE EMC; CE LVD; CE
Storage Conditions	0°C ~ +40°C (+32°F ~ +104°F); 30%–75% RH
