Module

Name: Module
Brand: Dahua
SKU: VTO4103F-MI

Stock Code: VTO4103F-MI

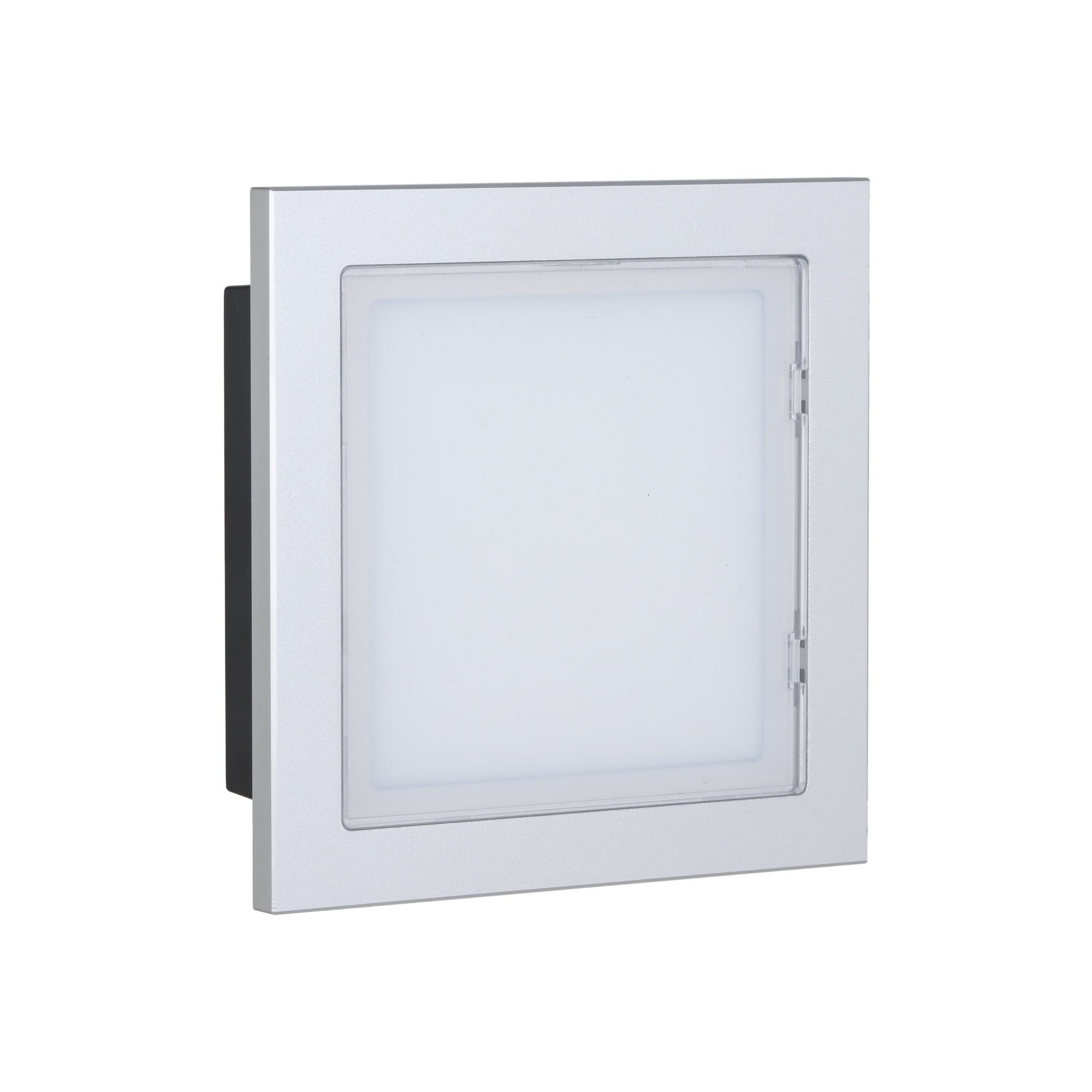

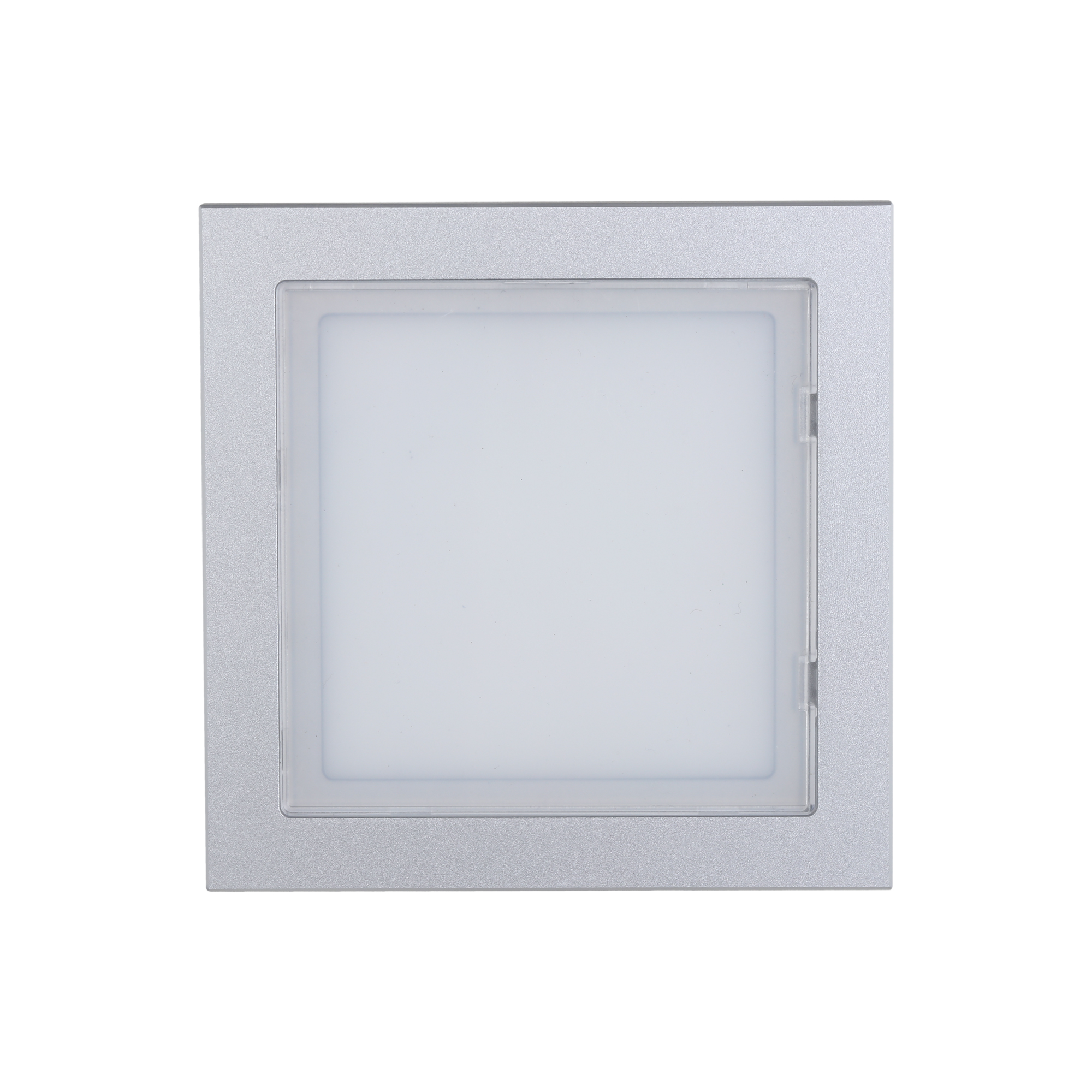

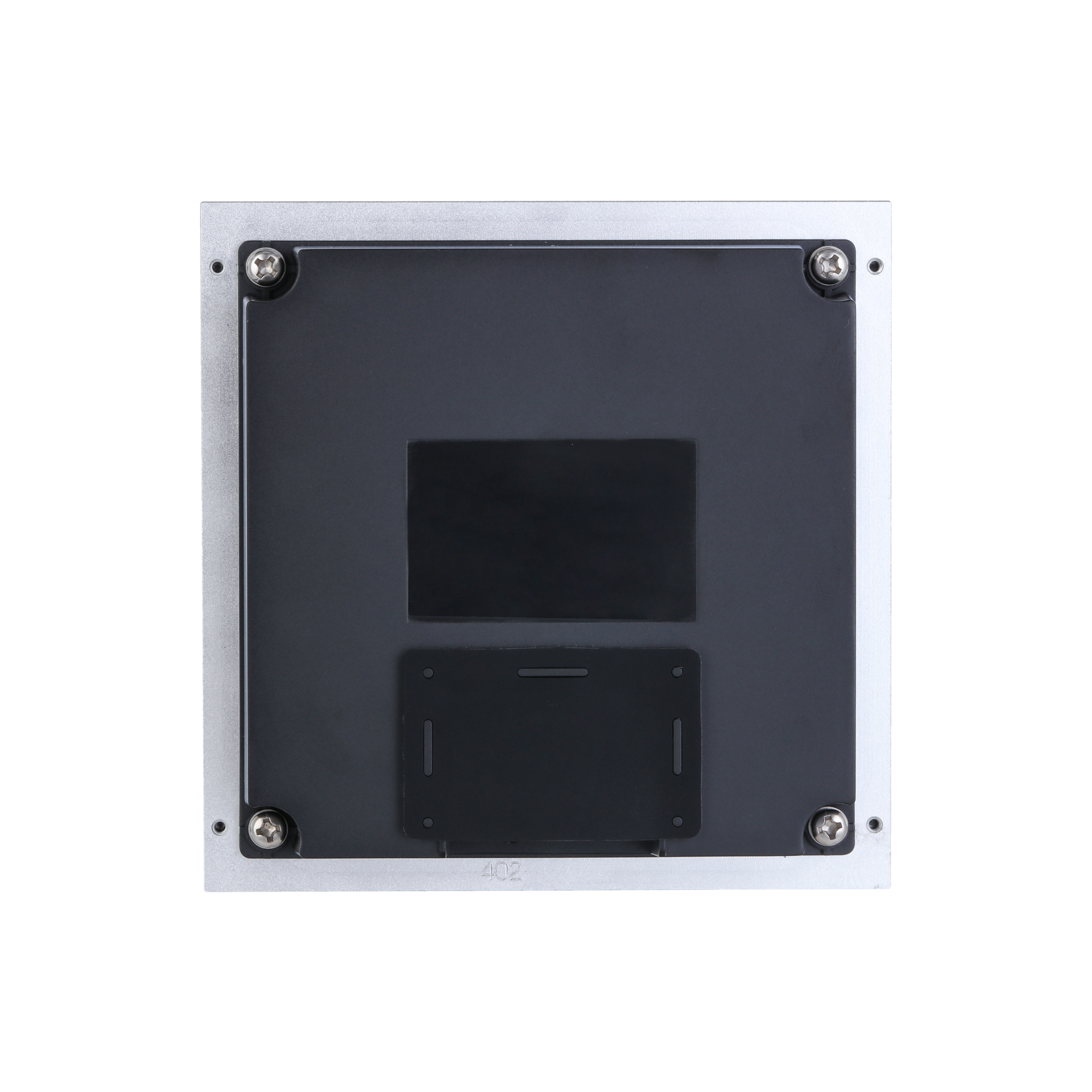

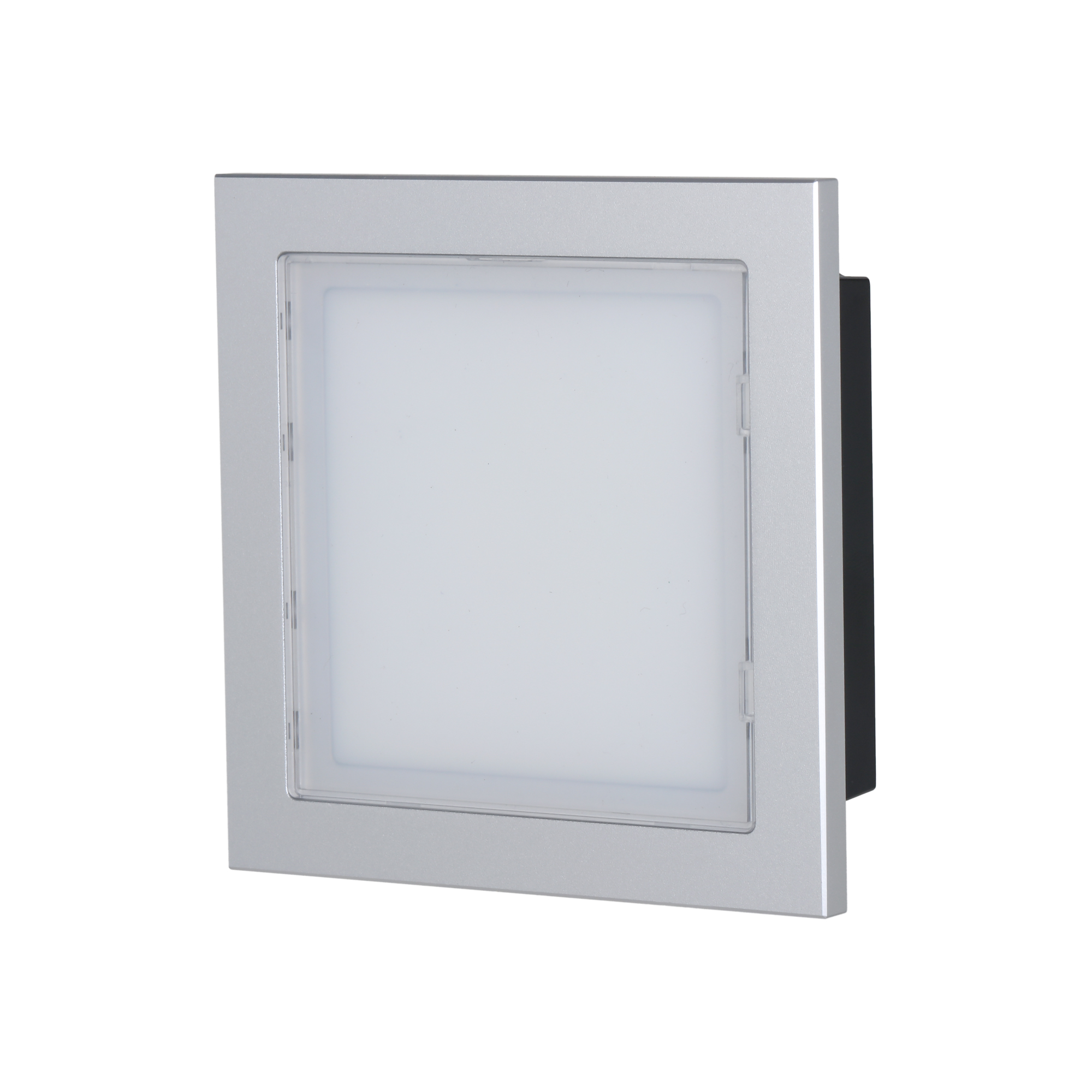

Outdoor panel module with an aluminum body

An outdoor module that fits into a modular panel system. The aluminum body combines IK07 impact resistance with IP65 dust and water protection. It draws power from the other modules and passes 5 V DC to the modules on the same line.

IP65Protection Grade

IK07Impact Resistance

-30 °C to +60 °COperating Temperature

5 V DCPower Supply

Key features

Aluminum bodyThe aluminum casing protects the module against outdoor conditions.

Modular powerIt draws power from the other modules and feeds 5 V DC to the modules on the same line.

Flush and surface mountIt supports both flush mount and surface mount installation.

Outdoor durabilityIt works outdoors between -30 °C and +60 °C and withstands 10% to 90% relative humidity.

Installation requires silicone sealant; the IP65 rating depends on it.

Common Technical Specifications (DHI-VTO4103F Series)
Main Processor / Button Type	Embedded Processor / Mechanical Button
Casing Material	Aluminum Alloy (Aluminum for MI model)
Power Supply (In/Out)	5 VDC (Supplied by other modules / Provides power to other modules)
Installation & Protection	Flush Mount; Surface Mount; IK07; IP65 (Silicone sealant required)
Operating Conditions	–30 °C to +60 °C (–22 °F to +140 °F); 10%–90% RH (Non-condensing)
Operating Environment	Outdoor (Altitude: 0 m–3,000 m)
Module Dimensions, Weight, and Power Consumption
DHI-VTO4103F-MB1/2/5	100 mm Width; 0.17 kg - 0.31 kg; Power: ≤0.5 W
DHI-VTO4103F-MDB Series	100 mm Width; 0.23 kg - 0.33 kg; Power: ≤0.2 W (Standby) / ≤0.6 W (Working)
DHI-VTO4103F-MF/MK	Fingerprint / Keypad Module; 0.32 kg - 0.33 kg; Power: ≤0.5 W
DHI-VTO4103F-ML/MN/MR	Indicator / Blank / Reader Module; 0.16 kg - 0.19 kg; Power: ≤2 W / ≤0.5 W
DHI-VTO4103F-MV (Vigik)	100.0 × 50.0 × 6 mm; 0.28 kg; Used for Vigik module installation

Datasheet

VTO4103F-MI DATA

12/11/2026

Kullanım Kılavuzu

VTO4103F-MI KULLANIM KILAVUZU

12/11/2026

Teknik Çizim

VTO4103F-MI TEKNİK ÇİZİM

12/11/2026
